MTS Systems

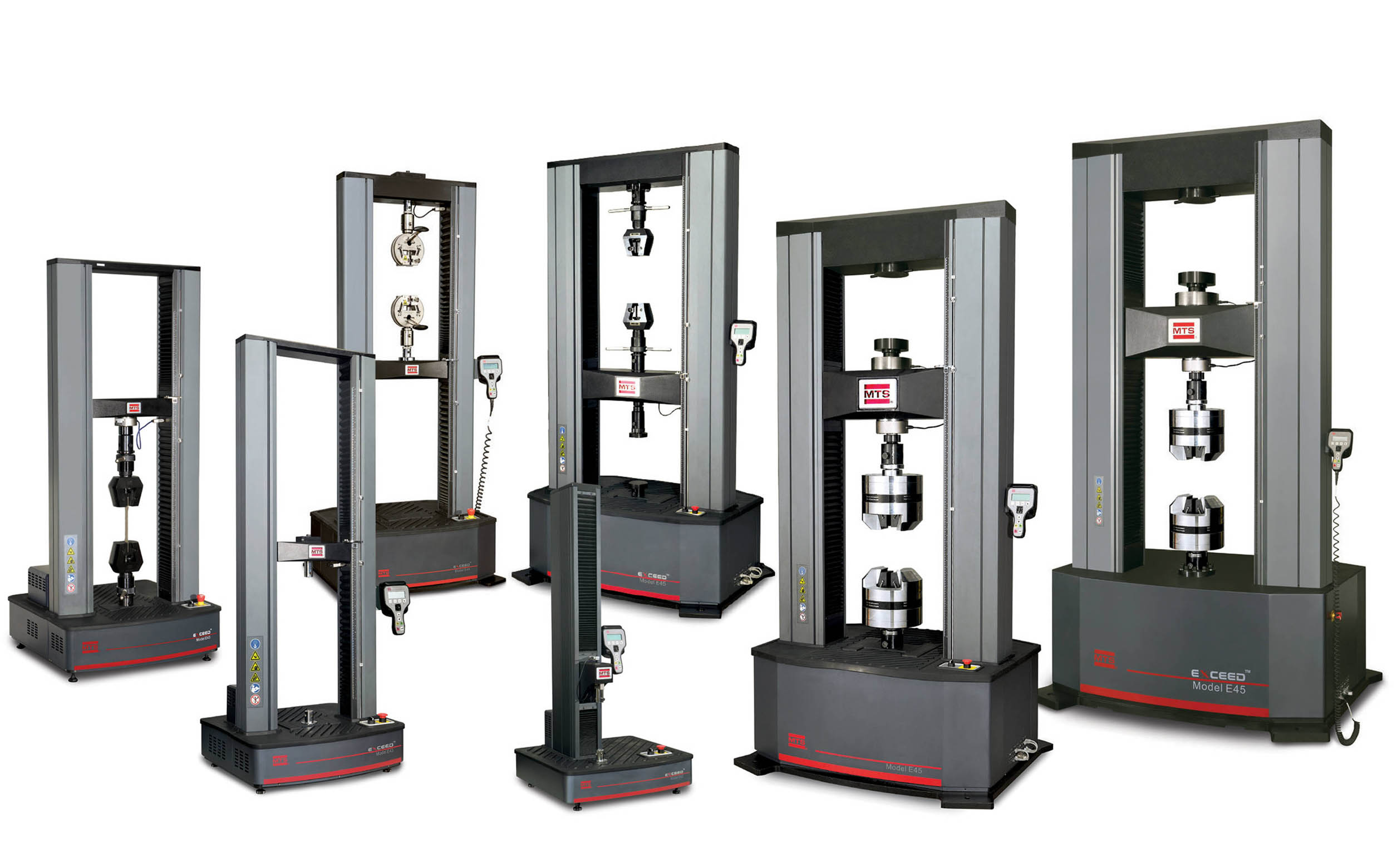

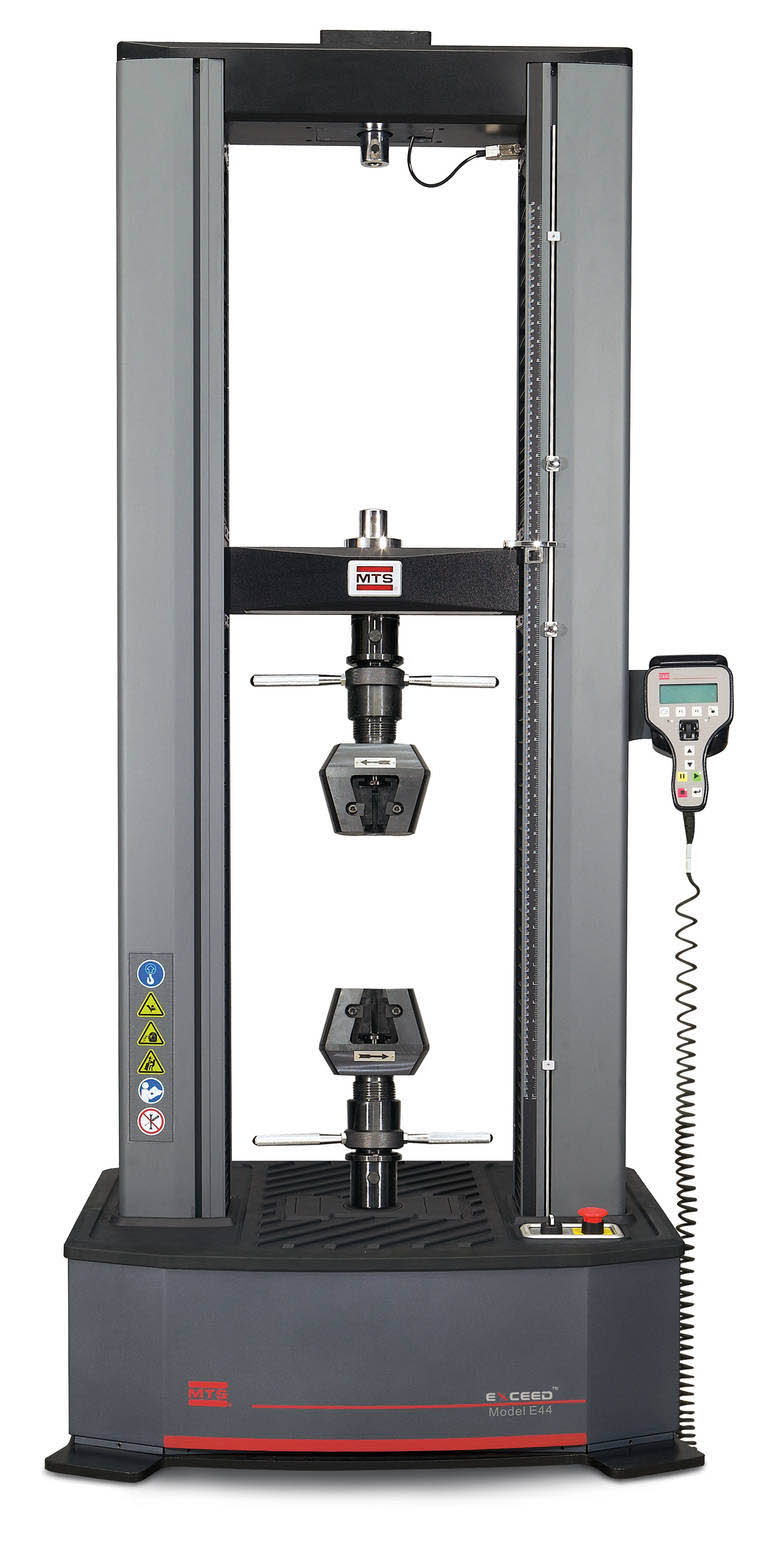

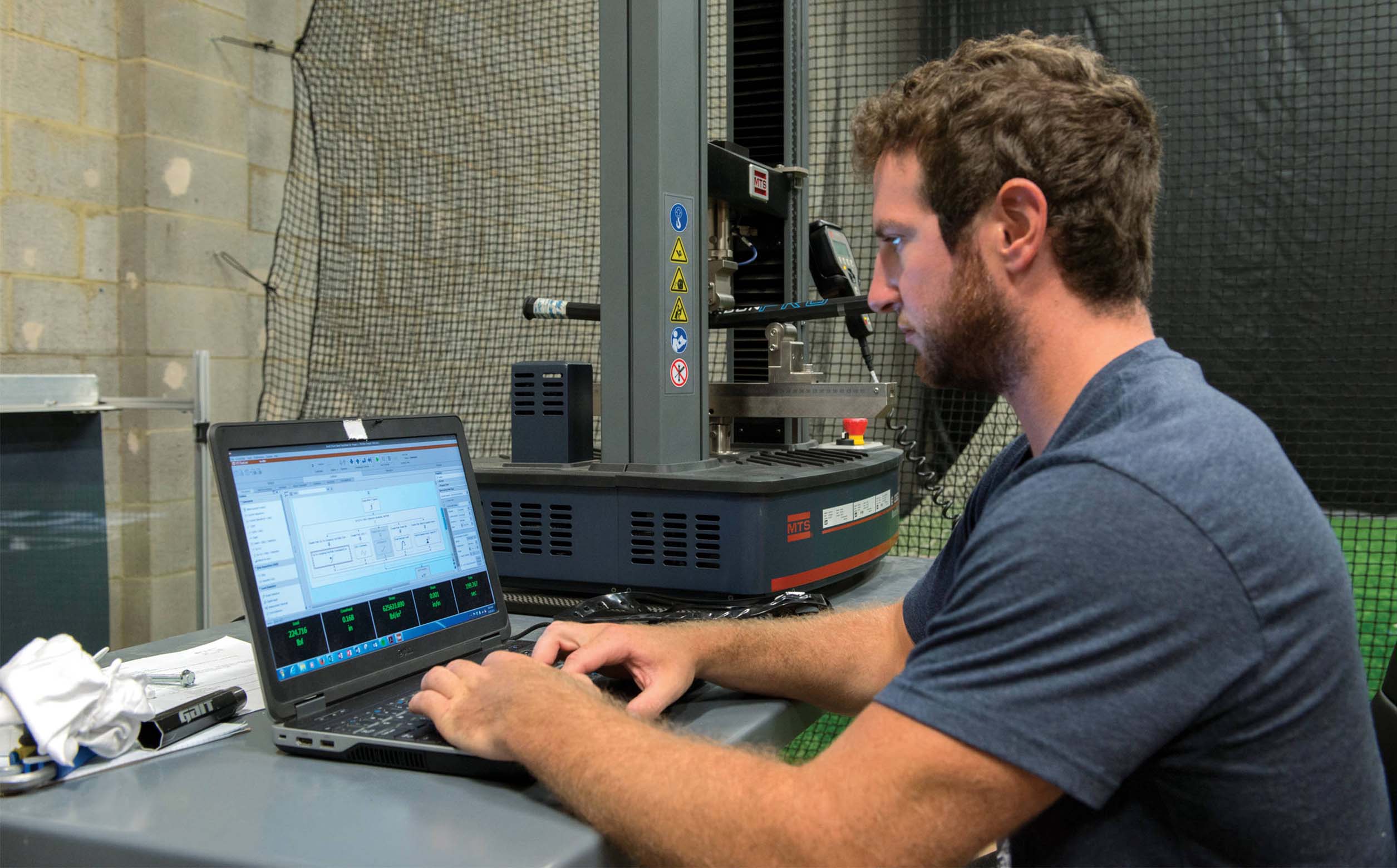

Exceed® Electromechanical Test Systems
Systems with force capacities from 5 to 600 kN (1,100 to 132,000 lbf) meet QA/QC requirements and uptime demands of production environments, and provide reliable results for product development. Durable and easy to use, with features and controls typically found on higher-end systems. Accessories to test as low as 5 N (1.1 lbf) on a range of specimens.
Key Features & Benefits
- Cost Efficient — Dual-test zone design uses single load cell for two types of tests
- Easy, Intuitive Use — Self-ID capability for calibration and auto-ranging
- Accurate — 1000 Hz data acquisition rate provides more meaningful analysis
- Durable — Heavy duty components support longer system life
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications - Comparative
| Model | E42.503* | E43.104 | E43.504 | |
|---|---|---|---|---|
| Maximum rated force capacity | 5 kN (1100 lbf) | 10 kN (2200 lbf) | 50 kN (11000 lbf) | |
| Force capacity options | 5 N, 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN 1 lbf, 2 lbf, 5 lbf, 10 lbf, 20 lbf, 45 lbf, 110 lbf, 220 lbf, 450 lbf, 1100 lbf | 5 N, 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN, 10 kN 1 lbf, 2 lbf, 5 lbf, 10 lbf, 20 lbf, 45 lbf, 110 lbf, 220 lbf, 450 lbf, 1100 lbf, 2200 lbf | 20 kN, 30 kN, 50 kN 4500 lbf, 6700 lbf, 11000 lbf | |
| Frame type | Tabletop | Tabletop | Tabletop | |
| Test zones (single/dual) | Single | Single | Single | |
| Maximum test speed | 508 mm/min (20 in/min) | 508 mm/min (20 in/min) | 508 mm/min (20 in/min) | |
| Minimum test speed | 0.001 mm/min (0.00004 in/min) | 0.001 mm/min (0.00004 in/min) | 0.001 mm/min (0.00004 in/min) | |
| Position resolution | 0.000051 mm (0.0000022 in) | 0.000041 mm (0.0000016 in) | 0.00006 mm (0.0000023 in) | |
| Vertical test space crosshead travel | Standard Extended | 700 mm (27.6 in) 1000 mm (39.4 in) | 1000 mm (39.4 in) 1300 mm (51.2 in) | 1000 mm (39.4 in) 1300 mm (51.2 in) |
| Space between columns | 100 mm (3.94 in)* | 340 mm (13.4 in) | 420 mm (16.5 in) | |
| Frame height | Standard Extended | 1300 mm (51.18 in) 1600 mm (63.0 in) | 1617 mm (63.7 in) 1917 mm (75.5 in) | 1770 mm (69.7 in) 2070 mm (81.5 in) |
| Frame width | 642 mm (25.28 in) | 681 mm (26.81 in) | 820 mm (32.3 in) | |
| Frame depth | 582 mm (22.91 in) | 588 mm (23.15 in) | 775 mm (30.5 in) | |
| Weight | Standard Extended | 120 kg (265 lb) 130 kg (287 lb) | 120 kg (265 lb) 130 kg (287 lb) | 325 kg (716 lb) 345 kg (761 lb) |
| Power requirement | Single-phase 200-240 V AC, 3 Amp 50/60 Hz, 600 W | Single-phase 200-240 V AC, 3 Amp 50/60 Hz, 600 W | Single-phase 200-240 V AC, 6 Amp 50/60 Hz, 1600 W |
Detailed Technical Specifications - Comparative
| Model | E44.304 | E45.105 | E45.305 | E45.605 |
|---|---|---|---|---|
| Maximum rated force capacity | 30 kN (6600 lbf) | 100 kN (22000 lbf) | 300 kN (66000 lbf) | 600 kN (132000 lbf) |
| Force capacity options | 100 N, 250 N, 500 N, 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 30 kN 20 lbf, 50 lbf, 110 lbf, 220 lbf, 450 lbf, 1100 lbf, 2200 lbf, 4400 lbf, 6600 lbf | 50 kN, 100 kN 11000 lbf, 22000 lbf | 200 kN, 300 kN 44000 lbf, 66000 lbf | 600 kN 132000 lbf |
| Frame type | Floor-standing | Floor-standing | Floor-standing | Floor-standing |
| Test zones (dual) | Dual | Dual | Dual | Dual |
| Maximum test speed | 508 mm/min (20 in/min) | 508 mm/min (20 in/min) | 250 mm/min (9.84 in/min) | 254 mm/min (10 in/min) |
| Minimum test speed | 0.001 mm/min (0.00004 in/min) | 0.001 mm/min (0.00004 in/min) | 0.001 mm/min (0.00004 in/min) | 0.001 mm/min (0.00004 in/min) |
| Position resolution | 0.000040 mm (0.0000015 in) | 0.000041 mm (0.0000016 in) | 0.000017 mm (0.0000007 in) | 0.000016 mm (0.0000006 in) |
| Vertical test space crosshead travel Standard Extended | 1150 mm (45.28 in) 1450 mm (57.09 in) | 1050 mm (41.34 in) 1350 mm (53.15 in) | 1100 mm (43.30 in) 1400 mm (55.12 in) | 1300 mm (51.2 in) |
| Space between columns | 400 mm (15.75 in) | 600 mm (23.62 in) | 580 mm (22.83 in) | 750 mm (29.52 in) |
| Frame Height Standard Extended | 1862 mm (73.3 in) 2162 mm (85.12 in) | 2133 mm (83.98 in) 2433 mm (95.79 in) | 2360 mm (92.91 in) 2660 mm (104.72 in) | 2820 mm (111.02 in) |
| Frame width | 845 mm (33.27 in) | 1230 mm (48.43 in) | 1215 mm (47.83 in) | 1660 mm (65.35 in) |
| Frame depth | 716 mm (27.19 in) | 870 mm (34.25 in) | 960 mm (37.80 in) | 1272 mm (50.08 in) |
| Weight Standard Extended | 435 kg (959 lb) 450 kg (992 lb) | 1400 kg (3086 lb) 1450 kg (3197 lb) | 1700 kg (3748 lb) 1750 kg (3758 lb) | 3500 kg (7716 lb) |
| Power requirement | Single-phase 200-240 V AC, 6 Amp 50/60 Hz, 1200 W | Single-phase 200-240 V AC, 10 Amp 50/60 Hz, 2000 W | Three-phase 380-415 V AC, or 440-480 V AC, 6.8 Amp 50/60 Hz, 5000 W | Three-phase 380-415 V AC, or 440-480 V AC, 10 Amp 50/60 Hz, 5000 W |
Detailed Technical Specifications - Common
| Low Profile Force Accuracy* (bending beam & shear beam) | ± 0.5% of applied force | ± 1.0% of applied force |
|---|---|---|
| Low Profile Force Range** (bending beam & shear beam) | 1 to 100% of rated force capacity | 0.5 to 1% of force rated capacity |
| S-Beam Force Accuracy* | ± 1.0% of applied force | |
| S-Beam Force Range** | 1 to 100% of rated force capacity | |
| Rated maximum force at max. test speed | 100% | |
| Rated maximum test speed at maximum force | 100% | |
| Speed accuracy | Set speed < 0.01 mm/min: speed accuracy is within ± 1.0% of set speed Set speed ≥ 0.01 mm/min: speed accuracy is within ± 0.5% of set speed | |
| Position accuracy | Within ± 0.5% | |
| Strain accuracy*** (depending on extensometer) | ± 0.5% of applied strain | |
| Security protection | Over-force, travel limits, over-voltage and others | |
| Over force protection | 10% | |
| Data acquisition rate | Up to 2500 Hz | |
| Control loop rate | 5000 Hz | |
| Environmental requirements (For indoor use only) | ||
| Operating temperature | 5° C to 40° C (41° F to 104° F) | |
| Operating humidity | 5% - 85% non-condensing | |
| Storage temperature | -18° C to 49° C (0° to 120° F) | |
| Maximum storage humidity | 90% non-condensing | |
| Maximum altitude | 2000 meters | |
| Motor & drive system | AC Servo Motor | |
| Ballscrews | Pre-loaded | |
| Position measurement | Encoder | |
| User Digital Inputs/Outputs (DIO) | 4 user Digital Inputs and 4 user Digital Outputs | |
| Encoder capacity | 4 Encoders |

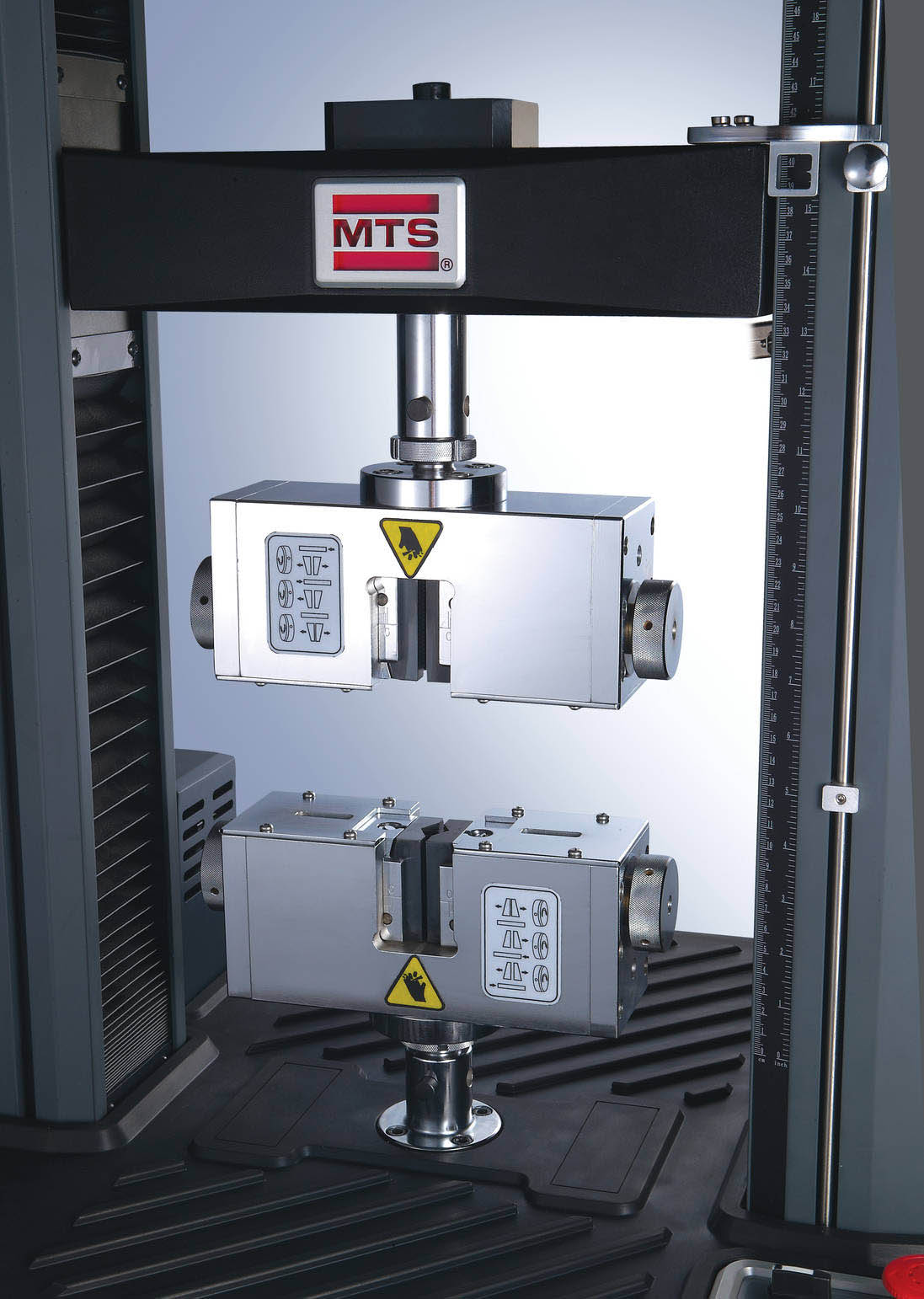

Grip / Fixture Attachment Types
| Electromechanical Attachment Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Clevis Pin Connection | Type B | Type C (AL) | Type C (STL) | Type D | Type E | Type F | Type 20 | Type 40 |
| Max. Load Capacity | 10 N (2.2 lbf) | 200 N (45 lbf) | 2.5 kN (562 lbf) | 150 kN (33720 lbf) | 300 kN (67440 lbf) | 600 kN (134885 lbf) | 30 kN (6740 lbf) | 100 kN (22480 lbf) |
| Clevis Diameter (X) | 12.7 mm (0.50 in) | 15.9 mm (0.625 in) | 15.9 mm (0.625 in) | 31.7 mm (1.25 in) | 60 mm (2.36 in) | 90 mm (3.54 in) | 20 mm (0.787 in) | 40 mm (1.57 in) |
| Pin Diameter (Y) | 4.7 mm (0.186 in) | 6.4 mm (0.25 in) | 6.4 mm (0.25 in) | 12.7 mm (0.50 in) | 28 mm (1.1 in) | 40 mm (1.57 in) | 10 mm (0.039 in) | 18 mm (0.71 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
