MTS Systems

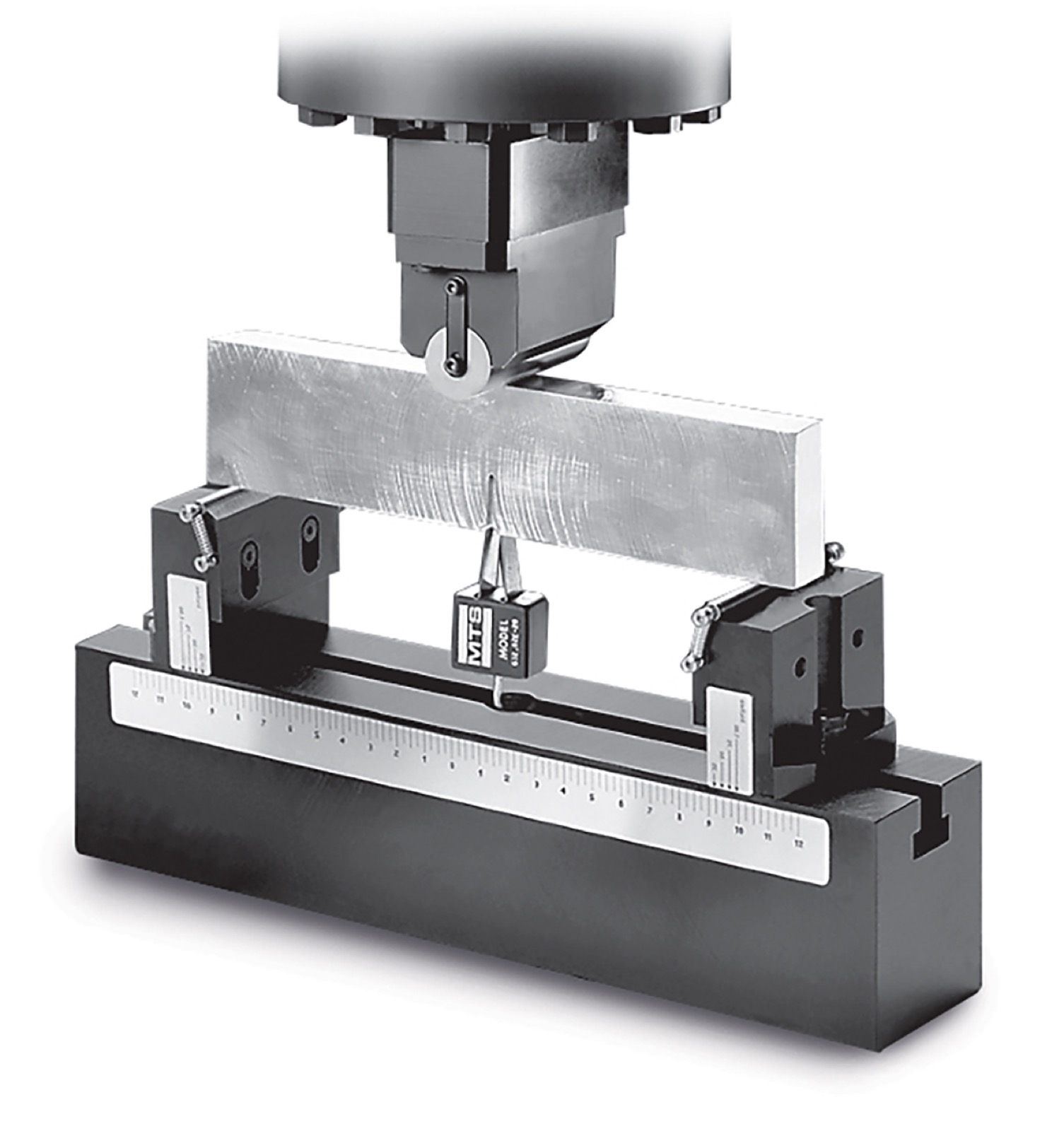

Model 642 Bend Fixtures
Model 642 Bend Fixtures are configured to meet a variety of testing requirements.
Fixtures & Platens
Bend, composite and specialty fixtures plus compression platens.
Fixtures & Platens
Products (26)
MTS Systems

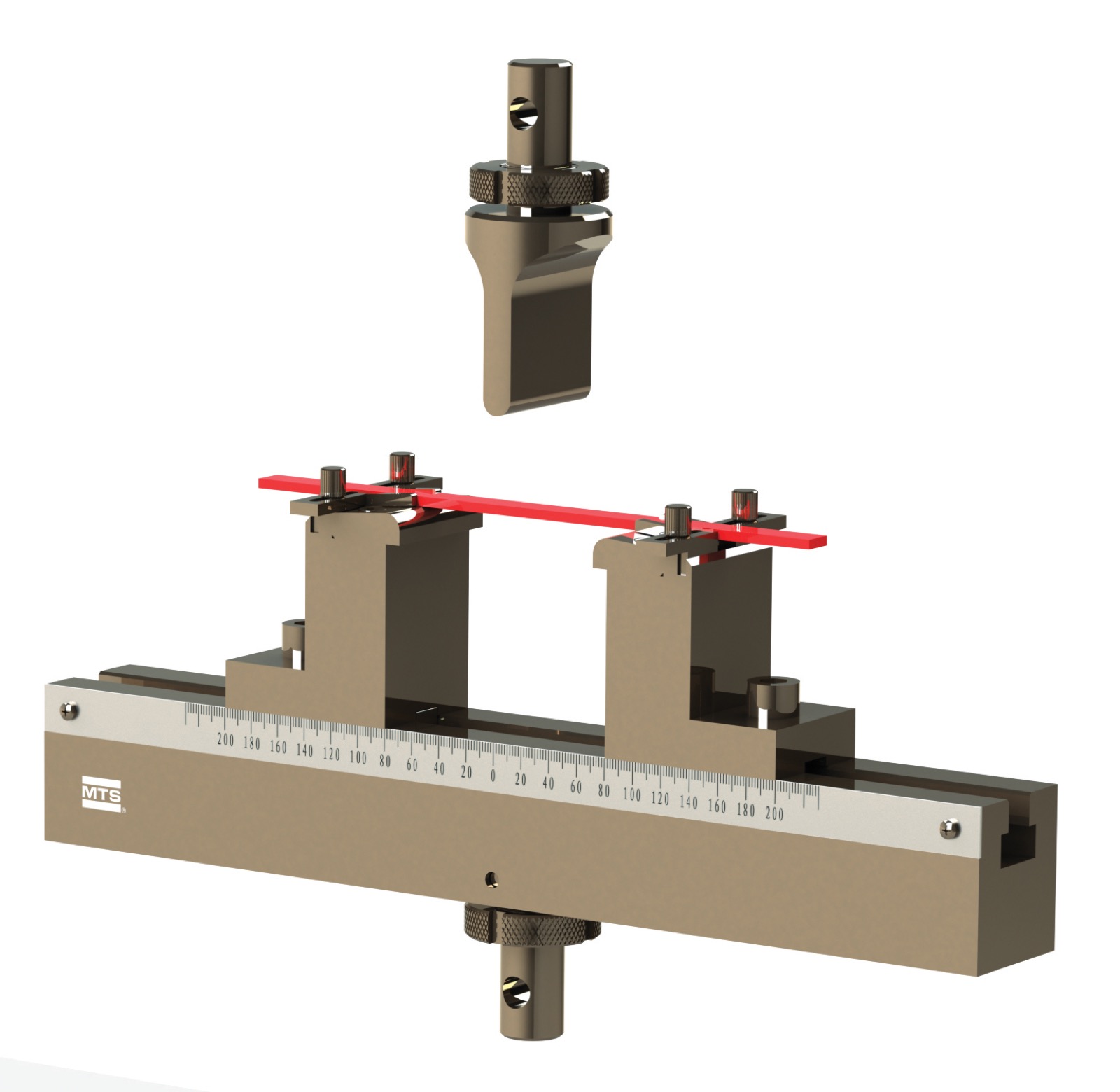

3-Point Bend Fixtures
These 3-Point Bend Fixtures are designed to use with Exceed® load frames and can also be used on Criterion® load frames with appropriate conversion adapters.
MTS Systems

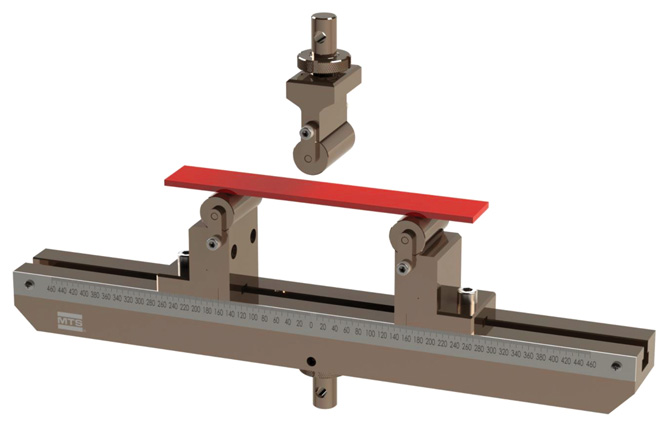

10kN Wood Bend Fixtures
These 10kN Wood Bend Fixtures are designed for use with Exceed® load frames and can also be used on Criterion® load frames with appropriate conversion adapters.
MTS Systems

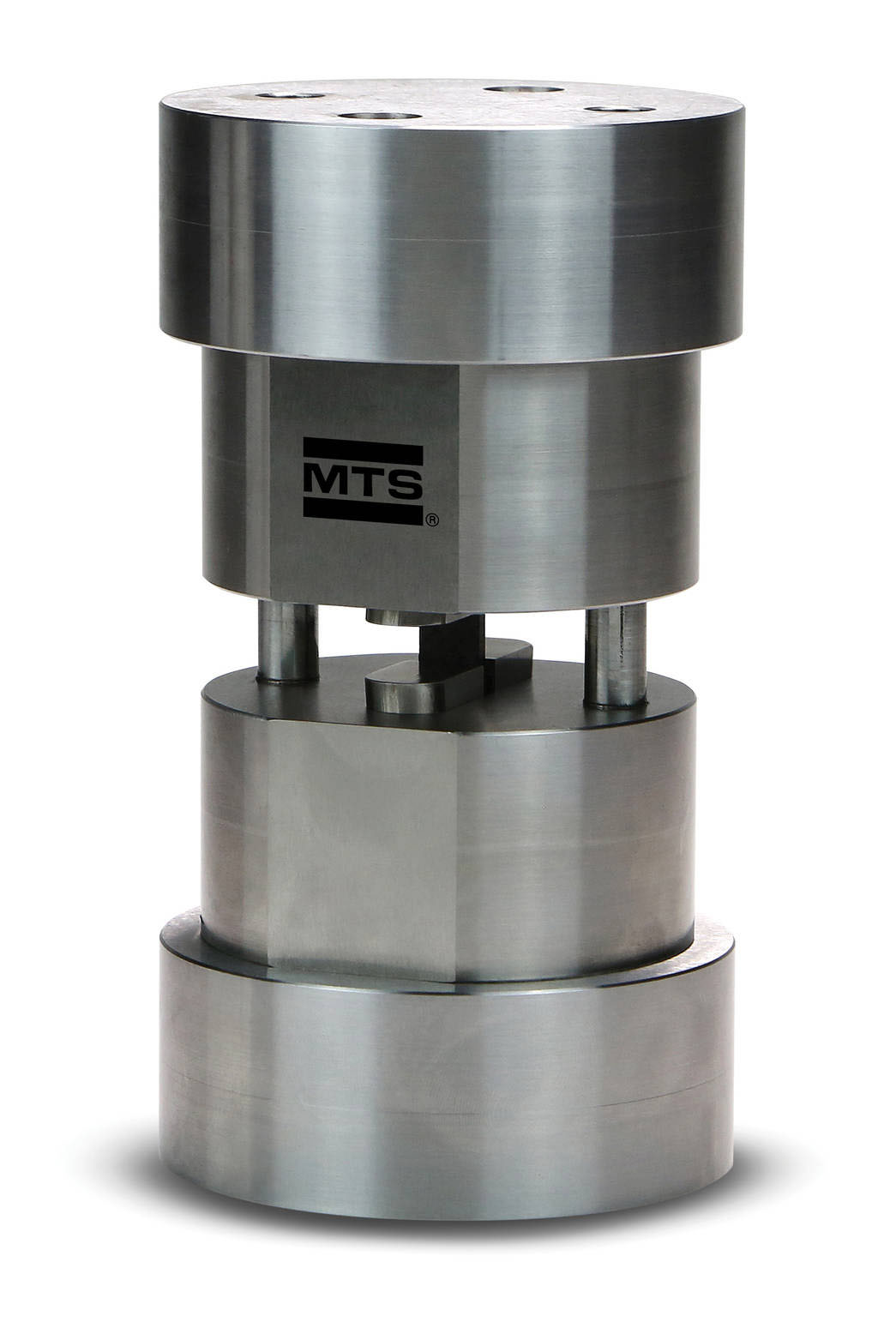

Modified Celanese Compression Composite Fixture
This Modified Celanese Compression Loading Composite Fixture is design based on the University of Wyoming Modified Celanese Compression Test Fixture.
MTS Systems

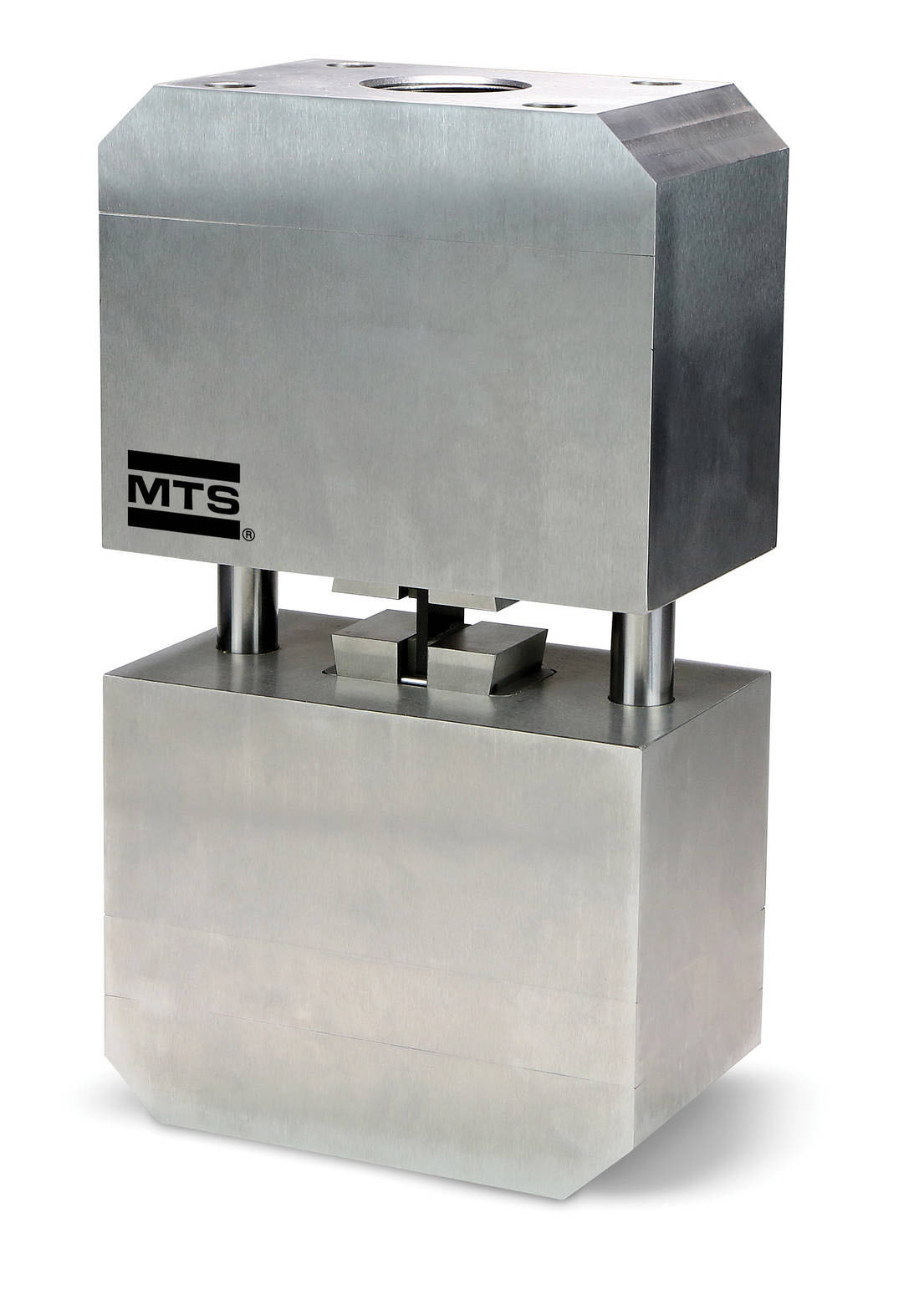

IITRI Compression Loading Composite Fixture
This IITRI Compression Loading Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D3410 and ISO 14126 Method 1B.
MTS Systems

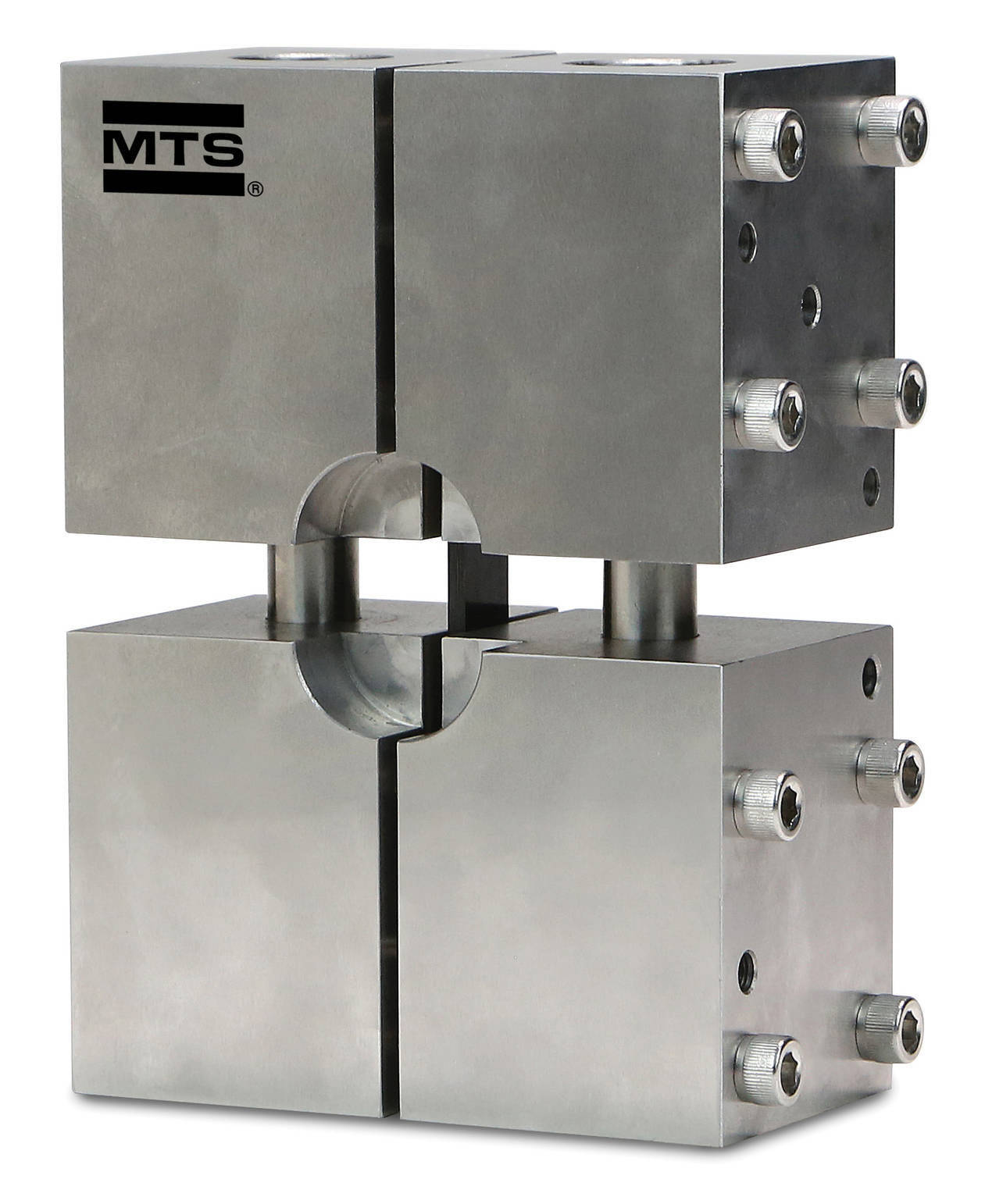

Combined Loading Compression (CLC) Composite Fixture
This Combined Loading Compression (CLC) Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D6641.
MTS Systems

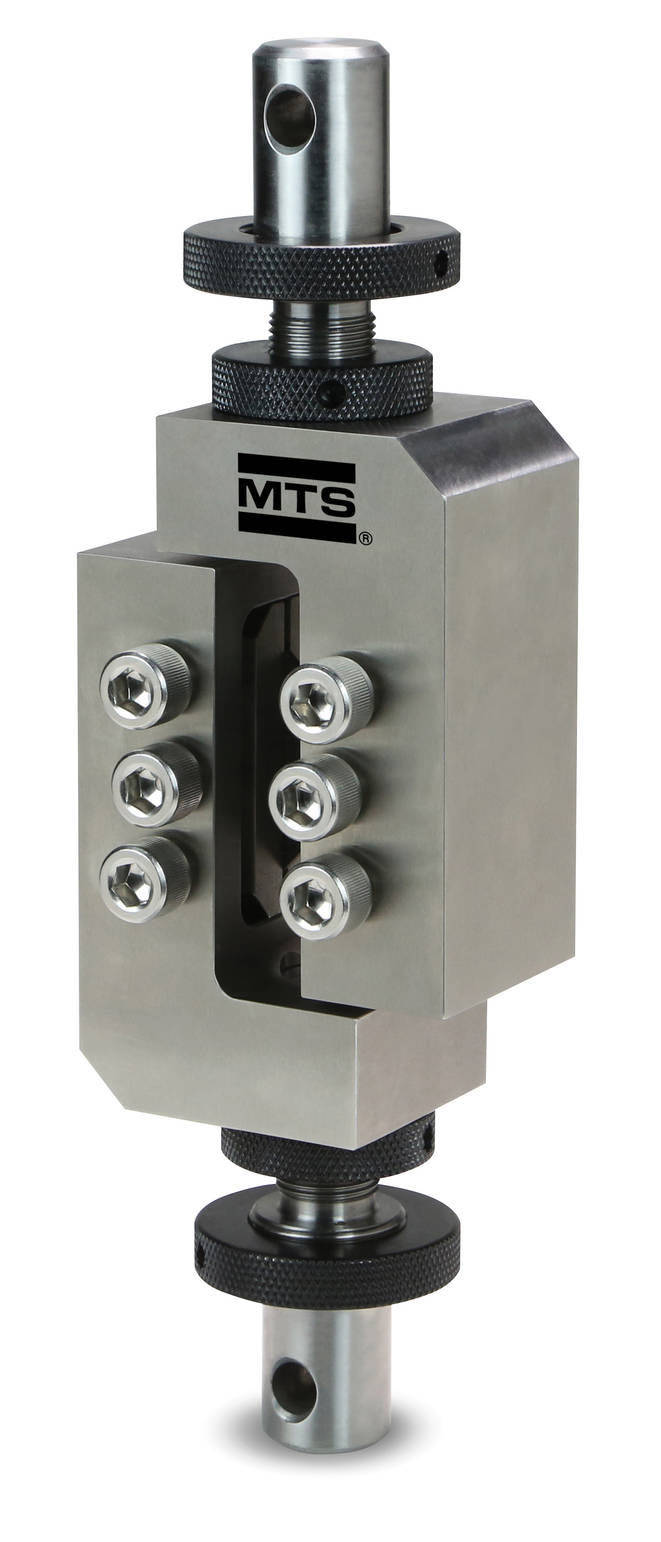

V-Notched Rail Shear Composite Fixture
This V-Notched Rail Shear Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D7078.
MTS Systems

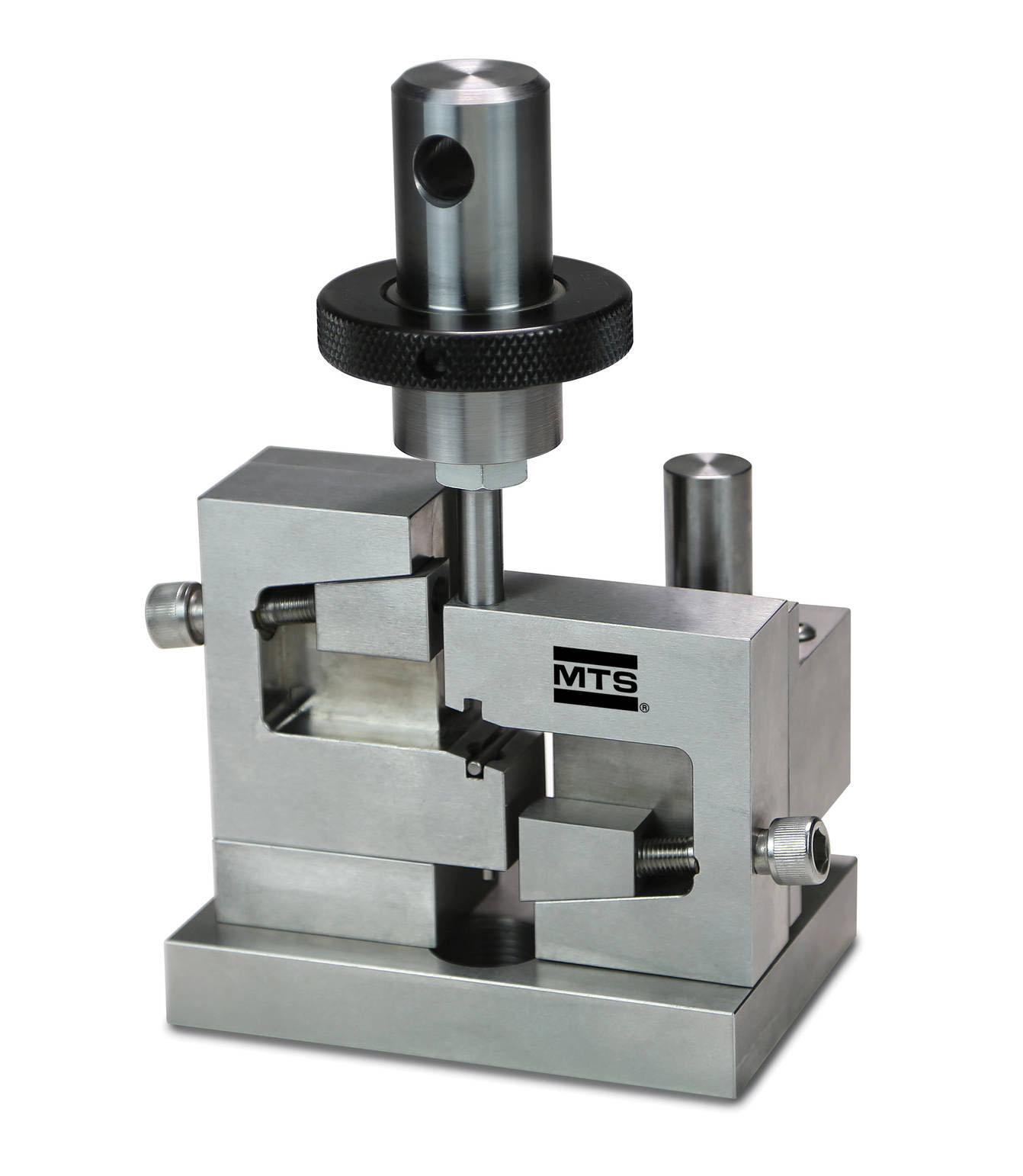

V-Notched Beam Shear Composite Fixture
This V-Notched Beam (Iosipescu) Shear Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D5379.
MTS Systems

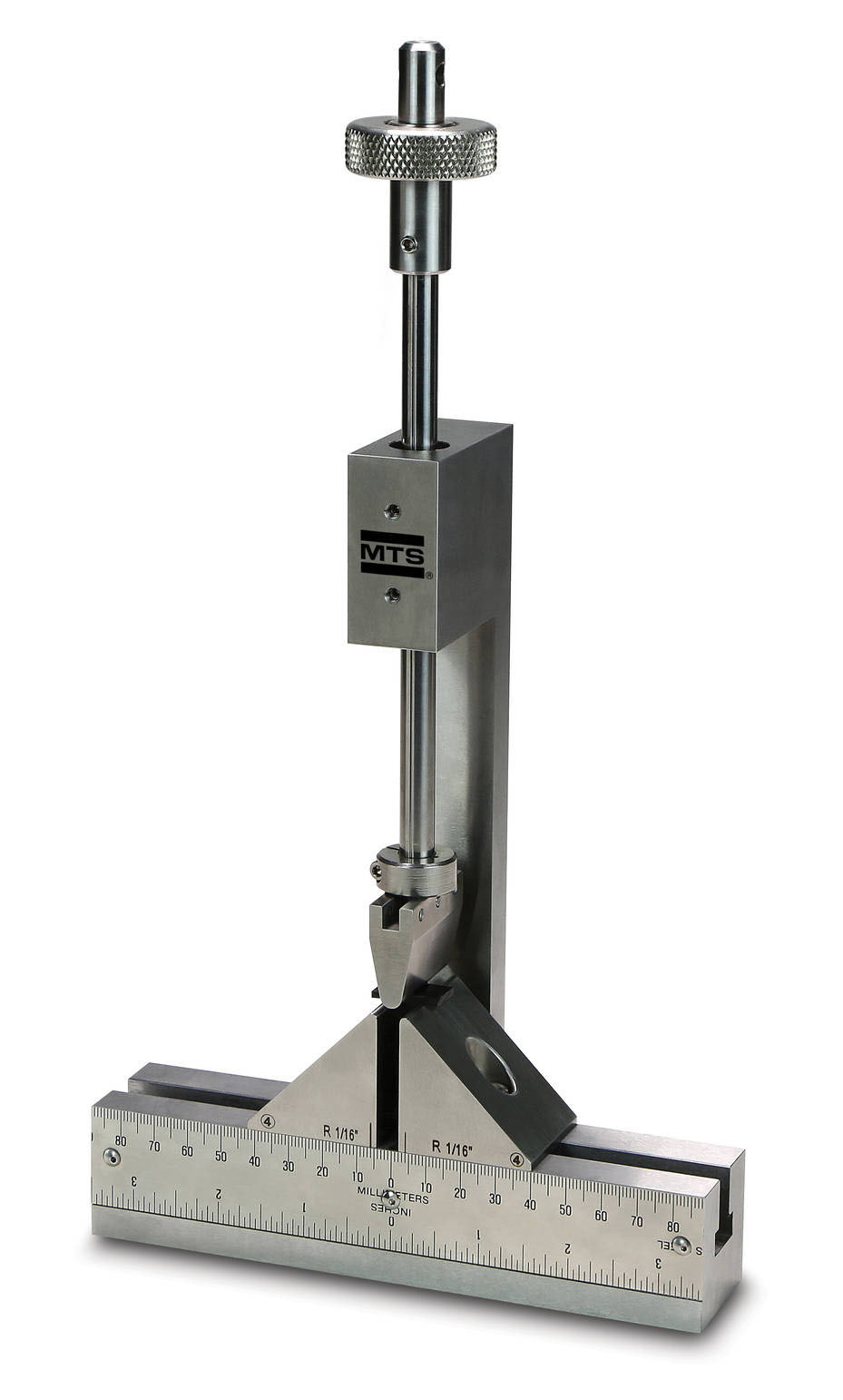

Short Beam Shear & Three-Point Flexure Composite Fixture
This Short Beam Shear & Three-Point Flexure Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D2344.
MTS Systems

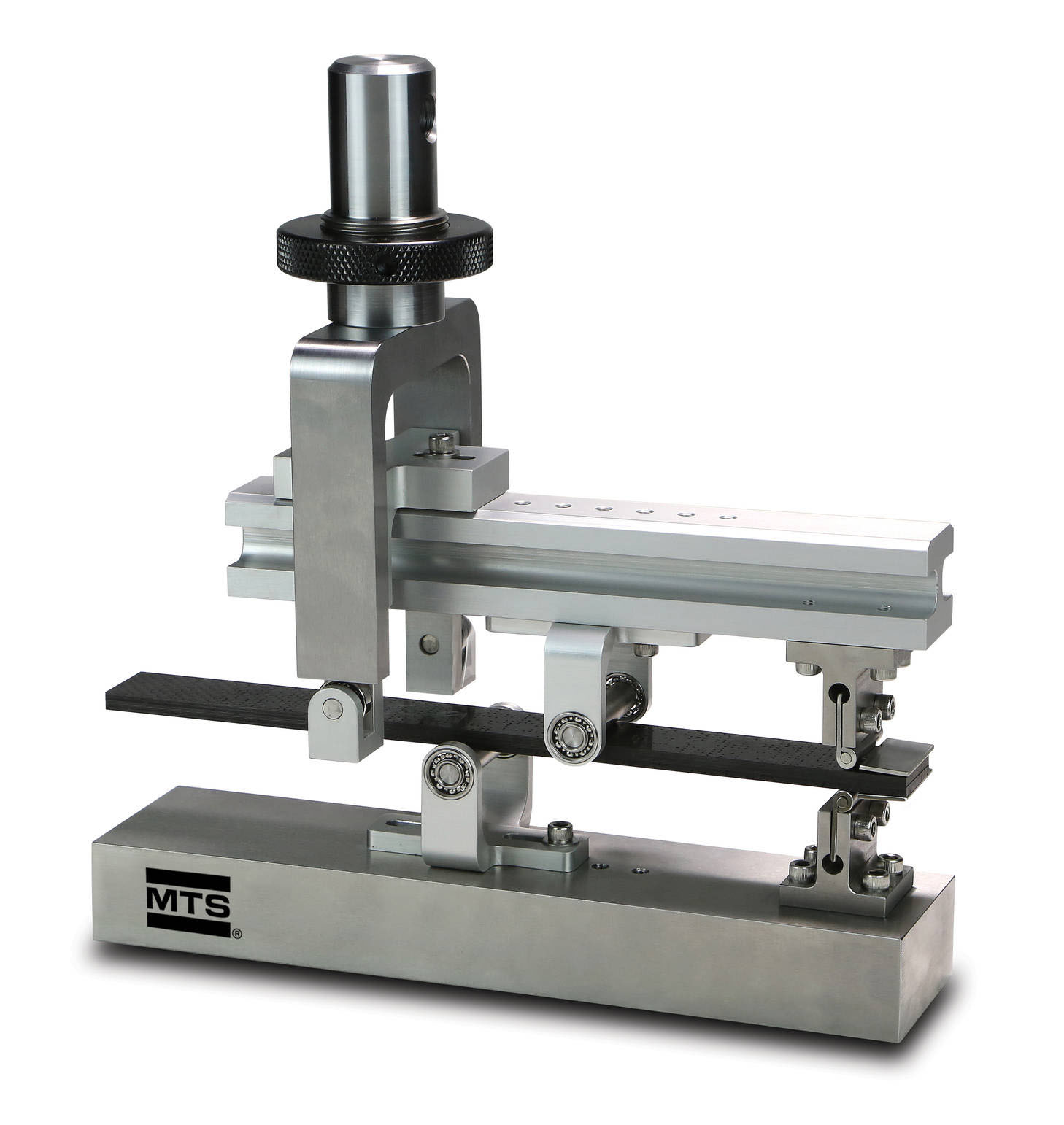

Mixed Mode Bending Composite Fixture
This Mixed Mode Bending Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D6671.
MTS Systems

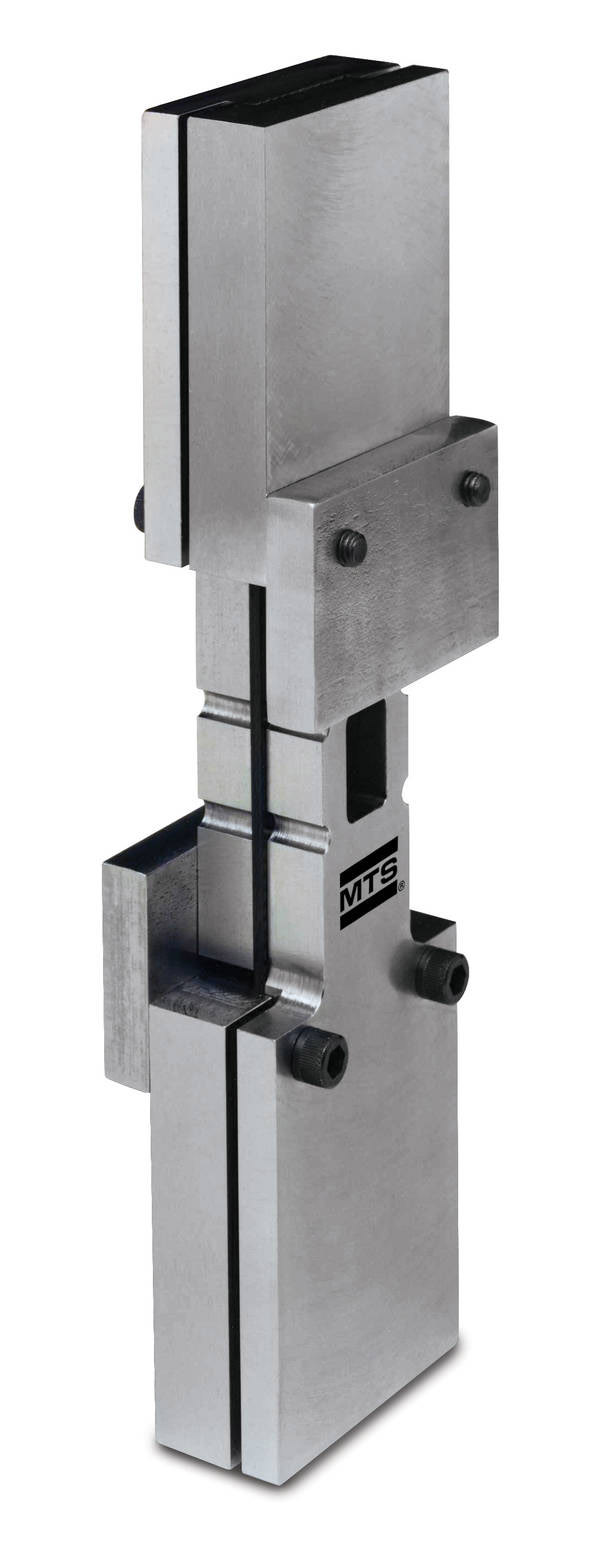

Open/Filled Hole Compression Composite Fixture
This Open/Filled Hole Compression Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D6484, ASTM D6742 and BS 07260.
MTS Systems

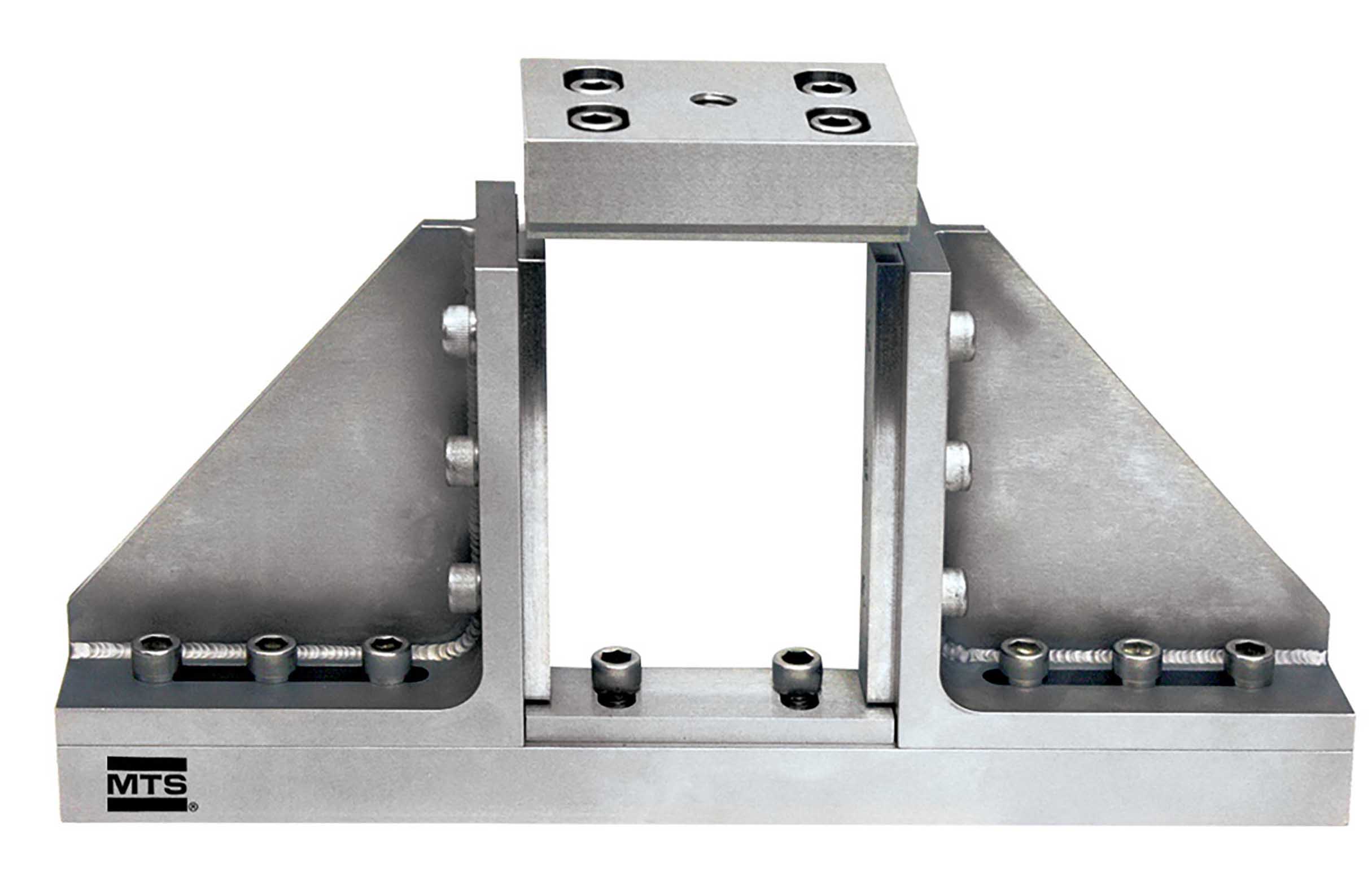

Compression After Impact Test Composite Fixture
This Compression After Impact Test Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D7137.
MTS Systems

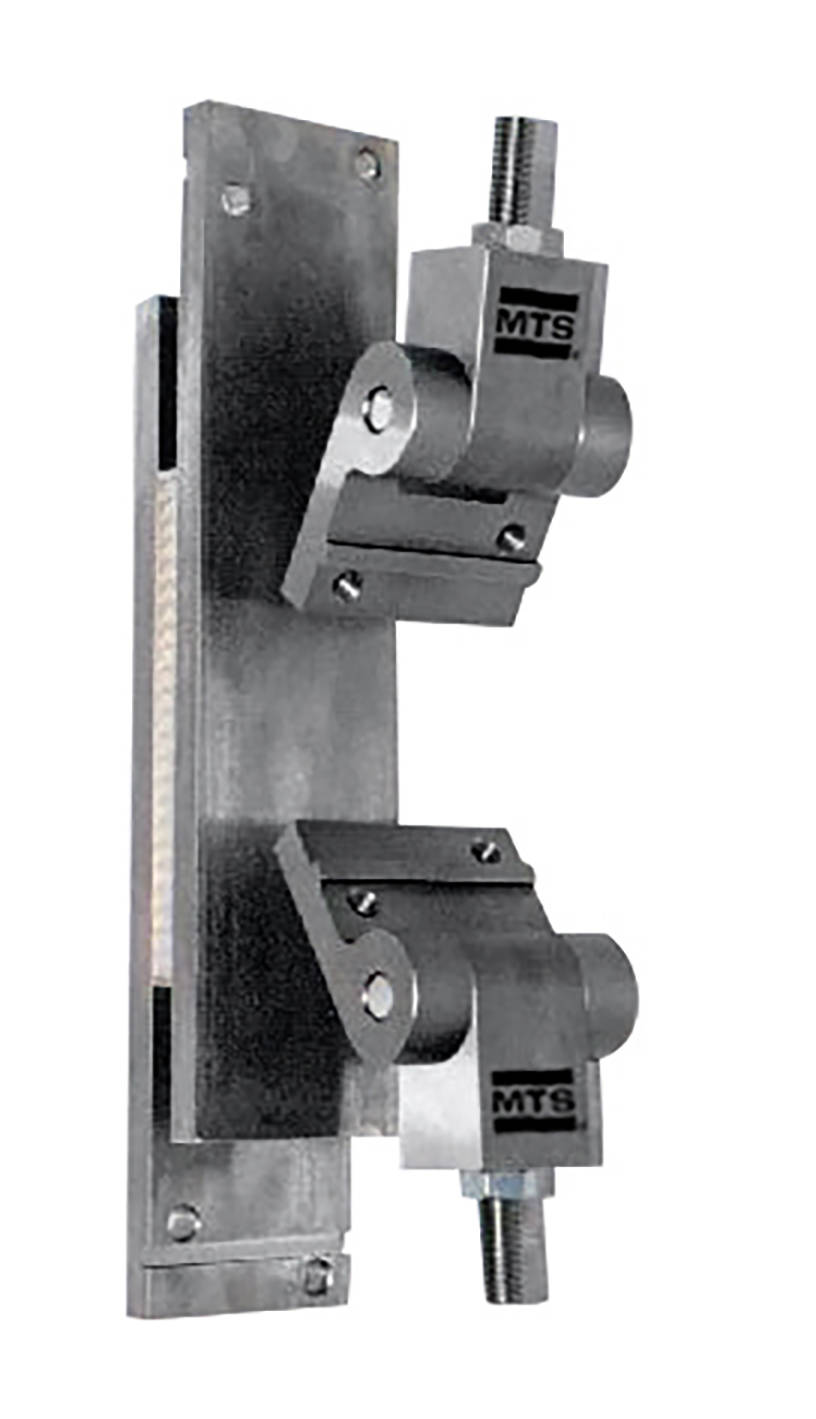

Flatwise Plane Shear Composite Tensile Fixture
This Flatwise Plane Shear Fixture, Tensile Mode is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM C273 and ASTM C394 (Fatigue).
MTS Systems

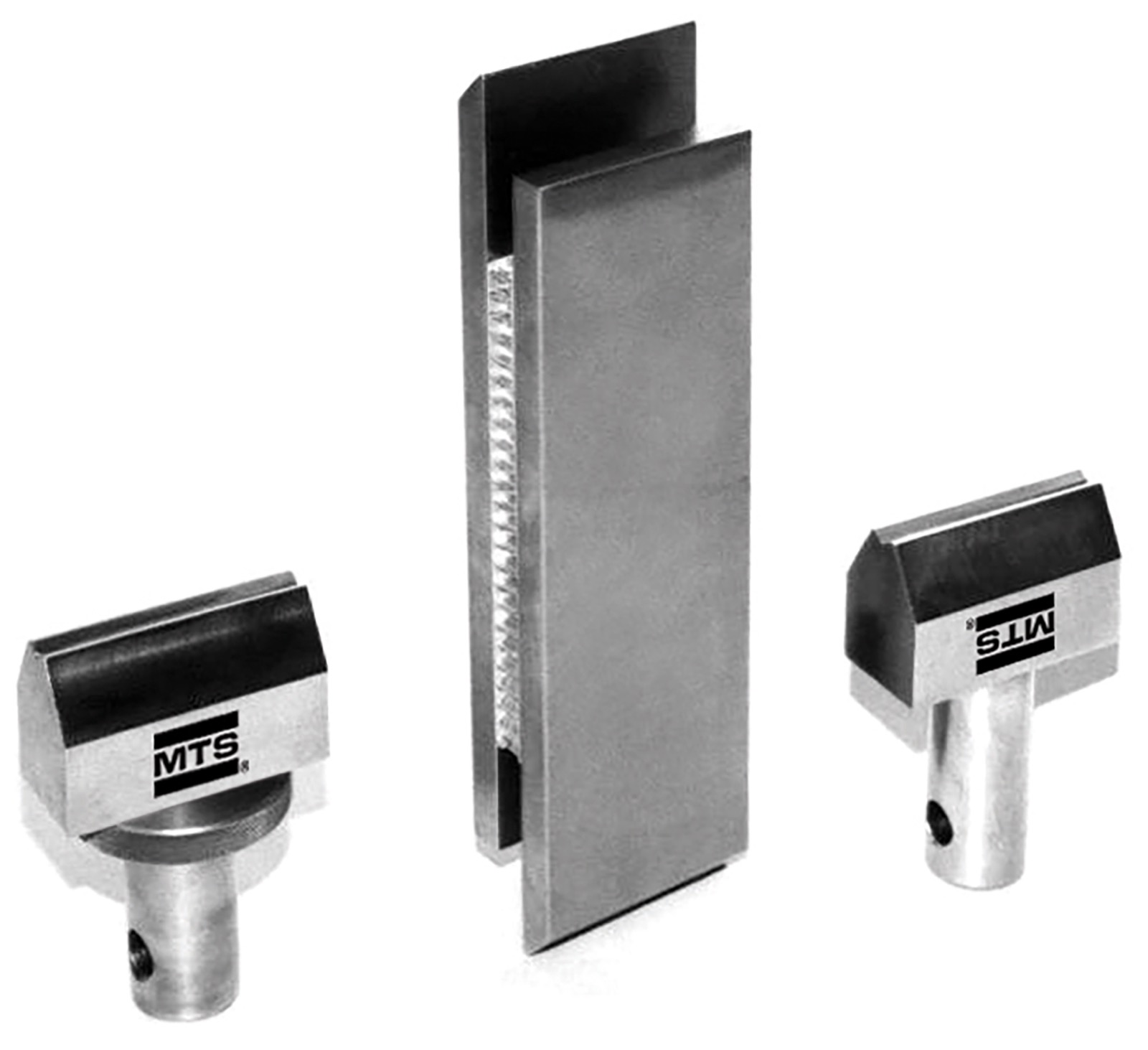

Flatwise Plane Shear Composite Compression Fixture
This Flatwise Plane Shear Fixture, Compression Mode is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM C273 and ASTM C394 (Fatigue).
MTS Systems

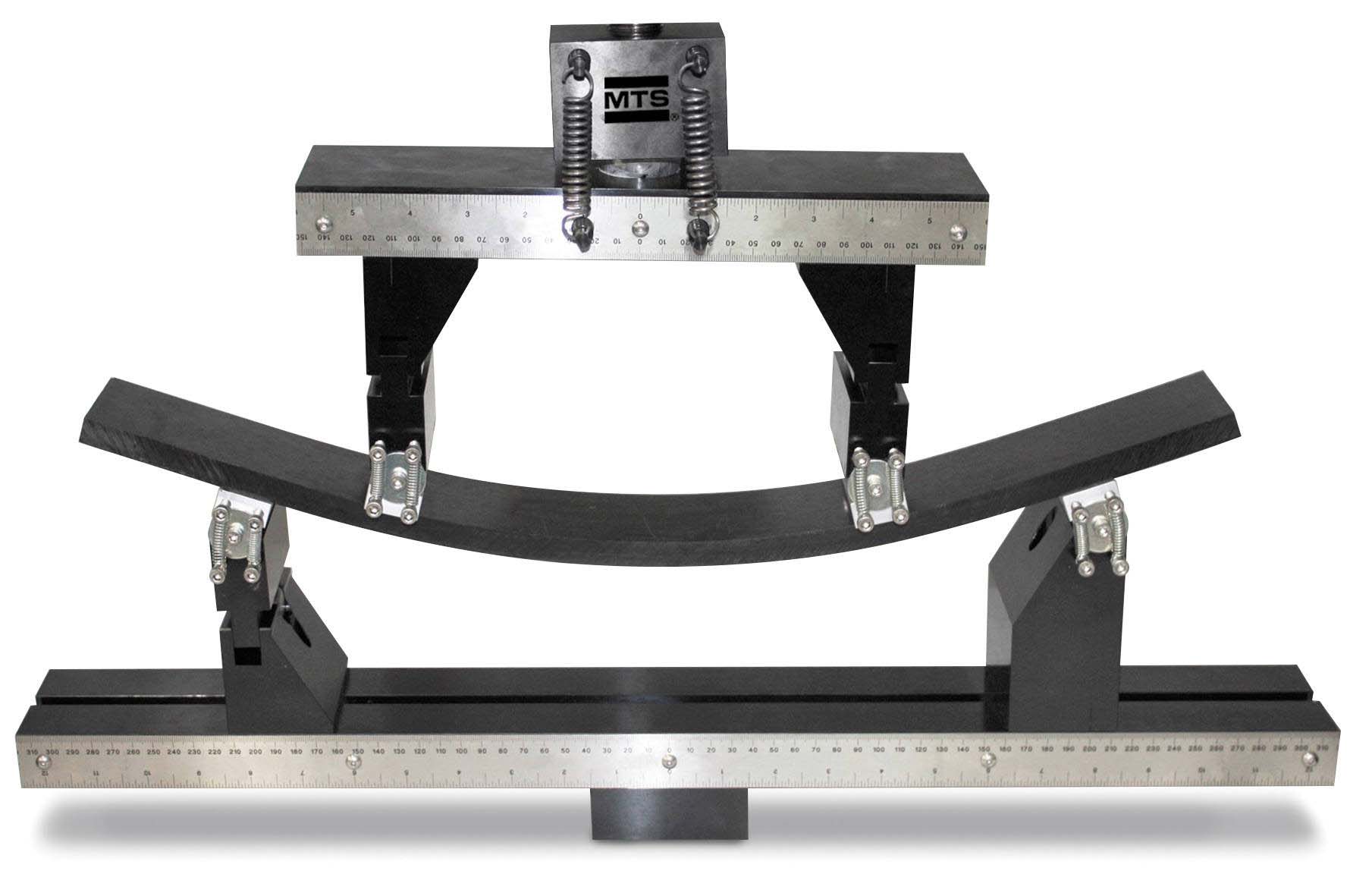

Three & Four Point Sandwich Beam Flexure/Shear Composite Fixture
This Three & Four Point Sandwich Beam Flexure/Shear Composite Fixture is constructed out of high strength steel with a durable black oxide finish (except for rollers and pads), and is…
MTS Systems

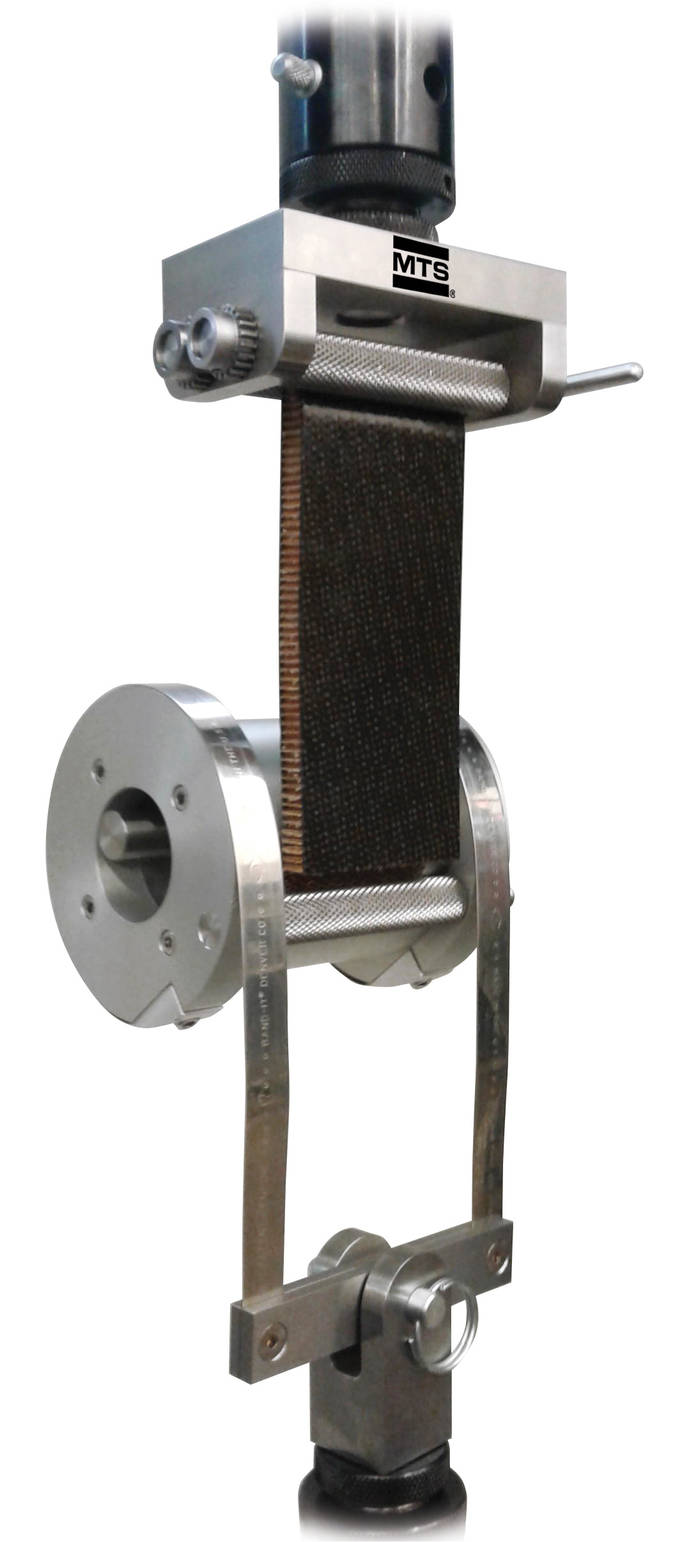

Climbing Drum Peel Composite Fixture With Roller Type Grips
This Climbing Drum Peel Composite Fixture, featuring roller-type grips, is constructed from high-quality stainless steel with an aluminum drum.
MTS Systems

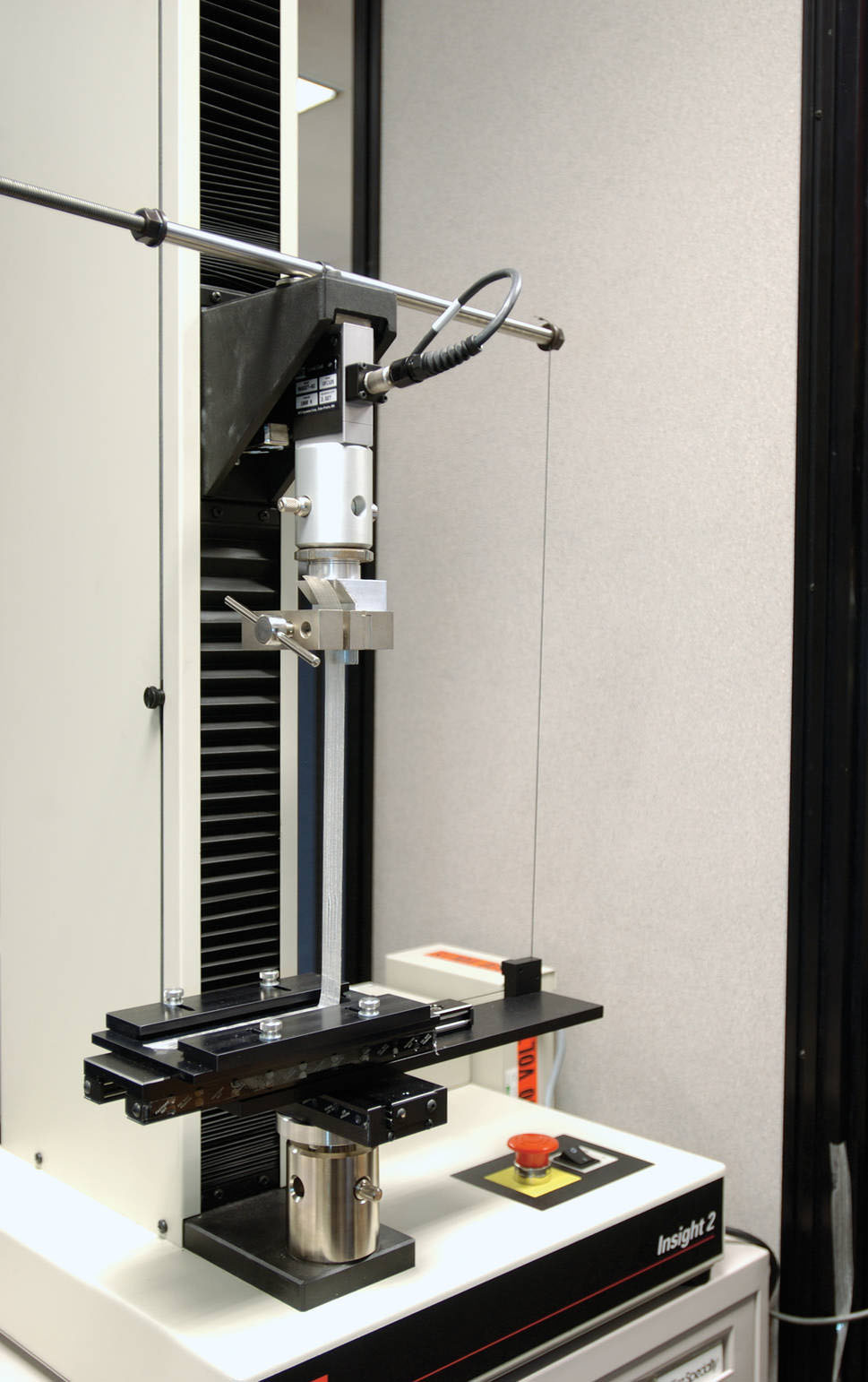

Fundamental 90° Peel Fixture
Fundamental 90° Peel Fixtures employ precision bearings to maintain perpendicular axial alignment while measuring the force required to peel adhered material from a clamped-down substrate.
MTS Systems

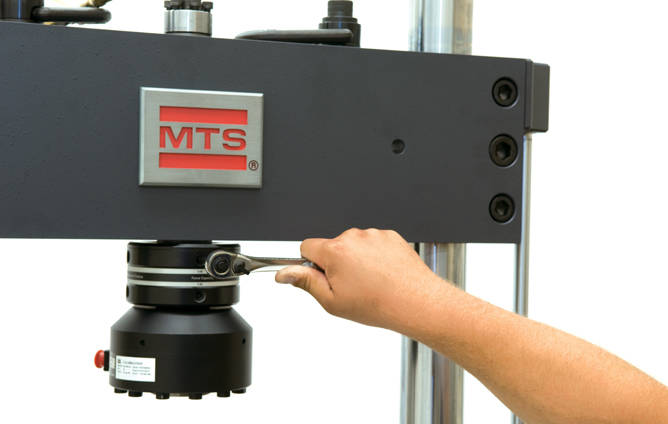

Model 609 Alignment Fixture
The Model 609 Alignment Fixture for material testing systems saves time compared to manual alignment methods.
MTS Systems

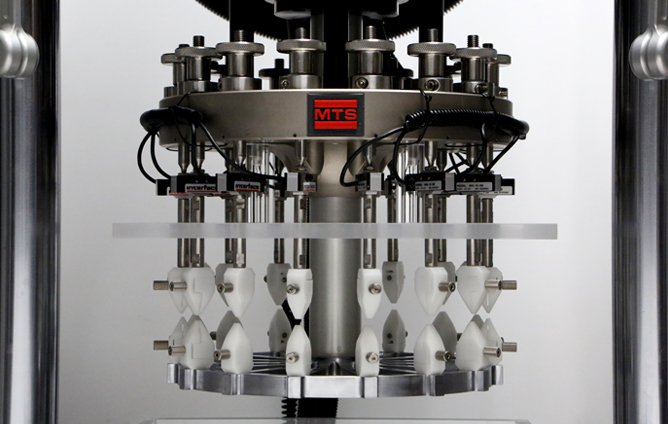

Multi-Sample Fatigue Fixture
The Multi-Sample Fatigue Fixture (MSF15) is designed for use the MTS Acumen Electrodynamic Test System to provide a cost-effective high-cycle fatigue testing solution for fatigue curve…
MTS Systems

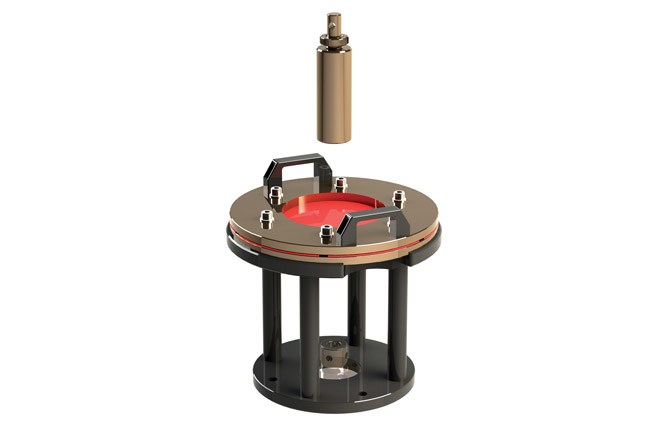

Geotextile Puncture Fixture
Plungers or clamping rings can be customized for this 5kN Geotextile Puncture Fixture.
MTS Systems

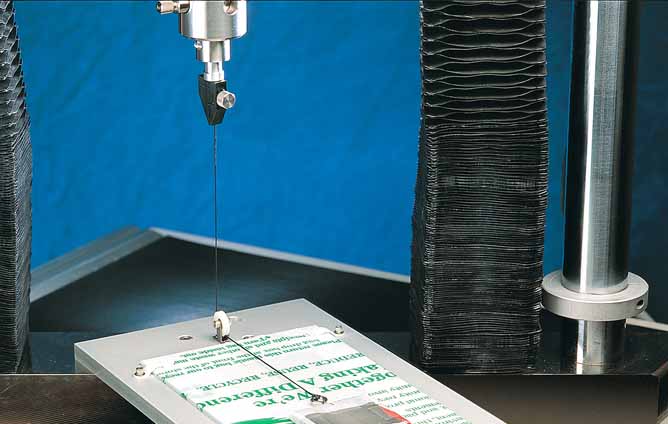

Fundamental Coefficient of Friction Fixture
The MTS Fundamental™ Coefficient of Friction Fixture employs a pulley and string mechanism to measure the force required to pull a friction sled over a material specimen.
MTS Systems

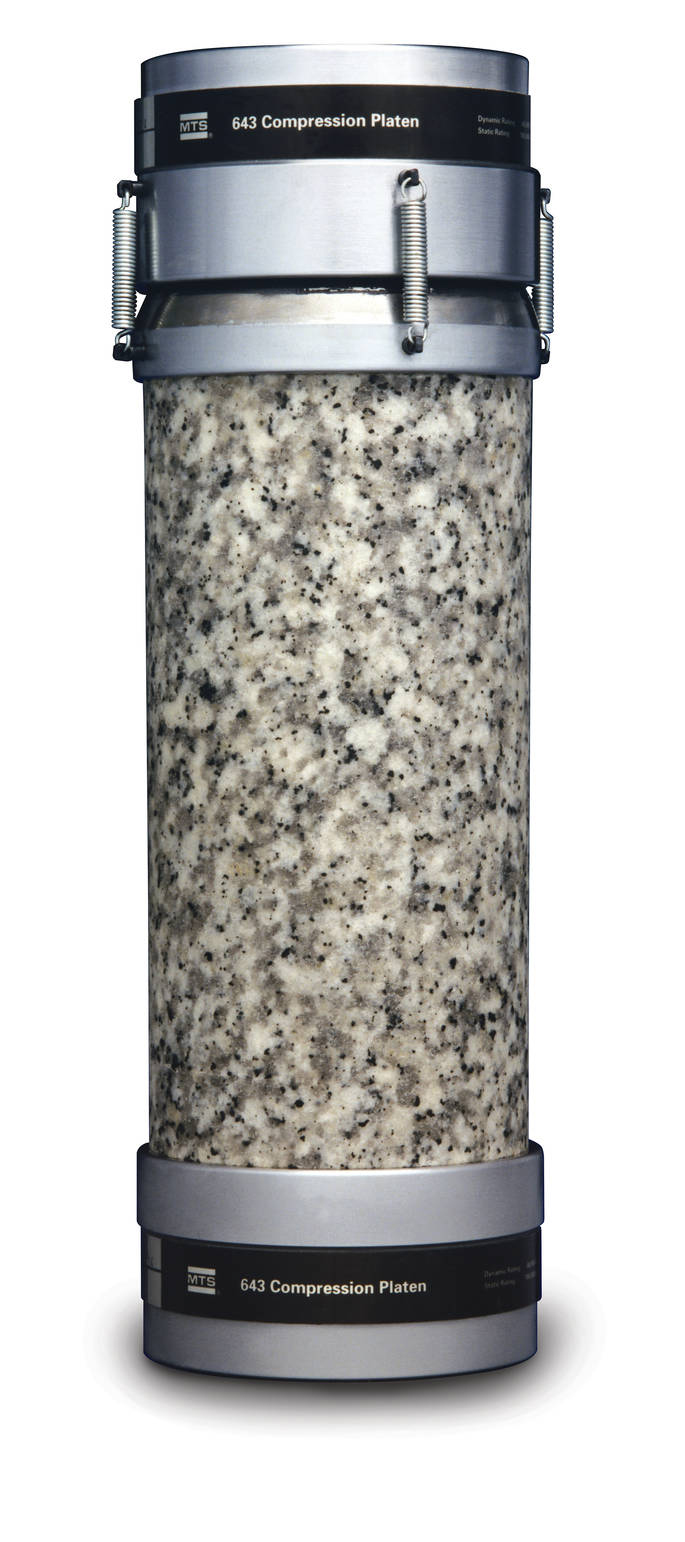

Model 643 Compression Platens
Model 643 Compression Platens are made from case-hardened alloy steel with hard chrome plating.
MTS Systems

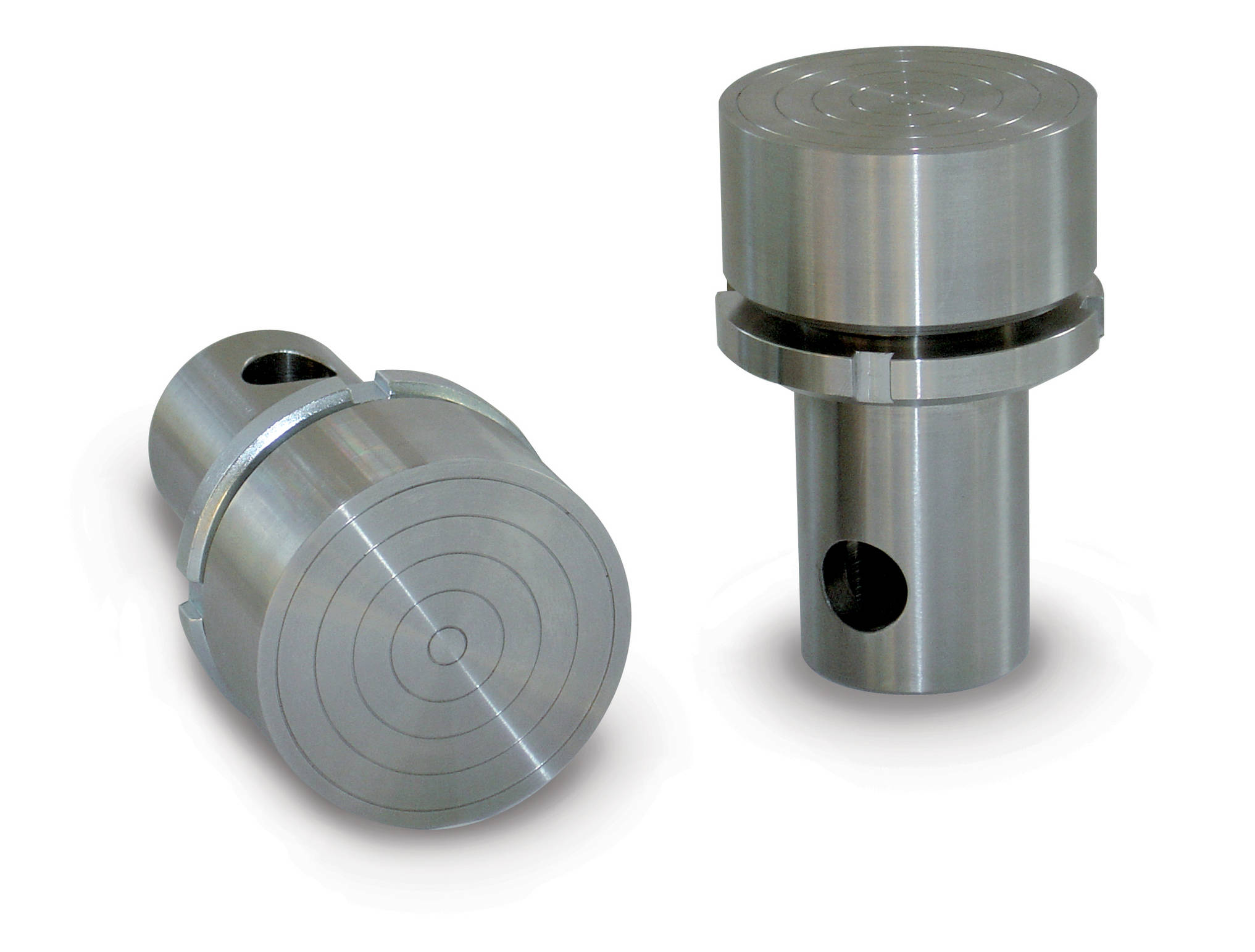

Bionix Stainless Steel Compression Platens
Bionix Stainless Steel Compression Platens feature precision-ground, hardened surfaces in a variety of sizes.
MTS Systems

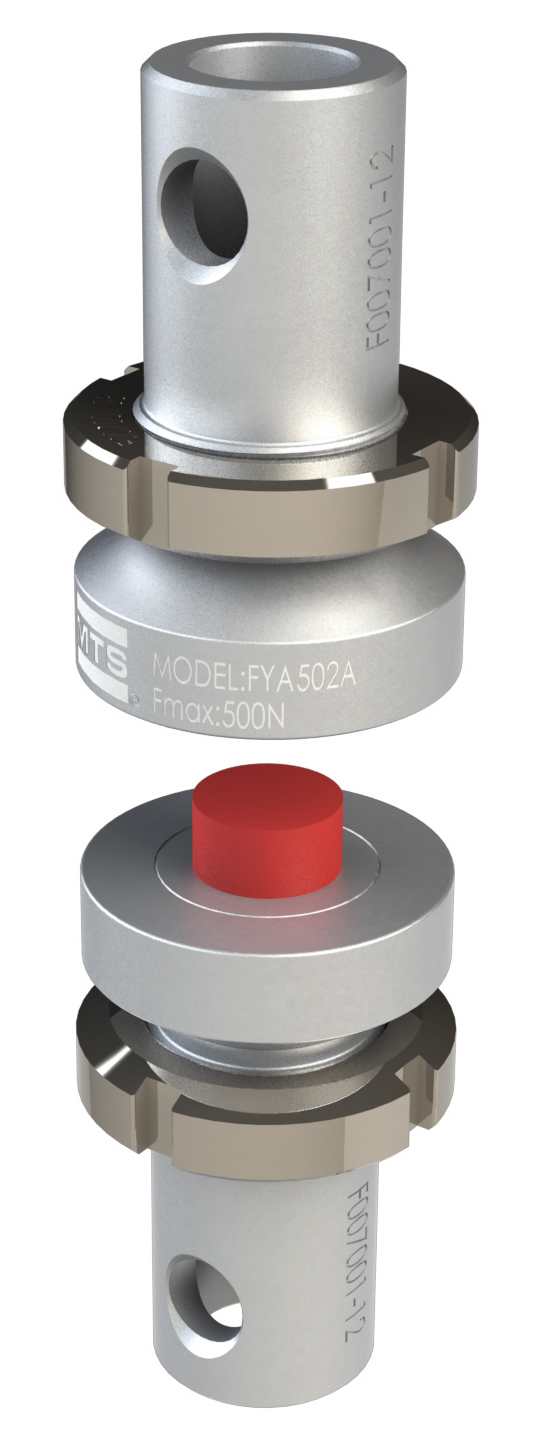

Fundamental Aluminum Compression Platens
Fundamental Aluminum Compression Platens are value-priced, lightweight aluminum platens for compression testing of polystyrene, rubber, composites and sintered materials & components.
Product information is based on the official MTS Systems Materials Test Systems catalogue (mts.com). Specifications are subject to change by the manufacturer; please confirm details with our team.
