MTS Systems — FYA502A, FYB502A

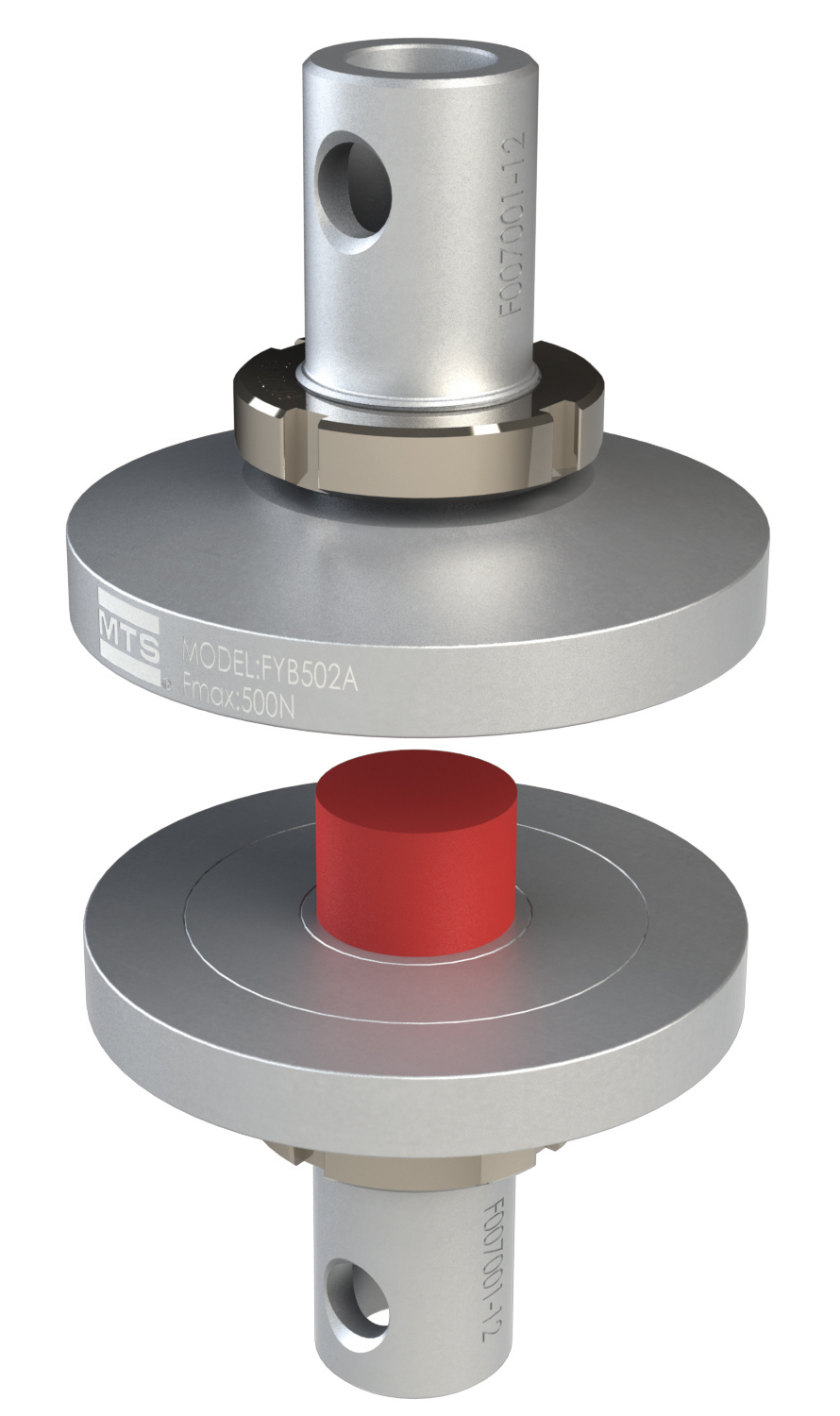

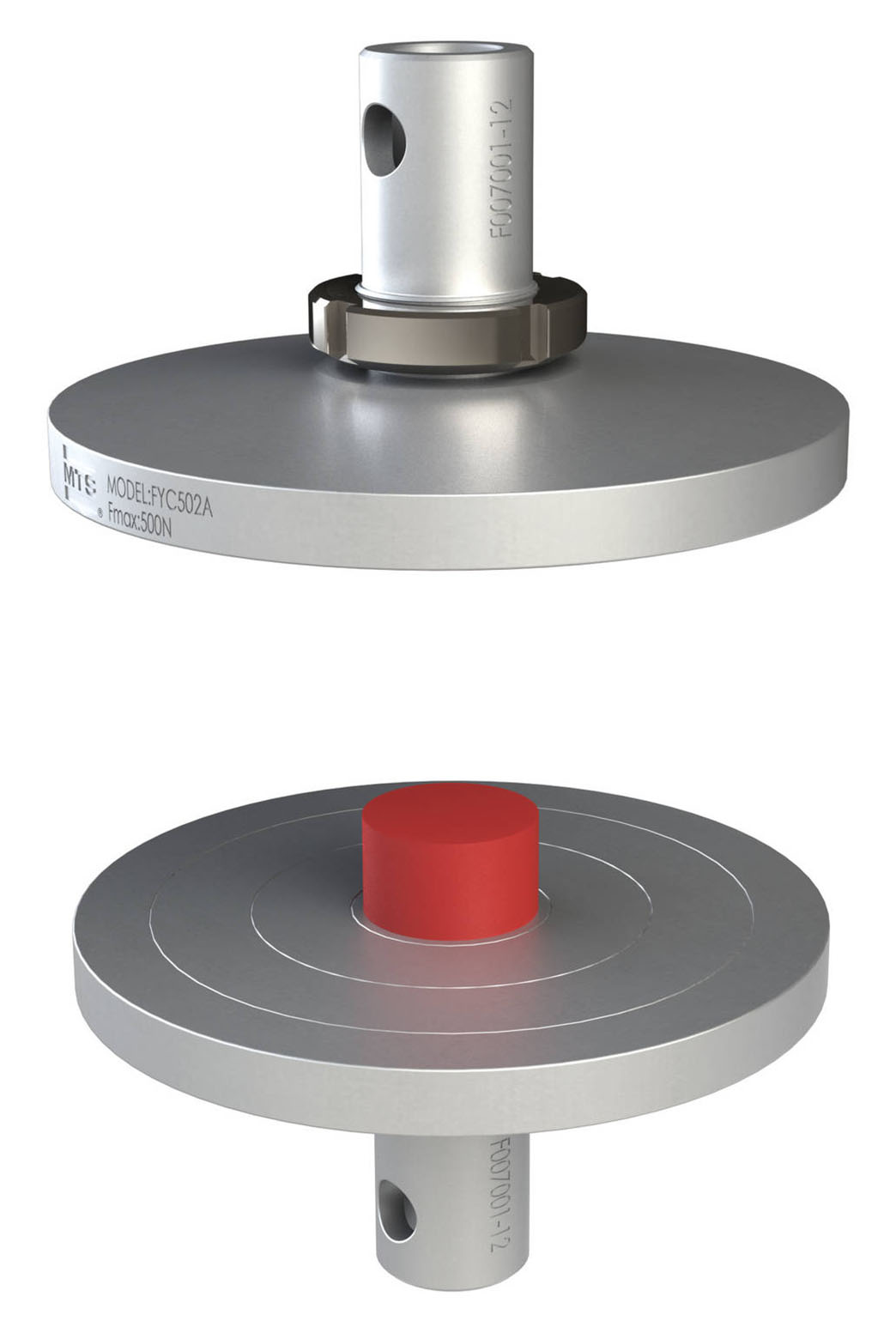

Fundamental Aluminum Compression Platens
Fundamental Aluminum Compression Platens are value-priced, lightweight aluminum platens for compression testing of polystyrene, rubber, composites and sintered materials & components. They are designed for accurate testing with small load cells (1 kN and less).
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| MODEL | PART NUMBER | PLATEN TYPE | FORCE CAPACITY | MINIMUM SPECIMEN DIAMETER AT MAXIMUM FORCE CAPACITY | UPPER PLATEN WEIGHT | TEMPERATURE RANGE | ATTACHMENT TYPE | COMBINED UPPER/LOWER PLATEN HEIGHT | PLATEN WIDTH |
|---|---|---|---|---|---|---|---|---|---|
| FYA502A | 100-231-408 | Fixed/Fixed Aluminum Platen | 0.5 kN (112 lbf) | 5 mm (0.2 in) | 0.28 kg (0.6 lbs) | -50°C (-58°F) to 100°C (212°F) | D | 156 mm (6.1 in) | 50 mm (2 in) |
| FYB502A | 100-231-412 | Fixed/Fixed Aluminum Platen | 0.5 kN (112 lbf) | 5 mm (0.2 in) | 0.548 kg (1.2 lbs) | -50°C (-58°F) to 100°C (212°F) | D | 156 mm (6.1 in) | 100 mm (3.9 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
