MTS Systems
3-Point Bend Fixtures
These 3-Point Bend Fixtures are designed to use with Exceed® load frames and can also be used on Criterion® load frames with appropriate conversion adapters.
MTS Systems

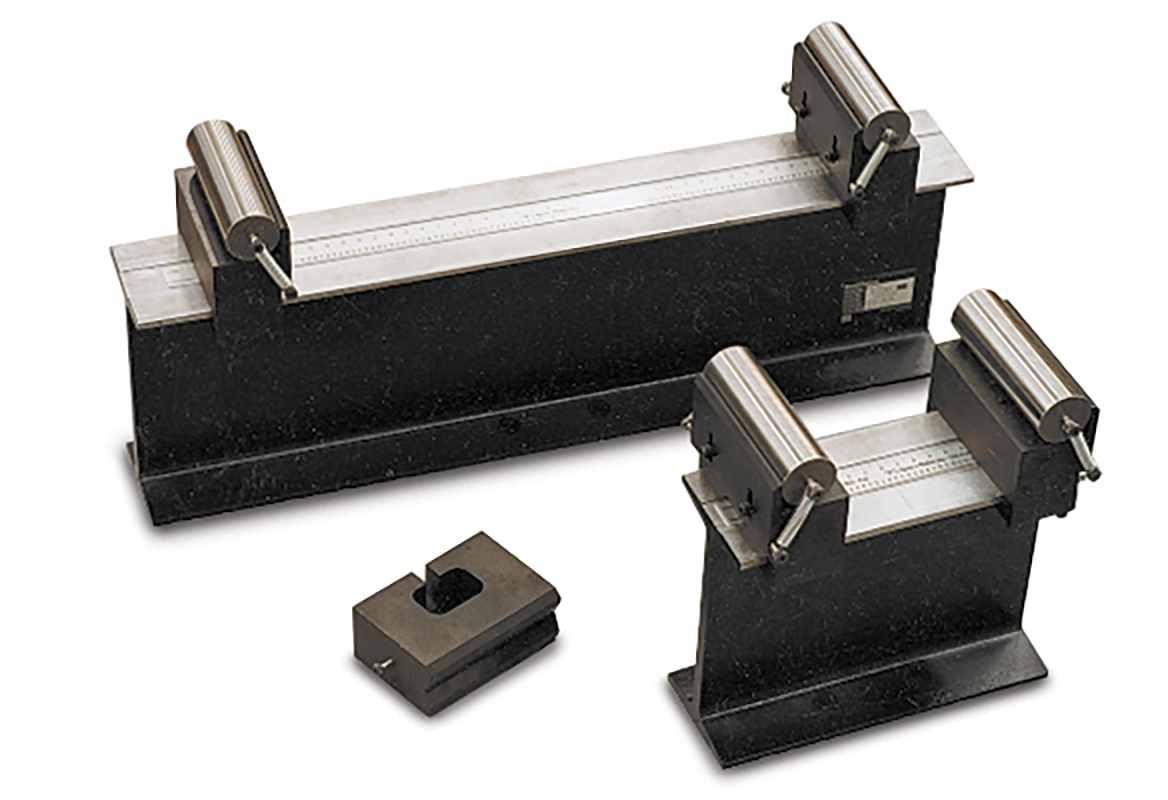

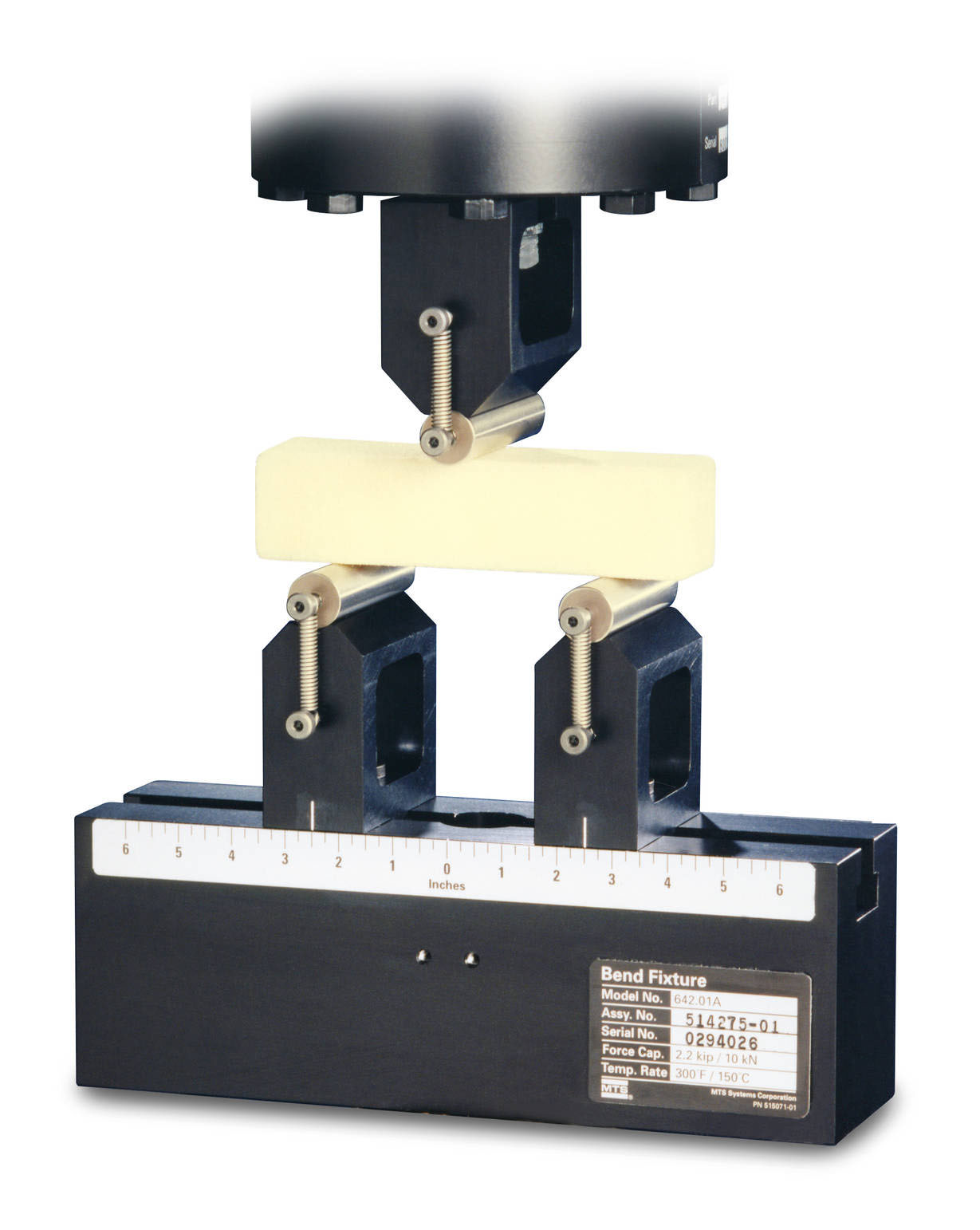

Model 642 Bend Fixtures
Model 642 Bend Fixtures are configured to meet a variety of testing requirements. The fixtures have adjustable spans with easy-to-use, permanently attached scales for equal positioning of the rollers. The hardened rollers ensure test result accuracy by reducing undesirable loading and frictional forces on the specimen.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| UPPER | LOWER | DYNAMIC | TEMPERATURE | COMBINED | |||
|---|---|---|---|---|---|---|---|
| MODEL | TYPE | FIXTURE SPAN | FIXTURE SPAN | FORCE RATING* | RANGE | HEIGHT** | PART NUMBER |
| 642.001 | 3 & 4 point bend fixture | 14-60 mm | 0.9 kN | -129°C to 149°C | 61 mm | 100-027-125 | |
| (0.6-2.4 in) | (200 lbf) | (-200°F to 300°F) | (2.4 in) | ||||
| 642.01A-01 | 3 point bend fixture | NA | 24-152 mm | 10 kN | -129°C to 149°C | 172 mm | 051-427-701 |
| (0.94-6.0 in)*** | (2.2 kip) | (-200°F to 300°F) | (6.8 in) | ||||
| 642.01A-02 | 3 & 4 point bend fixture | 24-76 mm | 24-152 mm | 10 kN | -129°C to 149°C | 243 mm | 051-427-801 |
| (0.94-3.0 in)*** | (0.94-6.0 in)*** | (2.2 kip) | (-200°F to 300°F) | (9.6 in) | |||
| 642.10B-01 | 3 point bend fixture | NA | 38-305 mm | 100 kN | -129°C to 177°C | 273 mm | 050-032-601 |
| (1.5-12.0 in)**** | (22 kip) | (-200°F to 350°F) | (10.75 in) | ||||
| 642.10B-02 | 3 & 4 point bend fixture | 53-152 mm | 38-305 mm | 100 kN | -129°C to 177°C | 356 mm | 050-032-701 |
| (2.08-6.0 in)**** | (1.5-12.0 in)**** | (22 kip) | (-200°F to 350°F) | (14.00 in) | |||
| 642.25B-01 | 3 point bend fixture | NA | 79-610 mm | 250 kN | -129°C to 177°C | 470 mm | 050-876-201 |
| (3.12-24.0 in)***** | (55 kip) | (-200°F to 350°F) | (18.50 in) | ||||
| 642.25B-02 | 3 & 4 point bend fixture | 50.8-203 mm | 79-610 mm | 250 kN | -129°C to 177°C | 660 mm | 050-876-301 |
| (2-8 in)***** | (3.12-24.0 in)***** | (55 kip) | (-200°F to 350°F) | (26.00 in) | |||
| * Static and dynamic force rating depends upon roller diameter. | |||||||
| ** Dimension depends upon roller diameter. Largest roller diameter shown. | |||||||
| *** Dimension depends upon roller diameter. 6.35 mm (0.25 in) roller diameter shown. | |||||||
| **** Dimension depends upon roller diameter. 25 mm (1 in) roller diameter shown. | |||||||
| ***** Dimension depends upon roller diameter. 50.8 mm (2 in) roller diameter shown. |
Detailed Technical Specifications
| Model 642.01 Roller Assemblies* | |
|---|---|
| DIAMETER | PART NUMBER |
| 5 mm | 051-284-601 |
| 10 mm | 051-284-603 |
| 0.25 in | 051-284-602 |
| 0.50 in | 051-284-604 |
Detailed Technical Specifications
| Model 642.10 Roller Assemblies* | |||
|---|---|---|---|
| DIAMETER | PART NUMBER | DIAMETER | PART NUMBER |
| 5 mm | 049-578-501 | 0.25 in | 049-578-502 |
| 10 mm | 049-578-503 | 0.375 in | 049-578-510 |
| 15 mm | 049-578-505 | 0.50 in | 049-578-504 |
| 20 mm | 049-578-507 | 0.75 in | 049-578-506 |
| 25 mm | 049-578-509 | 1.00 in | 049-578-508 |
Detailed Technical Specifications
| Model 642.25 Roller Assemblies* | |||
|---|---|---|---|
| DIAMETER | PART NUMBER | DIAMETER | PART NUMBER |
| 20 mm | 050-875-202 | 0.75 in | 050-875-201 |
| 30 mm | 050-875-204 | 1.00 in | 050-875-203 |
| 40 mm | 050-875-207 | 1.75 in | 050-875-208 |
| 50 mm | 050-875-209 | ||
| *Includes one roller and attachment springs. | |||
| Order quantity 3 for 3-point bend and 4 for 4-point bend configurations. | |||
| Roller assemblies listed above are not included with bend fixtures and must be purchased separately. |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
