MTS Systems

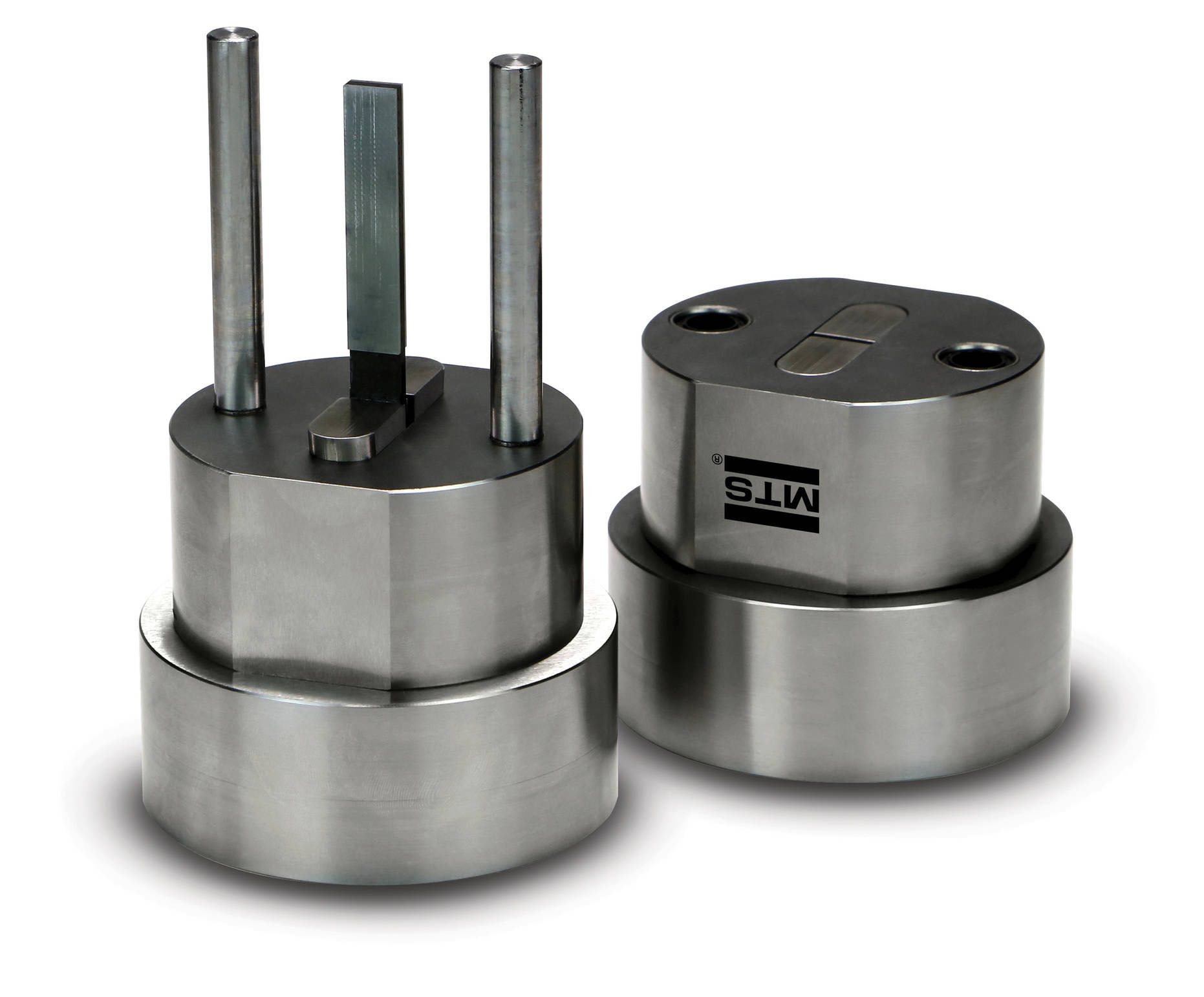

Modified Celanese Compression Composite Fixture
This Modified Celanese Compression Loading Composite Fixture is design based on the University of Wyoming Modified Celanese Compression Test Fixture. It is constructed out of high quality stainless steel and includes wedges with flame sprayed high friction surface.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| STATIC FORCE | TEMPERATURE RATING | WEIGHT | DIMENSIONS | PART NUMBER |
|---|---|---|---|---|
| 88 kN | -152 to 318°C | ≈ 7.3 kg | Ø 89 mm (3.5 in) x | 100-351-817 |
| (20 kip) | (-240 to 600°F) | (16 lbs) | 191 mm (7.5 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
