MTS Systems

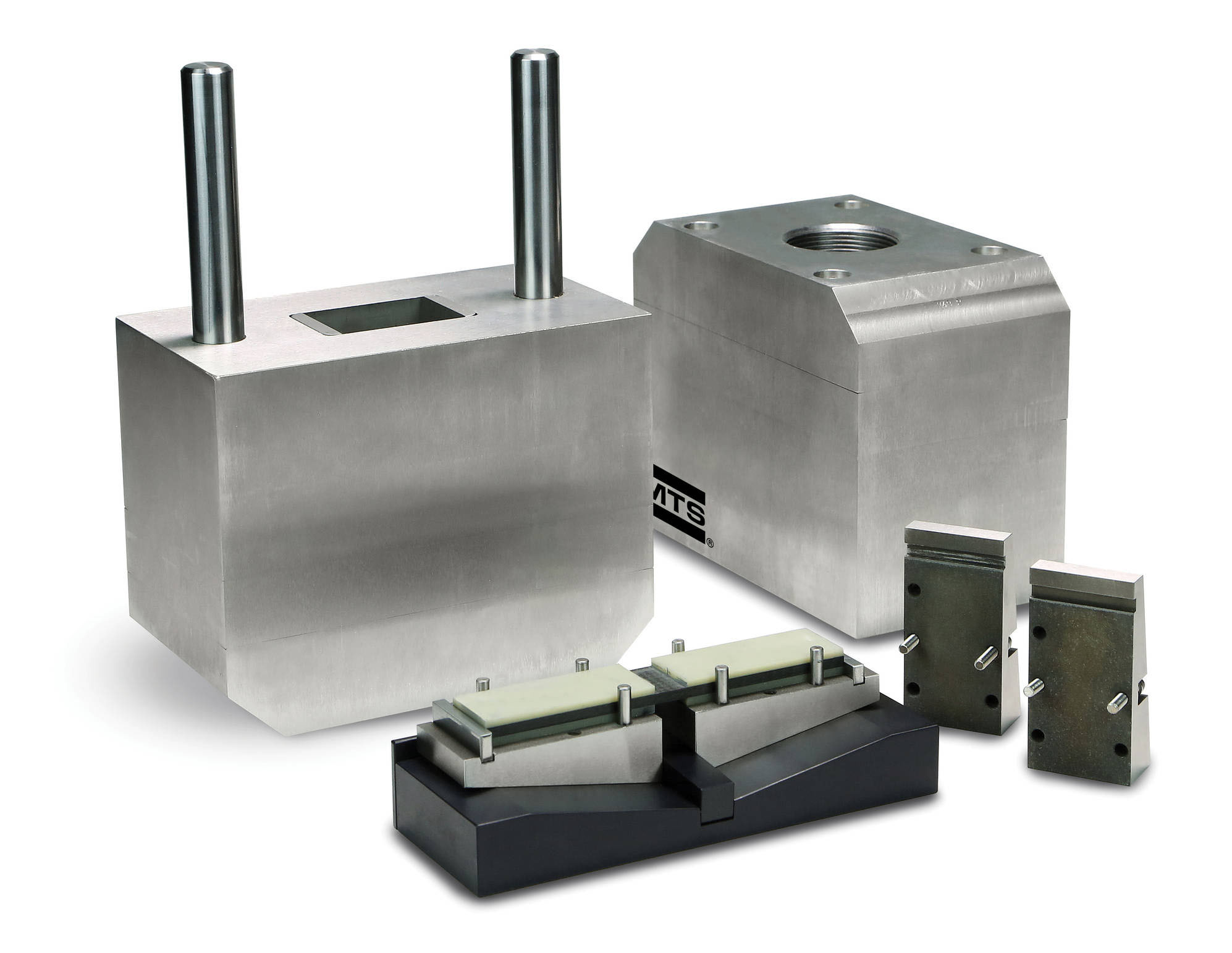

IITRI Compression Loading Composite Fixture
This IITRI Compression Loading Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D3410 and ISO 14126 Method 1B.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| MOUNTING THREAD | |||||
|---|---|---|---|---|---|
| STATIC FORCE | TEMPERATURE RATING | WEIGHT | DIMENSIONS | INSERT SIZES | PART NUMBER |
| 267 kN | -152 to 318°C | ≈ 36 kg | 178 mm (7 in) x | M30 x 2 | 100-351-818 |
| (60 kip) | (-240 to 600°F) | (80 lbs) | 102 mm (4 in) x | ||
| 356 mm (14 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
