MTS Systems

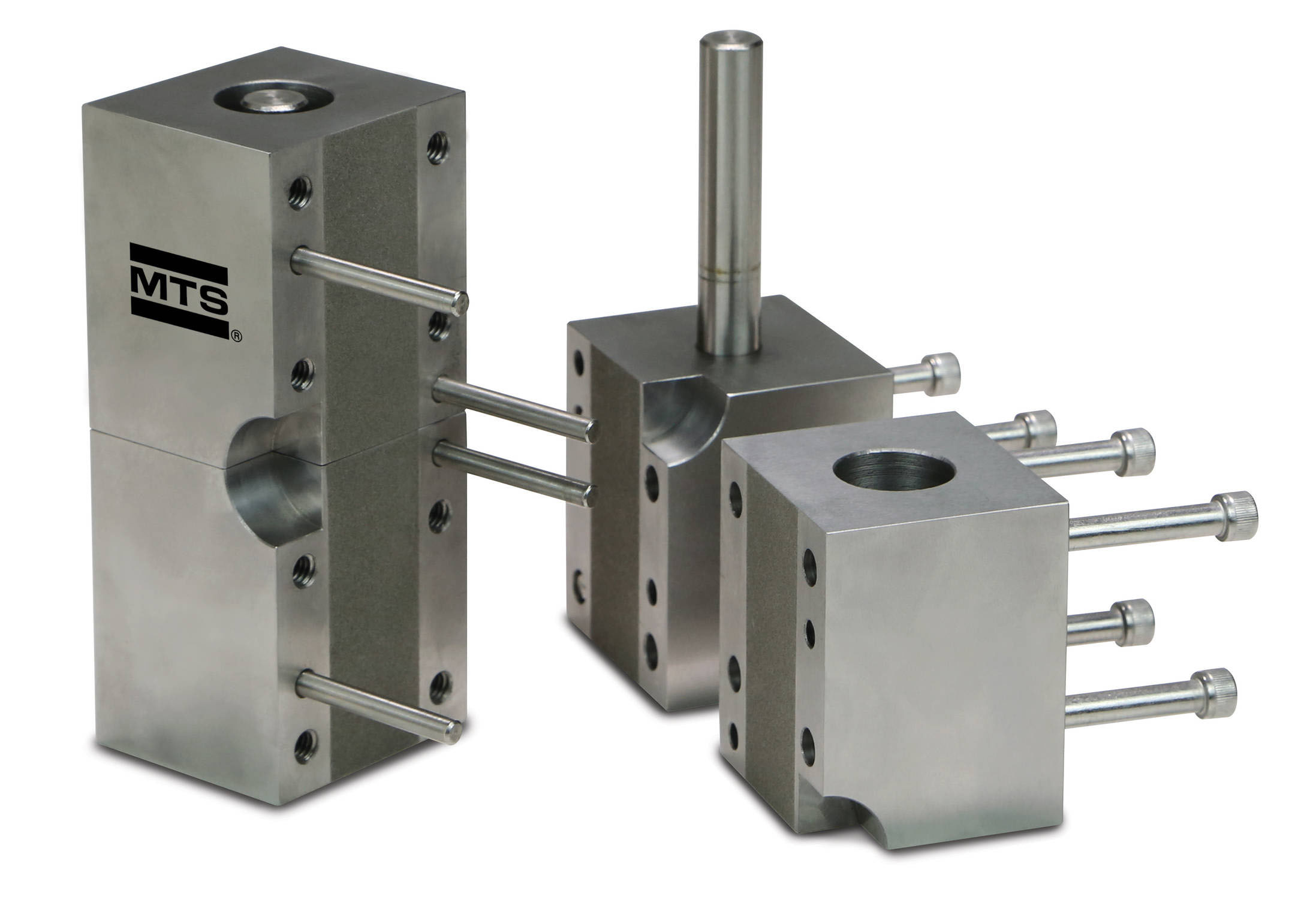

Combined Loading Compression (CLC) Composite Fixture
This Combined Loading Compression (CLC) Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D6641.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| STATIC FORCE | TEMPERATURE RATING | WEIGHT | DIMENSIONS | PART NUMBER |
|---|---|---|---|---|
| 89 kN | -152 to 318°C | ≈ 6.8 kg | 107 mm (4.2 in) x | 100-351-819 |
| (20 kip) | (-240 to 600°F) | (15 lbs) | 53 mm (2.1 in) x | |
| 140 mm (5.5 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
