MTS Systems

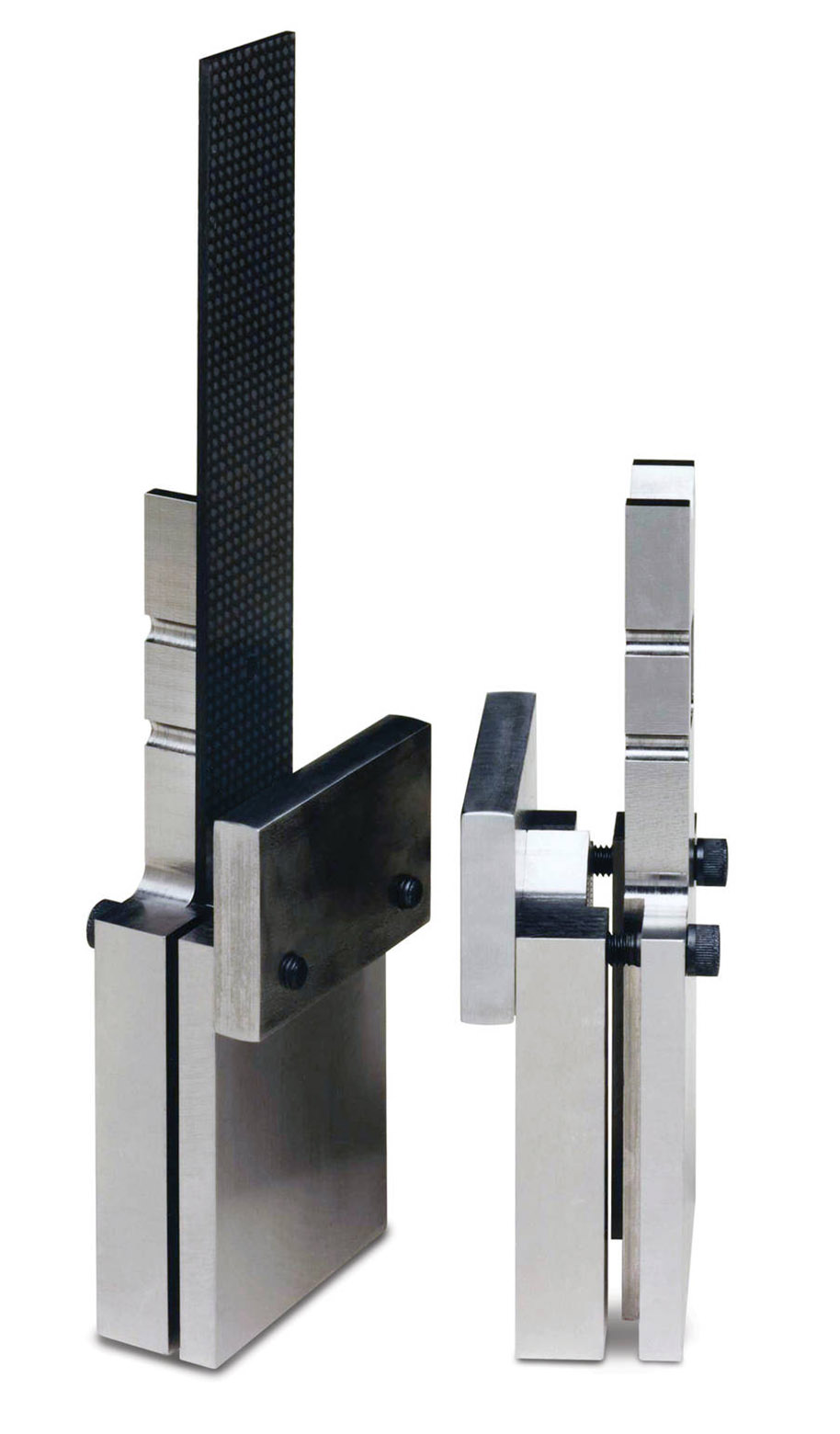

Open/Filled Hole Compression Composite Fixture
This Open/Filled Hole Compression Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D6484, ASTM D6742 and BS 07260.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| STATIC FORCE | TEMPERATURE RATING | WEIGHT | DIMENSIONS | PART NUMBER |
|---|---|---|---|---|
| 222 kN | -152 to 318°C | ≈ 6.8 kg | 76 mm (3 in) x | 100-351-823 |
| (50 kip) | (-240 to 600°F) | (15 lbs) | 51 mm (2 in) x | |
| 305 mm (12 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
