MTS Systems

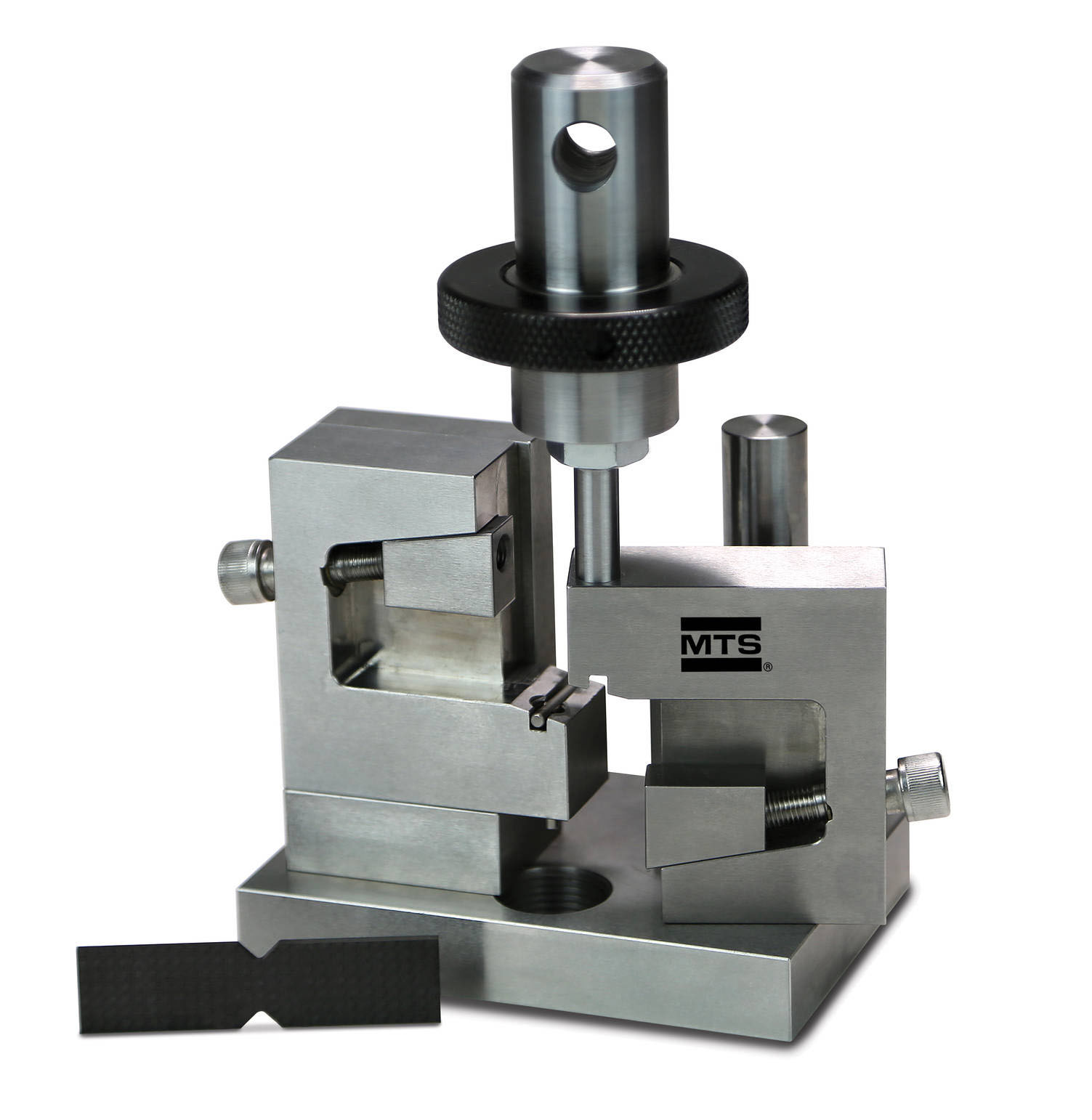

V-Notched Beam Shear Composite Fixture
This V-Notched Beam (Iosipescu) Shear Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D5379.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| STATIC FORCE | TEMPERATURE RATING | WEIGHT | DIMENSIONS | MOUNTING THREAD INSERT SIZES | PART NUMBER |
|---|---|---|---|---|---|
| 44 kN | -152 to 318°C | ≈ 6.8 kg | 153 mm (6 in) x | 1/2" - 20 | 100-087-239 |
| (10 kip) | (-240 to 600°F) | (15 lbs) | 89 mm (3.5 in) x | ||
| 115 mm (4.5 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
