MTS Systems

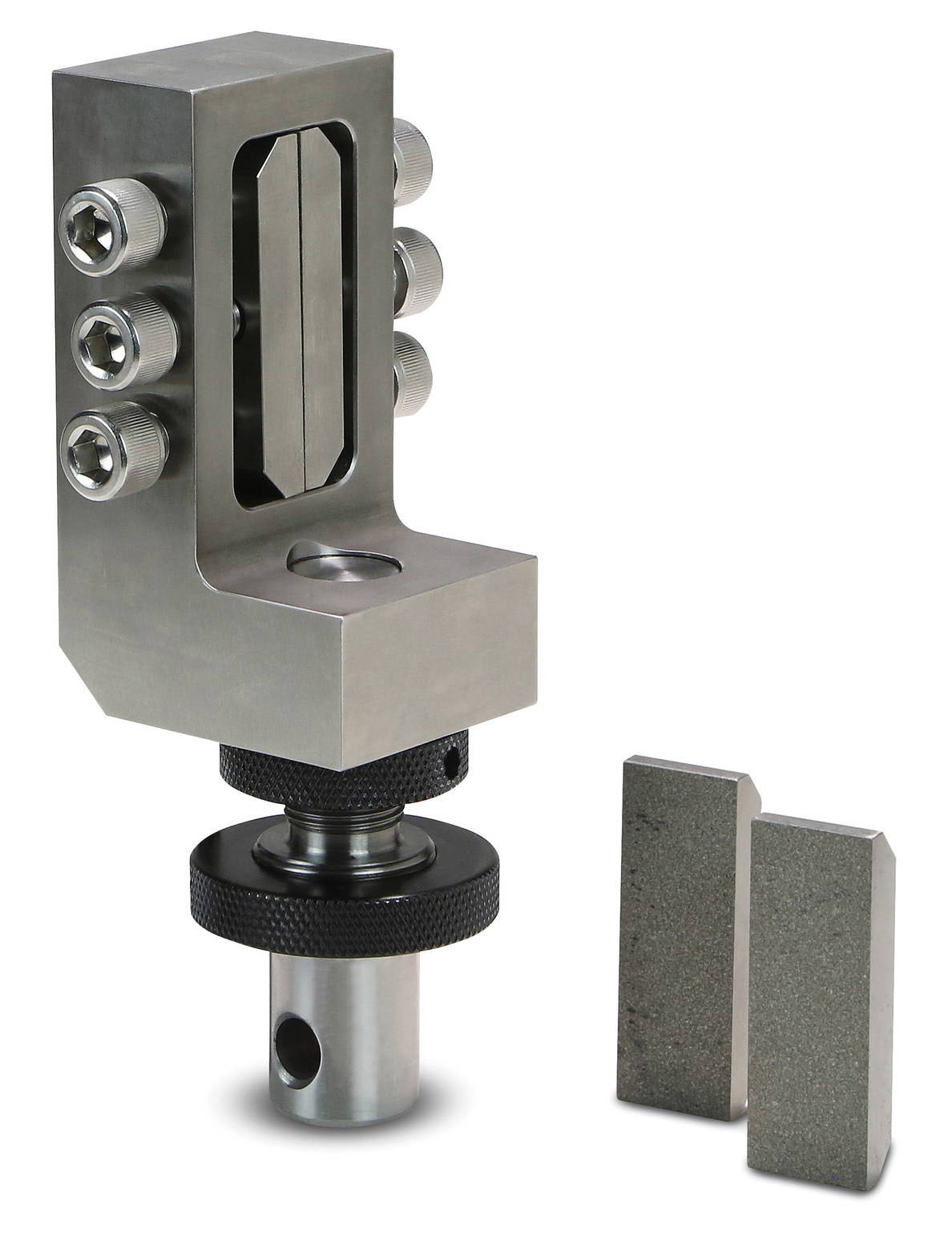

V-Notched Rail Shear Composite Fixture
This V-Notched Rail Shear Composite Fixture is constructed out of high quality stainless steel and is recommended to test in accordance with ASTM D7078.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| STATIC FORCE | TEMPERATURE RATING | WEIGHT | DIMENSIONS | MOUNTING THREAD INSERT SIZES | PART NUMBER |
|---|---|---|---|---|---|
| 44 kN | -152 to 318°C | ≈ 7.7 kg | 102 mm (4 in) x | 1" - 14 | 100-351-820 |
| (10 kip) | (-240 to 600°F) | (17 lbs) | 64 mm (2.5 in) x | ||
| 165 mm (6.5 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
