MTS Systems

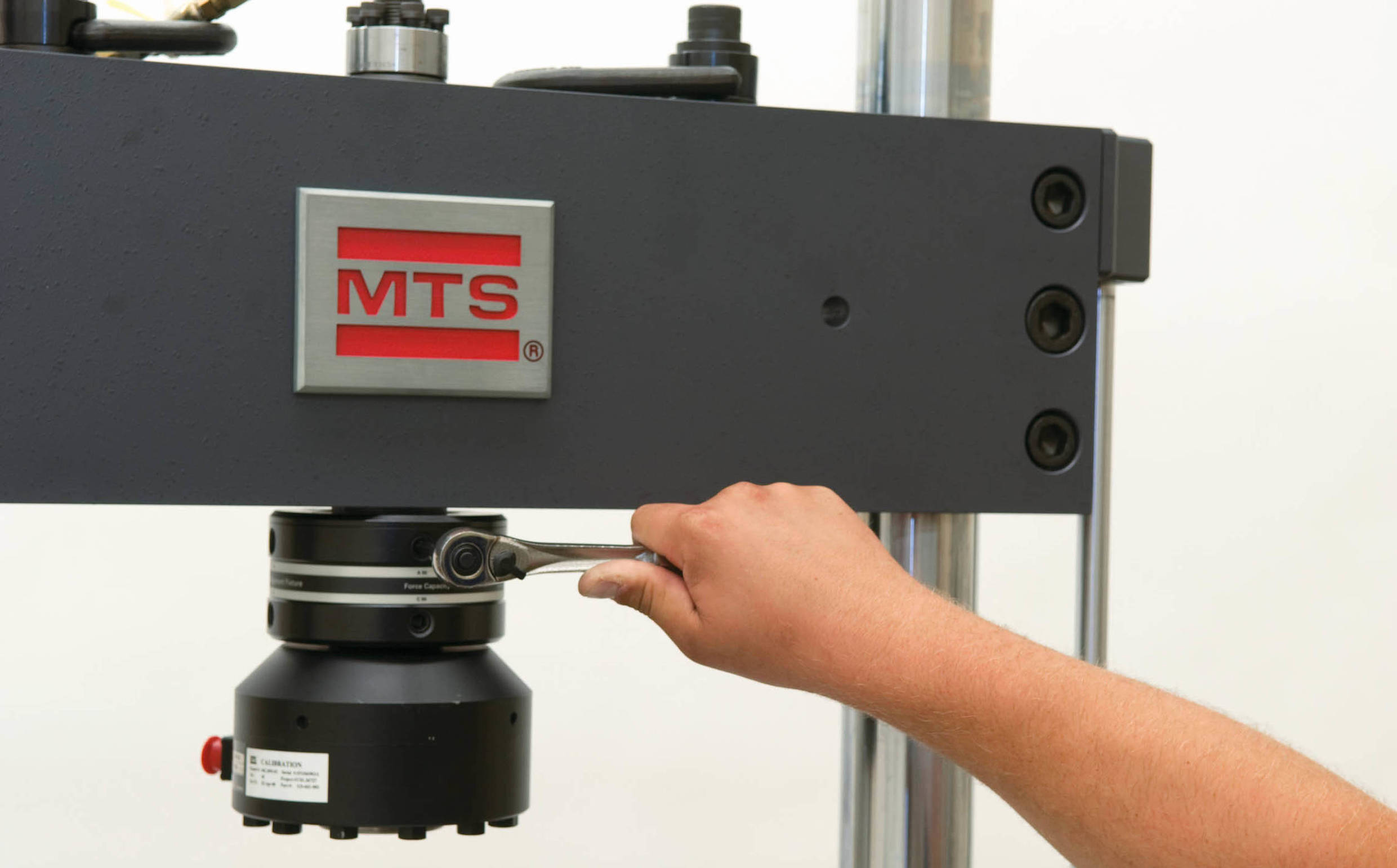

Model 609 Alignment Fixture
The Model 609 Alignment Fixture for material testing systems saves time compared to manual alignment methods. It features a capability to perform alignment adjustments while the load train is fully preloaded. This eliminates any inaccuracies involved in trying to account for the small changes in alignment that frequently occur during the preloading process.
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| Model 609 Alignment Fixtures for Model 312 & 318 Load Frames | ||||||
|---|---|---|---|---|---|---|
| Model | Load Frame Force Capacity | Height | Diameter | Stud Size/Length | Metric Part Number | US Customary Part Number |
| 609.02A-01 | 25 kN (5.5 kip) | 72 mm (2.81 in) | 121 mm (4.75 in) | M12 x 1.25/355 mm (1/2”-20/14.0 in) | 049-083-402 | 049-083-401 |
| 609.10A-01 | 100 kN (22 kip) | 72 mm (2.81 in) | 121 mm (4.75 in) | M27 x 2/343 mm (1”-14/13.5 in) | 049-083-502 | 049-083-501 |
| 609.25A-01 | 250 kN (55 kip) | 80 mm (3.12 in) | 162 mm (6.38 in) | M36 x 2/462 mm (1 1/2”-12/18.2 in) | 049-083-602 | 049-083-601 |
| 609.50A-01 | 500 kN (110 kip) | 181 mm (7.11 in) | 254 mm (10 in) | M52 x 2/686 mm (2”-12/27 in) | 051-499-202 | 051-499-201 |
Detailed Technical Specifications
| Model 609 Alignment Fixtures for Model 370 Load Frames | |||||||
|---|---|---|---|---|---|---|---|
| Model | Stud Size/Length | Height | Diameter | Capacity | Load Frame Model | Alignment Fixture Mounting Location | Part Number |
| 609.02 | M12 X1.25MM X13.5 | 73mm | 124mm | 25kN | 370.10 | Crosshead | 057-206-701 |
| 609.10 | M27 X 2MM X 14.50 | 73mm | 124mm | 100kN | 370.10 | Crosshead | 057-206-301 |
| 609.10 | M27 X 2MM X 16.75 | 73mm | 124mm | 100kN | 370.25 | Crosshead | 057-206-307 |
| 609.25 | M36 X 2MM X 17.25 | 80mm | 162mm | 250kN | 370.25 | Crosshead | 057-206-302 |
| 609.25 | M36 X 2MM X 24.00 | 80mm | 162mm | 250kN | 370.50 | Crosshead | 057-206-308 |
| 609.50 | M52 X 2MM X 25.00 | 181mm | 254mm | 500kN | 370.50 | Crosshead | 057-206-303 |
| 609.02 | M12X1.25MM X11.25 | 73mm | 124mm | 25kN | 370.02 | Base Plate | 057-206-201 |
| 609.02 | M12 X 1.25MM X 16.25 | 73mm | 124mm | 25kN | 370.10 | Base Plate | 057-206-702 |
| 609.10 | M27 X 2MM X 17.00 | 73mm | 124mm | 100kN | 370.10 | Base Plate | 057-206-304 |
| 609.10 | M27 X 2MM X 19.50 | 73mm | 124mm | 100kN | 370.25 | Base Plate | 057-206-309 |
| 609.25 | M36 X 2MM X 20.00 | 80mm | 162mm | 250kN | 370.25 | Base Plate | 057-206-305 |
| 609.25 | M36 X 2MM X 20.00 | 80mm | 162mm | 250kN | 370.50 | Base Plate | 057-206-310 |
| 609.50 | M52 X 2MM X 21.00 | 181mm | 254mm | 500kN | 370.50 | Base Plate | 057-206-306 |
Detailed Technical Specifications
| Contact MTS for Acumen, Exceed, or Criterion Alignment fixture options. |
|---|
Detailed Technical Specifications
| SPECIMENS | PART NUMBER |
|---|---|
| Round, 0.5 in (diameter) | 056-651-701 |
| Round, 1 in (diameter) | 056-651-705 |
| Round, 12 mm (diameter) | 056-651-703 |
| Flat, 3.175 mm (0.125 in) (thick) | 056-651-711 |
| Flat, 6.35 mm (0.25 in) (thick) | 056-651-702 |
| Round Hollow, 0.75 in (diameter) | 056-651-708 |
Detailed Technical Specifications
| CERTIFIED | ||
|---|---|---|
| VOLTAGE/PLUG | PART NUMBER | PART NUMBER |
| 115 V AC, US Plug, CE | 058-570-901 | 058-570-906 |
| 230 V AC, US Plug, CE | 058-570-902 | 058-570-907 |
| 230 V AC, Euro Plug, CE | 058-570-903 | 058-570-908 |
| 230 V, UK/Ireland Cordset, CE | 058-570-904 | 058-570-909 |
| 230 V AC, Chinese Cordset, CE | 058-570-905 | 058-570-910 |
| For other plug options, contact MTS |
Detailed Technical Specifications
| ALIGNMENT SOFTWARE* | PART NUMBER |
|---|---|
| 709.20E-03 Alignment Software | 100-554-833 |
| *Requires Windows 10. Supports 709.20E Alignment Data Acquisition and Conditioning Units with MTS Part Numbers 058-570-9XX, 57-675-5XX & 56-776-6XX. |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
