Bionix EnviroBath

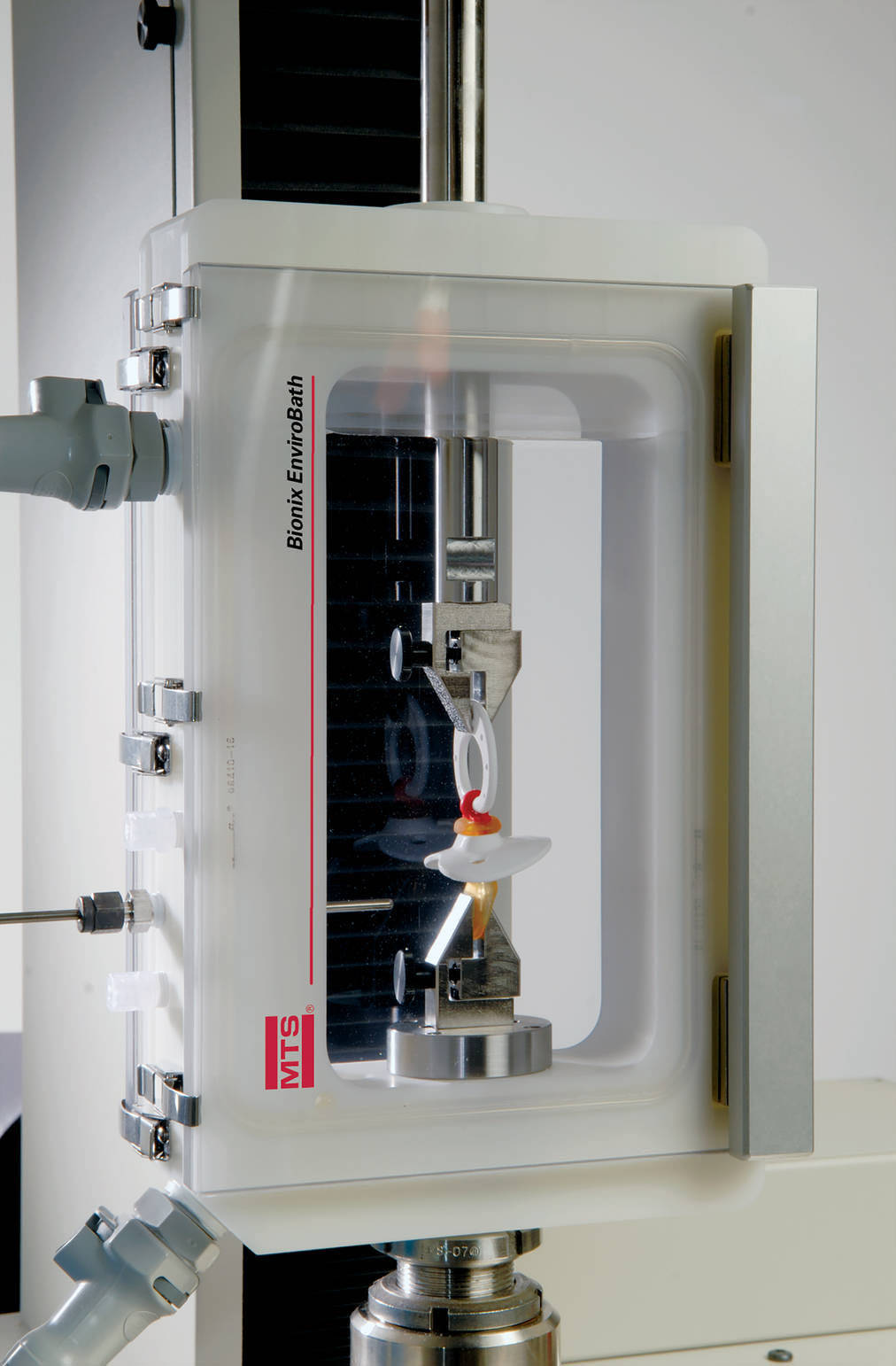

The versatile Bionix EnviroBath facilitates accurate and efficient mechanical testing of medical device and biomaterial specimens in fluids heated to body temperatures. Engineered for biomedical and general material test applications, the Bionix EnviroBath is easy to set up, operate, and maintain.
Key Features & Benefits
- Accurate & Repeatable — Highly reliable fluid temperature control system maintains constant specimen temperatures throughout the test

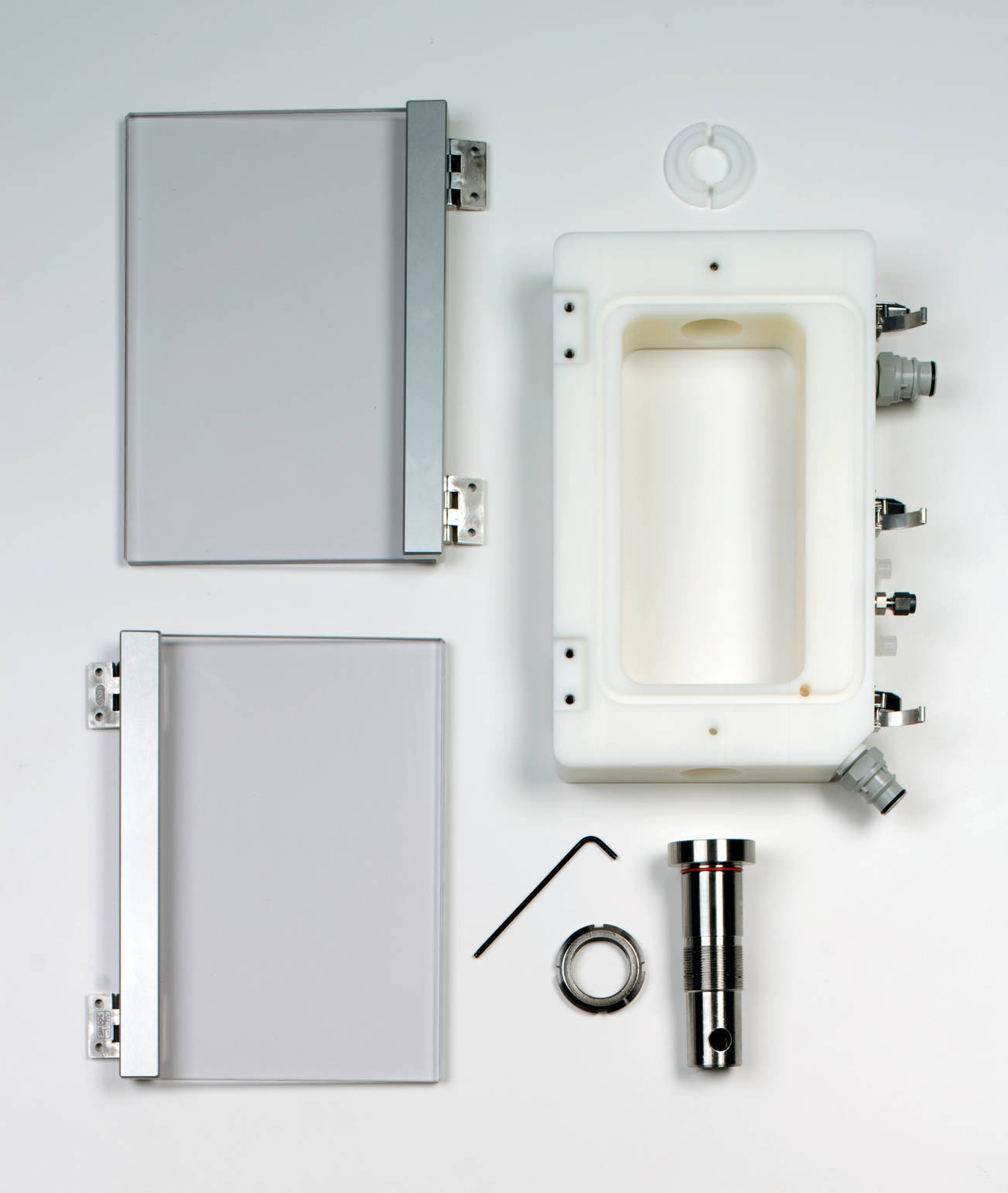

- Easy to Use — Leak-proof front and back access panels enable the easy installation and change out of grips, fixtures and test specimens
- Accelerated Testing — Quick, controlled filling and draining minimizes time between tests

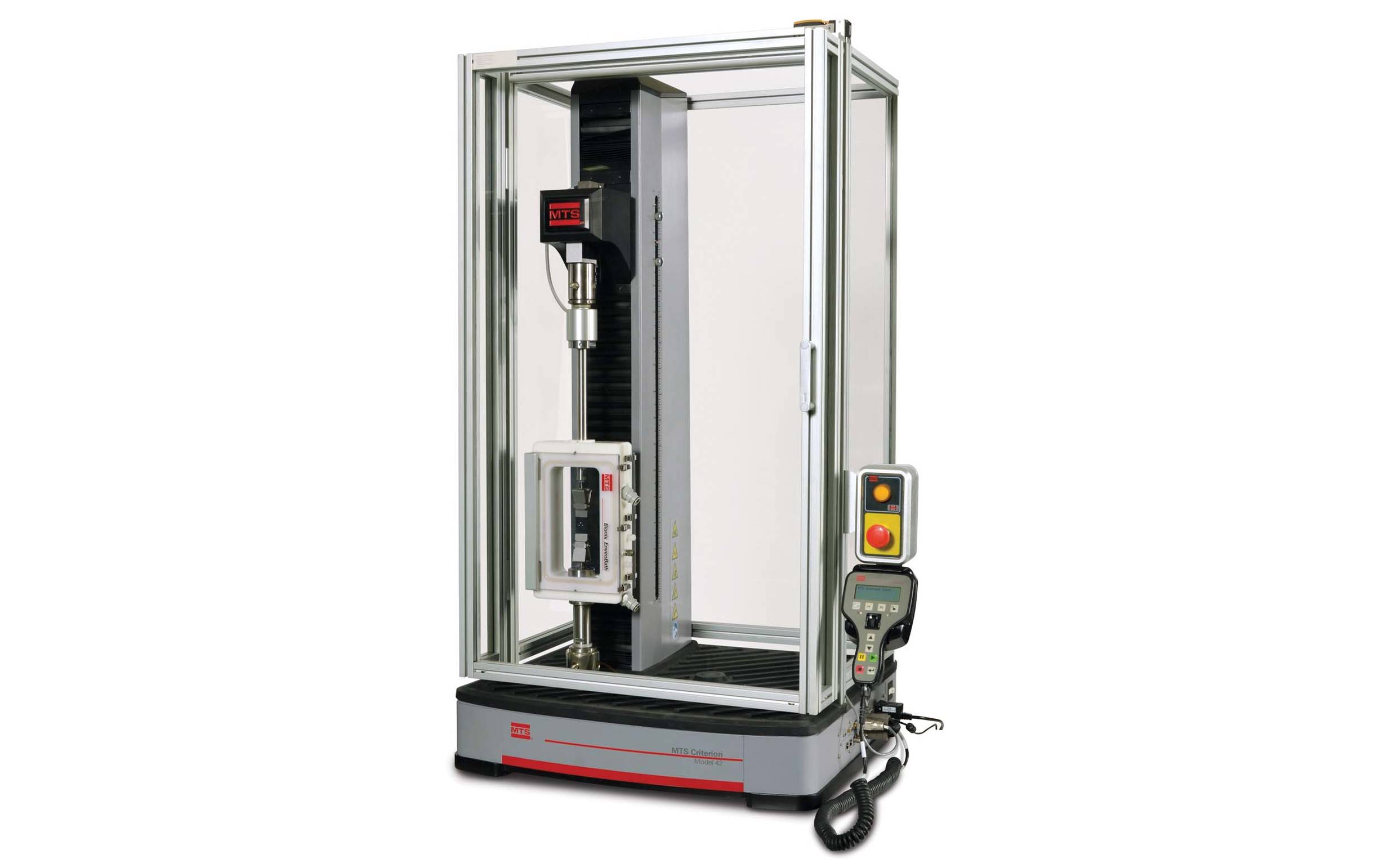

- Versatile — Universal adapter design ensures compatibility with MTS electromechanical, electrodynamic and servohydraulic load frames
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| GENERAL SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| TEMPERATURE | |||||
| Range: | 5˚C above ambient to 40˚C | ||||
| Stability: | ±2˚C at 37˚C | ||||
| POWER (V AC, Hz, A) | |||||
| US: | 120 V AC, 50/60 Hz, 11 A | ||||
| Europe: | 240 V AC, 50 Hz, 10 A | ||||
| BIONIX EnviroBath | |||||
| VOLUME | AXIAL FORCE | TORSIONAL FORCE | INTERNAL DIMENSIONS WXHXD | EXTERNAL DIMENSIONS WXHXD | |
| 1 | 1 liter | 2.4 kN | 28 N.m | 100 x 200 x 56 mm '4 x 8 x 2.2 in | 180 x 295 x 95 mm '7 x 11.5 x 3.65 in |
| 6 | 6 liter | 2.4 kN | 28 N.m | 130 x 480 x 100 mm 5 x 19 x 3.9 in | 205 x 575 x 140 mm 8 x 22.5 x 5.5 in |
| 10 | 10 liter | 10 kN | 100 N.m | 215 x 305 x 150 mm '8.5 x 12 x 5.8 in | 295 x 395 x 190 mm '11.5 x 15.5 x 7.4 in |
Detailed Technical Specifications
| OPTIONS | ||||
|---|---|---|---|---|
| 1 LITER | 6 LITER | 10 LITER | ||
| Sprayer Option | √ | √ | ||
| Protein Based Fluid | √ | √ | √ | |
| Horizontal | √ | √ | ||
| Digital Temperature Monitor | √ | √ | √ | |
| Upper Pull Rod (SST) | √ | √ | √ | |
| COMPATIBILITY MATRIX | ||||
| GRIPS AND FIXTURES | 1 LITER | 6 LITER | 10 LITER | PART NUMBER |
| Bionix Vise Action Grips, 100 N | √ | √ | √ | 100-186-411 |
| Model 642.001 Bend Fixture (SST) | √ | √ | √ | 100-201-456 (S/H & E/D) |
| Bionix Manual Thumb Screw Grip, 100 N | √ | √ | √ | 100-167-987 |
| Bionix Compression Platens, 40 mm | √ | √ | √ | 100-203-455 |
| Bionix Spring Action Grips | √ | √ | 056-077-50x | |
| Bionix Compression Platens, 50 mm | √ | √ | 100-182-229 | |
| Bionix Vise Action Grips, 2 kN | √ | √ | 100-174-783 | |
| Bionix Roller Action Grips, 1 kN | √ | √ | 100-185-262 | |
| Model 642.01 Bend Fixture (SST) | √ | 100-203-453 (S/H & E/D) | ||
| Bionix Compression Platens, 100 mm | √ | 100-182-227 | ||
| Model 686.01A-31 Axial Torsional Grips (SST) | √ | 051-882-201 | ||
| Note: EnviroBath 10 is compatible with customer-supplied spinal fixture per ASTM F1717-01. | ||||
| Some grips available in titanium. Contact MTS for additional information. | ||||
| * Vertical Orientation | ||||
| ELECTROMECHANICAL LOAD FRAMES | ||||
| 1 LITER | 6 LITER | 10 LITER | ||
| MTS Single Column Standard Length | √ | C41 only | √ | |
| MTS Single Column Extended Length | √ | √ | √ | |
| MTS Dual Column Standard and Extended Length | √ | √ | √ | |
| Legacy MTS load frames and Instron E/M load frames | Consult MTS | |||
| ELECTRODYNAMIC LOAD FRAMES | ||||
| 1 LITER | 6 LITER | 10 LITER | ||
| MTS Acumen 1 | √ | √ | ||
| MTS Acumen 3 | √ | √ | ||
| MTS Acumen 3 A/T | √ | √ | ||
| MTS Acumen 12 | √ | √ | √ | |
| MTS Acumen 12 A/T | √ | √ | ||
| SERVOHYDRAULIC LOAD FRAMES | ||||
| 1 liter | 6 liter | 10 liter | ||
| Bionix Tabletop Axial or Axial/Torsional | √ 1 | √ 1, 2 | √ | |
| MTS Landmark 3 | √ | √ | √ | |
| Legacy MTS load frames 3 | Consult MTS | |||
| 1 Additional adapter required. | ||||
| 2 Extended columns required. | ||||
| 3 Cross-head mounted actuator. |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
