MTS Systems

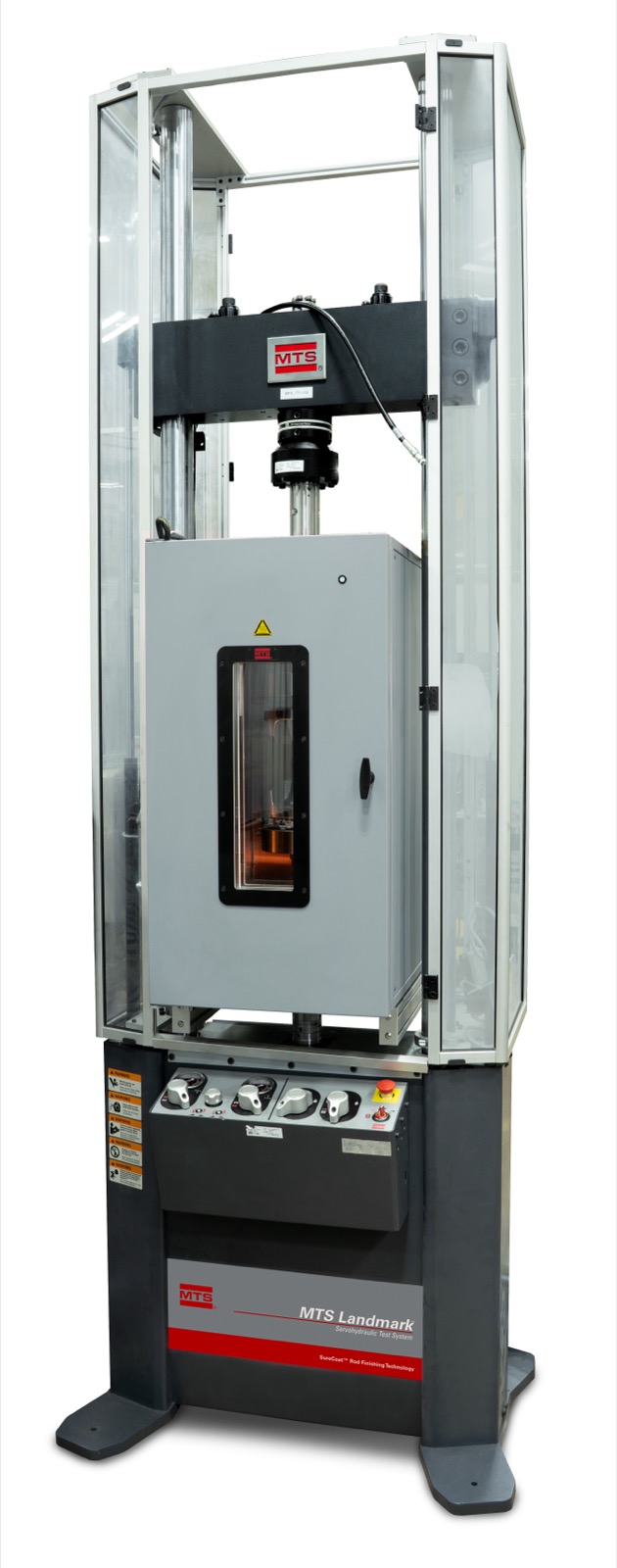

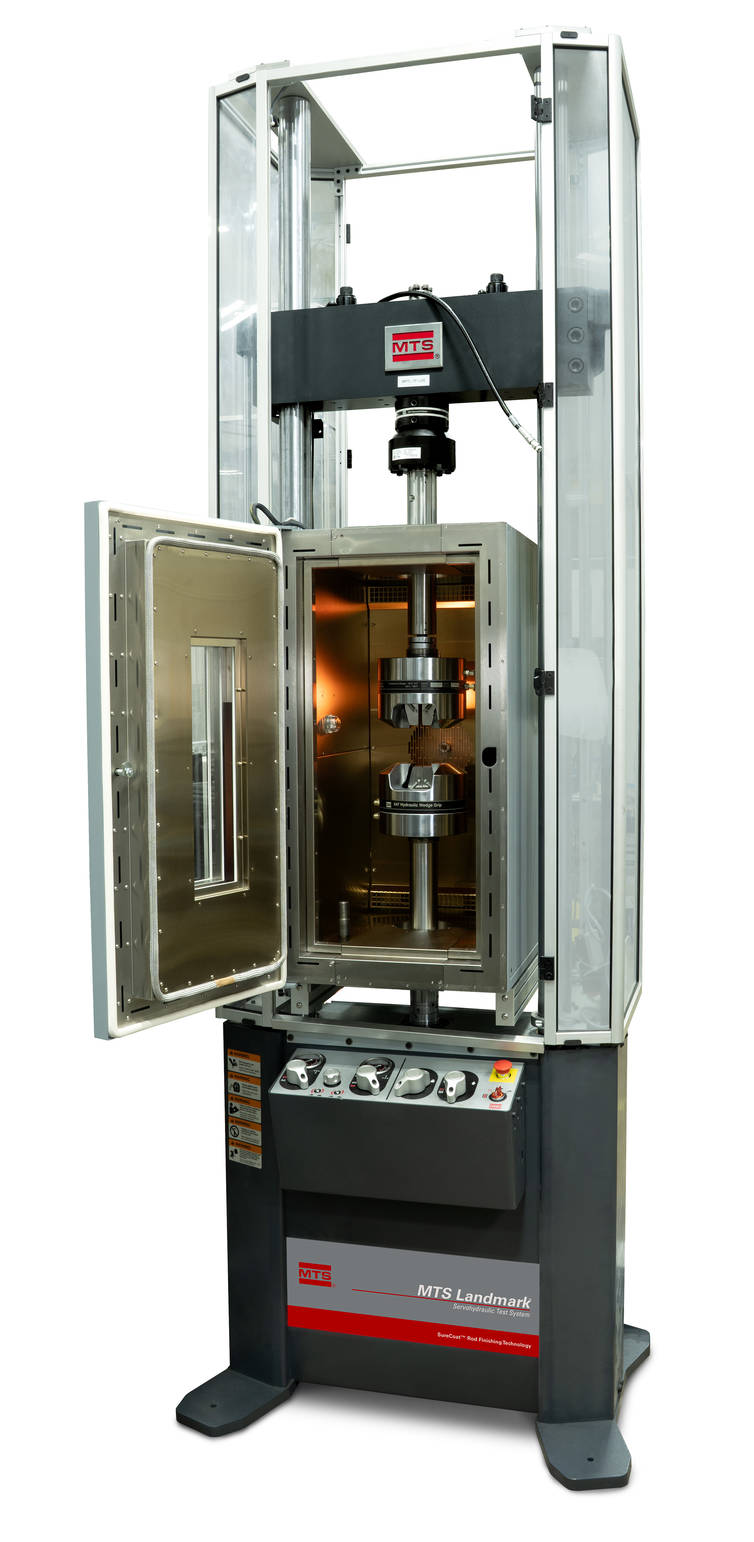

EnviroPro Environmental Chambers
MTS EnviroPro™ Chambers enable test engineers and researchers to perform a wide array of mechanical tests in conditions that closely replicate temperatures that materials and components experience in their actual operating environments, providing confidence in the operating range of materials in the real-world.
Key Features & Benefits
- Accurate & Repeatable — Accurate testing at low or high temperatures.
- Easy Setup — Designed to streamline repeatable test setup.
- Software Controlled — Precise temperature management to regulate temperature from the system PC.
- Temperature Versatile — Can test as low as -150°C (-238°F) or as high as 600°C (1112°F).
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| Description | EnviroPro 10 | EnviroPro 20 | EnviroPro 30 | EnviroPro 40 | EnviroPro 50 | EnviroPro 60 |
|---|---|---|---|---|---|---|
| Maximum Temperature | +350°C (660°F) | +350°C (660°F) | +350°C (660°F) | +350°C (660°F) | +600°C (1112°F) | +350°C (+660°F) |
| Minimum Temperature | -100°C (-150°F) | -100°C (-150°F) | -100°C (-150°F) | -150°C (-238°F) | -150°C (-238°F) | -150°C (-238°F) |
| Heating Method | Forced Convection | Forced Convection | Forced Convection | Forced Convection | Forced Convection | Forced Convection |
| Cooling Method | LN2 | LN2 | LN2 | LN2 | LN2 | LN2 |
| Power Requirements | 100-120V (30A) or 200- 240V (16A) 50/60Hz Single Phase | 100-120V (30A) or 200- 240V (16A) 50/60Hz Single Phase | 200 - 240V 50/60Hz Single Phase | 200-240V (30A) 50/60Hz Single Phase | 200-240V (30A) 50/60Hz Single Phase | 200 - 240V (30A) 50/60Hz Single Phase |
Detailed Technical Specifications
| Description | EnviroPro 10 | EnviroPro 20 | EnviroPro 30 | EnviroPro 40 | EnviroPro 50 | EnviroPro 60 |
|---|---|---|---|---|---|---|
| External Height | 635 mm (25.0 in) | 810 mm (31.9 in) | 1010 mm (39.8 in) | 711 mm (28 in) | 813 mm (32 in) | 965 mm (38 in ) |
| Internal Height | 485 mm (19.1 in) | 660 mm (26.0 in) | 860 mm (33.9 in) | 559 mm (22 in) | 660 mm (26 in) | 813 mm (32 in) |
| External Width | 350 mm (13.8 in) | 350 mm (13.8 in) | 350 mm (13.8 in) | 508 mm (20 in) | 508 mm (20 in) | 508 mm (20 in) |
| Internal Width | 240 mm (9.4 in) | 240 mm (9.4 in) | 240 mm (9.4 in) | 355 mm (14 in) | 355 mm (14 in) | 355 mm (14 in) |
| External Depth | 590 mm (23.2 in) | 590 mm (23.2 in) | 590 mm (23.2 in) | 902 mm (35.5 in) | 902 mm (35.5 in) | 902 mm (35.5 in) |
| Internal Depth | 230 mm (9.0 in) | 230 mm (9.0 in) | 230 mm (9.0 in) | 432 mm (17 in) | 432 mm (17 in) | 432 mm (17 in) |
| Pull Rod Port Diameter | 67 mm (2.6 in) | 67 mm (2.6 in) | 67 mm (2.6 in) | 135 mm (5.31 in) | 135 mm (5.31 in) | 135 mm (5.31 in) |
| Window Height | 350 mm (13.8 in) | 460 mm (18.1 in) | 640 mm (25.2 in) | 350 mm (13.8 in) | 350 mm (13.8 in) | 460 mm (18.1 in) |
| Window Width | 125 mm (4.9 in) | 125 mm (4.9 in) | 125 mm (4.9 in) | 125 mm (4.9 in) | 125 mm (4.9 in) | 125 mm (4.9 in) |
| Weight | 65 kg (143 lb) | 75 kg (165 lb) | 85 kg (187 lb) | 135 kg (297 lb) | 140 kg (308 lb ) | 156 kg (344 lb) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
