Advantage 3D Video Extensometer (AVX 3D)

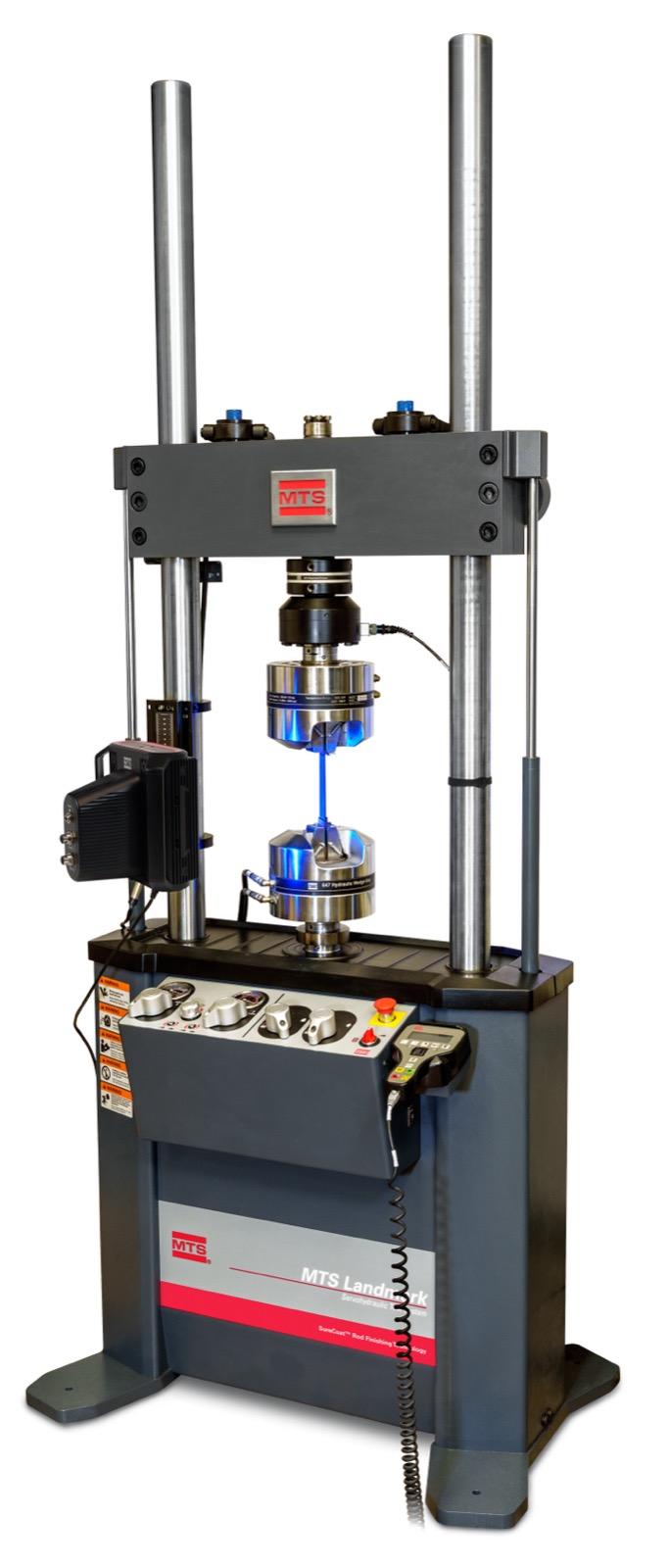

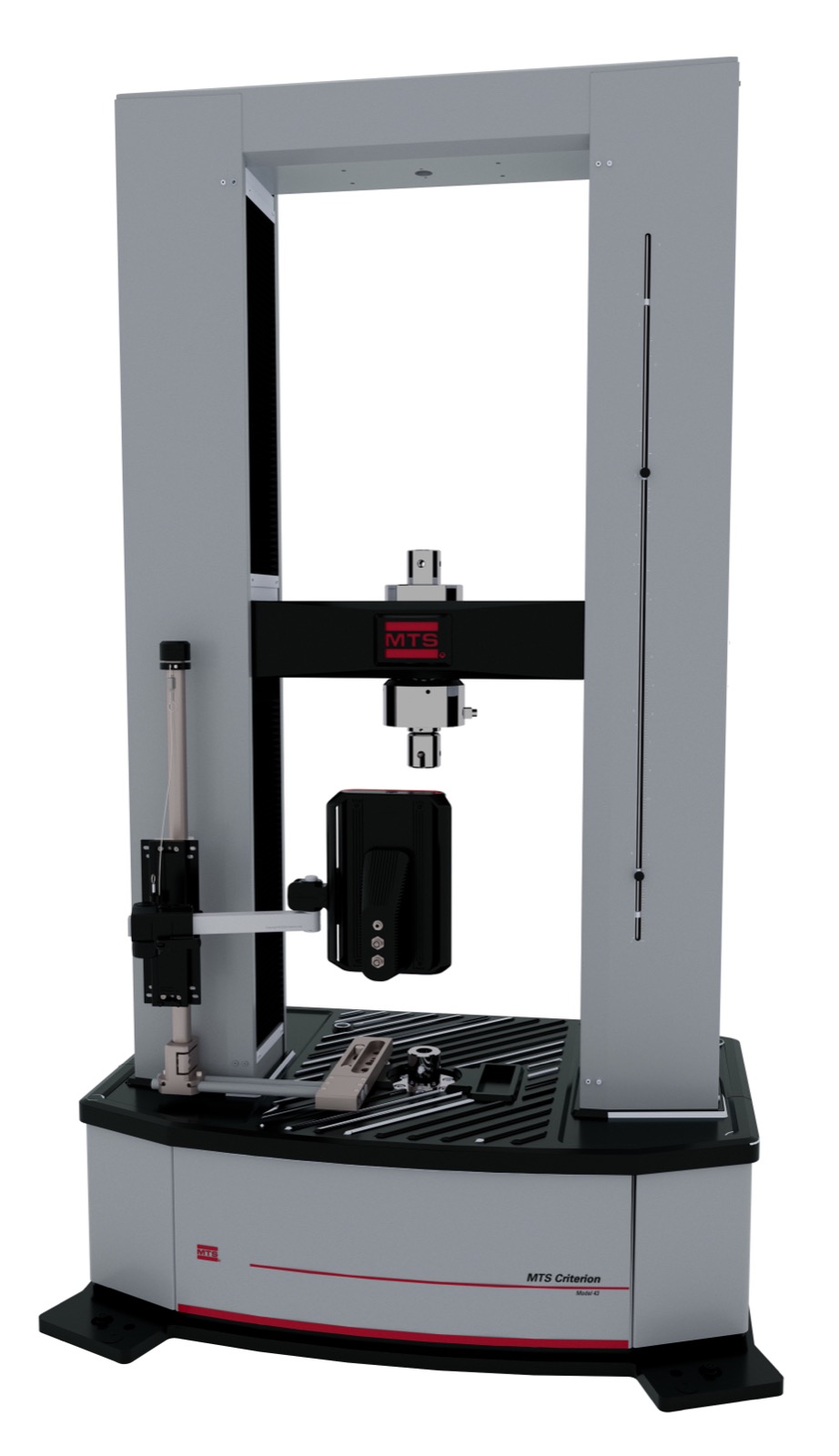

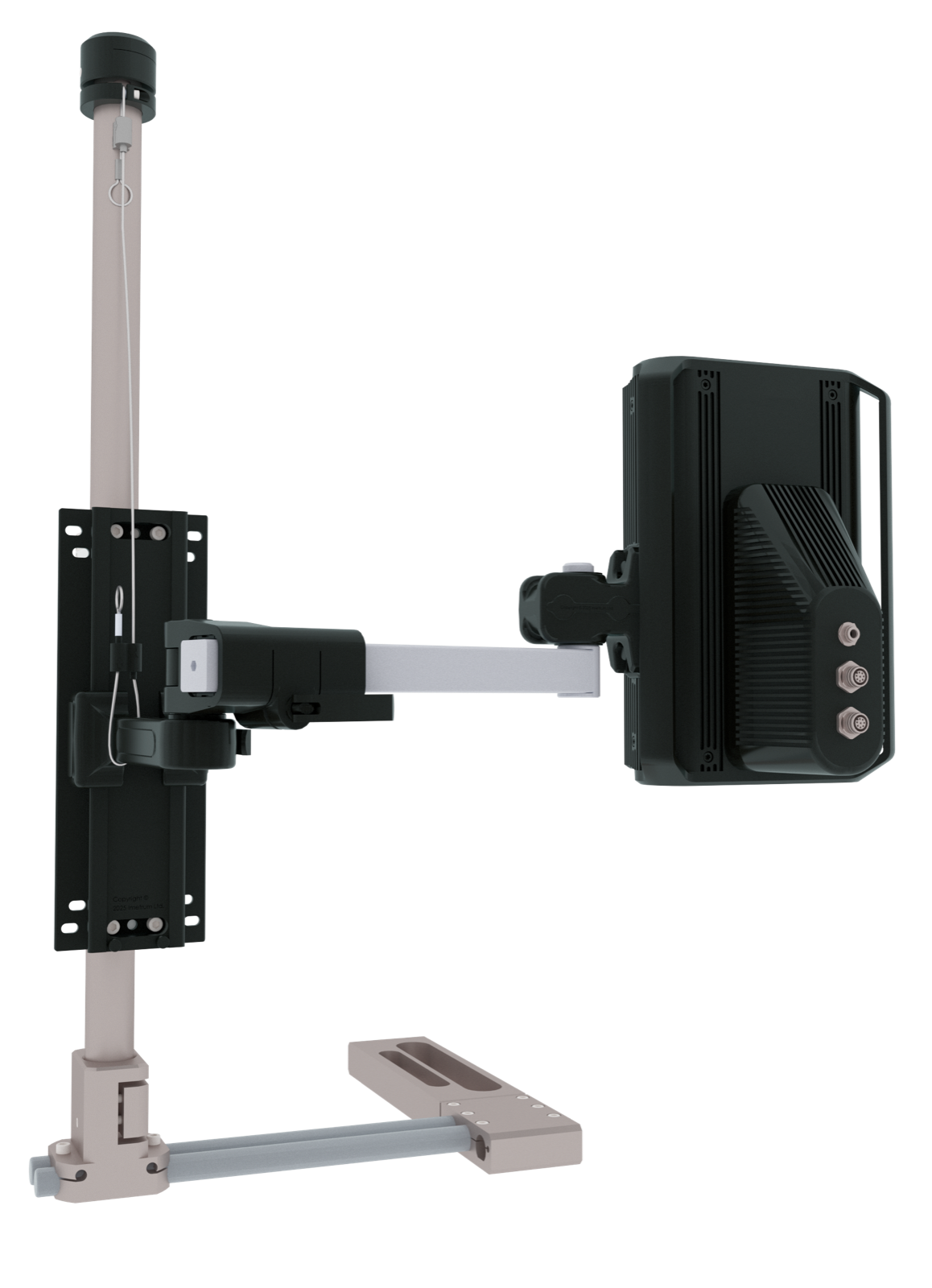

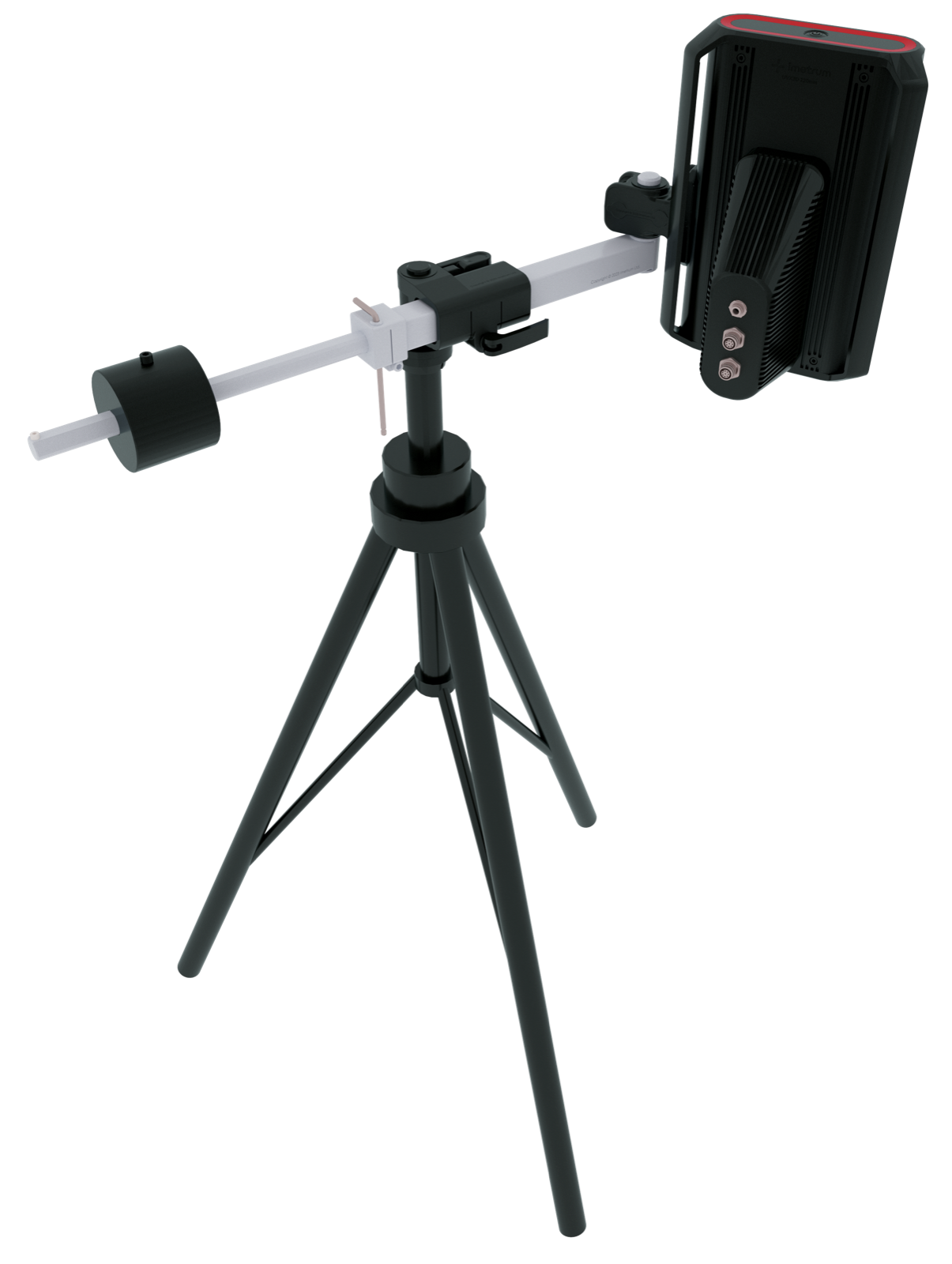

The Advantage ™ 3D Video Extensometer (AVX) is designed to deliver precise, non-contact strain and displacement measurements across a wide spectrum of materials testing applications. Compatible with MTS Criterion®, Landmark® and other test systems, this versatile 3D measurement solution provides precise data about material properties.
Key Features & Benefits

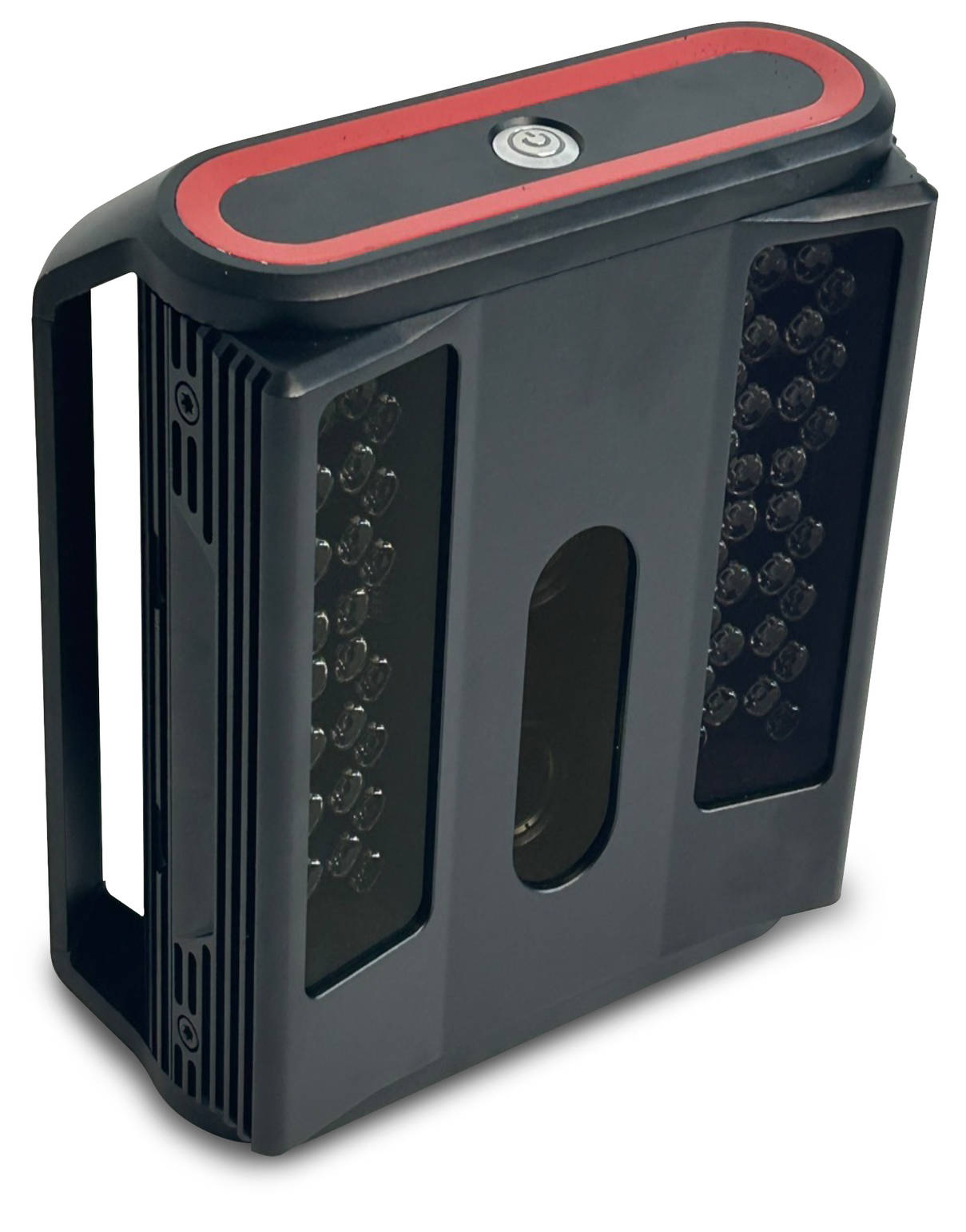

- Stereo Camera — Low-glare, cross-polarized light optimizes imaging and analysis
- Easy Post Processing — Measurements can be added during post-processing mode, and automated batch processing available
- Accuracy — Integrates with MTS TestSuite TW software to provide up to 200 real-time measurements
- Flexibility — Supports up to 32 analog/input/output channels and up to 16 digital input/output channels
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| Specifications MTS AdvantageTM 3D Video Extensometer | ||||
|---|---|---|---|---|
| Extensometer Measurement Applications | Tensile, Compressive, Flexural, Shear, Rotation, Buckling, Multi-point Strain (axial, biaxial, up to 200 measurements) and optional 2D / 3D DIC Strain Map processing capabilities | |||
| Measurement Modes | Strain (%), Extension (mm), Displacement (mm), Positions (mm), Rotation (°), Poisson’s ratio, Strain Map. | |||
| Field of view (Height (H) x Depth (D) x Width (W); Width varies with data rate) | Preset Model 110: | 120 Hz | 500 Hz | 1000 Hz |
| 110H x 40D x 94W mm | 110H x 40D x 23W mm | 110H x 40D x 11W mm | ||
| Field of view (Height (H) x Depth (D) x Width (W); Width varies with data rate) | Preset Model 220: | 120 Hz | 500 Hz | 1000 Hz |
| 220H x 40D x 94W mm | 220H x 40D x 48W mm | 220H x 40D x 24W mm | ||
| Resolution | <0.5 µm | |||
| Working Distance | 320 to 360 mm | |||
| Extensometer Accuracy Class | Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1 capable | |||
| Frame Capture Rate | Presets at 120, 500, 1000 Hz (1000 Hz measurements in post-processing only) | |||
| Maximum Tracking Speed | 2500 mm/min | |||
| Strain Control | Real-time low latency strain data at presets of 120 and 500 Hz. Compliant to ISO 6892 and ASTM E8 | |||
| Strain Signal Interface | Ethernet or analog ±10V BNC | |||
| Supported Mark Types | Bullseyes, Dots, Rings, Speckles and Natural Patterns | |||
| Recommended Specimen Temperature Range | -100 to 370ºC | |||
| AVX 3D Video Extensometer; Model 110 | ||||
| Gauge Lengths Supported | 10 to 80 mm | |||
| Minimal Specimen Width | Axial; 2.1 mm Transverse; 12 mm | |||
| Minimal Recommended Specimen Parallel Section | 12 mm | |||
| Dimensions (Height (H) x Depth (D) x Width (W)) | 193H x 192D x 210W mm | |||
| Weight | 3.8 kg | |||
| AVX 3D Video Extensometer; Model 220 | ||||
| Gauge Lengths Supported | 20 to 200 mm | |||
| Minimal Specimen Width | Axial; 4.7 mm Transverse; 25 mm | |||
| Minimal Recommended Specimen Parallel Section | 24 mm | |||
| Dimensions (Height (H) x Depth (D) x Width (W)) | 255H x 192D x 210W mm | |||
| Weight | 5 kg |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
