MTS Systems
Vector Optical Extensometer

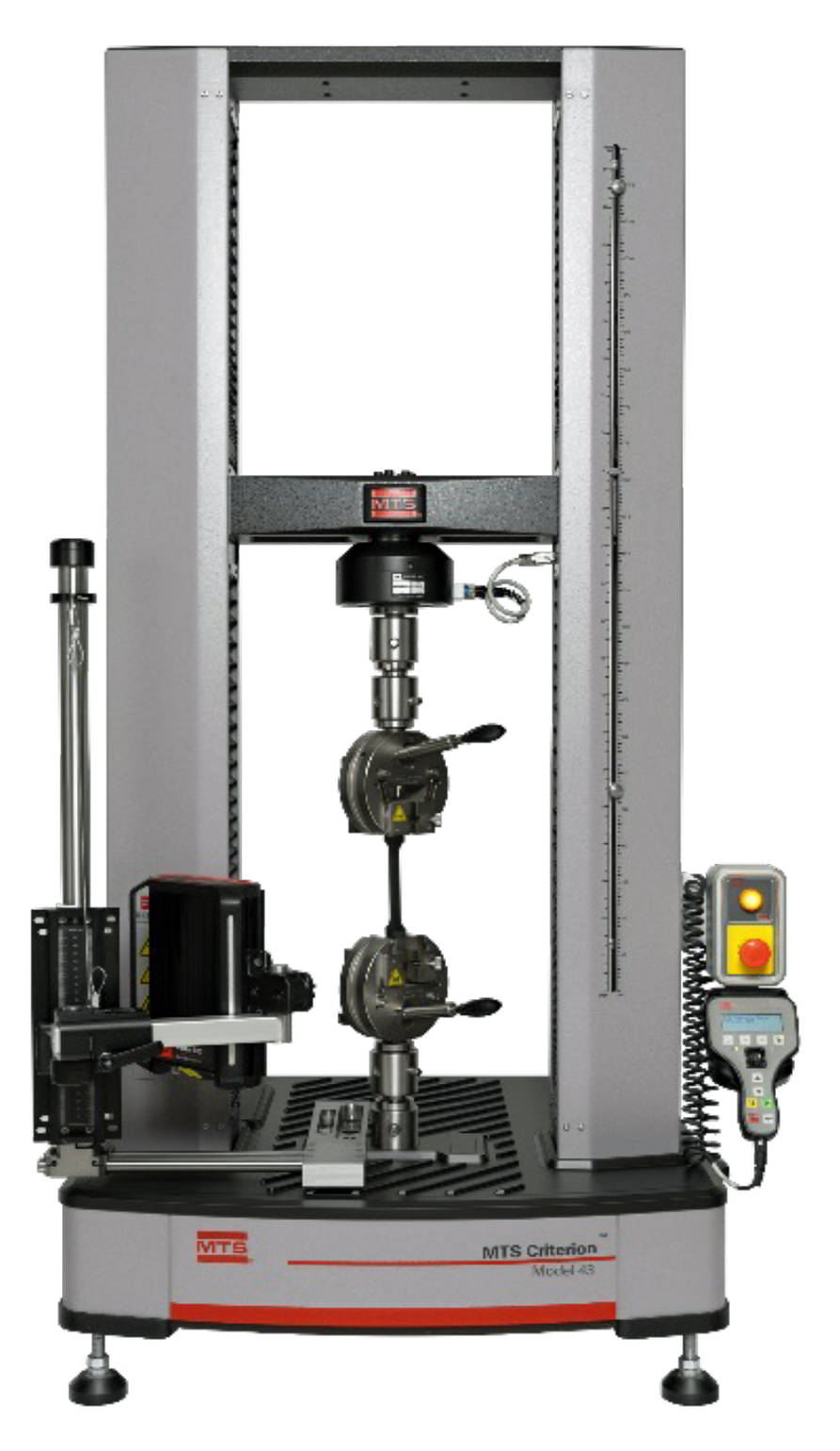

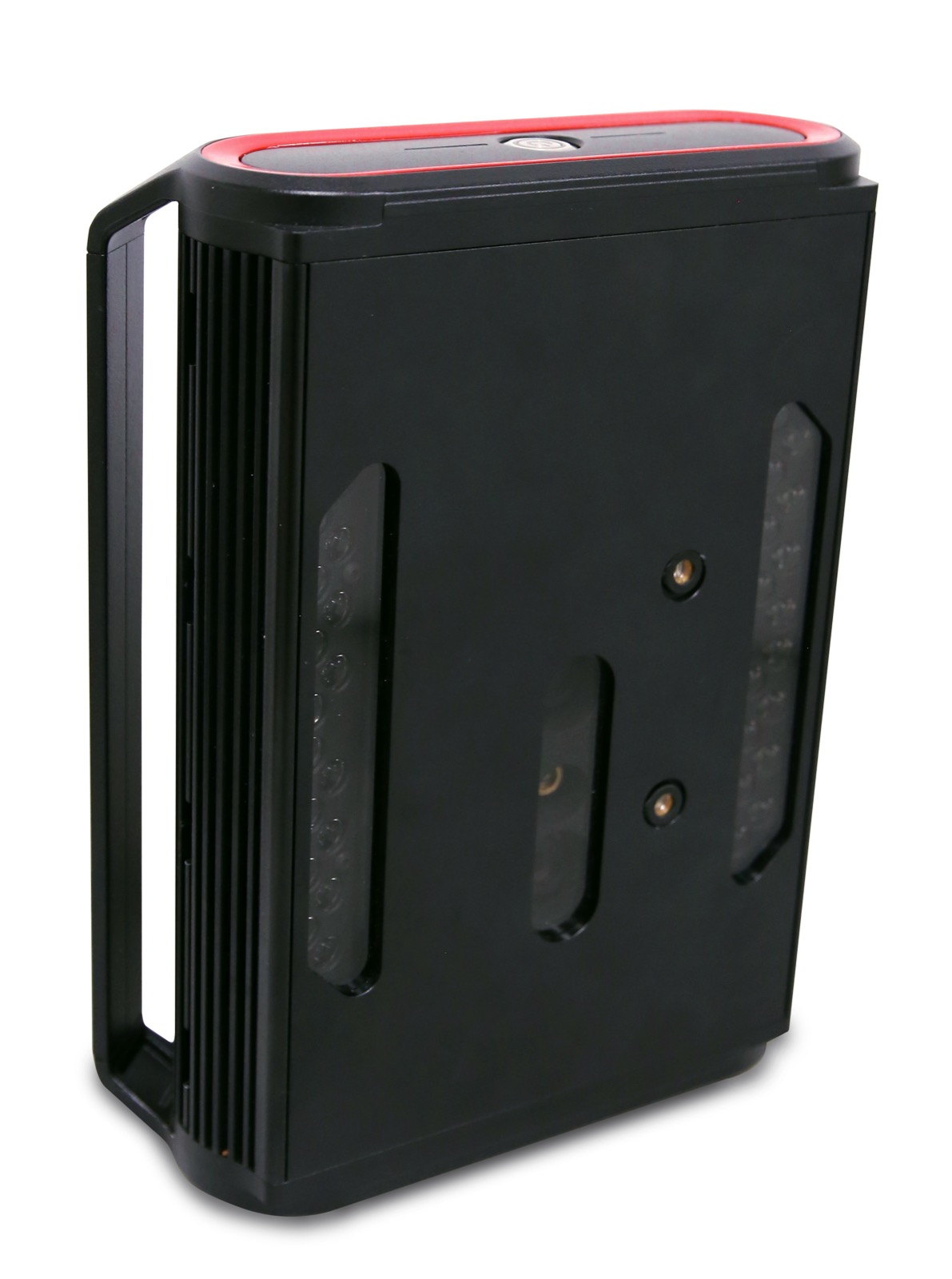

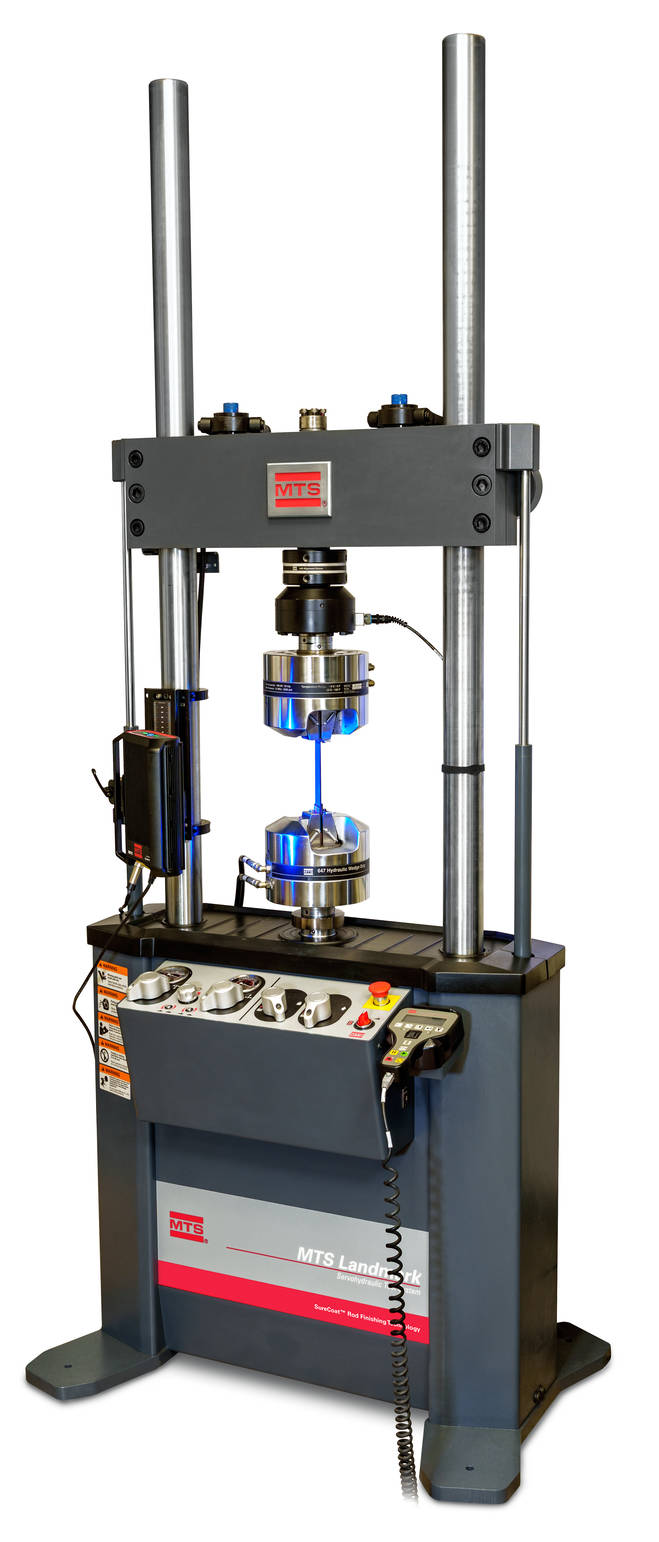

With its real-time on-board processing capabilities, the Vector Optical Extensometer minimizes the time and effort spent on setup, easily producing accurate data within minutes of mounting it to any MTS load frame. Its integrated measurement head combines a stereo camera system and low-glare cross-polarized blue lights for optimal imaging and analysis.
Key Features & Benefits
- Set up in Seconds — Automatic mark detection, no manual configuration
- TestSuite™ TW EM Integration — Embedded setup interface for Criterion EM systems
- Built-In Alignment Lasers — Visual positioning guidance
- Validation Wizard — Pre-test accuracy check against ASTM E83 / ISO 9513
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| MTS Vector U70 Specifications | ||||||
|---|---|---|---|---|---|---|
| Extensometer Measurement Applications | Uniaxial: Tensile, Compressive or Flexural | |||||
| Measurement Modes | Strain (%) or Displacement (mm/inches) | |||||
| Field of View (Height (H) x Depth (D) x Width (W)) | 70H x 40D x 25W mm cuboid | |||||
| Resolution | <0.5 µm | |||||
| Extensometer Accuracy Class | Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1 capable | |||||
| Gauge Lengths Supported | 10 to 50 mm | |||||
| Representative Maximum Strain Range and Extension for Selected Gauge Lengths | GL | 10 mm | 12.5 mm | 25 mm | 50 mm | |
| Strain Range | 400% | 307% | 120% | 27% | ||
| Extension Range | 40 mm | 38 mm | 30 mm | 13 mm | ||
| Real-Time Strain Data Rate | 150 Hz | |||||
| Minimum Specimen Width | 2 mm flat, 2.5 mm diameter round | |||||
| Minimum Recommended Specimen Parallel Section | 14 mm | |||||
| Maximum Tracking Speed | 2500 mm/min | |||||
| Strain Control | Compliant to ISO 6892 and ASTM E8 | |||||
| Working Distance | 280 to 320 mm | |||||
| Strain Signal Interface | Analog ±10V BNC | |||||
| Supported Mark Types | Rings, filled circles and speckles automatically detected with provided marking kit | |||||
| Recommended Specimen Temperature Range | -100 to +370ºC | |||||
| Dimensions (Height (H) x Depth (D) x Width (W)) | 252H x 73D x 201W mm | |||||
| Weight | 3.1 kg | |||||
| MTS Vector U200 Specifications | ||||||
| Extensometer Measurement Applications | Uniaxial: Tensile, Compressive or Flexural | |||||
| Measurement Modes | Strain (%) or Displacement (mm/inches) | |||||
| Field of View (Height (H) x Depth (D) x Width (W)) | 200H x 100D x 40W mm cuboid | |||||
| Resolution | <0.5 µm | |||||
| Extensometer Accuracy Class | Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1 capable | |||||
| Gauge Lengths Supported | 25 to 180 mm | |||||
| Representative Maximum Strain Range and Extension for Selected Gauge Lengths | GL | 25 mm | 50 mm | 80 mm | 100 mm | 180 mm |
| Strain Range | 467% | 200% | 100% | 67% | 7% | |
| Extension Range | 117 mm | 100 mm | 80 mm | 67 mm | 13 mm | |
| Real-Time Strain Data Rate | 150 Hz | |||||
| Minimum Specimen Width | 5 mm flat, 6 mm diameter round | |||||
| Minimum Recommended Specimen Parallel Section | 32 mm | |||||
| Maximum Tracking Speed | 2500 mm/min | |||||
| Strain Control | Compliant to ISO 6892 and ASTM E8 | |||||
| Working Distance | 250 to 350 mm | |||||
| Strain Signal Interface | Analog ±10V BNC | |||||
| Supported Mark Types | Rings, filled circles and speckles automatically detected with provided marking kit | |||||
| Recommended Specimen Temperature Range | -100 to +370ºC | |||||
| Dimensions (Height (H) x Depth (D) x Width (W)) | 252H x 73D x 201W mm | |||||
| Weight | 3.1 kg | |||||

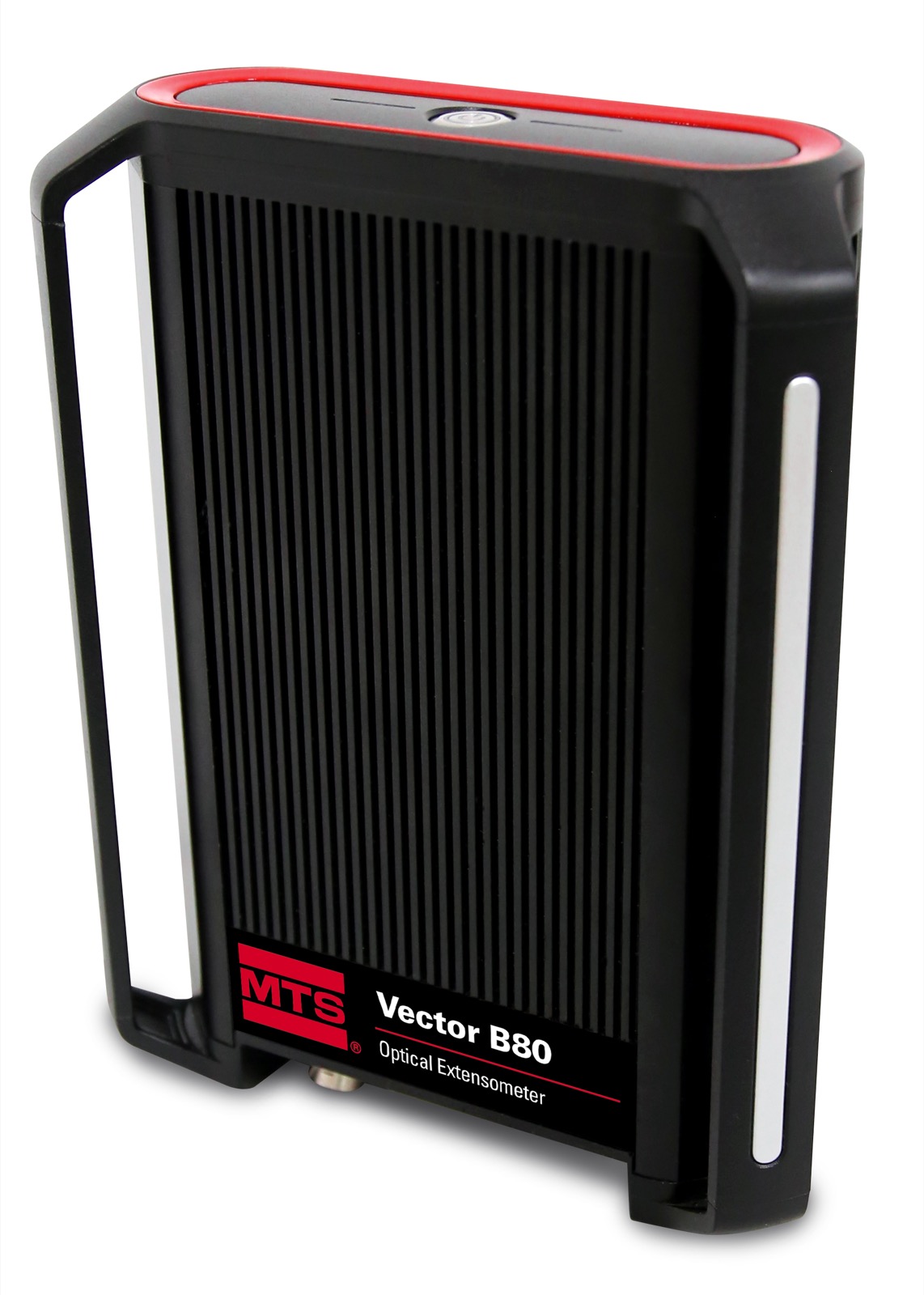

| MTS Vector B80 Specifications | ||||||
| Extensometer Measurement Applications | Uniaxial: Tensile, Compressive or Flexural Biaxial: Axial with Central Transverse | |||||
| Measurement Modes | Strain (%) or Displacement (mm/inches) | |||||
| Field of View (Height (H) x Depth (D) x Width (W)) | 80H x 30D x 30W mm cuboid | |||||
| Resolution | <0.5 µm | |||||
| Extensometer Accuracy Class | Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1 capable | |||||
| Gauge Lengths Supported | Axial: 7.5 to 70 mm Transverse: 6.0 to 25 mm, gauge length for speckles: 7.5 mm | |||||
| Representative Maximum Strain Range and Extension for Selected Gauge Lengths | GL | 8,5 mm | 12,5 mm | 16 mm | 25 mm | 50 mm |
| Strain Range | 561% | 360% | 267% | 147% | 40% | |
| Extension Range | 48 mm | 45 mm | 43 mm | 37 mm | 13 mm | |
| Real-Time Strain Data Rate | 150 Hz | |||||
| Minimum Specimen Width | Axial: 1.5 mm flat, 2 mm diameter round Transverse: 10 mm flat, 12.5 mm round | |||||
| Minimum Recommended Specimen Parallel Section | 10 mm | |||||
| Maximum Tracking Speed | 2500 mm/min | |||||
| Strain Control | Compliant to ISO 6892 and ASTM E8 | |||||
| Working Distance | 285 to 315 mm | |||||
| Strain Signal Interface | Analog ±10V BNC | |||||
| Supported Mark Types | Rings, filled circles and speckles automatically detected with provided marking kit | |||||
| Recommended Specimen Temperature Range | -100 to +370ºC | |||||
| Dimensions (Height (H) x Depth (D) x Width (W)) | 252H x 73D x 201W mm | |||||
| Weight | 3.1 kg |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
