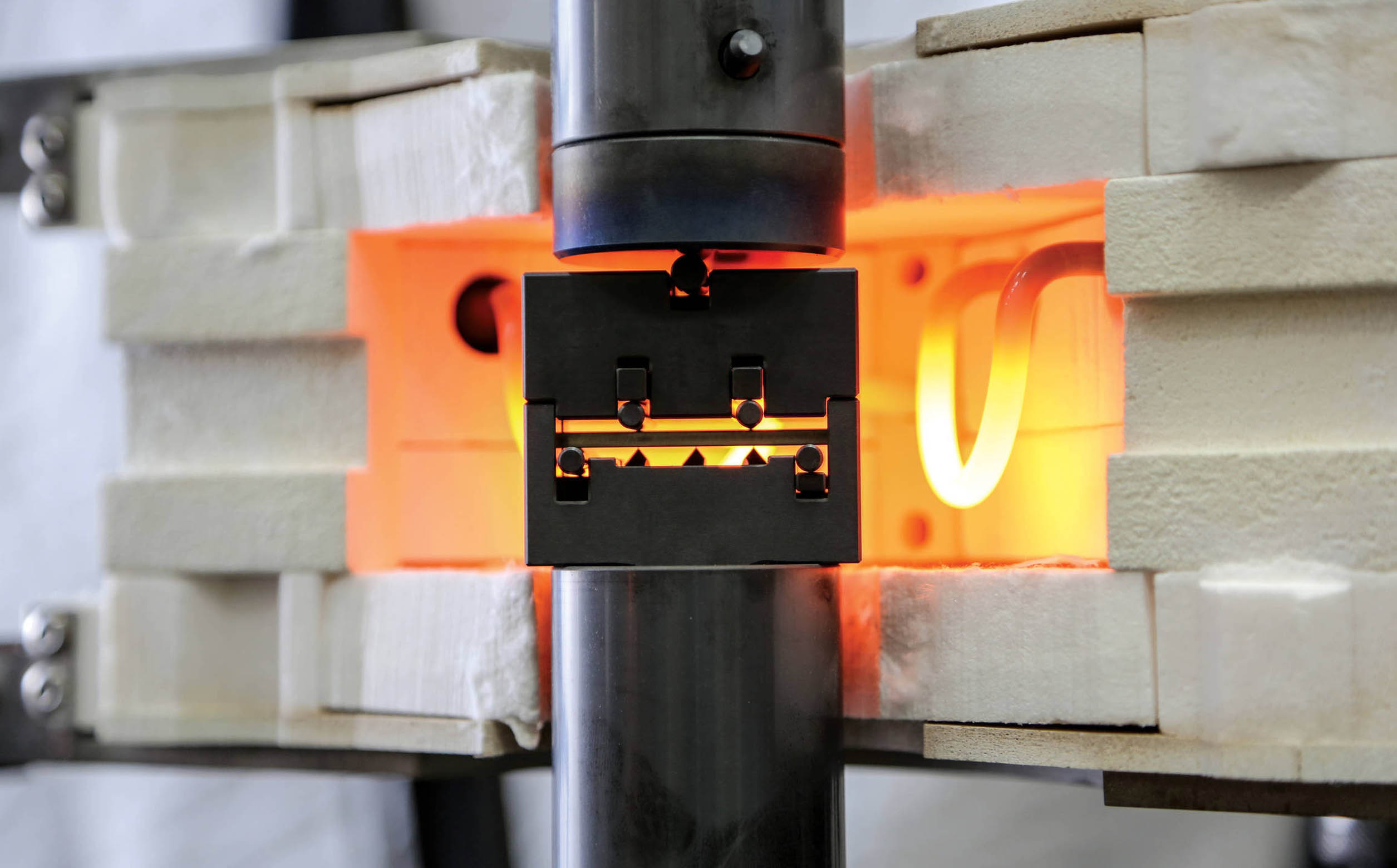

Model 653 High-Temperature Furnaces
Model 653 High-Temperature Furnaces are ideal for a wide variety of high-temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. The furnaces have a user-friendly design that helps operators perform setup tasks more quickly – without compromising test quality or accuracy.
Key Features & Benefits
- Accurate & Repeatable — Capable of achieving temperatures up to 1000°C (1800°F) in validated testing conditions
- Easy Setup — User-friendly design that helps operators perform setup tasks more quickly.
- Safety Interlocks — Switches shut down the furnace to protect equipment and specimens in the event of a water supply failure.
- Versatile — Multiple furnace heights accommodate diverse test requirements
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| Furnaces | |||||||
|---|---|---|---|---|---|---|---|
| MODEL | PART NUMBER | TEMPERATURE RATING* | OVERALL HEIGHT | HOT ZONE HEIGHT | HOT ZONE WIDTH & DEPTH | NUMBER OF ZONES | |
| 653.01 | Configurable | 200°C (392 °F) to 1000°C (1832°F) | 55 mm (2.2 in) | 19 mm (0.75 in) | 50 x 50 mm (1.97 x 1.97 in) | 1 | |
| 653.02 | Configurable | 200°C (392°F) to 1000°C (1832°F) | 85 mm (3.3 in) | 50 mm (1.97 in) | 50 x 50 mm (1.97 x 1.97 in) | 2 | |
| 653.03 | Configurable | 200°C (392 °F) to 1000°C (1832°F) | 126 mm (5 in) | 90 mm (3.54 in) | 62.5 x 62.5 mm (2.46 x 2.46 in) | 2 | |
| 653.04** | Configurable | 200°C (392°F) to 1000°C (1832°F) | 220 mm (6.7 in) | 185 mm (7.28 in) | 62.5 x 62.5 mm (2.46 x 2.46 in) | 3 | |
| * Temperatures may vary depending on specimen geometry and material. | |||||||
| ** Supports testing to ASTM E606-04e1. BSI 7270, JIS Z2279, AFNOR A03-403 or ISO 12106 requirements. | |||||||
| Note: When ordering, please indicate voltage requirements and provide necessary load frame dimensions in order to determine system integration requirements. | |||||||
| THERMAL GRADIENT VERIFICATION KIT COMPONENTS (OPTIONAL) | PART NUMBER | ||||||
| Thermocouple Data Acquisition Kit | 100-255-716 | ||||||
| Type K Thermocouple Connector Kit | 100-255-714 | ||||||
| Thermocouple Specimen | 057-743-803 | ||||||
| Thermocouple Welding Kit | 100-256-698 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
