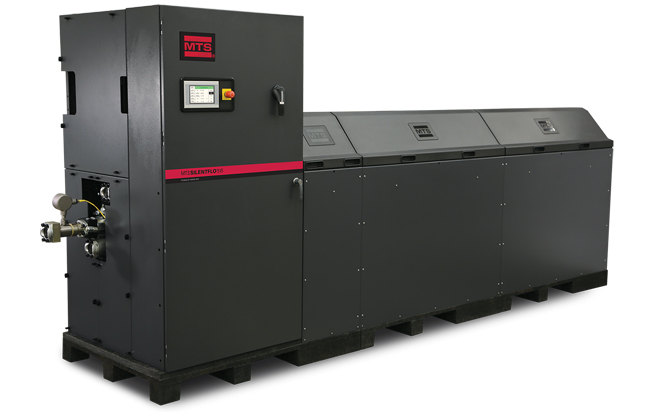

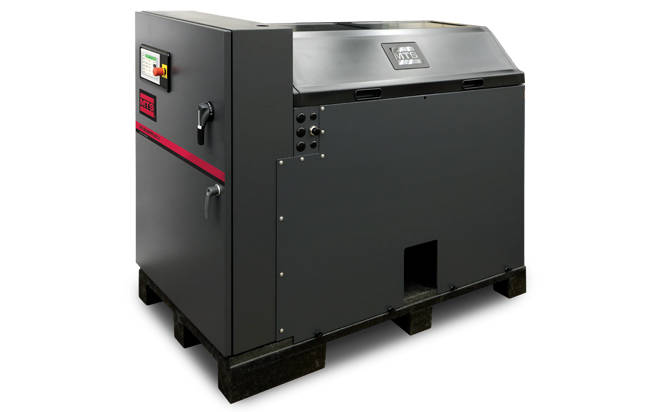

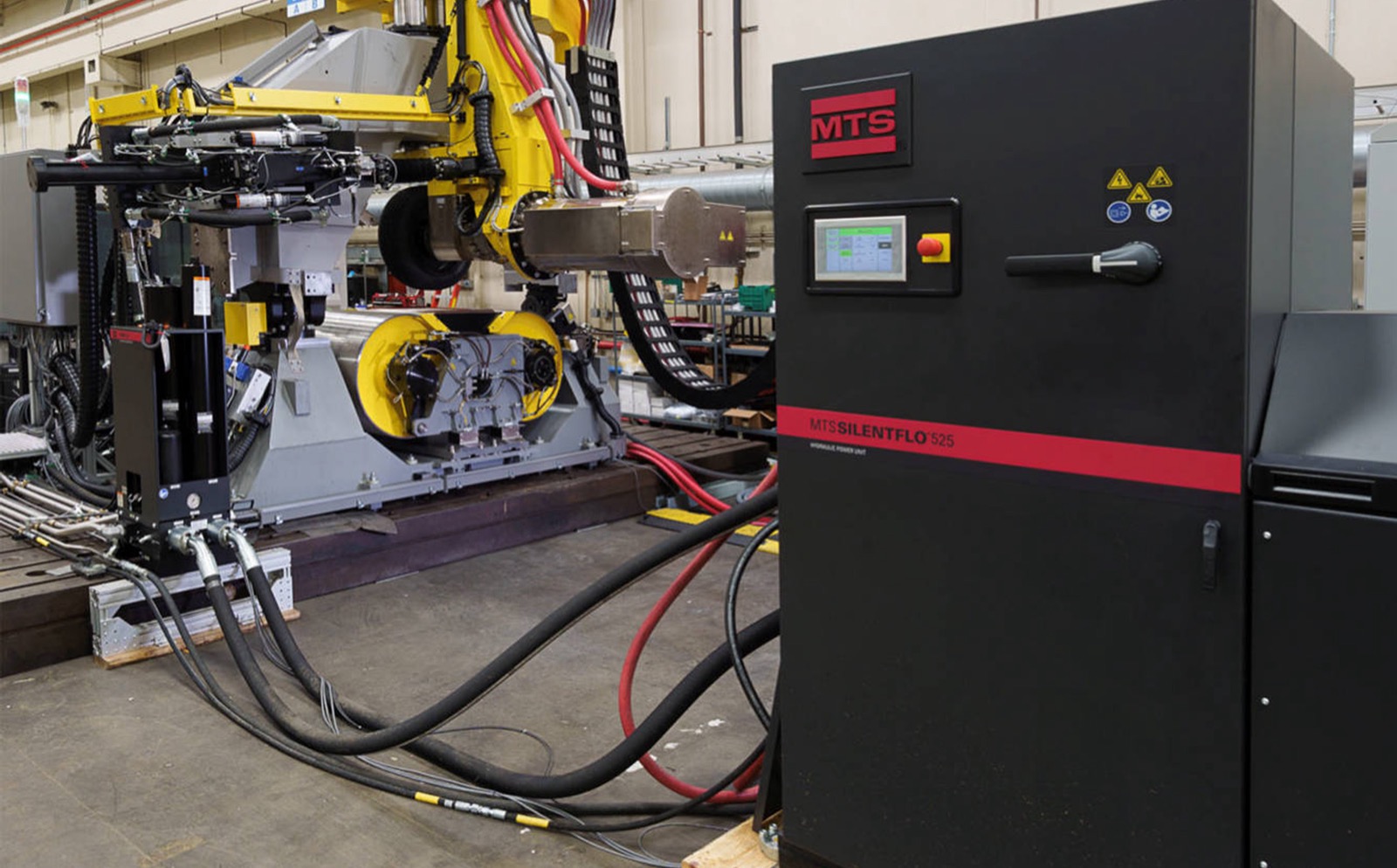

SilentFlo™ 515 & 525 Hydraulic Power Units (HPU)
With features that maximize electrical efficiency and minimize water consumption, and options for remote monitoring of pressure, temperature and fluid level, these HPUs will help reduce facility energy costs. For additional energy savings, the larger units can be equipped with a run-on-demand option that reduces electrical power and cooling water consumption when the system is not running at full capacity.
Key Features & Benefits
- Energy Efficient — New Model 525 HPU reduces energy use by 35% or more compared to older HPUs
- Cost Efficient — Easy to install pump/motor modules add capacity at a fraction of the cost
- Innovative Technology — Remote monitoring and control options available
- Quiet Operation — Up to 30 dB(A) quieter than conventional HPUs
Brochures & Datasheets
Technical Specifications
| Smaller SilentFlo HPUs | |||||||
|---|---|---|---|---|---|---|---|
| Model 515.04 – 515.30 Specifications | |||||||
| Operating pressure: 21 MPa (3,000 psi) | |||||||
| Pump type: Variable displacement pumps | |||||||
| Filtration: Full flow on the return side | |||||||
| Maximum ambient operating temperature: 40°C (104°F) | |||||||
| Minimum ambient operating temperature: 5°C (40°F) | |||||||
| MODEL 515.04 | MODEL 515.07 | MODEL 515.11 | MODEL 515.20 | MODEL 515.30 | |||
| Flow rates (for 60 Hz models) | 15.1 lpm (4 gpm) | 26.5 lpm (7 gpm) | 41.6 lpm (11 gpm) | 75.7 lpm (20 gpm) | 113.5 lpm (30 gpm) | ||
| Flow rates (for 50 Hz models) | 15.1 lpm (4 gpm) | 22.7 lpm (6 gpm) | 37.9 lpm (10 gpm) | 62.5 lpm (16.5 gpm) | 100.7 lpm (26.6 gpm) | ||
| Noise level* | 57 dB(A) | 58 dB(A) | 60 dB(A) | 63 dB(A) | 63 dB(A) | ||
| Reservoir capacity (maximum) | 174 L (46 gal) | 223 L (59 gal) | 223 L (59 gal) | 352 L (93 gal) | 352 L (93 gal) | ||
| Unit dimensions | |||||||
| Width | 77.0 cm (30.3 in) | 77.0 cm (30.3 in) | 77.0 cm (30.3 in) | 89.7 cm (35.3 in) | 89.7 cm (35.3 in) | ||
| Height | 116.0 cm (45.7 in) | 120.1 cm (47.3 in) | 120.1 cm (47.3 in) | 138.9 cm (54.7 in) | 138.9 cm (54.7 in) | ||
| Length | 114.0 cm (45.0 in) | 114.6 cm (45.1 in) | 114.6 cm (45.1 in) | 163.1 cm (64.2 in) | 163.1 cm (64.2 in) | ||
| Weight with maximum oil | 508 kg (1,120 lb) | 581 kg (1,280 lb) | 603 kg (1,330 lb) | 984 kg (2,170 lb) | 1021 kg (2,250 lb) | ||
| Motor size | 11 kW (15 hp) | 11 kW (15 hp) | 18.5 kW (25 hp) | 30 kW (40 hp) | 45 kW (60 hp) | ||
| * Sound levels [dbA] are expressed as a free field value. Readings may vary with acoustic environment. | |||||||
| Specifications subject to change without notice. Please contact MTS for specifications critical to your application. | |||||||
| Larger SilentFlo HPUs | |||||||
| Model 525 Specifications | |||||||
| Operating pressure: 21 MPa (3,000 psi) | |||||||
| Pump type: Digital Displacement and/or Swash Plate | |||||||
| Filtration: Full flow on the return side | |||||||
| Maximum ambient operating temperature: 40°C (104°F) | |||||||
| Minimum ambient operating temperature: 5°C (40°F) | |||||||
| 300 Series 2 Modules | 300 Series 3 Modules | 600 Series 4 Modules | 600 Series 5 Modules | 600 Series 6 Modules | |||
| Flow rates (for 60 Hz models) | 227 lpm (60 gpm) | 340 lpm (90 gpm) | 454 lpm (120 gpm) | 567 lpm (150 gpm) | 681 lpm (180 gpm) | ||
| Flow rates (for 50 Hz models)** | 200 lpm (53.2 gpm) | 300 lpm (80 gpm) | 400 lpm (106.4 gpm) | 500 lpm (133 gpm) | 600 lpm (160 gpm) | ||
| Noise level* | 68 dB (A) | 68 dB (A) | 70 dB (A) | 71 dB (A) | 72 dB (A) | ||
| Reservoir capacity (maximum) | 1,136 L (300 gal) | 1,098 L (290 gal) | 2,037 L (538 gal) | 1,999 L (528 gal) | 1,961 L (518 gal) | ||
| Unit dimensions | |||||||
| Width | 103.4 cm (40.7 in) | 103.4 cm (40.7 in) | 103.4 cm (40.7 in) | 103.4 cm (40.7 in) | 103.4 cm (40.7 in) | ||
| Height | 199.4 cm (78.5 in) | 199.4 cm (78.5 in) | 199.4 cm (78.5 in) | 199.4 cm (78.5 in) | 199.4 cm (78.5 in) | ||
| Length | 287.0 cm (113.0 in) | 287.0 cm (113.0 in) | 430.5 cm (169.5 in) | 430.5 cm (169.5 in) | 430.5 cm (169.5 in) | ||
| Weight with maximum oil | 2,835 kg (6,250 lb) | 3,289 kg (7,250 lb) | 4,876 kg (10,750 lb) | 5,330 kg (11,750 lb) | 5,783 kg (12,750 lb) | ||
| Motor size | 45 KW (60 Hp) | 45 KW (60 Hp) | 45 KW (60 Hp) | 45 KW (60 Hp) | 45 KW (60 Hp) | ||
| Number of Motor/pump units | 2, max of 3 | 3 | 4, max of 6 | 5, max of 6 | 6 | ||
| * Sound levels [dbA] are expressed as a free field value. Readings may vary with acoustic environment. ** Digital displacement pump modules in a 50 Hz model have a flow rate equivalent to the 60 Hz model. | |||||||
| Specifications subject to change without notice. Please contact MTS for specifications critical to your application. |
