Thermomechanical Fatigue (TMF) Subsystem

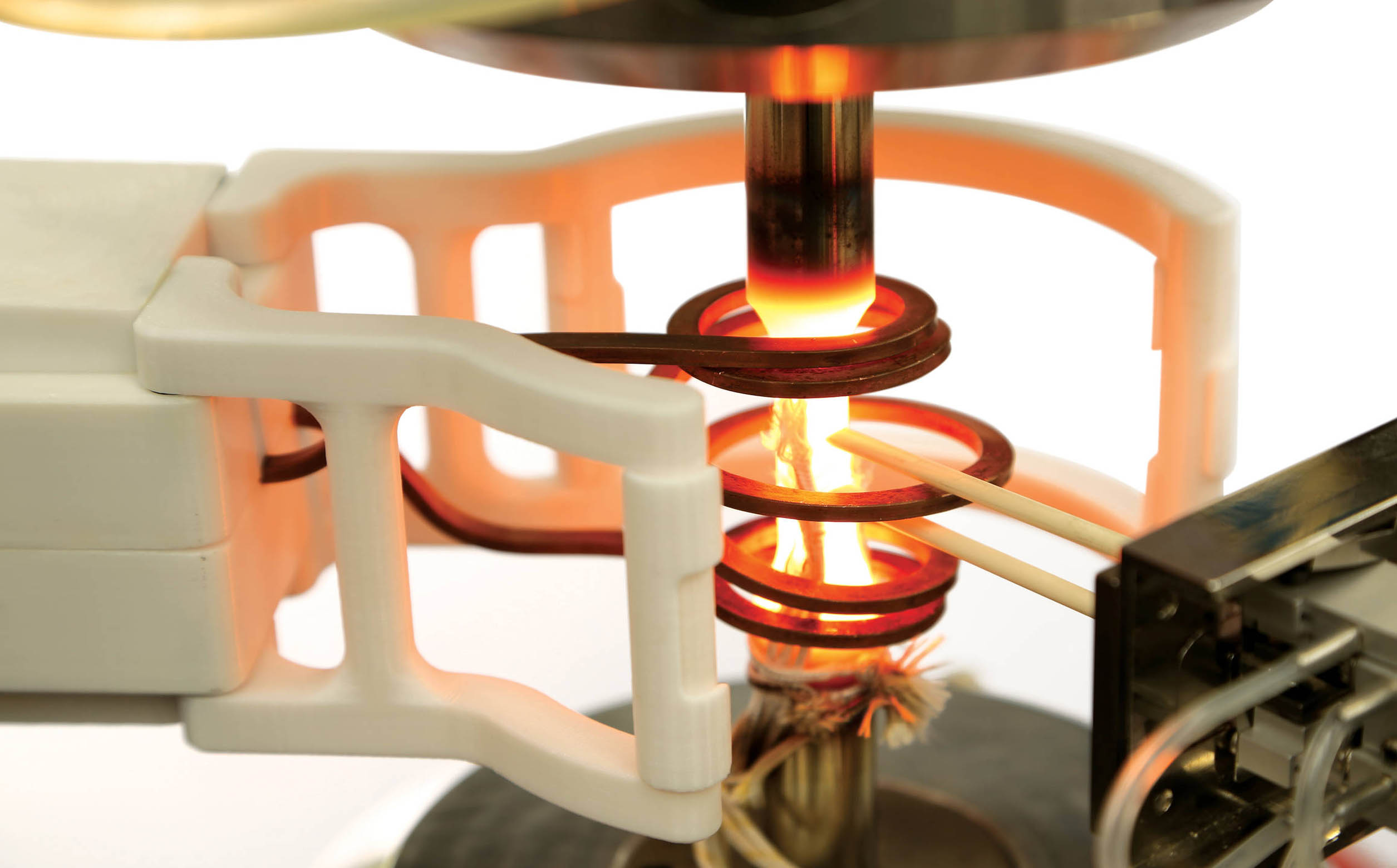

The TMF Subsystem is ideal for inducing thermal cycling in a metallic (magnetically susceptible) specimen. A combination of induction heating and air cooling allows thermomechanical fatigue tests to be performed in or out of phase with a load force. The TMF subsystem has a user-friendly design that helps operators perform repeatable test setup tasks quickly.
Key Features & Benefits
- Hi-Temp Capability — Highly accurate and repeatable TMF testing at temperatures up to 1200°C
- Pre-Configured Software — TestSuite™ software templates to test to ASTM E2368, ISO 12111 and the European Validated Code of Practice for Strain-Controlled Thermomechanical Fatigue Testing
- Easy Setup — Designed for streamlined repeatable testing
- Accurate & Repeatable — Air-cooling jets and the induction coil easily reset to original position after changing specimen
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| Maximum Specimen Temperature | 1200°C (2192°F) |
|---|---|
| Typical Heating Rate* | 10°C/s (18°F/s) |
| Typical Cooling Rate* | 5°C/s (9°F/s) |
| Standard Coil Geometry Custom coils available upon request | » 50 mm (2 in) tall coil with 5 tapered spiral turns » Includes internal water cooling |
| Standard Specimen Types | Round Hollow Option for internal cooling of hollow specimens** |
| Standard Specimen Geometry | Minimum Length: 125 mm (5 in) Diameter: 6 to 12 mm (0.25 to 0.5 in) |
| RF Generator Power | 10 kW |
| RF Generator Frequency Range | 50 to 200 kHz at 10 kVA |
| Thermocouple Type | K (R optional) |
| Temperature Control and Interlocks | Two temperature controllers with safety interlocking » One provides control » One is for over-temperature |
| Number of Temperature Monitoring Channels | Up to 16 |
| Coil Adjustment: Maximum Travel of x, y, z Positioner | 50 mm (2 in) |
| Certification | CE/NRTL |
| *Dependent on specimen material, specimen geometry, and required temperature range. **Requires modified grips. |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
