MTS Systems

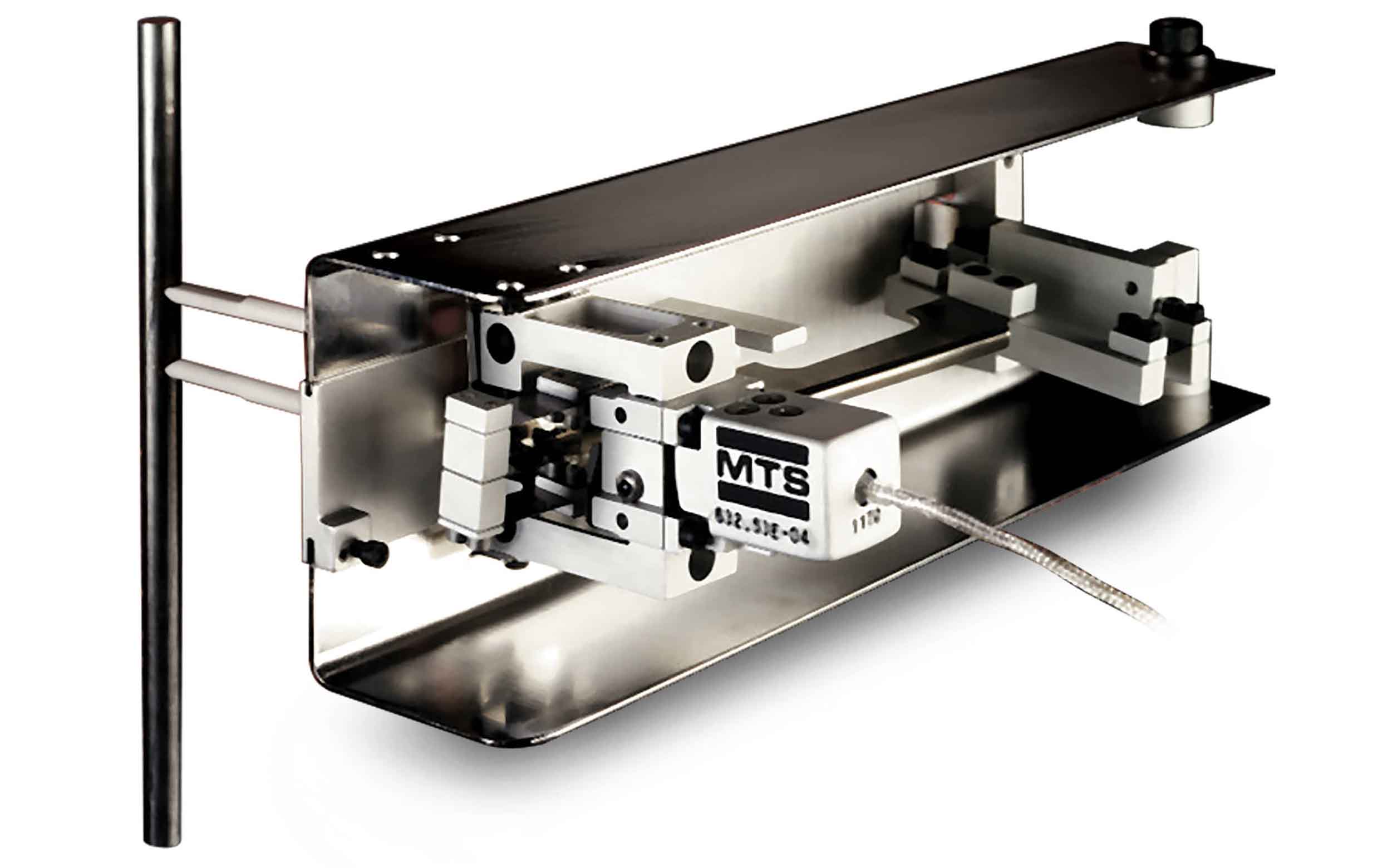

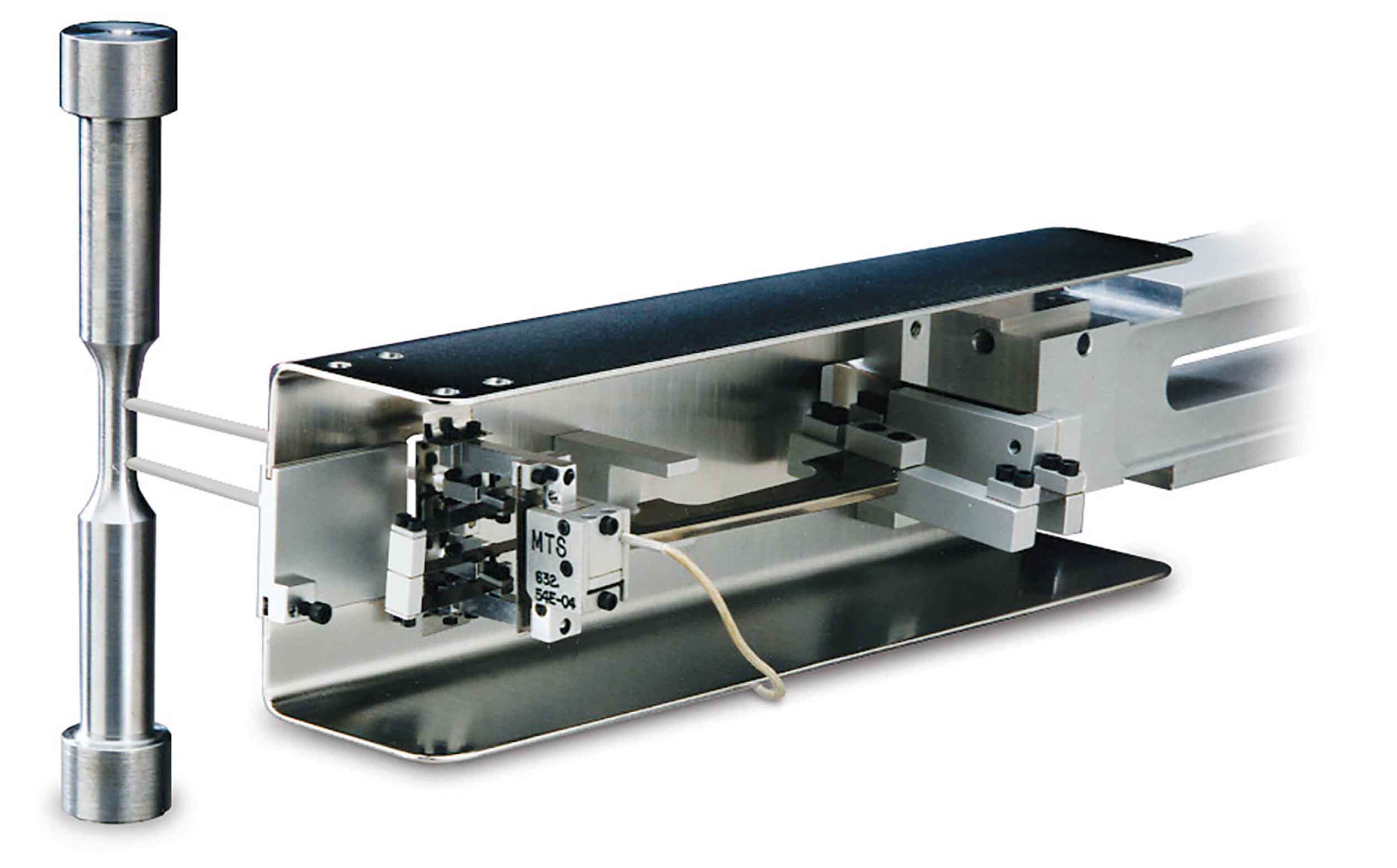

Air Cooled High Temperature Extensometers
These air-cooled high-temperature extensometers are designed for measuring axial strain in high temperature tension, compression, and through-zero fatigue testing applications up to 1200°C (2200°F).
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| Metric Units | |||||||
|---|---|---|---|---|---|---|---|
| MODEL NUMBER | OPTION | GAGE LENGTH | MEASURING RANGE (% STRAIN) | MAXIMUM TEMPERATURE | CONTACT FORCE | CERAMIC EXTENTION RODS INCLUDED | PART NUMBER |
| 632.50F-08 | 006,080 | 10 mm | +20%/-10% | 1200°C | 780 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-402-538 1 |
| 632.54F-11 | – | 12 mm | +20%/-10% | 1200°C | 100 g | Qty 4, V-chisel Edge Rods, 2.0 mm (.0787 in) rod diameter 85 mm (3.35 in) long | 047-404-304 1 |
| 632.53F-14 | – | 12 mm | +20%/-10% | 1200°C | 260 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-104 1 |
| 632.53F-14 | – | 12 mm | +20%/-10% | 1200°C | 300 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-105 1 |
| 632.53F-14 | – | 12 mm | +20%/-10% | 1200°C | 400 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-106 1 |
| 632.50F-04 | 006,080 | 12 mm | +20%/-10% | 1200°C | 780 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-402-539 1 |
| 632.54F-11 | – | 25 mm | +10% / - 5% | 1200°C | 100 g | Qty 4, V-chisel Edge Rods, 2.0 mm (.0787 in) rod diameter 85 mm (3.35 in) long | 047-404-303 1 |
| 632.53F-11 | – | 25 mm | +10% / -5% | 1200°C | 260 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-110 1 |
| 632.53F-11 | – | 25 mm | +10% / -5% | 1200°C | 300 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-111 1 |
| 632.53F-11 | – | 25 mm | +10% / -5% | 1200°C | 400 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-112 1 |
| 632.50F-01 | 006,077 | 25 mm | +15%/-15% | 1200°C | 400 g | Qty 2, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 94 mm (3.7 in) long | 047-402-548 1 |
| US Customary Units | |||||||
| MODEL NUMBER | OPTION | GAGE LENGTH | MEASURING RANGE (% STRAIN) | MAXIMUM TEMPERATURE | CONTACT FORCE | CERAMIC EXTENTION RODS INCLUDED | PART NUMBER |
| 632.54E-14 | – | 0.50 in – | +20% / -10% | 2200°F | 100 g | Qty 4, V-chisel Edge Rods, 2.0 mm (.0787 in) rod diameter 85 mm (3.35 in) long | 047-404-302 1 |
| 632.53E-14 | – | 0.50 in | +20%/-10% | 2200°F | 260 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-101 1 |
| 632.53E-14 | – | 0.50 in | +20%/-10% | 2200°F | 300 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-102 1 |
| 632.53E-14 | – | 0.50 in | +20%/-10% | 2200°F | 400 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-103 1 |
| 632.50E-04 | 006,080 | 0.50 in | +20%/-10% | 2200°F | 780 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-402-525 1 |
| 632.54E-14 | – | 1.00 in | +10%/-5% | 2200°F | 100 g | Qty 2, V-chisel Edge Rods, 2.0 mm (.0787 in) rod diameter 85 mm (3.35 in) long | 047-404-301 1 |
| 632.53E-11 | – | 1.00 in | +10%/-5% | 2200°F | 260 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-107 1 |
| 632.53E-11 | – | 1.00 in | +10%/-5% | 2200°F | 300 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-108 1 |
| 632.53E-11 | – | 1.00 in | +10%/-5% | 2200°F | 400 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 85 mm (3.35 in) long | 047-404-109 1 |
| 632.50E-01 | 006.077 | 1.00 in | +15%/-15% | 2200°F | 400 g | Qty 4, V-chisel Edge Rods, 3.50 mm (.138 in) rod diameter 94 mm (3.7 in) long | 047-402-547 1 |
| 1 Mount is not required when using with 653.xxB furnace, for other installations contact MTS |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
