Clip-On Displacement Gages

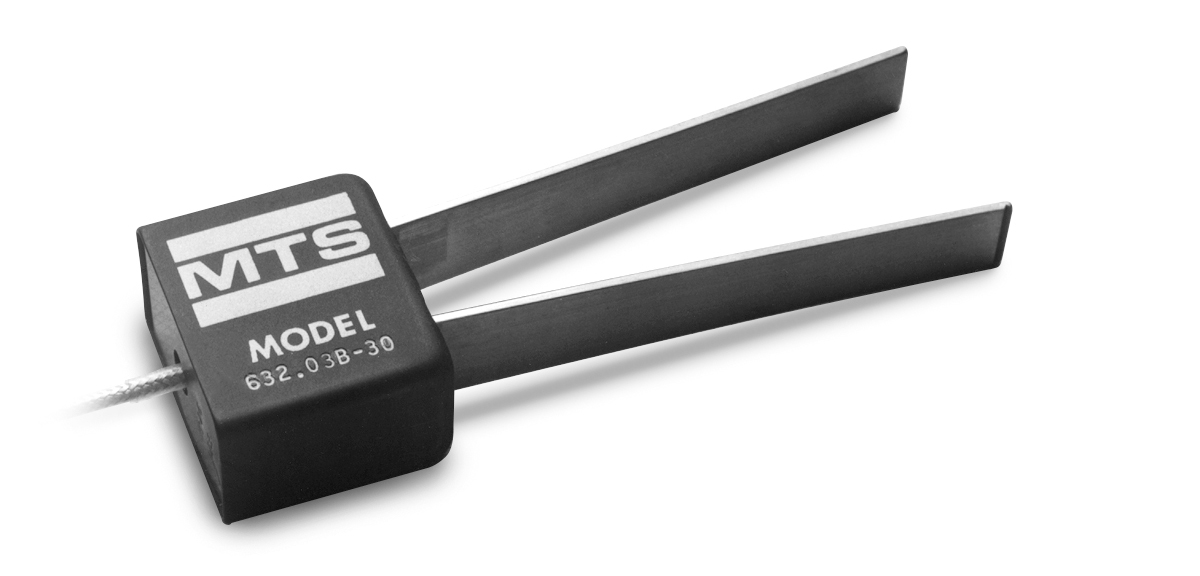

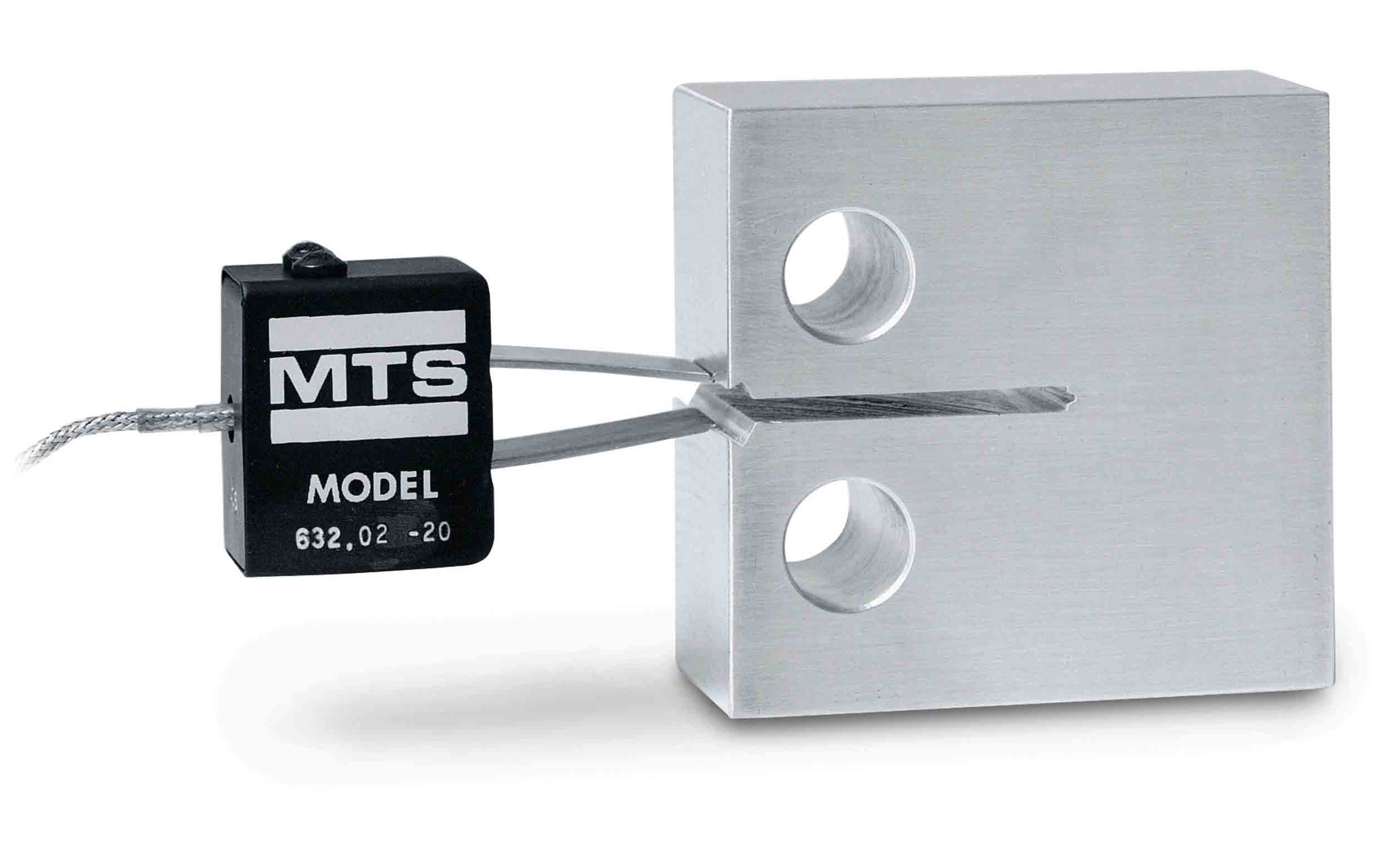

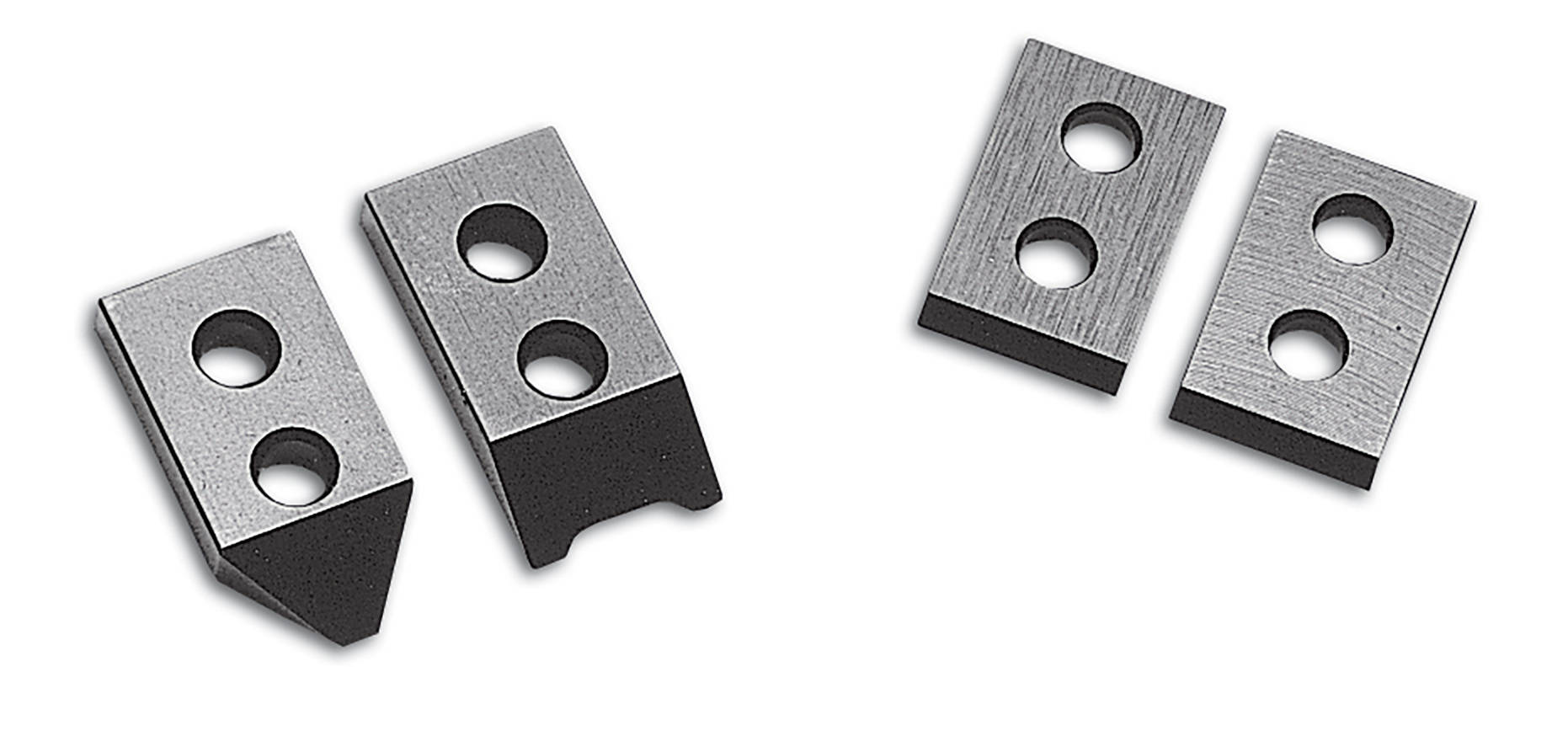

Double cantilever displacement-type gages are primarily used in fracture mechanics testing, KIC, JIC, crack growth and R-curve determination.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| MODEL/OPTION | GAGE LENGTH | TRAVEL | MAXIMUM FREQUENCY | HEIGHT/LENGTH | TEMPERATURE RANGE MIN/MAX | PART NUMBER |
|---|---|---|---|---|---|---|
| 632.02F-2x | 5 mm | +3 / -1 mm | 50 Hz | 30.5 / 48.3 mm | ||
| 632.02F-20 | -100°C / 150°C | 047-400-104 | ||||
| 632.03-2x | 12 mm | 4 mm | 100 Hz | |||
| 632.03F-20 | -100°C / 150°C | 047-400-204 | ||||
| 632.03-3X | ||||||
| Option 001 | 2 mm | 4 mm | -100°C / 150°C | 047-400-310 | ||
| Option 002 | 2.5 mm | 4 mm | -100°C / 150°C | 047-400-311 |
Detailed Technical Specifications
| 632.65E-03 | 15.74 mm | +10/-1.0 mm | 10 Hz | 1000°C max |
|---|
Detailed Technical Specifications
| MODEL/OPTION | GAGE LENGTH | TRAVEL | MAXIMUM FREQUENCY | HEIGHT/LENGTH | TEMPERATURE RANGE MIN/MAX | PART NUMBER |
|---|---|---|---|---|---|---|
| 632.02E-2x | 0.200 in | +0.100 / -0.05 in | 50 Hz | 1.2 / 1.9 in | ||
| 632.02E-20 | -150°F / 300°F | 047-400-101 | ||||
| 632.03E-20 | 0.475 in | 0.15 in | 100 Hz | |||
| -150°F / 300°F | 047-400-201 | |||||
| 632.03E-3X | ||||||
| Option 001 | 0.075 in | 0.15 in | -150°F / 300°F | 047-400-301 | ||
| Option 002 | 0.10 in | 0.15 in | -150°F / 300°F | 047-400-302 |
Detailed Technical Specifications
| 632.65E-03 | 600 in | +0.400 / -0.040 in | 10 Hz | 1800°F max |
|---|
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
