MTS Systems

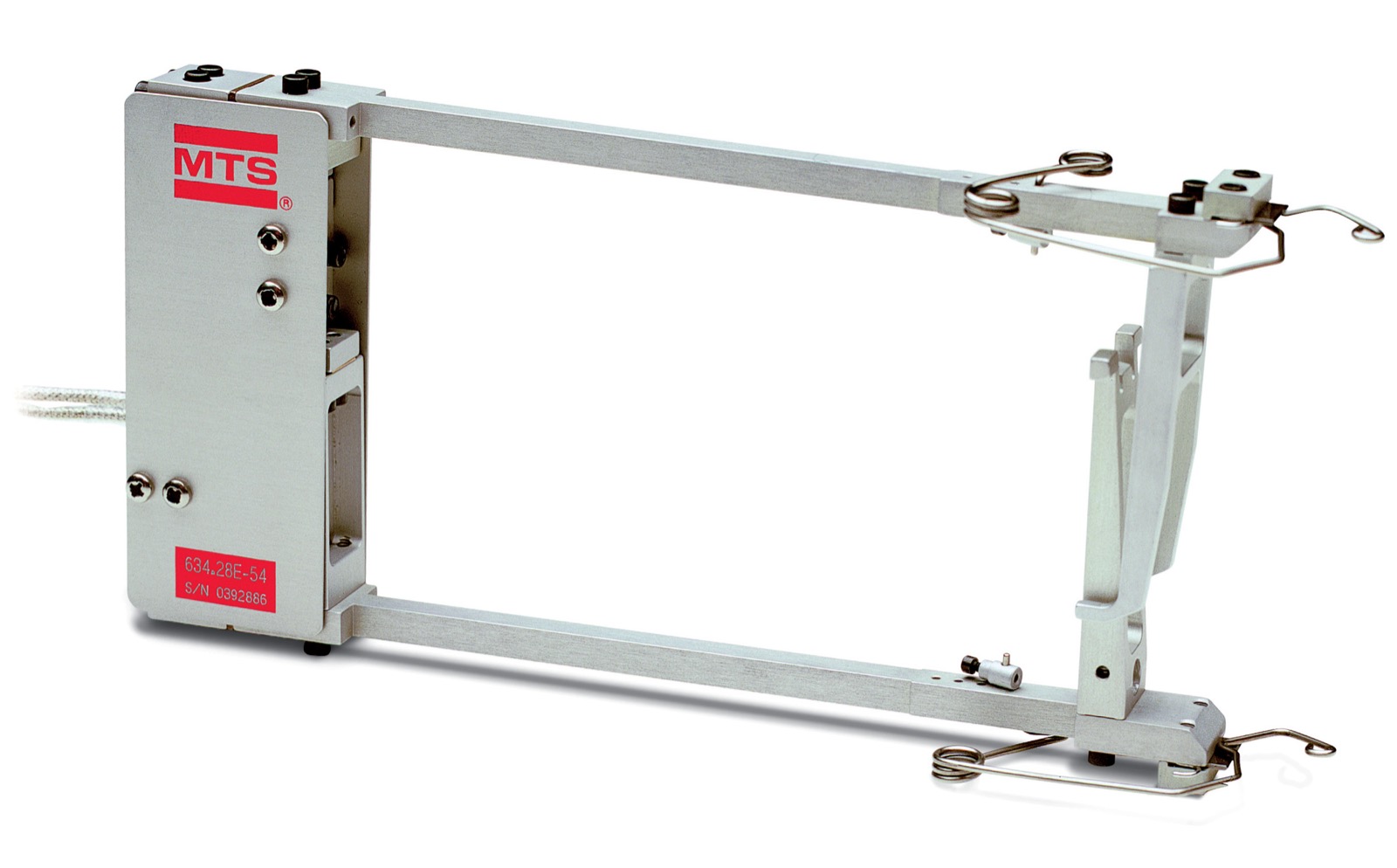

Enhanced Travel Axial Extensometers
These enhanced travel axial extensometers are designed for plastics, rubber, and elastomer testing – and can measure up to 100% strain. They feature a zero-stop for setting the initial gage length and simplifying mounting.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| INLCUDES QUICK | ||||||||
|---|---|---|---|---|---|---|---|---|
| MEASURING RANGE | TEMPERATURE RANGE | ATTACHMENT KIT FOR FLAT | ||||||
| MODEL NUMBER | GAGE LENGTH | (% STRAIN) | HEIGHT | LENGTH | MIN/MAX* | ACTIVATION FORCE | AND ROUND SPECIMENS | PART NUMBER |
| 632.24F-5x | 25 mm | +100% | 33 mm | 123.2 mm | ||||
| 632.24F-50 | -100°C /150°C | 30 g | x | 047-401-602 | ||||
| 634.28F-2x | 50 mm | +100% | 73.7 mm | 155.6 mm | ||||
| 634.28F-24 | -85°C /120°C | 55 g | x | 056-355-802 |
Detailed Technical Specifications
| INLCUDES QUICK | ||||||||
|---|---|---|---|---|---|---|---|---|
| MEASURING RANGE | TEMPERATURE RANGE | ATTACHMENT KIT FOR FLAT | ||||||
| MODEL NUMBER | GAGE LENGTH | (% STRAIN) | HEIGHT | LENGTH | MIN/MAX* | ACTIVATION FORCE | AND ROUND SPECIMENS | PART NUMBER |
| 632.24E-5x | 1 in | +100% | 1.3 in | 4.85 in | ||||
| 632.24E-50 | -150°F / 300°F | 30 g | x | 047-401-601 | ||||
| 634.28E-2x | 2 in | +100% | 2.9 mm | 6.13 in | ||||
| 634.28E-24 | -120°F / 250°F | 55 g | x | 056-355-801 | ||||
| *These units may be used at 25°C (50°F) higher than the listed temperatures, but only for durations less than 24 hours. |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
