Extensometer Calibrator

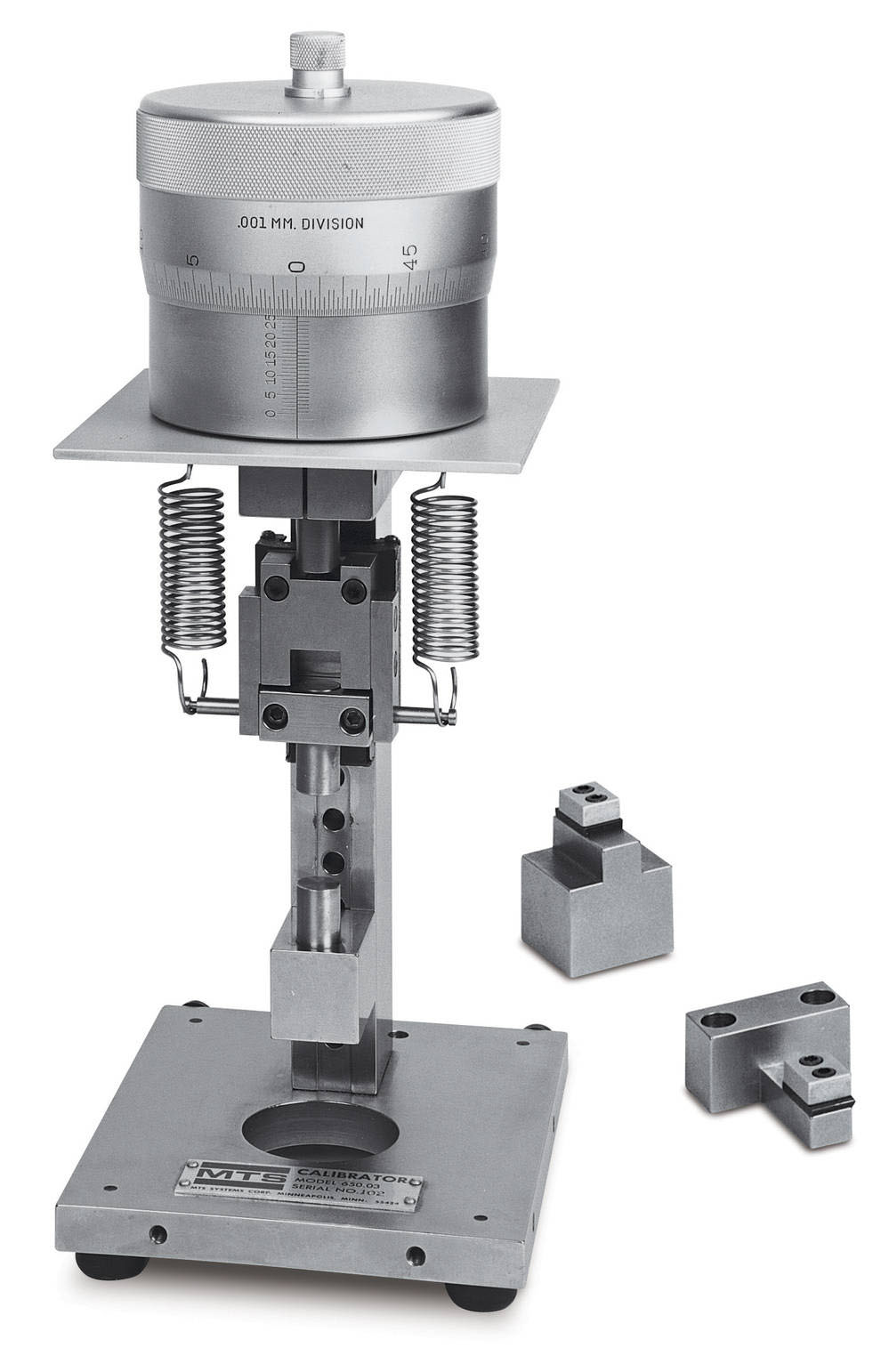

The Model 650.03 Extensometer Calibrator is a precise instrument designed and built for rugged, long-lasting durability. It gives you freedom from wear; vital for the high accuracy required for precise calibrator verification of high resolution instruments.
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| 650.03 Calibrator frame in fitted case | 031-508-302 | Required for all |
|---|---|---|
| Micrometer head, U.S. customary (0.00001 in graduation) | 100-699-997 | Required for all, choose one |
| Micrometer head, Metric (0.0005 mm graduation) | 100-699-995 | Required for all, choose one |
Detailed Technical Specifications
| EXTENSOMETER MODEL | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CALIBRATOR KITS | PART NUMBER | 632.02 | 632.03/.05 | STANDARD AXIAL (1) | EXTENDED GL AXIAL | 632.06 | 632.06 OPTION 006 | 632.18/.19/.20 | 632.29 | 632.17/.85 AXIAL | 632.85 TRANSVERSE | STANDARD HI TEMP AXIAL (2) | 632.92, 632.11/12 w/ 632.21 CIRCUMFERENTIAL CHAIN KIT | 632.90 AXIAL ROCK MECHANIC | |
| Calibrator Kit, Basic Specimen Adapters | 100-049-249 | X | X | opt | X | X | X | X | X | X | |||||
| Calibrator Kit, Model 632.03/.05 Knife Edges | 100-049-250 | X | |||||||||||||
| Calibrator Kit, Model 632.02 Knife Edges | 100-049-251 | X | |||||||||||||
| Calibrator Kit, Standard, 12.7 mm (0.50 in), Round Spec. | 100-049-270 | X | X | ||||||||||||
| Calibrator Kit, Frame Invert | 100-049-252 | X | X | X | X | ||||||||||
| Calibrator Kit, Extended, 12.7 mm (0.50 in), Round Spec. | 100-049-253 | X | |||||||||||||
| Calibrator Kit, Dimpled, 9.5 mm (0.375 in) Round Spec. | 100-054-156 | X | |||||||||||||
| Calibrator Kit, 9.5 mm (0.375 in) Round Specimen | 100-049-255 | opt | opt | ||||||||||||
| Calibrator Kit, 3.2 mm (0.125 in) Round Specimen | 100-049-256 | opt | X | ||||||||||||
| Calibrator Kit, Mounting Bracket for Model 632.53/.54 | 100-054-133 | X | |||||||||||||
| Calibrator Kit, Model 632.18/.19/.20 Diameteral Extensometers | 100-049-258 | X | |||||||||||||
| Calibrator Kit, Displacement Gages | 100-049-259 | X | X | ||||||||||||
| Calibrator Kit, Model 632.06 Option 006 Adapter | 100-054-796 | X | |||||||||||||
| Calibrator Kit, Model 632.17/.85 Axial | 100-049-260 | X | |||||||||||||
| Calibrator Kit, Model 632.85 Transverse | 100-049-261 | X | |||||||||||||
| Calibrator Kit, Model 632.90-12 Axial | 100-218-283 | X | |||||||||||||
| Calibrator Kit, Model 632.92/.21 Circumferential | 100-049-262 | X | |||||||||||||
| Find the model of the extensometer, then follow the column down to determine the kit(s) required to calibrate the extensometer. 1. Standard Axial includes Extensometer models 632.11/12/13/24/25/26/27/31, 634.11/12/25/31 set-up with straight knife edges and attachment for round specimens. Some specific knife edges or attachment kits may require other sizes of specimen adapters. The installation drawing for the extensometer will identify the specimen size range. 2. Standard High Temperature Axial includes 632.53/54 with standard length rods, 632.50/51 with length options 075, 076, 077,078, 079 and 080. Calibration requires rods with either conical point (with Dimpled Specimen) or V-chisel rod end geometry (with optional 9.5 mm round). |
