MTS Systems — 632.65F-03 – OPT 92, 632.65E-03 – OPT 92, 632.65F-03 – OPT 94, 632.65E-03 – OPT 94

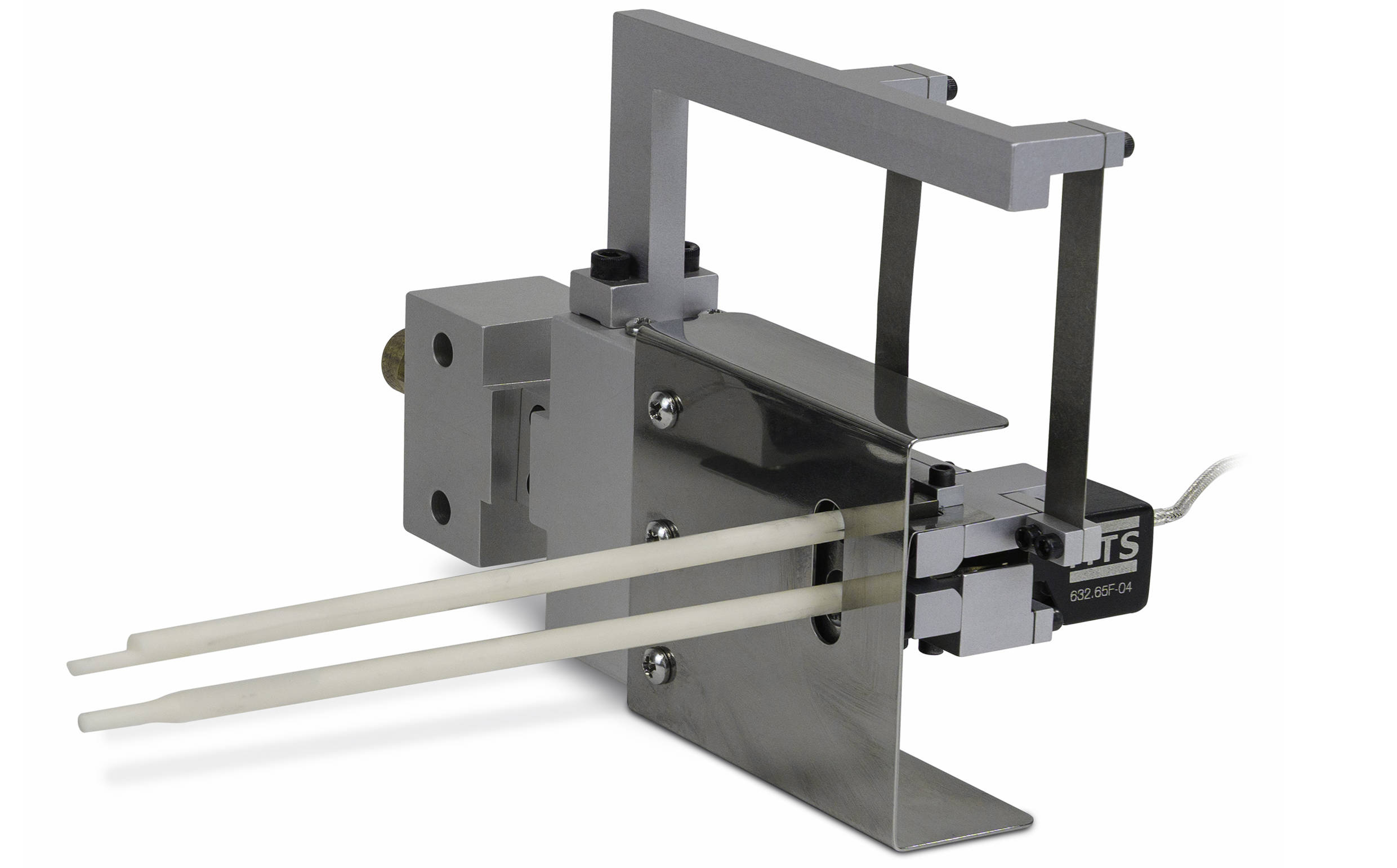

Model 632.65 High Temp Clip-On Displacement Gage
The 632.65 High Temperature Clip-On Displacement Gages provide a unique solution for hot fracture mechanics testing at temperatures up to 1200 °C (2200 °F). These rod-based displacement gages are designed for demanding high temperature applications including KIC, JIC, and crack growth testing.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| Model | Compressed Gage Length | Travel | Frequency* | Heat Shield Clearance | Extension Rods Included** | Part Number |
|---|---|---|---|---|---|---|
| 632.65F-03 – OPT 92 | 15.24 mm | +10.0/-1.0 mm | 10 Hz | 160.0 mm | Qty 2 sets, Quartz rods | 047-403-201 |
| 632.65E-03 – OPT 92 | 0.6 in | +0.400/-0.040 in | 10 Hz | 6.30 in | Qty 2 sets, Quartz rods | 047-403-202 |
| 632.65F-03 – OPT 94 | 15.24 mm | +10.0/-1.0 mm | 10 Hz | 112.8 mm | Qty 2 sets, Quartz rods | 047-403-203 |
| 632.65E-03 – OPT 94 | 0.6 in | +0.400/-0.040 in | 10 Hz | 4.44 in | Qty 2 sets, Quartz rods | 047-403-204 |
Detailed Technical Specifications
| Model | Compressed Gage Length | Travel | Frequency* | Heat Shield Clearance | Extension Rods Included** | Part Number |
|---|---|---|---|---|---|---|
| 632.65F-04 | 5 mm | +12.0/-0.5 mm | 30 Hz | 113 mm | Qty 2 sets, Ceramic Rods | 058-533-001 |
| 632.65E-04 | 0.200 in | +0.450/-0.020 in | 30 Hz | 4.48 in | Qty 2 sets, Ceramic Rods | 058-533-002 |
| 632.65F-04 | 6.0 mm | +11.0/-1.0 mm | 30 Hz | 113 mm | Qty 2 sets, Ceramic Rods | 058-533-003 |
| 632.65E-04 | 0.250 in | +0.400/-0.040 in | 30 Hz | 4.48 in | Qty 2 sets, Ceramic Rods | 058-533-004 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
