MTS Systems — LTX850

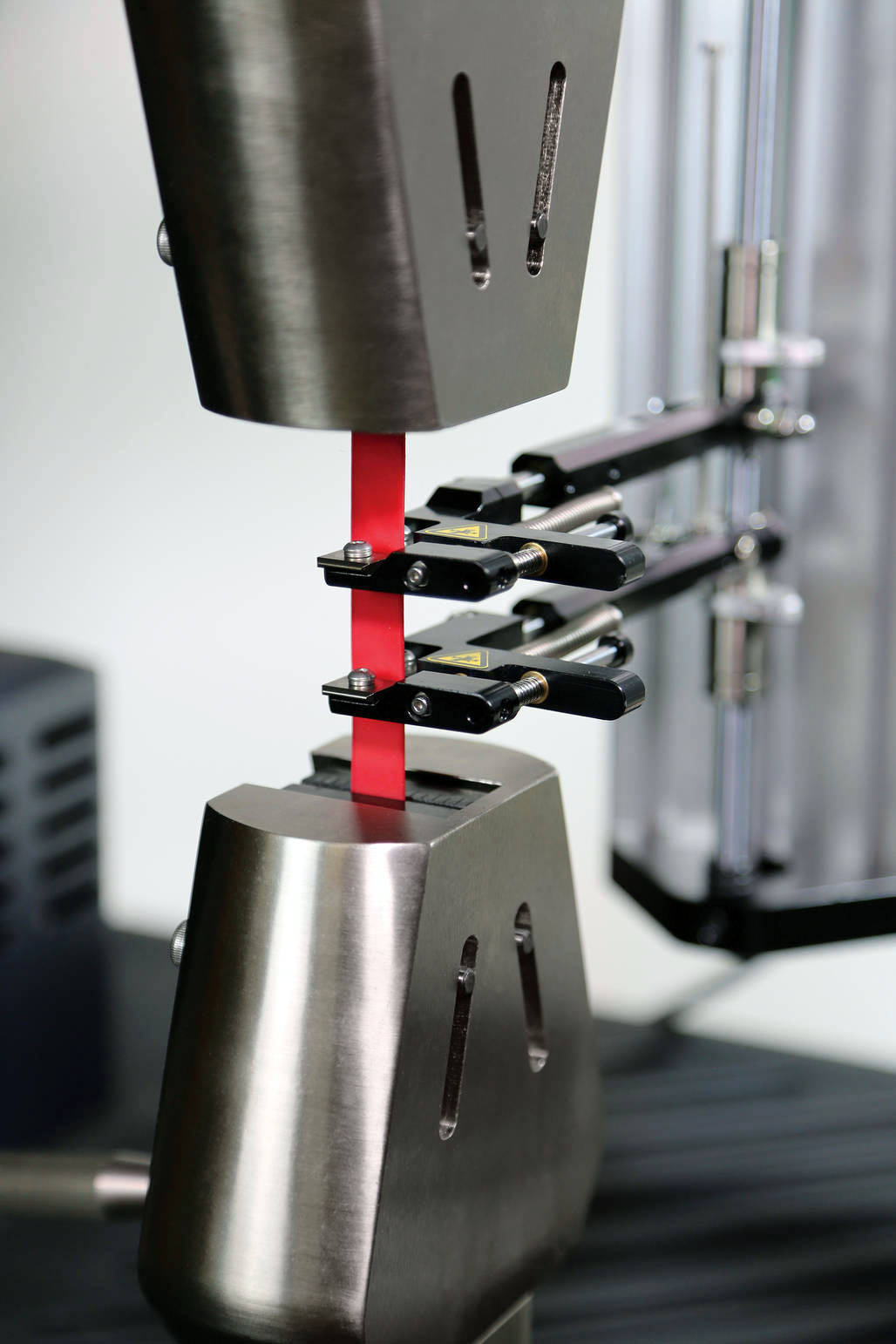

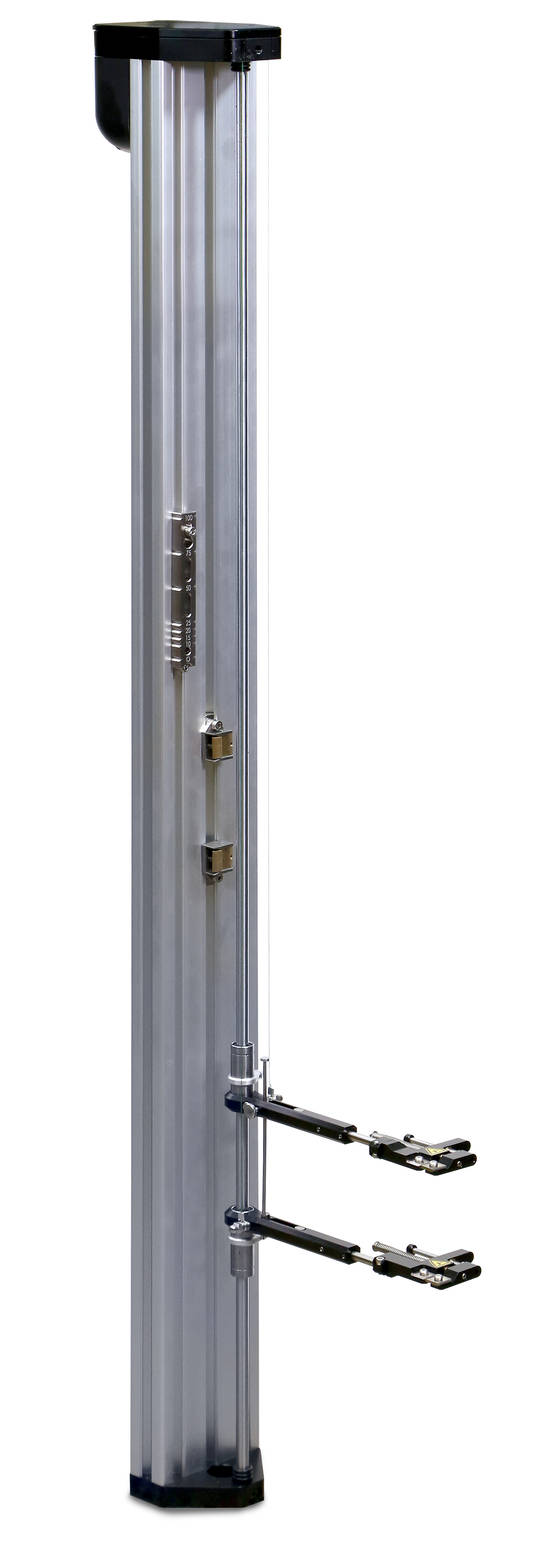

Long Travel Extensometer (LTX850)
Accurately measure large displacement of materials specimens, such as polymers and elastomers, with the Long Travel Extensometer (LTX850). It will measure large displacements up to 850 mm (33.4 in) on Exceed® universal test systems.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| MODEL NUMBER | PART NUMBER | FRAME FAMILY | MEASURING RANGE | STANDARD GAGE LENGTH | MAXIMUM SPECIMEN DIMENSIONS | RELATIVE ERROR | RESOLUTION | TEMPERATURE RANGE | HEIGHT | WIDTH | DEPTH |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LTX850 | 100-542-797 | Exceed | 10-850 mm (0.4-33.4 in) | 10 mm (0.4 in) 20 mm (0.8 in) 25 mm (1.0 in) 50 mm (2.0 in) 75 mm (2.95 in) 100 mm (3.9 in) | Width: 20 mm (0.8 in) Thickness: 20 mm (0.8 in) | 1% | 0.006 mm (0.0002 in) | 5°C to 50°C (41°F to 122°F) | 1030 mm (40.6 in) | 90 mm (3.54 in) | 255 mm (10 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
