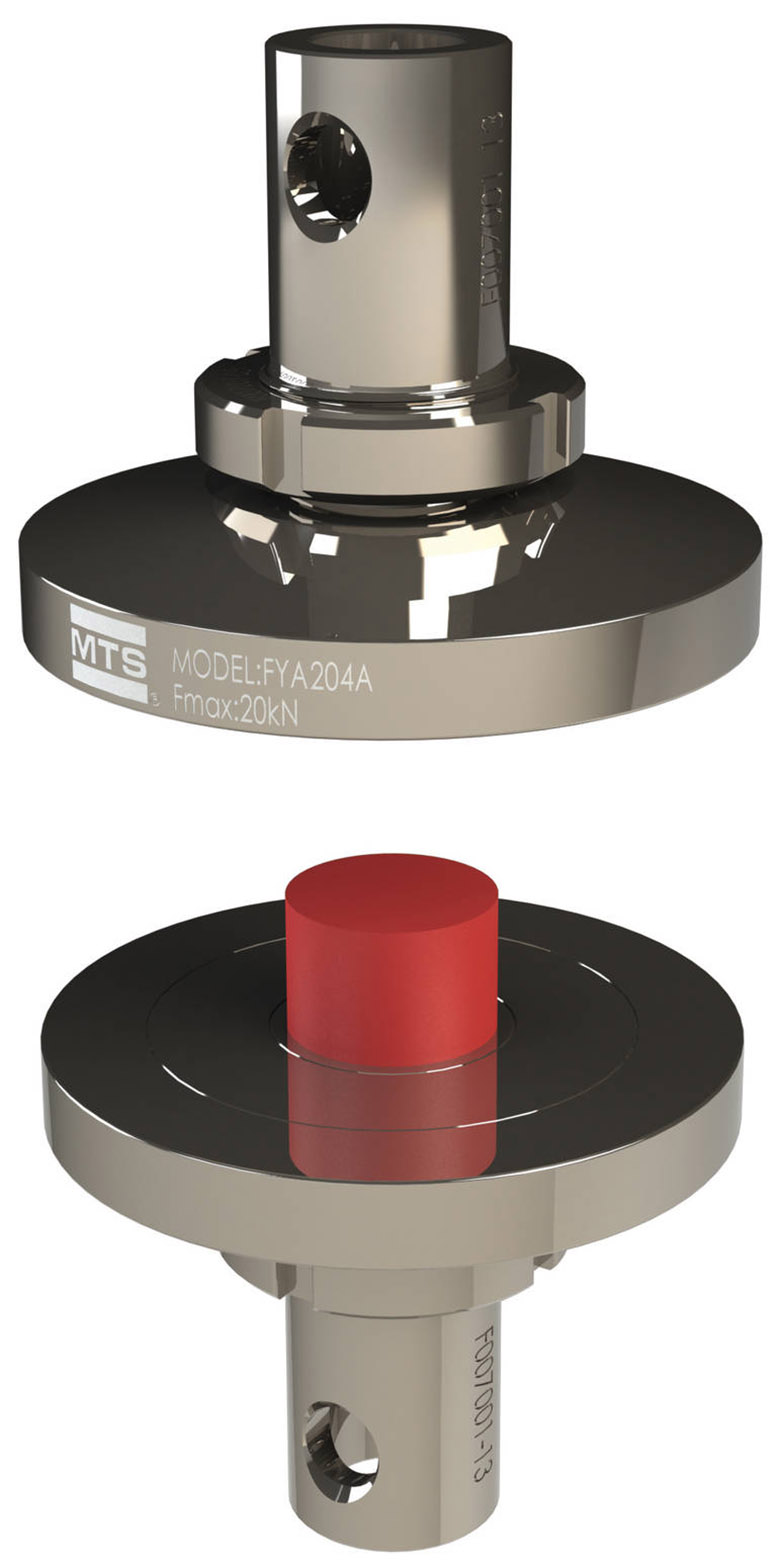

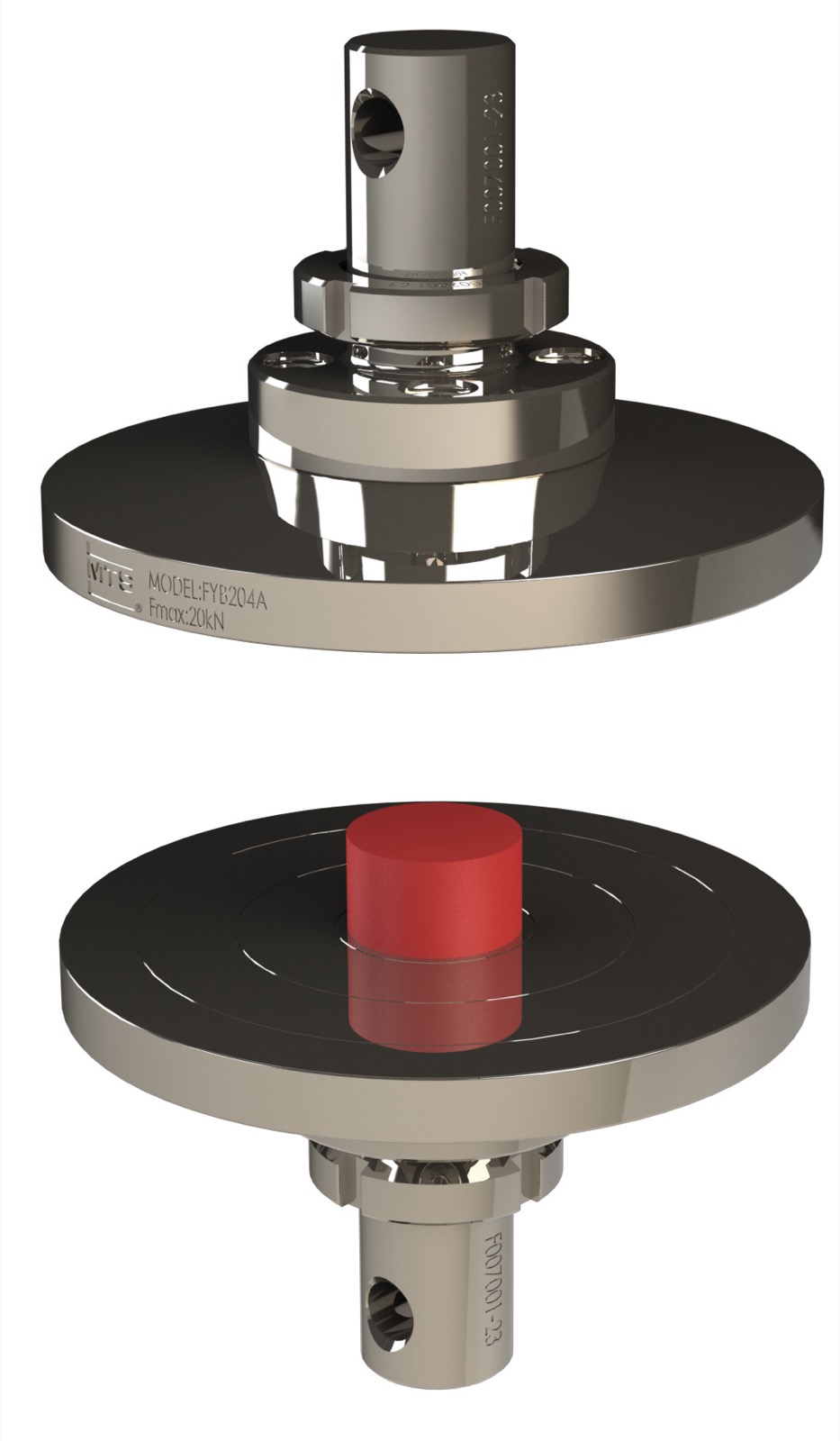

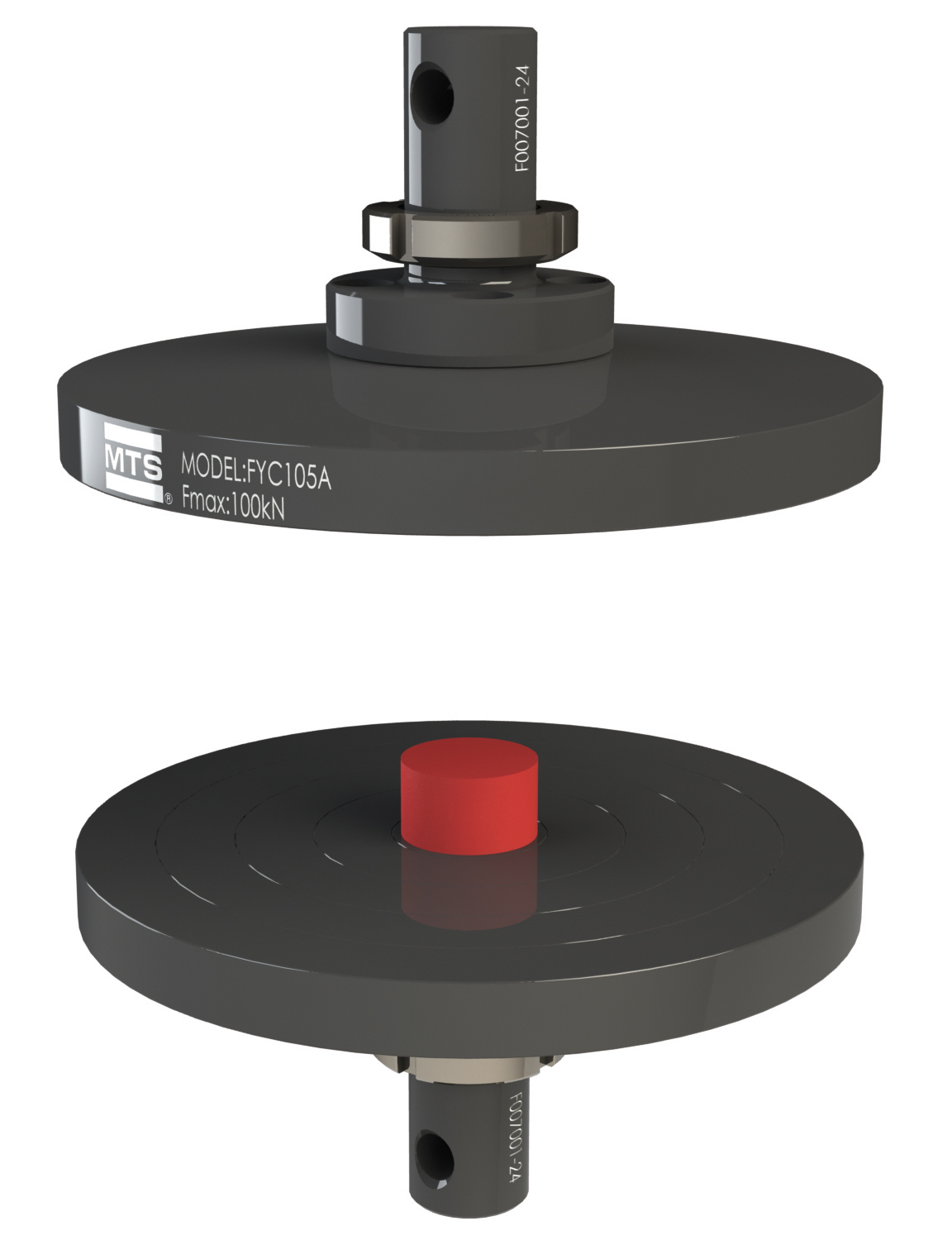

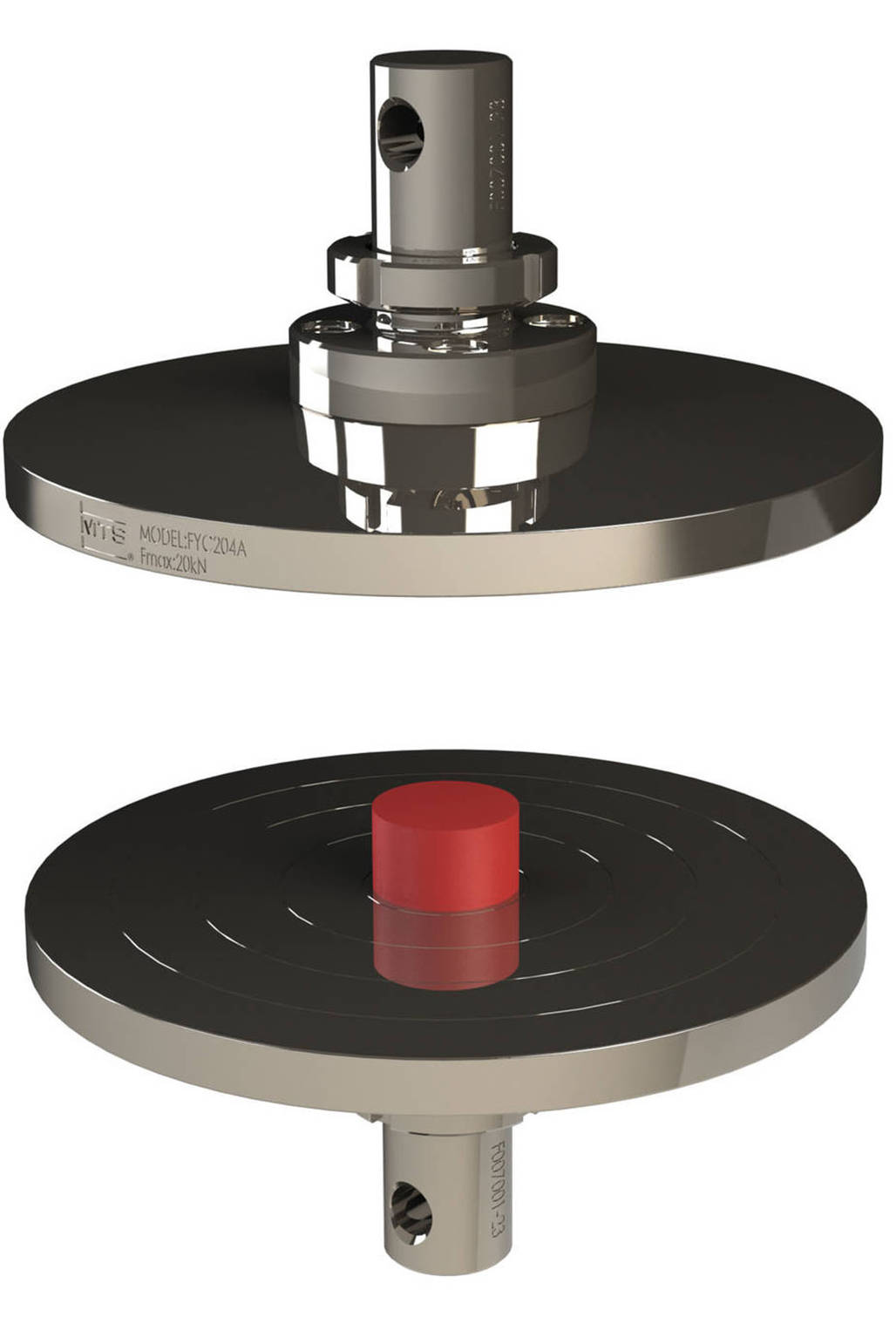

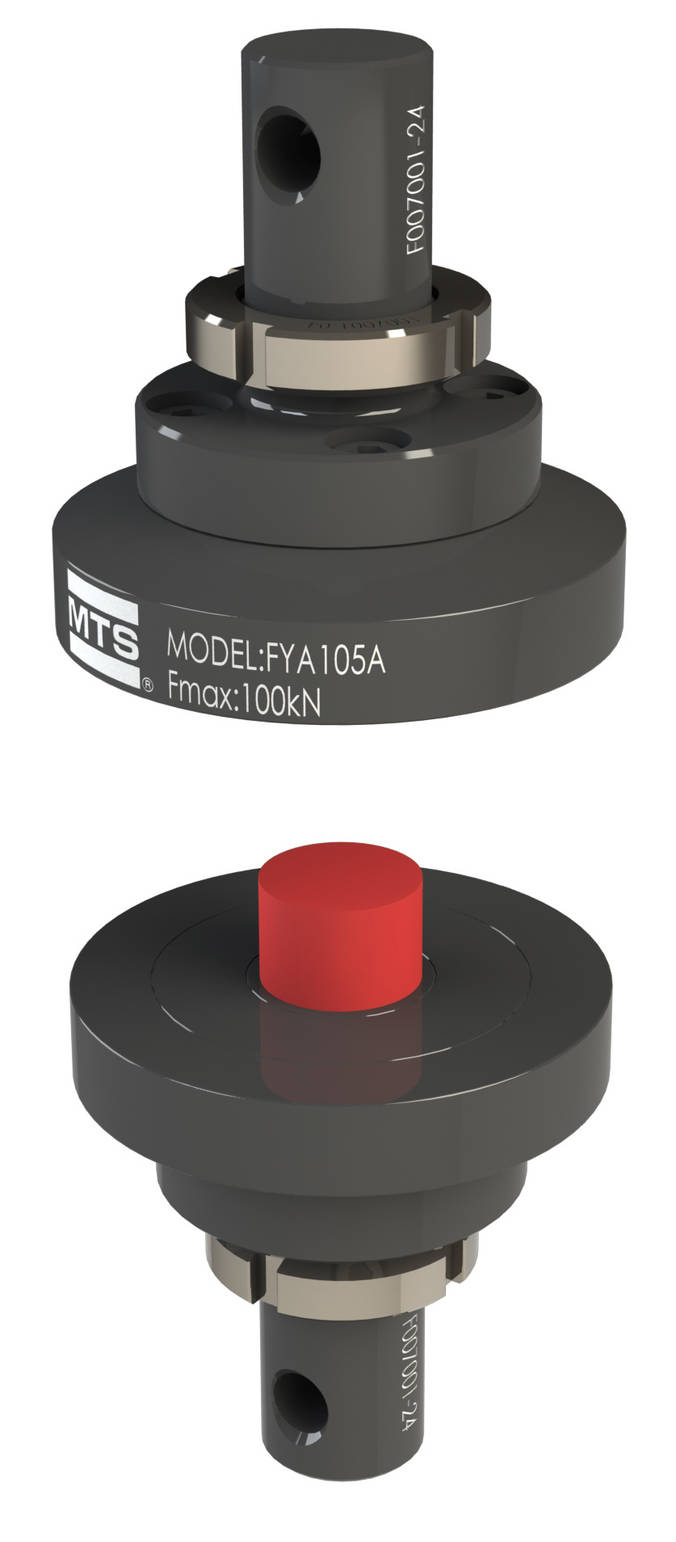

Fundamental Steel Compression Platens
Value-priced, steel platens for compression testing of foam, composites, bottles, and plastic containers. Available in a variety of diameters with force ratings of 20 kN, 100 kN and 300 kN. Precision-ground, hardened surfaces enhance platen durability.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| MODEL | PART NUMBER | PLATEN TYPE | FORCE CAPACITY | MINIMUM SPECIMEN DIAMETER AT MAXIMUM FORCE CAPACITY | UPPER PLATEN WEIGHT | TEMPERATURE RATING | ATTACHMENT TYPE | COMBINED UPPER/LOWER PLATEN HEIGHT | PLATEN DIAMETER |
|---|---|---|---|---|---|---|---|---|---|
| FYA204A | 100-231-407 | Fixed/Fixed Steel Platen | 20 kN (4,500 lbf) | 5 mm (0.2 in) | 1.491 kg (3.3 lbs) | -50°C (-58°F) to 150°C (302°F) | D | 156 mm (6.1 in) | 100 mm (3.9 in) |
| FYB204A | 100-231-411 | Fixed/Fixed Steel Platen | 20 kN (4,500 lbf) | 5 mm (0.2 in) | 3.433 kg (7.6 lbs) | -50°C (-58°F) to 150°C (302°F) | D | 192 mm (7.6 in) | 150 mm (5.9 in) |
| FYA105A | 100-231-406 | Fixed/Fixed Steel Platen | 100 kN (22,480 lbf) | 5 mm (0.2 in) | 2.434 kg (5.4 lbs) | -50°C (-58°F) to 150°C (302°F) | D | 202 mm (8 in) | 100 mm (3.9 in) |
| FYC105A | 100-231-413 | Fixed/Fixed Steel Platen | 100 kN (22,480 lbf) | 5 mm (0.2 in) | 6.637 kg (14.6 lbs) | -50°C (-58°F) to 150°C (302°F) | D | 202 mm (8 in) | 200 mm (7.9 in) |
| FYB305A | 100-257-355 | Fixed/Fixed Steel Platen | 300 kN (66,450 lbf) | 15 mm (0.6 in) | 8.9 kg (19.6 lbs) | -50°C (-58°F) to 150°C (302°F) | E | 320 mm (12.6 in) | 150 mm (5.9 in) |
| FYC305A | 100-257-356 | Fixed/Fixed Steel Platen | 300 kN (66,450 lbf) | 15 mm (0.6 in) | 12 kg (26.5 lbs) | -50°C (-58°F) to 150°C (302°F) | E | 320 mm (12.6 in) | 200 mm (7.9 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
