MTS Systems

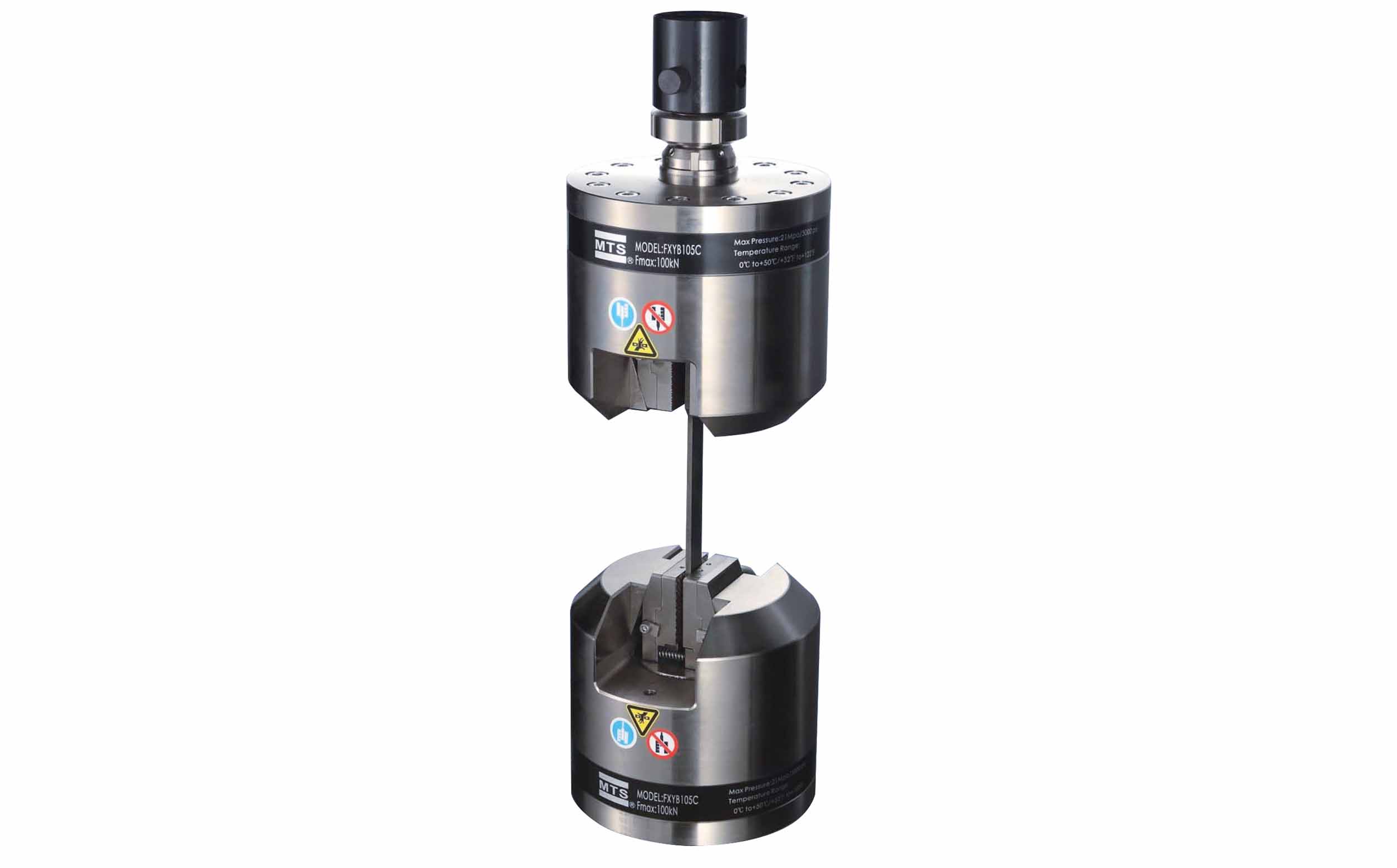

Fundamental Hydraulic Wedge Grips
MTS Fundamental™ Hydraulic Wedge Grips are ideal for higher force capacity tensile testing. Side-loading feature allows for easy specimen insertion.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| Model | FXYB305C | XYB605C |
|---|---|---|
| Part Number | 100-336-772 | 100-369-052 |
| Grip Type | Hydraulic Wedge | Hydraulic Wedge |
| Force Capacity | 300 kN (66,440 lbf) | 600 kN (134,885 lbf) |
| Upper Grip Weight | 92.5 kg (204 lb) | 165 kg (364 lb) |
| Temperature Rating | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) |
| Attachment Type | E | F |
| Combined Upper/Lower Grip Height | 756 mm (29.8 in) | 976 mm (38.4 in) |
| Grip Width | 270 mm (10.6 in) | 330 mm (13 in) |
| Maximum Input Pressure | 20 MPa (3,000 psi) | 20 MPa (3,000 psi) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
