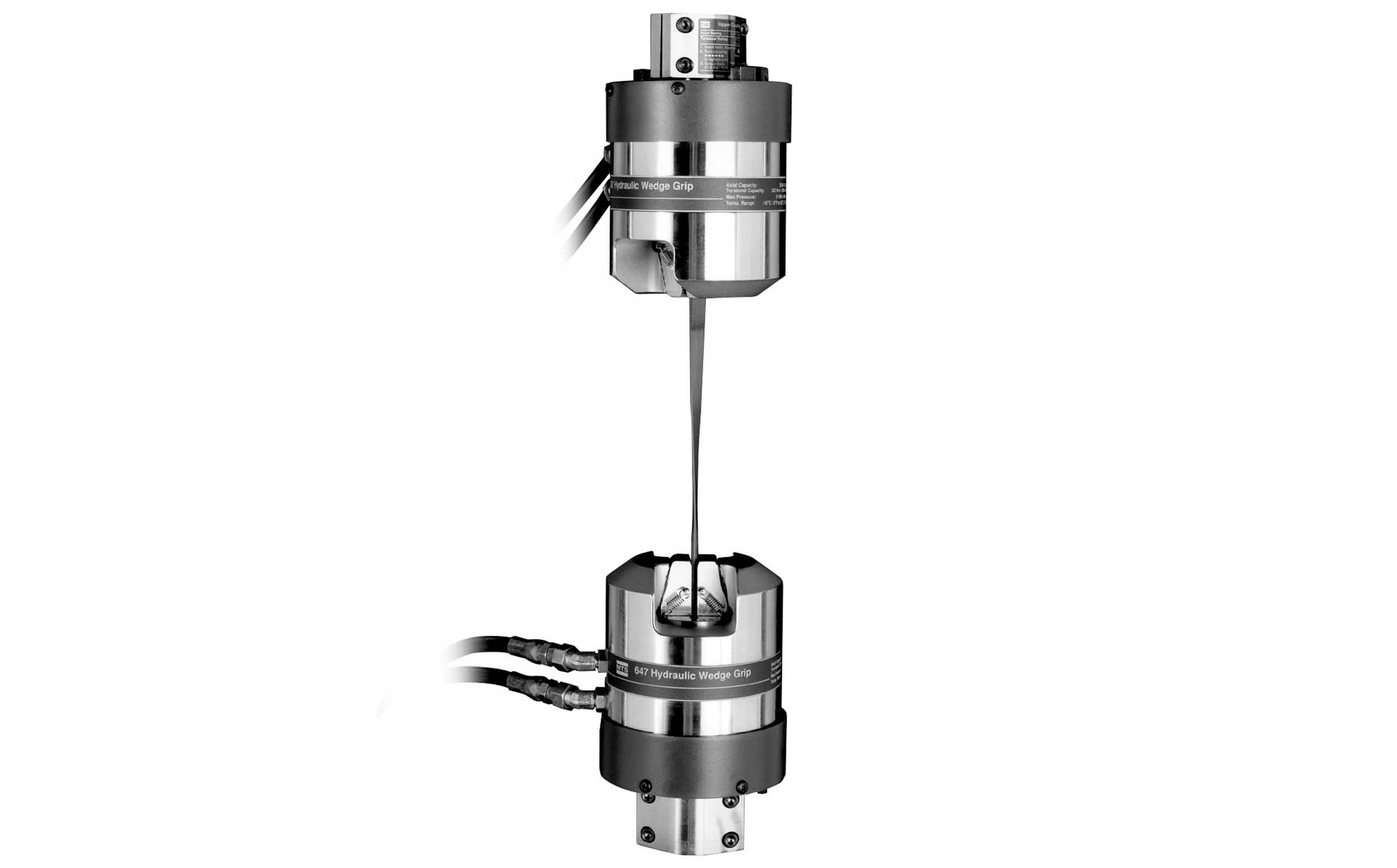

Series 647 Hydraulic Wedge Grips
The Series 647 Hydraulic Wedge Grips are versatile, easy-to-load grips for a wide range of tensile and fatigue applications. The symmetrical housing design ensures an even specimen loading across the entire face of the wedge. The lateral movement of the wedges won’t change the gripping position on the specimen once the grips are activated.
Key Features & Benefits
- Easy Specimen Insertion — Side-loading lets you quickly and easily insert specimens
- Excellent Repeatability — Clamp onto your specimen in the same position, test after test, to minimize the bending strains that can invalidate your test results
- Adjustable Pressure — Hydraulic pressure can be adjusted, allowing these grips to be used for testing a variety of materials
- Multiple Wedge Selection — A wide variety of wedges are available to meet your testing requirements
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| MODEL | DYNAMIC FORCE | STATIC FORCE | PRESSURE | TEMPERATURE* MIN / MAX | OVERALL HEIGHT | DIAMETER | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 647.02B | 25 kN (5.5 kip) | 31 kN (7 kip) | 21 MPa (3000 psi) | -40°C/177°C (-40°F/350°F) | 131 mm (5.2 in) | 150 mm (6.0 in) | ||||||||||||||||||
| 647.10A | 100 kN (22 kip) | 120 kN (27 kip) | 21 MPa (3000 psi) | -40°C/177°C (-40°F/350°F) | 188 mm (7.4 in) | 203 mm (8.0 in) | ||||||||||||||||||
| 647.25A | 250 kN (55 kip) | 333 kN (75 kip) | 70 MPa (10,000 psi) | -40°C/177°C (-40°F/350°F) | 249 mm (9.8 in) | 266 mm (10.5 in) | ||||||||||||||||||
| 647.50A | 500 kN (110 kip) | 550 kN (120 kip) | 70 MPa (10,000 psi) | -18°C to 65°C (0°F to 150°F) | 291 mm (11.5 in) | 330 mm (13.0 in) | 647.100A | 1000 kN (220 kip) | 1200 kN (264 kip) | 70 MPa (10,000 psi) | -18°C to 65°C (0°F to 150°F) | 414 mm (16.2 in) | 444 mm (17.5 in) | 647.250 | 2500 kN (550 kip) | 2750 kN (510 kip) | 70 MPa (10,000 psi) | -18°C to 65°C (0°F to 150°F) | 819 mm (32.3 in) | 737 mm (29.0 in) | *Temperatures above 77°C/150°F require a stand-alone grip supply and extension rods. | |||
| 647.100A | 1000 kN (220 kip) | 1200 kN (264 kip) | 70 MPa (10,000 psi) | -18°C to 65°C (0°F to 150°F) | 414 mm (16.2 in) | 444 mm (17.5 in) | ||||||||||||||||||
| 647.250 | 2500 kN (550 kip) | 2750 kN (510 kip) | 70 MPa (10,000 psi) | -18°C to 65°C (0°F to 150°F) | 819 mm (32.3 in) | 737 mm (29.0 in) | ||||||||||||||||||
| *Temperatures above 77°C/150°F require a stand-alone grip supply and extension rods. |
Detailed Technical Specifications
| MODEL | WEIGHT | WEDGE HEIGHT | METRIC/US STUD SIZE | PART NUMBER |
|---|---|---|---|---|
| 647.02B | 7 kg (15.4 lb) | 38 mm (1.5 in) | M12 x 1.25 (1/2”-20) | 056-670-901 |
| 647.10A | 30 kg (66.1 lb) | 63.5 mm (2.5 in) | M27 x 2 (1”-14) | 047-080-605 |
| 647.25A | 77 kg (170 lb) | 89 mm (3.5 in) | M36 x 2 (1 1/2”-12) | 047-080-905 |
| 647.50A | 148 kg (324 lb) | 95.3 mm (3.75 in) | M52 x 2 (2”-12) | 047-595-505 |
| 647.100A | 386 kg (850 lb) | 127 mm (5 in) | M76 x 2 | 053-137-201 |
| 647.250 | 1153 kg (3335 lb) | 165.1 mm (6.5 in) | N/A | Contact MTS |
| Wedges and attachment kits sold separately. Specimen insertion depth in grip wedge from 3/4 of wedge height to full wedge height. Specimen to not contact grip piston at full wedge height insertion. |
Detailed Technical Specifications
| MODEL | AXIAL FORCE | TORSIONAL FORCE | PRESSURE | TEMPERATURE* | OVERALL HEIGHT | DIAMETER |
|---|---|---|---|---|---|---|
| 647.02B-22 | 25 kN (5.5 kip) | 220 N.m (2000 in.lb) | 21 MPa (3000 psi) | -40°C/150°C (-40°F/300°F) | 135 mm (5.3 in) | 150 mm (6.0 in) |
| 647.10A-05 | 100 kN (22 kip) | 550 N.m (5000 in.lb) | 21 MPa (3000 psi) | -40°C/121°C (-40°F/250°F) | 188 mm (7.4 in) | 203 mm (8.0 in) |
| 647.10A-11 | 100 kN (22 kip) | 1,100 N.m (10,000 in.lb) | 21 MPa (3000 psi) | -40°C/121°C (-40°F/250°F) | 224 mm (8.8 in) | 203 mm (8.0 in) |
| 647.25A-22 | 250 kN (55 kip) | 2,200 N.m (20,000 in.lb) | 69 MPa (10,000 psi) | -18°C/65°C (0°F/150°F) | 343 mm (13.5 in) | 266 mm (10.5 in) |
| *Temperatures above 77°C/150°F require a stand-alone grip supply and extension rods. |
Detailed Technical Specifications
| MODEL | WEIGHT | MOUNTING | PART NUMBER |
|---|---|---|---|
| 647.02B-22 | 8 kg (16 lb) | 40 mm dia. | 100-026-042 |
| 647.10A-05 | 27 kg (60 lb) | M68 x 2 (LH) | 049-157-301 |
| 647.10A-11 | 34 kg (75 lb) | M68 x 2 (LH) | 049-817-001 |
| 647.25A-22 | 95 kg (210 lb) | M92 x 3 (LH) | 056-124-001 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
