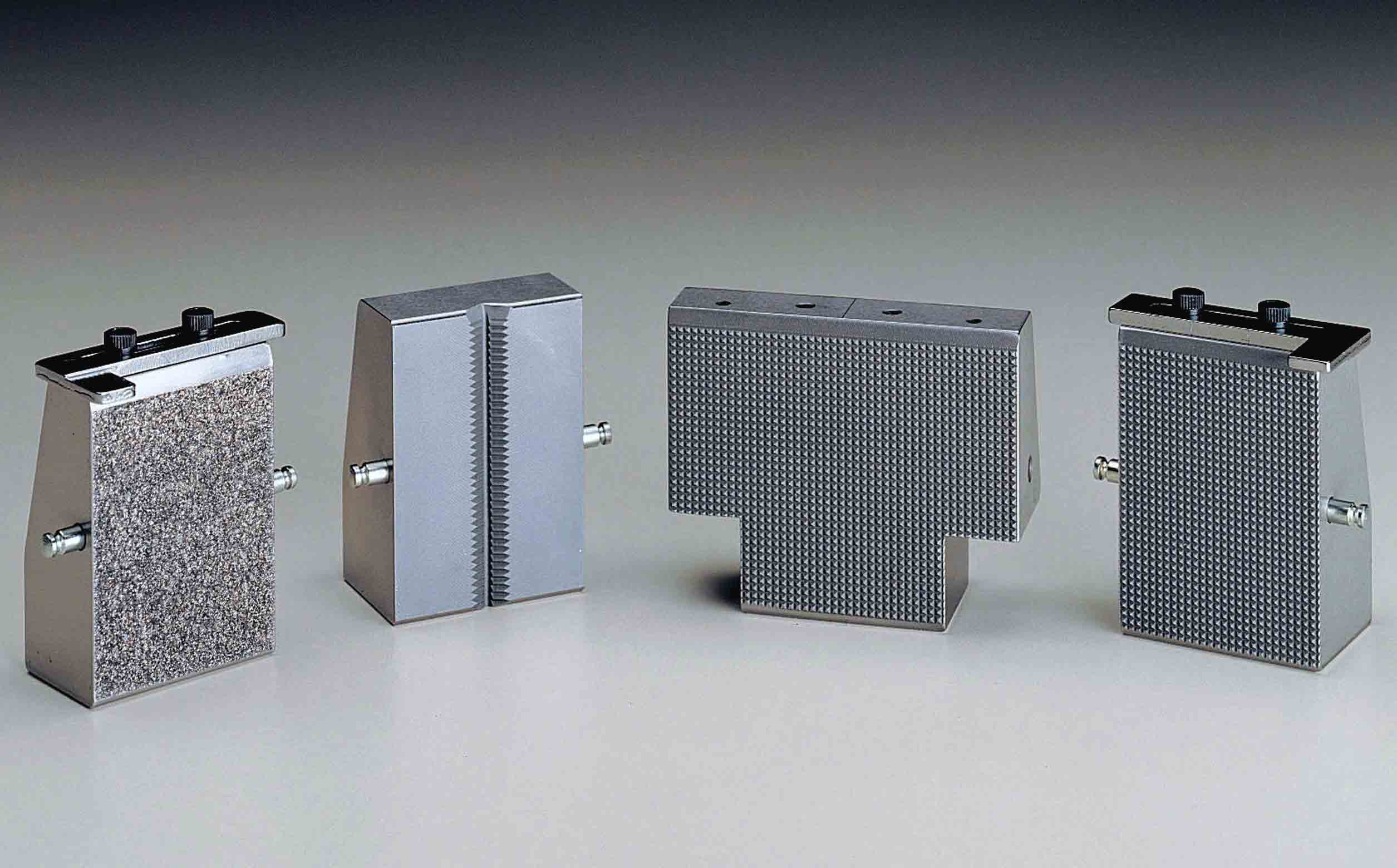

Wedges For Series 647 Hydraulic Wedge Grips
Wedges for Series 647 Wedge Grips come in a variety of surfaces to meet requirements. They employ a unique wedge design that significantly reduces the stress concentration on the specimen, enabling even very brittle composites to be gripped securely without grip-induced failure.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
Wedges for Model 647.02
| Part Number* | Profile | Surface | Height | Width | Temperature Range | Specimen Range |
|---|---|---|---|---|---|---|
| 050-507-906 | Flat | Sawtooth | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.1 mm (0-0.28 in) |
| 054-585-001 | Flat | Sawtooth | 38 mm (1.5 in) | 50.8 mm (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.1 mm (0-0.28 in) |
| 050-507-907 | Flat | Sawtooth | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.5 mm (0.28-0.57 in) |
| 054-585-002 | Flat | Sawtooth | 38 mm (1.5 in) | 50.8 mm (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.5 mm (0.28-0.57 in) |
| 050-507-901 | Flat | Sawtooth | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | 13.5-20.6 mm (0.53-0.81 in) |
| 054-585-003 | Flat | Sawtooth | 38 mm (1.5 in) | 50.8 mm (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 13.5-20.6 mm (0.53-0.81 in) |
| 054-585-004 | Flat | Sawtooth | 38 mm (1.5 in) | 50.8 mm (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 13.5-20.6 mm (0.53-0.81 in) |
| 050-507-905 | Flat | Sawtooth | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | 18.8-25.9 mm (0.74-1.02 in) |
| 052-818-701 | Flat** | Sawtooth | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -130° C (-200° F) to 315° C (600° F) | 0-7.1 mm (0-0.28 in) |
| 050-507-917 | Flat | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.1 mm (0-0.28 in) |
| 054-585-005 | Flat | Surfalloy | 38 mm (1.5 in) | 50.8 mm (2.00 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.1 mm (0-0.28 in) |
| 050-507-918 | Flat | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.5 mm (0.28-0.57 in) |
| 054-585-006 | Flat | Surfalloy | 38 mm (1.5 in) | 50.8 mm (2.00 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.5 mm (0.28-0.57 in) |
| 050-507-904 | Flat | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | 13.4-20.6 mm (0.53-0.81 in) |
| 052-818-702 | Flat** | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -130° C (-200° F) to 315° C (600° F) | 0-7.1 mm (0-0.28 in) |
| 050-507-912 | Round | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø10.0 mm |
| 050-507-934 | Round | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø12.0 mm |
| 050-507-913 | Round | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø15.0 mm |
| 050-507-914 | Round | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø25.0 mm |
| 050-507-915 | Round | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø0.5000 in |
| 050-507-916 | Round | Surfalloy | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø1.000 in |
| 050-507-908 | Vee | Diamond Tip | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø3-8.1 mm (0.12-0.32 in) Side, ø9.4 mm (0.37 in) Top |
| 050-507-909 | Vee | Diamond Tip | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø8.9-10.9 mm (0.35-0.43 in) Side, ø15.2 mm (0.60 in) Top |
| 050-507-910 | Vee | Diamond Tip | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø14-18 mm (0.55-0.71 in) Side, ø20.8 mm (0.82 in) Top |
| 050-507-911 | Vee | Diamond Tip | 38 mm (1.5 in) | 25.4 mm (1.0 in) | -40° C (-40° F) to 177° C (350° F) | ø20.1-22.9 mm (0.79-0.90 in) Side, ø27.2 mm (1.07 in) Top |
Wedges for Model 647.10
| Part Number* | Profile | Surface | Height | Width | Temperature Range | Specimen Range |
|---|---|---|---|---|---|---|
| 041-842-101 | Flat | Diamond Tip | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.6 mm (0-0.3 in) |
| 046-198-604 | Flat | Diamond Tip | 63.5 mm (2.5 in) | 76.2 mm x (3.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.6 mm (0-0.3 in) |
| 041-842-102 | Flat | Diamond Tip | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.2 mm (0.28-0.56 in) |
| 046-198-603 | Flat | Diamond Tip | 63.5 mm (2.5 in) | 76.2 mm x (3.0 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.2 mm (0.28-0.56 in) |
| 046-198-610 | Flat | Diamond Tip | 63.5 mm (2.5 in) | 76.2 mm x (3.0 in) | -40° C (-40° F) to 177° C (350° F) | 11.4-18.9 mm (0.45-0.75 in) |
| 041-842-109 | Flat | Diamond Tip | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | 11.7-19.1 mm (0.46-0.75 in) |
| 046-198-606 | Flat | Diamond Tip | 63.5 mm (2.5 in) | 76.2 mm x (3.0 in) | -40° C (-40° F) to 177° C (350° F) | 17-25.4 mm (0.67-1.0 in) |
| 046-838-702 | Flat** | Diamond Tip | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | 0-7.6 mm (0-0.3 in) |
| 046-838-701 | Flat** | Diamond Tip | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | 7.1-14.2 mm (0.28-0.56 in) |
| 046-838-713 | Flat** | Diamond Tip | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | 11.7-19.1 mm (0.46-0.75 in) |
| 041-842-108 | Flat | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.6 mm (0-0.30 in) |
| 046-198-602 | Flat | Surfalloy | 63.5 mm (2.5 in) | 76.2 mm x (3.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-7.6 mm (0-0.3 in) |
| 041-842-111 | Flat | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.2 mm (0.28-0.56 in) |
| 046-198-601 | Flat | Surfalloy | 63.5 mm (2.5 in) | 76.2 mm x (3.0 in) | -40° C (-40° F) to 177° C (350° F) | 7.1-14.2 mm (0.28-0.56 in) |
| 041-842-121 | Flat | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | 11.7-19.1 mm (0.46-0.75 in) |
| 046-838-705 | Flat** | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F)) | 0-7.6 mm (0-0.3 in) |
| 046-838-706 | Flat** | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | 7.1-14.2 mm (0.28-0.56 in) |
| 041-842-134 | Round | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø12.0 mm |
| 041-842-132 | Round | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø0.5000 in |
| 041-842-135 | Round | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø15.0 mm |
| 041-842-133 | Round | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x 1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø0.7500 in |
| 041-842-136 | Round | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø20.0 mm |
| 041-842-149 | Round | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø1.0000 in |
| 046-838-714 | Round** | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | ø0.5000 in |
| 046-838-715 | Round** | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | ø0.7500 in |
| 046-838-716 | Round** | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | ø12.0 mm |
| 046-838-717 | Round** | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | ø15.0 mm |
| 046-838-718 | Round** | Surfalloy | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) | ø20.0 mm |
| 041-842-103 | Vee | Serrated | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø5.8-10.2 mm (0.23-0.4 in) Side, ø11.9 mm (0.47 in) Top |
| 041-842-104 | Vee | Serrated | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | ø10.9-12.7 mm (0.43-0.5 in) Side, ø16.5 mm (0.65 in) Top |
| 041-842-107 | Vee | Serrated | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | No Side-Loading, ø12.7-19.0 mm (0.5-0.7 in) Top |
| 041-842-110 | Vee | Serrated | 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) | -40° C (-40° F) to 177° C (350° F) | No Side-Loading, ø17-22.9 mm (0.67-0.9 in) Top |
| 046-838-703 046-838-704 | Vee** Vee** | Serrated Serrated | 63.5 mm (2.5 in) 63.5 mm (2.5 in) | 44.5 mm x (1.75 in) 44.5 mm x (1.75 in) | -130° C (-200° F) to 315° C (600° F) -130° C (-200° F) to 315° C (600° F) | ø5.8-10.2 mm (0.23-0.4 in) Side, ø11.9 mm (0.47 in) Top ø10.9-12.7 mm (0.43-0.5 in) Side, ø16.5 mm (0.65 in) Top |
Wedges for Model 647.25
| Part Number* | Profile | Surface | Height | Width | Temperature Range | Specimen Range |
|---|---|---|---|---|---|---|
| 041-842-201 | Flat | Diamond Tip | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 1-11.9 mm (0.04-0.47 in) |
| 046-198-804 | Flat | Diamond Tip | 89 mm (3.5 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 1-11.9 mm (0.04-0.47 in) |
| 041-842-202 | Flat | Diamond Tip | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 6.1-17 mm (0.24-0.67 in) |
| 046-198-806 | Flat | Diamond Tip | 89 mm (3.5 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 6.1-17 mm (0.24-0.67 in) |
| 041-842-203 | Flat | Diamond Tip | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 15-25.9 mm (0.59-1.02 in) |
| 046-198-805 | Flat | Diamond Tip | 89 mm (3.5 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 15-25.9 mm (0.59-1.02 in) |
| 045-966-201 | Flat** | Diamond Tip | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -130° C (-200° F) to 315° C (600° F) | 1-11.9 mm (0.04-0.47 in) |
| 045-966-202 | Flat** | Diamond Tip | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -130° C (-200° F) to 315° C (600° F) | 6.1-17 mm (0.24-0.67 in) |
| 045-966-204 | Flat** | Diamond Tip | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -130° C (-200° F) to 315° C (600° F) | 15-25.9 mm (0.59-1.02 in) |
| 046-198-801 | Flat | Surfalloy | 89 mm (3.5 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-10.1 mm (0-0.40 in) |
| 041-842-207 | Flat | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 1-11.9 mm (0.04-0.47 in) |
| 046-198-817 | Flat | Surfalloy | 89 mm (3.5 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 1-11.9 mm (0.04-0.47 in) |
| 041-842-208 | Flat | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 6.1-17 mm (0.24-0.67 in) |
| 046-198-802 | Flat | Surfalloy | 89 mm (3.5 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 6.1-17 mm (0.24-0.67 in) |
| 041-842-209 | Flat | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | 15-25.9 mm (0.59-1.02 in) |
| 046-198-803 | Flat | Surfalloy | 89 mm (3.5 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 15-25.9 mm (0.59-1.02 in) |
| 045-966-205 | Flat** | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -130° C (-200° F) to 315° C (600° F) | 1-11.9 mm (0.04-0.47 in) |
| 041-842-234 | Round | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø0.5000 in |
| 041-842-231 | Round | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø15.0 mm |
| 041-842-232 | Round | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø20.0 mm |
| 041-842-235 | Round | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø1.0000 in |
| 041-842-233 | Round | Surfalloy | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø30.0 mm |
| 041-842-206 | Vee | Serrated | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø6.4-10.2mm (0.25-0.4 in) Side, 13.5 mm (0.53 in) Top |
| 041-842-204 | Vee | Serrated | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø10.7-16.8 mm (0.42-0.66 in) Side 19.9 mm (0.78 in) Top |
| 041-842-205 | Vee | Serrated | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -40° C (-40° F) to 177° C (350° F) | ø16.8-20.0mm (0.66-0.79 in) Side 26.2 mm (1.03 in) Top |
| 045-966-206 | Vee** | Serrated | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -130° C (-200° F) to 315° C (600° F) | ø6.4-10.2mm (0.25-0.4 in) Side, 13.5 mm (0.53 in) Top |
| 045-966-207 | Vee** | Serrated | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -130° C (-200° F) to 315° C (600° F) | ø10.7-16.8 mm (0.42-0.66 in) Side 19.9 mm (0.78 in) Top |
| 045-966-203 | Vee** | Serrated | 89 mm (3.5 in) | 50.8 mm x (2.0 in) | -130° C (-200° F) to 315° C (600° F) | ø16.8-20.0mm (0.66-0.79 in) Side 26.2 mm (1.03 in) Top |
Wedges for Model 647.50, 647.100 & 647.250
| Part Number* | Profile | Surface | Height | Width | Temperature Range | Specimen Range |
|---|---|---|---|---|---|---|
| 047-641-606 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-10.9 mm (0-0.43 in) |
| 047-641-607 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 10.2-21.1 mm (0.40-0.83 in) |
| 048-966-303 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 203.2 mm x (8.0 in) | -40° C (-40° F) to 177° C (350° F) | 10.2-21.1 mm (0.40-0.83 in) |
| 047-641-608 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 20.3-31.2 mm (0.80-1.23 in) |
| 048-966-304 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 203.2 mm x (8.0 in) | -40° C (-40° F) to 177° C (350° F) | 20.3-31.2 mm (0.80-1.23 in) |
| 047-641-609 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 30.5-41.4 mm (1.20-1.63 in) |
| 048-966-305 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 203.2 mm x (8.0 in) | -40° C (-40° F) to 177° C (350° F) | 30.5-41.4 mm (1.20-1.63 in) |
| 047-641-610 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 40.6-51.6 mm (1.60-2.03 in) |
| 048-966-306 | Flat | Diamond Tip | 95.3 mm (3.75 in) | 203.2 mm x (8.0 in) | -40° C (-40° F) to 177° C (350° F) | 40.6-51.6 mm (1.60-2.03 in) |
| 047-641-611 | Flat | Surfalloy | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-10.9 mm (0-0.43 in) |
| 048-966-307 | Flat | Surfalloy | 95.3 mm (3.75 in) | 203.2 mm x (8.0 in) | -40° C (-40° F) to 177° C (350° F) | 0-10.9 mm (0-0.43 in) |
| 047-641-612 | Flat | Surfalloy | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 10.2-21.1 mm (0.40-0.83 in) |
| 047-641-613 | Flat | Surfalloy | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | 20.3-31.2 mm (0.80-1.23 in) |
| 048-966-301 | Flat | Surfalloy | 95.3 mm (3.75 in) | 203.2 mm x (8.0 in) | -40° C (-40° F) to 177° C (350° F) | 20.3-31.2 mm (0.80-1.23 in) |
| 047-641-601 | Vee | Serrated | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | ø6.4-12.7 mm (0.25-0.50in) Side 15.5 mm (0.61 in) Top |
| 047-641-602 | Vee | Serrated | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | ø15.2-18.3 mm (0.60-0.72 in) Side 24.4 mm (0.96 in) Top |
| 047-641-603 | Vee | Serrated | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | ø24.1-25.1 mm (0.95 - 0.99 in) Side 33.5 mm (1.32 in) Top |
| 047-641-604 | Vee | Serrated | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | ø33.0 mm (1.30 inch) Side 42.4 mm (1.67 in) Top |
| 047-641-605 | Vee | Serrated | 95.3 mm (3.75 in) | 101.6 mm x (4.0 in) | -40° C (-40° F) to 177° C (350° F) | ø41.9 mm (1.65 in) Side 51.3 mm (2.02 in) Top |
Wedges for Model 647.50, 647.100 & 647.250
| Part Number* | Profile | Surface | Height | Width | Temperature Range | Specimen Range |
|---|---|---|---|---|---|---|
| 053-137-403 | Flat | Diamond Tip | 127 mm (5.0 in) | 127 mm (5.0 in) | -18° C (0° F) to 65° C (150° F) | 0.00-23 mm (0.00-0.89 in) |
| 053-137-402 | Flat | Diamond Tip | 414 mm (16.2 in) | 444 mm x (17.5 in) | -18° C (0° F) to 65° C (150° F) | 23-45 mm (0.89-1.77 in) |
| 053-137-401 | Flat | Diamond Tip | 414 mm (16.2 in) | 444 mm x (17.5 in) | -18° C (0° F) to 65° C (150° F) | 45-67 mm (1.77-2.64 in) |
| 053-137-407 | Vee | Serrated | 127 mm (5.0 in) | 127 mm (5.0 in) | -18° C (0° F) to 65° C (150° F) | ø6.0-9.9 mm (0.24-0.39 in) Side, 9.9 mm (0.39 in) Top |
| 053-137-406 | Vee | Serrated | 414 mm (16.2 in) | 444 mm x (17.5 in) | -18° C (0° F) to 65° C (150° F) | ø9.9-20.8 mm (0.39-0.82 in) Side, 25.1 mm (0.99 in) Top |
| 053-137-405 | Vee | Serrated | 414 mm (16.2 in) | 444 mm x (17.5 in) | -18° C (0° F) to 65° C (150° F) | ø25.1-29.8 mm (0.99-1.16 in) Side, 44.4 mm (1.74 in) Top |
| 053-137-404 | Vee | Serrated | 414 mm (16.2 in) | 444 mm x (17.5 in) | -18° C (0° F) to 65° C (150° F) | ø44.4-50.8 mm (1.75-2.0 in) Side, 63.5 mm (2.50 in) Top |
Wedges for Model 647.50, 647.100 & 647.250
| Part Number* | Profile | Surface | Height | Width | Specimen Range |
|---|---|---|---|---|---|
| 057-367-101 | Flat** | Diamond Tip | 165 mm (6.50 in) | 305 mm (12.00 in) | 0-29.5 mm (0-1.16 in) 26.8-54 mm (1.06-2.16 in) 51.8-79 mm (2.04-3.11 in) 76.8-104 mm (3.02-4.09 in) |
| 057-367-102 | Vee** | Serrated | 165 mm (6.50 in | 305 mm (12.00 in) | 30-44.0/57.2 mm (1.18-1.73/2.25 in) 55.8-68.9/80.5 mm (2.20-2.71/3.17 in) 78.6-93.7/104 mm (3.10-3.69/4.09 in) |
| 057-367-103 | Flat & Vee | Diamond Tip & Serrated | 165 mm (6.50 in) | 305 mm (12.00 in) | Includes the flat and vee wedges described above and single set of liners |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
