MTS Systems

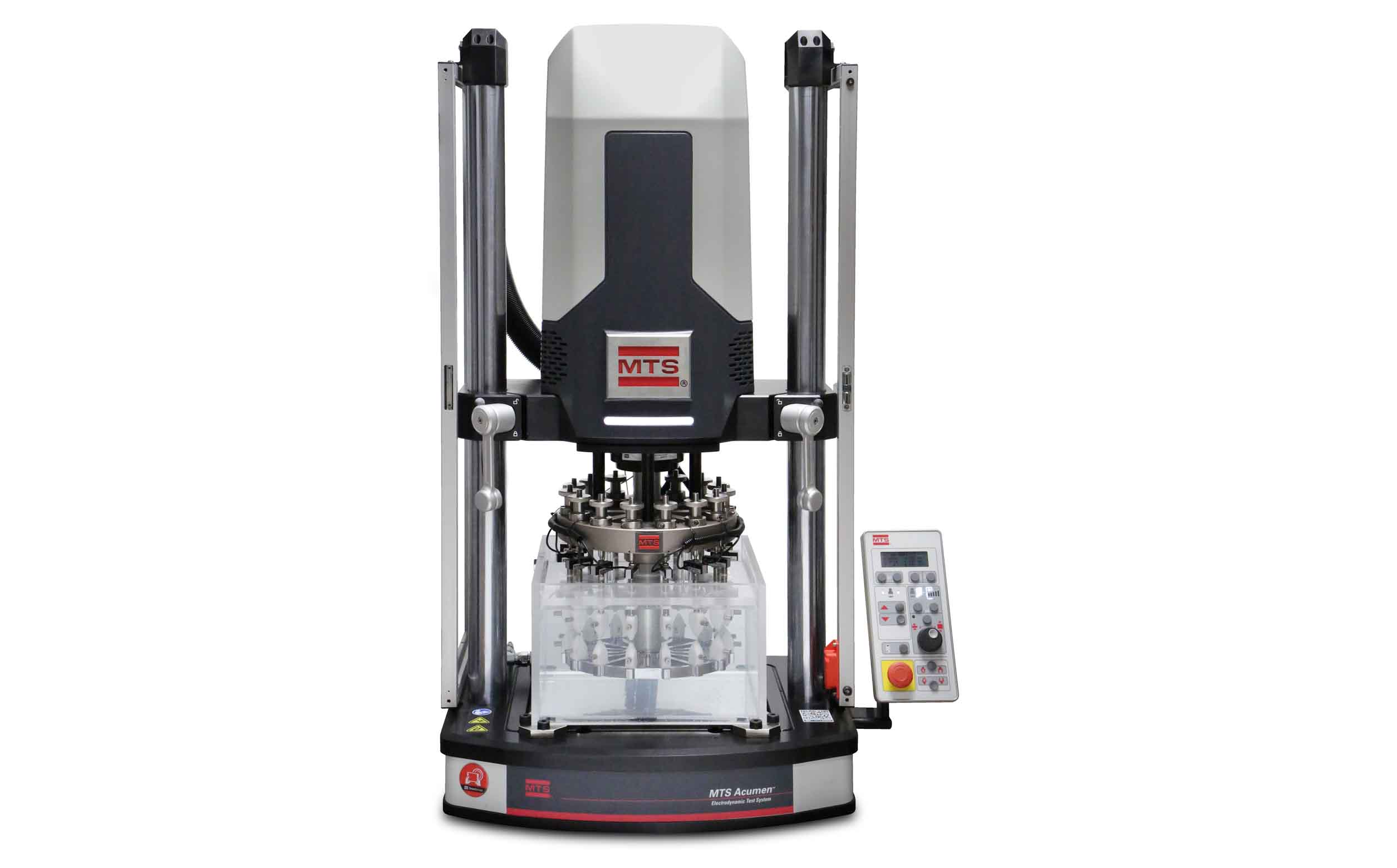

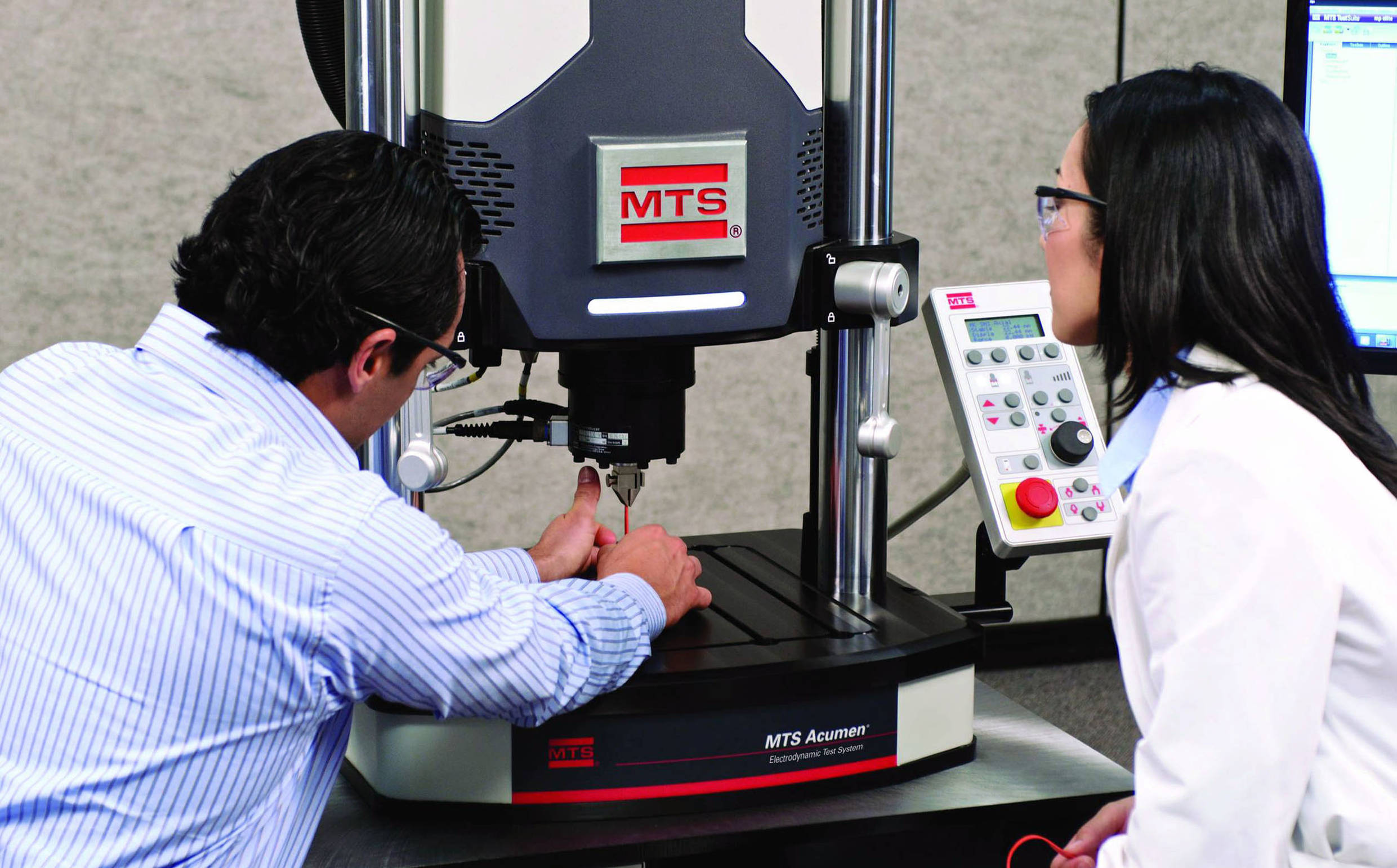

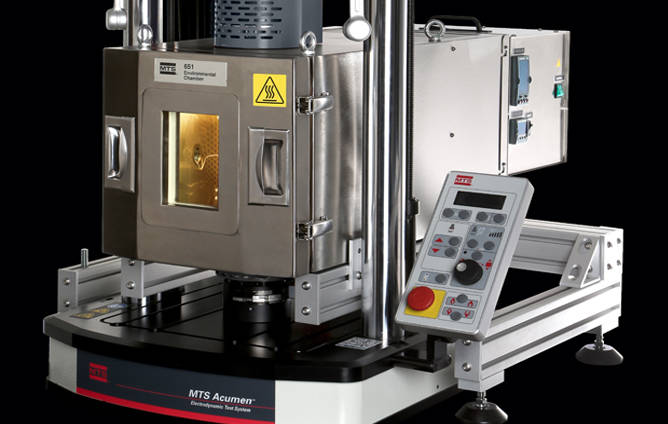

Acumen® Electrodynamic Test Systems
With force capacities up to 12kN or down to milli-Newtons, these clean and quiet systems can extend energy-efficient electrodynamic testing to many applications. The system's intuitive visual displays and software graphics simplify test setup, monitoring and modification, and the sturdy design delivers high precision and accuracy.
Key Features & Benefits
- Easy, Intuitive Use — Simple installation, setup, test monitoring and modification
- Accurate / Repeatable Results — Patent-pending software algorithms provide auto-tuning
- Energy Efficient — Electric actuation uses less energy
- Innovative Technology — Industry-leading performance, with up to 12 kN force capacity and axial/torsional options
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
Acumen 1 and 3 Specifications
| Load Frame Specifications 1 | Diagram Detail | Acumen 1 G2 | MODEL Acumen 3 | Acumen 3 A/T |
|---|---|---|---|---|
| Dynamic force 2 | 1250 N (281 lbf) | 3000 N (670 lbf) | 3000 N (670 lbf) | |
| Static force 2 | 1000 N (225 lbf) | 2000 N (450 lbf) | 2000 N (450 lbf) | |
| Dynamic torque rating | – | – | ±30 Nm (265 in-lb) | |
| Static torque rating | – | – | ±21 Nm (185 in-lb) | |
| Actuator dynamic stroke | 70 mm (2.75 in) | 70 mm (2.75 in) | 70 mm (2.75 in) | |
| Angular displacement | – | – | ±135° ±1000 revolutions 0.001 rpm - 350 rpm | |
| Dynamic performance | ≤ 100 Hz | ≤ 100 Hz | ≤ 100 Hz | |
| Minimum test space height 3 | A | 26 mm (1.02 in) | 26 mm (1.02 in) | 0 mm (0.00 in) |
| Maximum test space height 4 | A | 819 mm (32.24 in) | 819 mm (32.24 in) | 603 mm (23.74 in) |
| Working height 5 | B | 133 mm (5.24 in) | 133 mm (5.24 in) | 133 mm (5.24 in) |
| Test space width (measured between columns) | C | 460 mm (18.11 in) | 460 mm (18.11 in) | 460 mm (18.11 in ) |
| Base plate design | T-Slot (industry standard: 8 mm) | T-Slot (industry standard: 8 mm) | T-Slot (industry standard: 8 mm) | |
| Column diameter | D | 63.5 mm (2.5 in) | 63.5 mm (2.5 in) | 63.5 mm (2.5 in) |
| Frame footprint width | E | 634 mm (24.96 in) | 634 mm (24.96 in) | 634 mm (24.96 in) |
| Frame footprint depth 6 | F | 501 mm (19.72 in) | 501 mm (19.72 in) | 501 mm (19.72 in) |
| Overall width 6 (with frame-mounted controller) | G | 764 mm (30.08 in) | 764 mm (30.08 in) | 764 mm (30.08 in) |
| Overall height 7 | H | 1726 mm (67.95 in) | 1726 mm (67.95 in) | 1726 mm (67.95 in) |
| Weight | 188 kg (415 lb) | 188 kg (415 lb) | 230 kg (507 lb) | |
| Noise level - typical 8 | 47 dB(A) | 47 dB(A) | 47 dB(A) | |
| Noise level - maximum 8 | 69 dB(A) | 69 dB(A) | 69 dB(A) | |
| Mounting | Tabletop: Vertical | Tabletop: Vertical | Tabletop: Vertical | |
| Standard load cell | 1.5 kN Accel Comp | 3 kN Accel Comp | 3 kN Accel Comp | |
| Operating temperature | +5C° to +35C° | +5C° to +35C° | +5C° to +35C° | |
| Cooling | Automated forced air | Automated forced air | Automated forced air | |
| Electrical requirements 9 | Voltage - VAC Frequency - Hz Current - Amps Phase | 100 - 120 (200 - 240) 50 - 60 7 (4) Single | 200 - 240 50 - 60 10 Single | 200 - 240 50 - 60 20 Single |
Acumen 12 Specifications
| Load Frame Specifications 1 | Diagram Detail | MODEL Acumen 12 Acumen 12 A/T | |
|---|---|---|---|
| Dynamic force 2 | 12000 N (2697 lbf) | 12000 N (2697 lbf) | |
| Static force 2 | 8500 N (1910 lbf) | 8500 N (1910 lbf) | |
| Dynamic torque rating | – | ±120 Nm (1056 in-lb) | |
| Static torque rating | – | ±84.8 Nm (746 in-lb) | |
| Actuator dynamic stroke | 70 mm (2.75 in) | 70 mm (2.75 in) | |
| Angular displacement | – | ±135° ±500 revolutions 0.001 rpm - 100 rpm | |
| Dynamic performance | ≤ 100 Hz | ≤ 100 Hz | |
| Minimum test space height 3 | A | 55 mm (2.17 in) | 0 mm (0.00 in) |
| Maximum test space height 4 | A | 985 mm (38.8 in) | 810 mm (31.9 in) |
| Working height 5 | B | 815 mm (32.1 in) | 815 mm (32.1 in) |
| Test space width (measured between columns) | C | 460 mm (18.11 in ) | 460 mm (18.11 in ) |
| Base plate design | T-Slot (industry standard: 14 mm) | T-Slot (industry standard: 14 mm) | |
| Column diameter | D | 76.2 mm (3 in) | 76.2 mm (3 in) |
| Frame footprint width | E | 651 mm (25.6 in) | 651 mm (25.6 in) |
| Frame footprint depth 6 | F | 817 mm (32.2 in) | 817 mm (32.2 in) |
| Overall width 6 (with frame-mounted controller) | G | 805 mm (31.7 in) | 805 mm (31.7 in) |
| Overall height 7 | H | 2810 mm (110.7 in) | 2810 mm (110.7 in) |
| Weight | 953 kg (2100 lb) | 1043 kg (2300 lb) | |
| Noise level - typical 8 | 62 dB(A) | 62 dB(A) | |
| Noise level - maximum 8 | 78 dB(A) | 78 dB(A) | |
| Mounting | Floor: Vertical | Floor: Vertical | |
| Standard load cell | 12 kN Accel Comp | 12 kN Accel Comp | |
| Operating temperature | +5C° to +35C° | +5C° to +35C° | |
| Cooling | Automated forced air & self contained water cooled | Automated forced air & self contained water cooled | |
| Electrical requirements 9 | Voltage - VAC Frequency - Hz Current - Amps Phase | 200 - 240 50 - 60 38 Single | 200 - 240 50 - 60 38 Single |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
