MTS Systems
Elastomer Test Systems

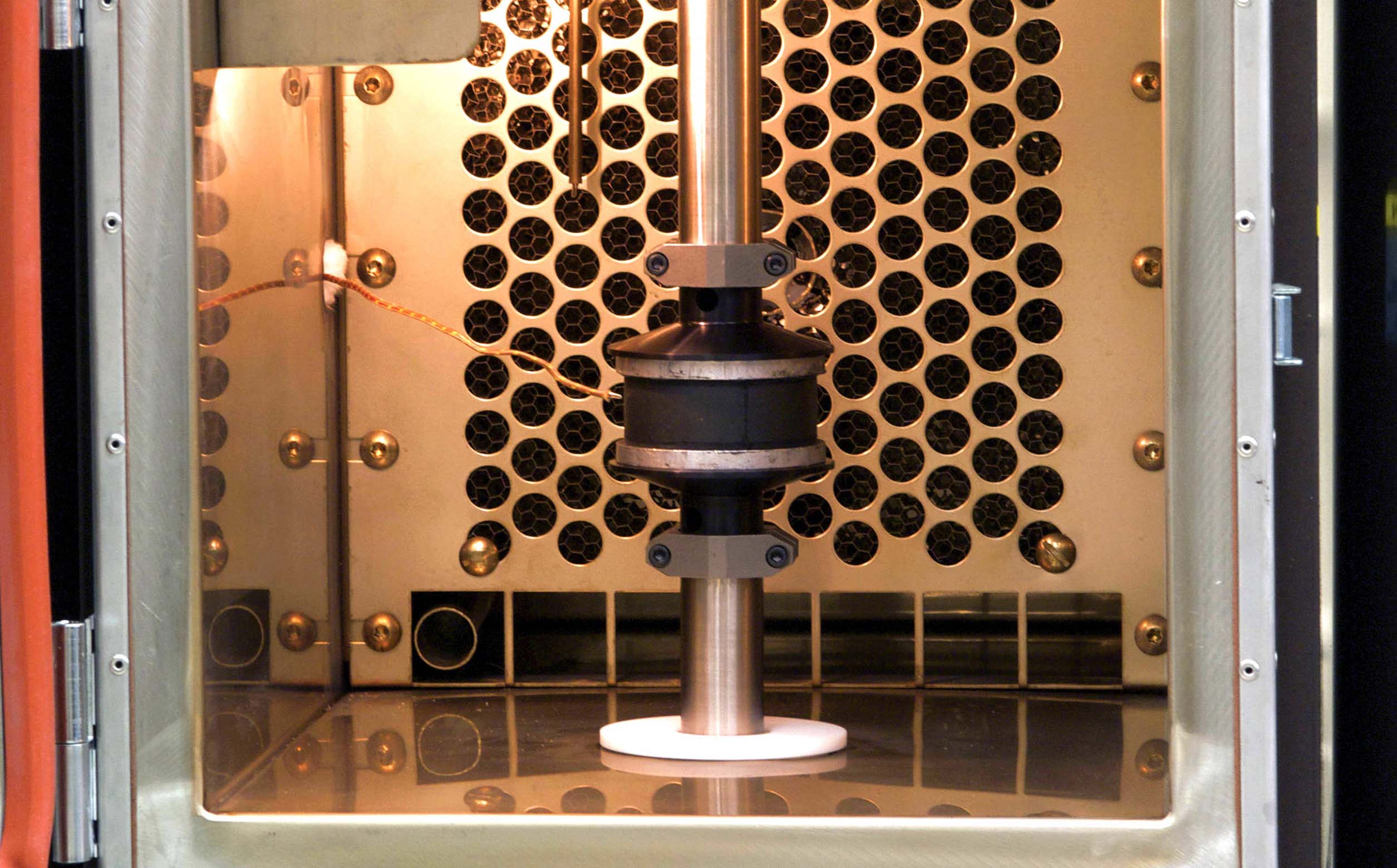

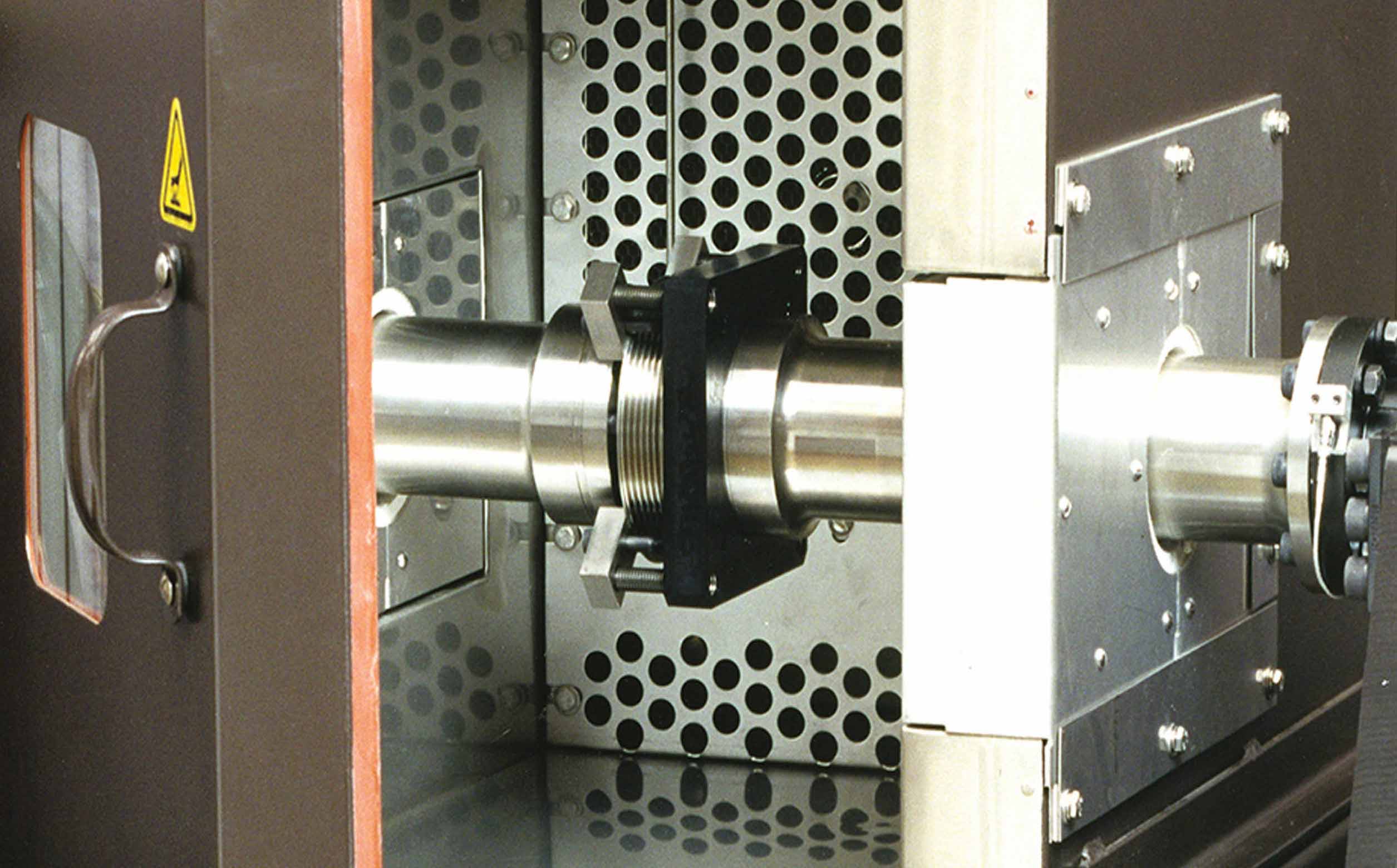

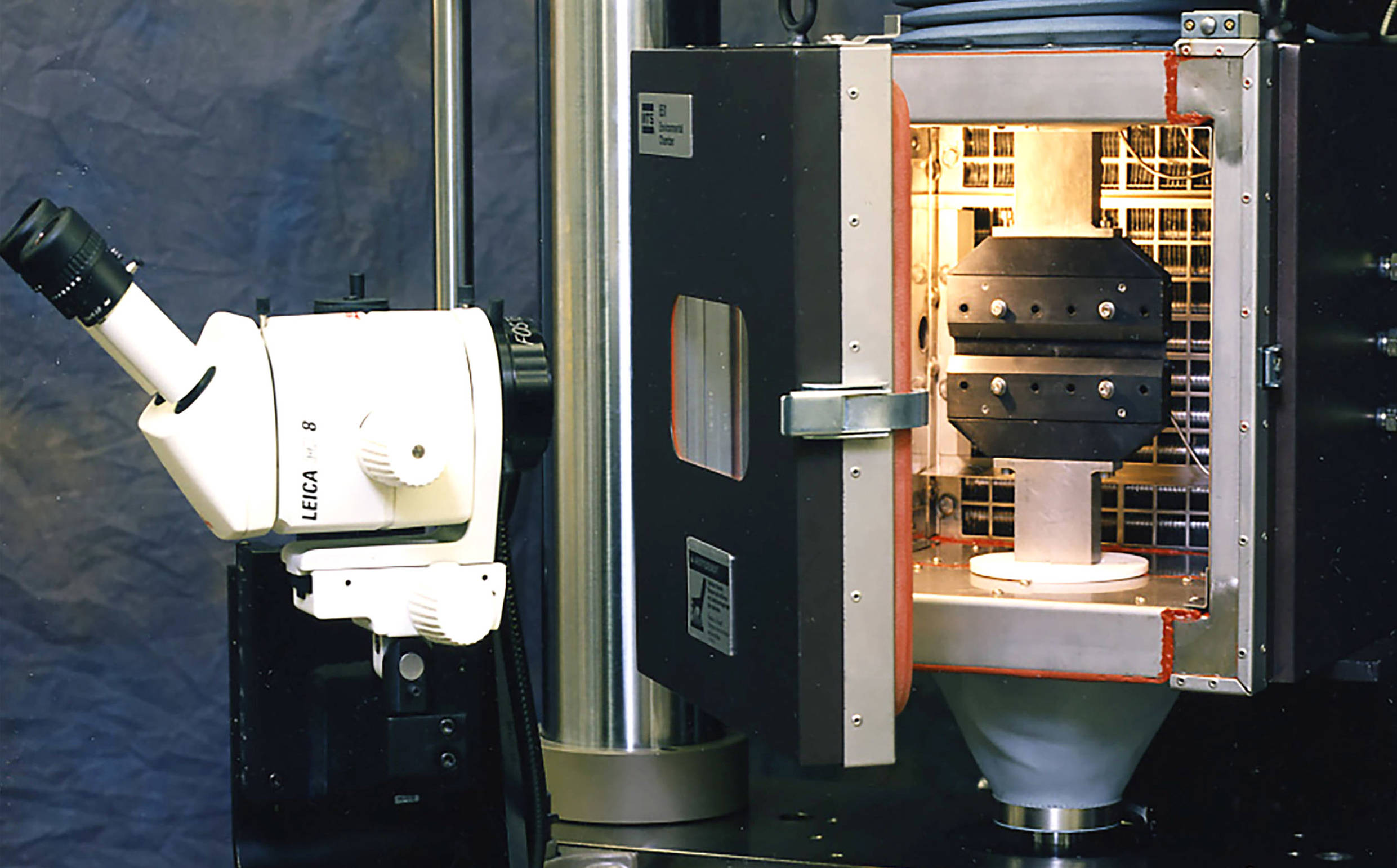

Apply precise single- or multi-axial linear and rotational forces to elastomeric materials and components to ensure quality and optimize performance and durability. The diverse MTS portfolio features advanced application software and controls and the industry’s largest force and frequency range to maximize elastomer testing accuracy, repeatability, and efficiency.
Key Features & Benefits
- Global Standard — The industry's widest range of force and frequency capabilitiesfor R&D or QA/QC applications of materials and components
- Reliable Data — Superior Test systems integrating accurate and repeatable measurements yield data that you can trust
- Real-World Correlation — From simple sine waves to real-time simulations . . . and of course, everything in between
- We Can Help — We support OEMs and researchers through the most challenging test objectives, saving them time and money
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications

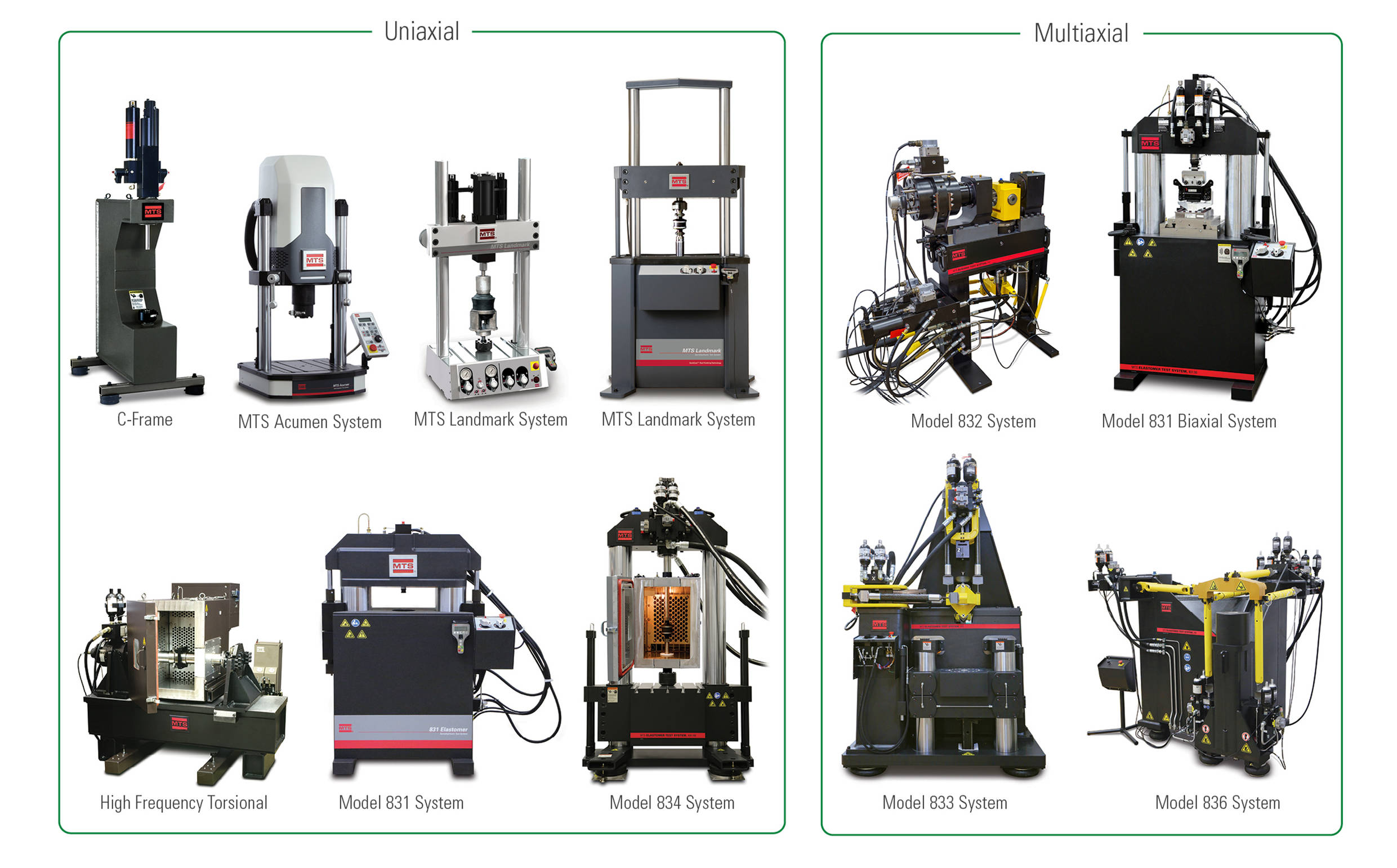

Model 836 System
| Load Capacity (non-simultaneous) | ||
|---|---|---|
| Fx | kN | 25 |
| Fy | kN | 50 |
| Fz | kN | 50 |
| Mx | kNm | 2 |
| My | kNm | 12 |
| Mz | kNm | 12 |
| Range of Motion (non-simultaneous) | ||
| X | ± mm | 25 |
| Y | ± mm | 25 |
| Z | ± mm | 25 |
| Theta x | ± deg | 15 |
| Theta y | ± deg | 5 |
| Theta z | ± deg | 5 |
Model 833 System
| Load Capacity (non-simultaneous) | ||
|---|---|---|
| Fx | kN | 25 |
| Fy | kN | 25 |
| Fz | kN | 25 |
| Range of Motion (non-simultaneous) | ||
| X | ± mm | 25 |
| Y | ± mm | 25 |
| Z | ± mm | 25 |
Model 832 System
| Load Capacity (non-simultaneous) | ||
|---|---|---|
| Fx (static) | kN | 4.4 |
| Fz | kN | 50 |
| Mx | Nm | 565 |
| Mz | Nm | 678 |
| Range of Motion (non-simultaneous) | ||
| x | ± mm | 10 |
| z | ± mm | 5 |
| Theta x (dynamic) | ± degrees | 45 |
| Theta z (static) | ± degrees | 22 |
| Theta z (dynamic) | ± degrees | 19 |
Model 831 Biaxial System
| Load Capacity (non-simultaneous) | ||
|---|---|---|
| Fz (800 Hz) | kN | 25 |
| Fx (Static) | kN | 5 |
| Range of Motion (non-simultaneous) | ||
| Z | ± mm | 25 |
| X | ± mm | 15 |
Model 831 Uniaxial System
| Load Capacity | ||
|---|---|---|
| Fx (400 Hz) | kN | 10/25 |
| Fx (700 Hz) | kN | 25 |
| Fx (1000 Hz) | kN | 10 |
| Displacement | ||
| Static Stroke | ± mm | 25 |
| Dynamic Stroke | ± mm | 20 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
