MTS Systems
Acumen® Electrodynamic Test Systems
With force capacities up to 12kN or down to milli-Newtons, these clean and quiet systems can extend energy-efficient electrodynamic testing to many applications.
MTS Systems

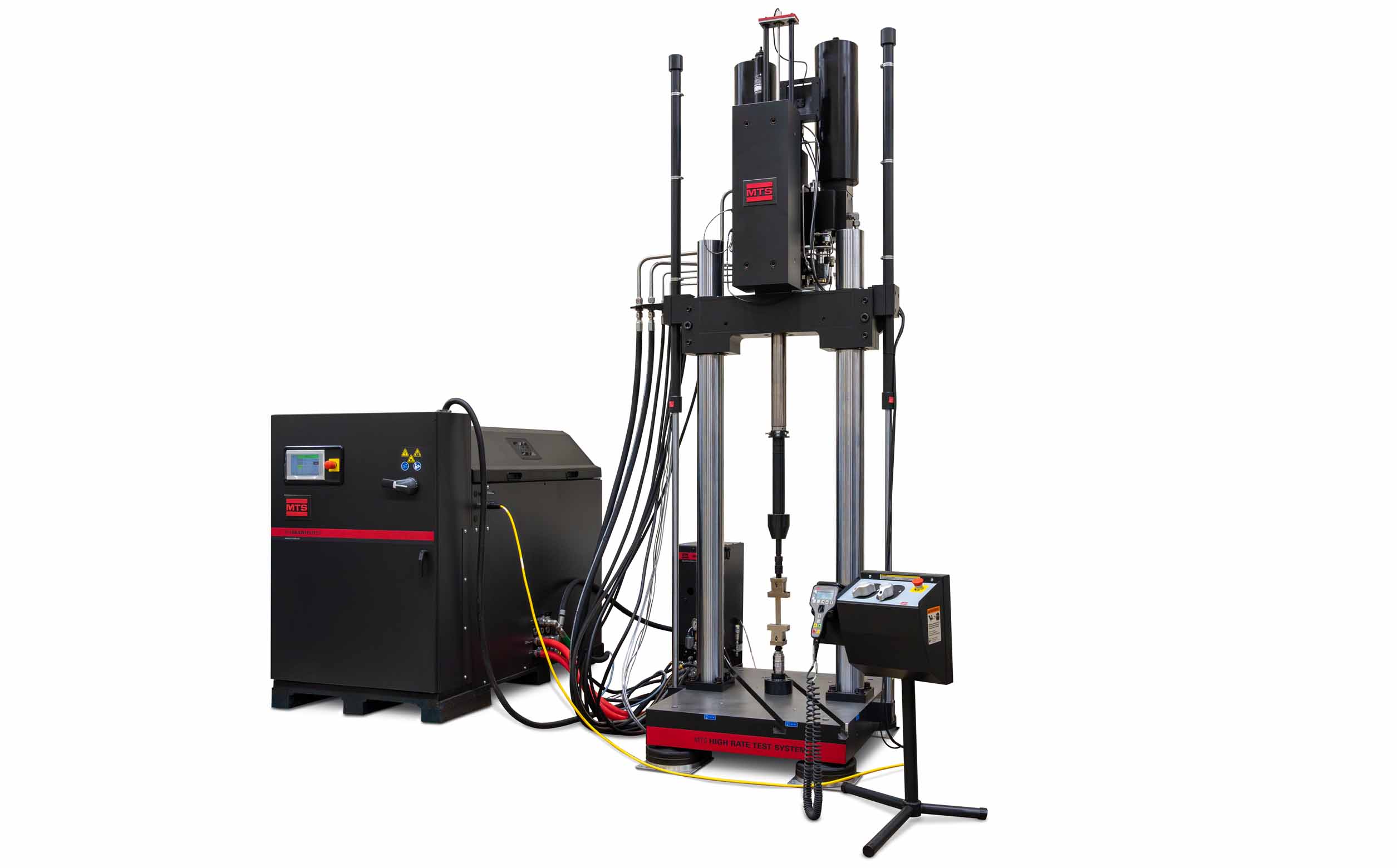

Series 819 High-Rate Test Systems
High-rate dynamic tests are used to simulate automotive accidents, airplane crashes, munitions explosions and other high-impact events. These stiff, durable load frames and high-response servohydraulics apply forces from 5 to 500 kN (1 to 110 kip) and achieve velocities from 1 to 21 m/sec (39 to 830 in./sec).
Key Features & Benefits
- Accurate / Repeatable Results — Piezoelectric load washer enables fast, accurate force measurement
- Durable / Reliable — Extra-long hydraulic cushions prevent actuator damage after specimen failure
- Precise — Eight data acquisition channels record at rates up to 1.25 million samples per second simultaneously
- Versatile — Compatible grips and fixtures accommodate a wide range of specimen types
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
High-Rate Test Systems Specifications
| MTS high-rate test systems include the following servohydraulic load frames that suit a variety of applications: | |||
|---|---|---|---|
| LOAD FRAME MODEL | STATIC FORCE CAPACITY | SERVOVALVE SIZE | MAXIMUM VELOCITY |
| (kN) | (lpm) | (no load, m/s) | |
| 819.40 | 40 | 1500 | 18 |
| 819.90 | 90 | 1500 (x2) | 20 |
| 819.160 | 160 | 3750 (x2) | 20 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
