MTS Systems

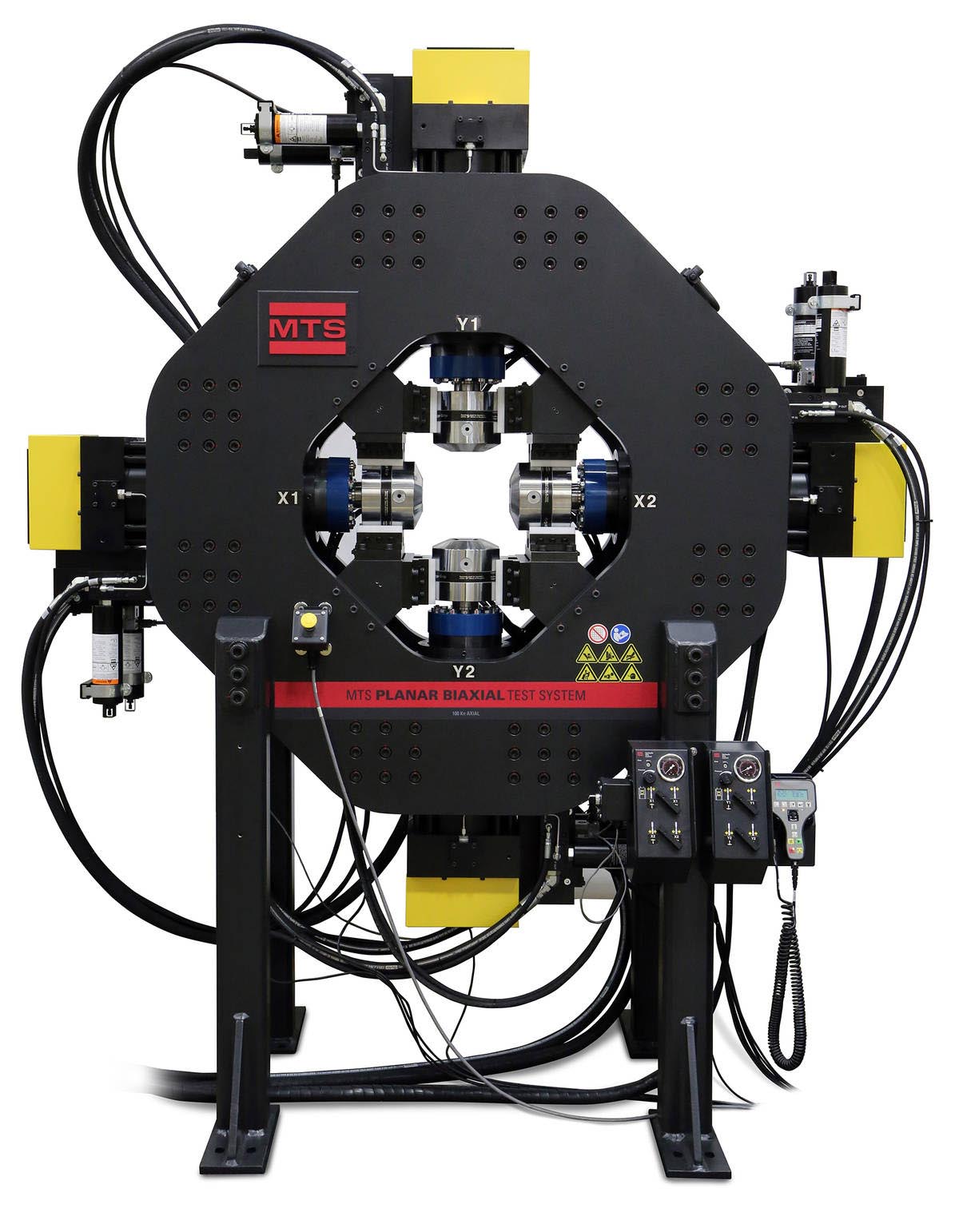

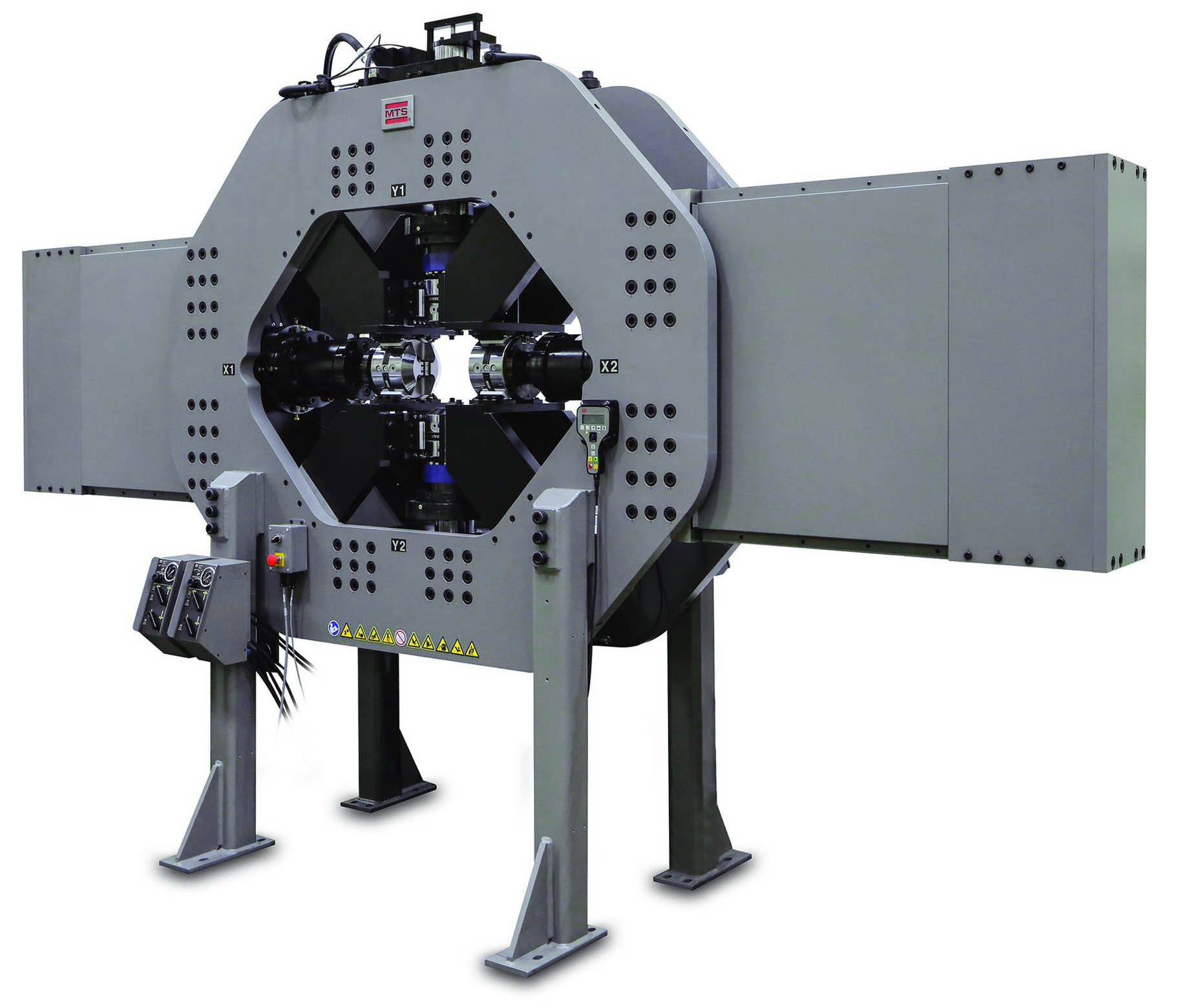

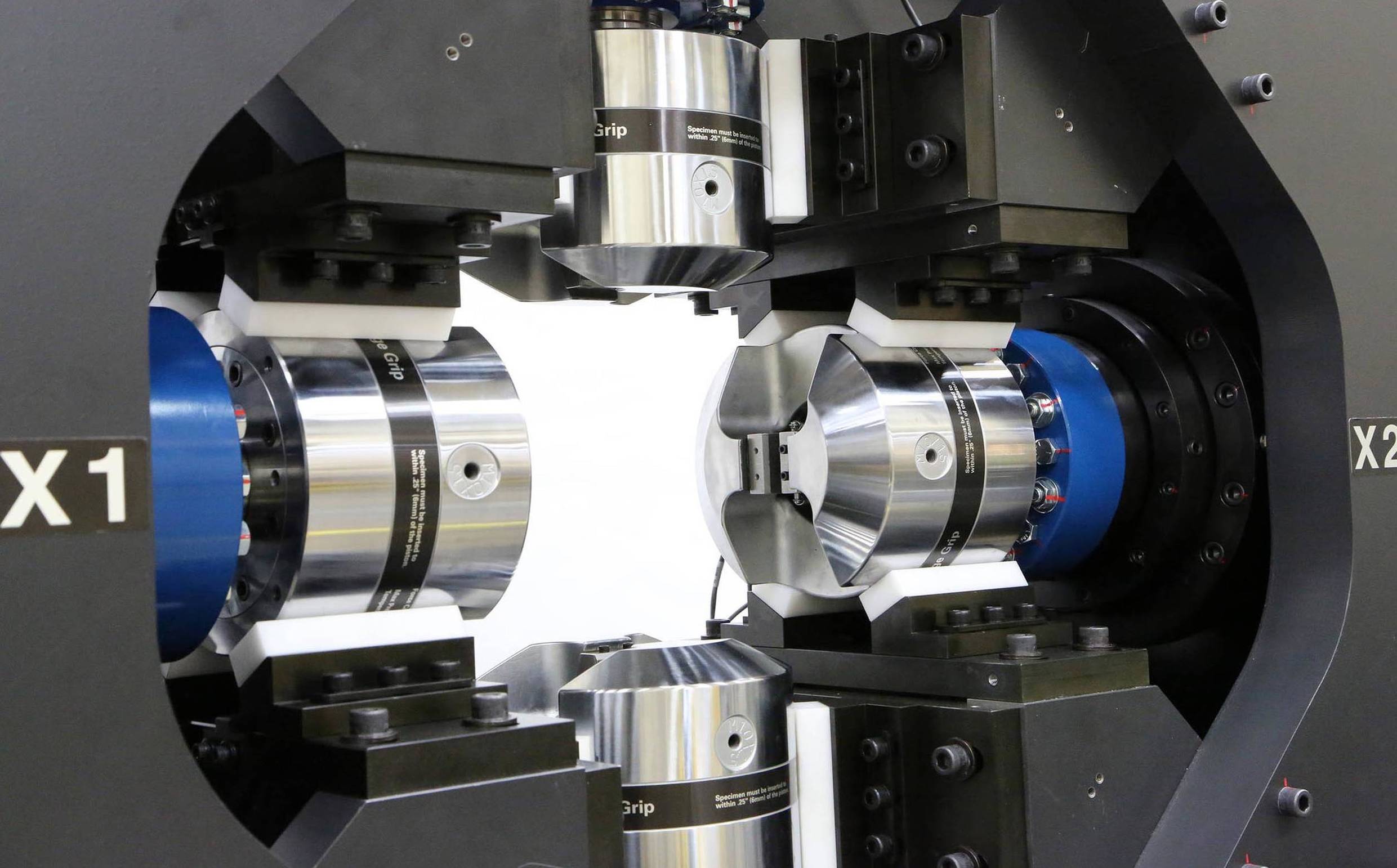

Planar Biaxial Test System
Critical for characterizing complex design structures, components, and orthotropic and anisotropic lightweighting materials, these systems are used to perform mechanical tests for the transportation, power generation and civil engineering industries.
Key Features & Benefits
- Accurate / Repeatable Results — High lateral stiffness provides accurate test results
- Innovative Technology — Adjustable alignment apparatus in the load path removes specimen-bending strains
- Precise — Hydrostatic actuator bearings reduce friction for precise actuator positioning within the cylinder
- Advanced Safety Features — Optional over-travel protection in X, Y, Z planes
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Planar Biaxial Load Frames Specifications
| Nominal Planar Biaxial System dimensions, weight and suggested floor space | |||||
|---|---|---|---|---|---|
| FRAME DESCRIPTION | HEIGHT | WIDTH | DEPTH | WEIGHT | SUGGESTED FLOOR SPACE |
| 25 kN compact | 1.9 m (75.6 in) | 1.0 m (39.4 in) | 0.9 m (36 in) | 550 Kg | 3 m x 3 m |
| 25 kN classic | 2.3 m (91.5 in) | 1.9 m (75.1 in) | 1.3 m (52.62 in) | 2000 Kg | 4 m x 4 m |
| 100 kN | 2.8 m (111 in) | 2.7 m (106 in) | 1.3 m (52 in) | 4500 Kg | 5 m x 3 m |
| 100 kN w/ Rot | 2.8 m (111 in) | 4.3 m (171 in) | 1.3 m (51 in) | 6500 Kg | 6 m x 3 m |
| 250 kN | 4.1 m (163.5 in) | 3.8 m (151.2 in) | 2.3 m (93.9 in) | 8000 Kg | 5.5 m x 3.5 m |
| 250 kN w/ Rot | 3.7 m (146 in) | 4.5 m (179 in) | 1.3 m (50 in) | 11000 Kg | 6 m x 3 m |
| 500 kN | 4.2 m (167 in) | 3.6 m (144 in) | 1.3 m (50 in) | 10000 Kg | 5.5 m x 3 m |
| Dimensions are nominal. For dimensions of a system that better fits your needs, please contact MTS. |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
