MTS Systems — 332.21, 322.31, 322.41

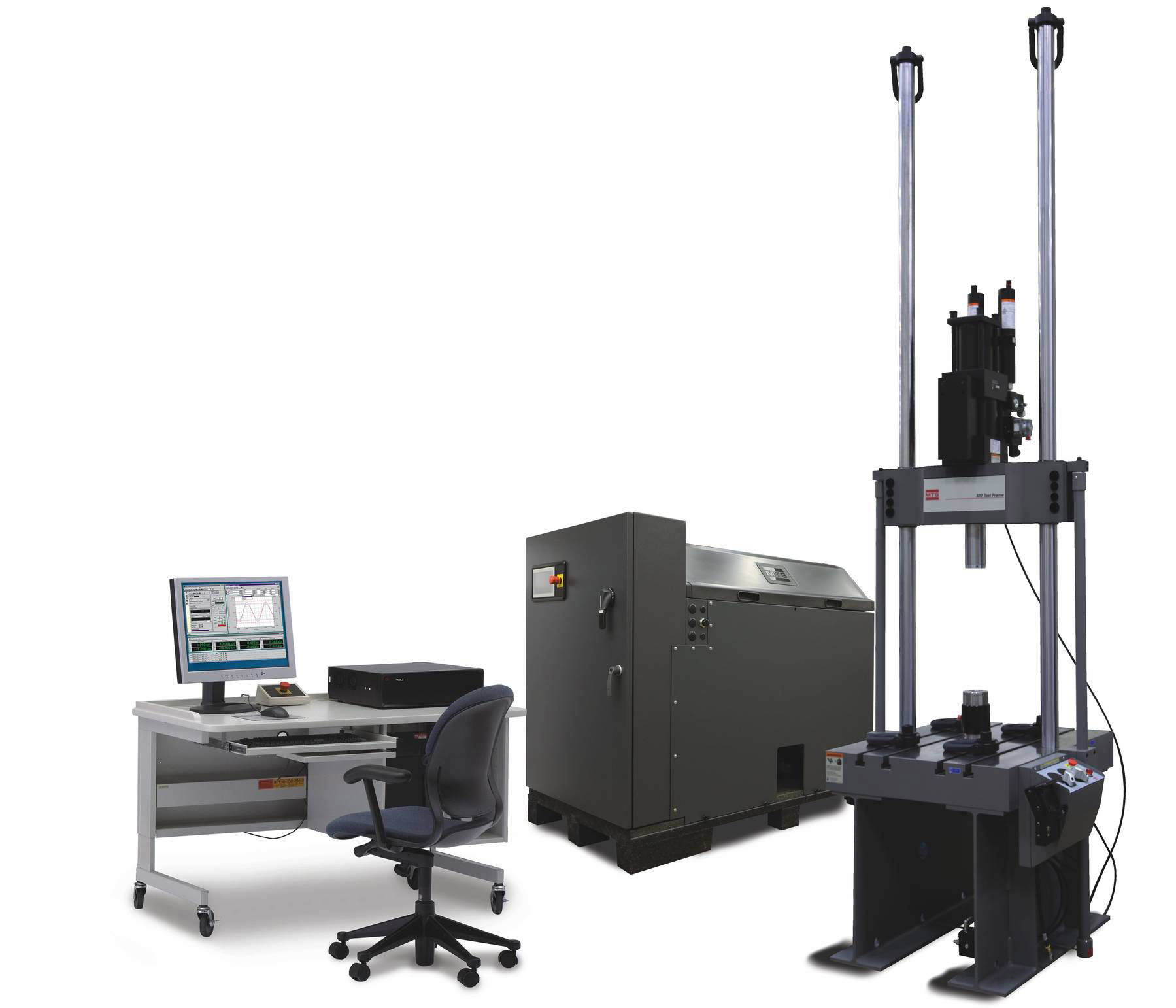

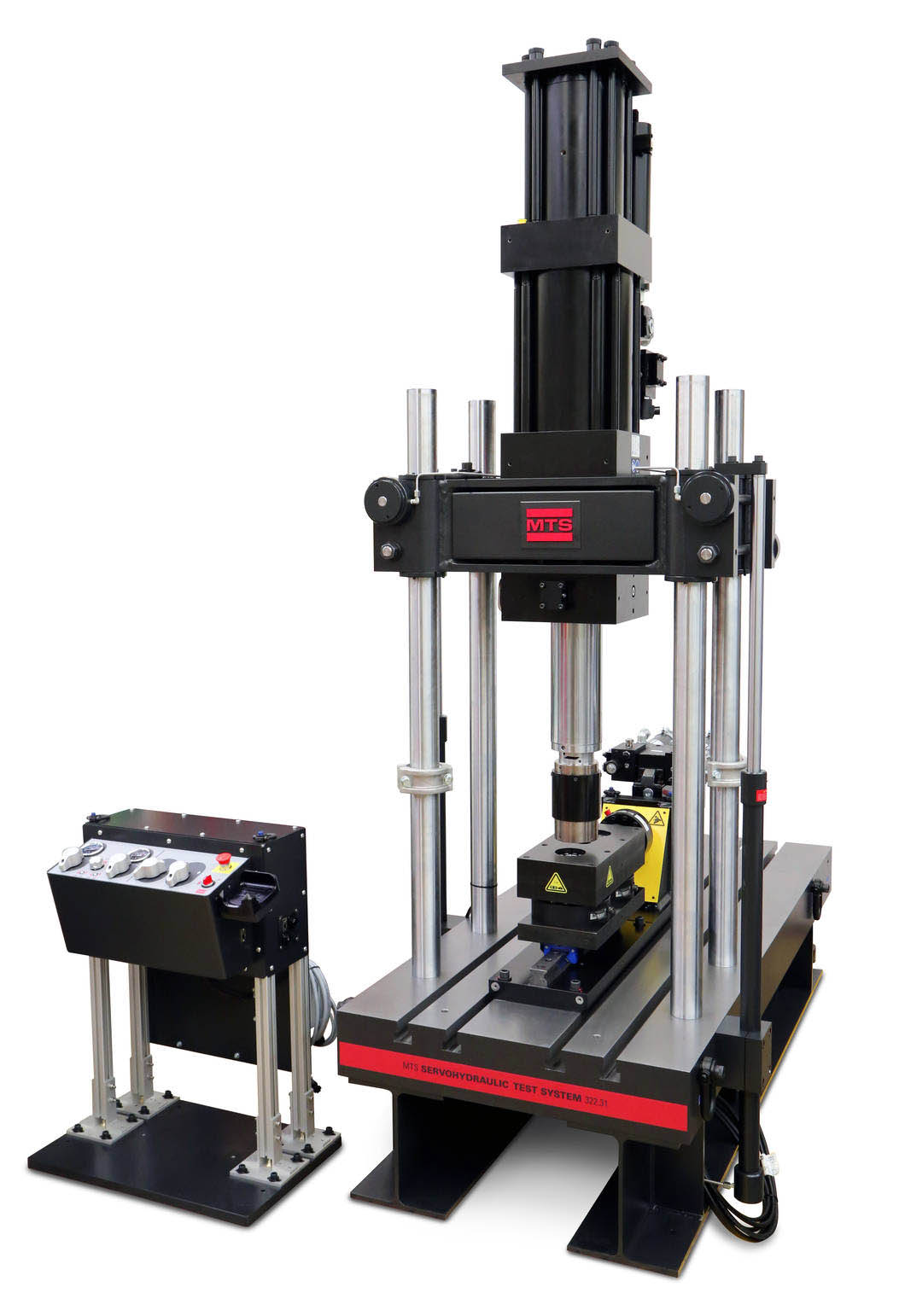

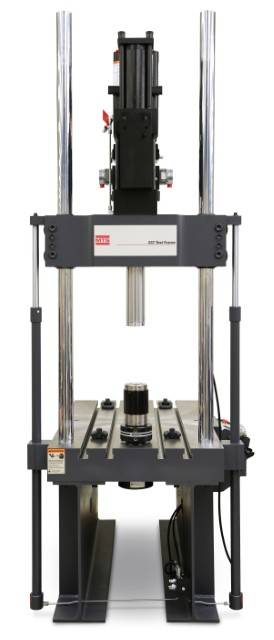

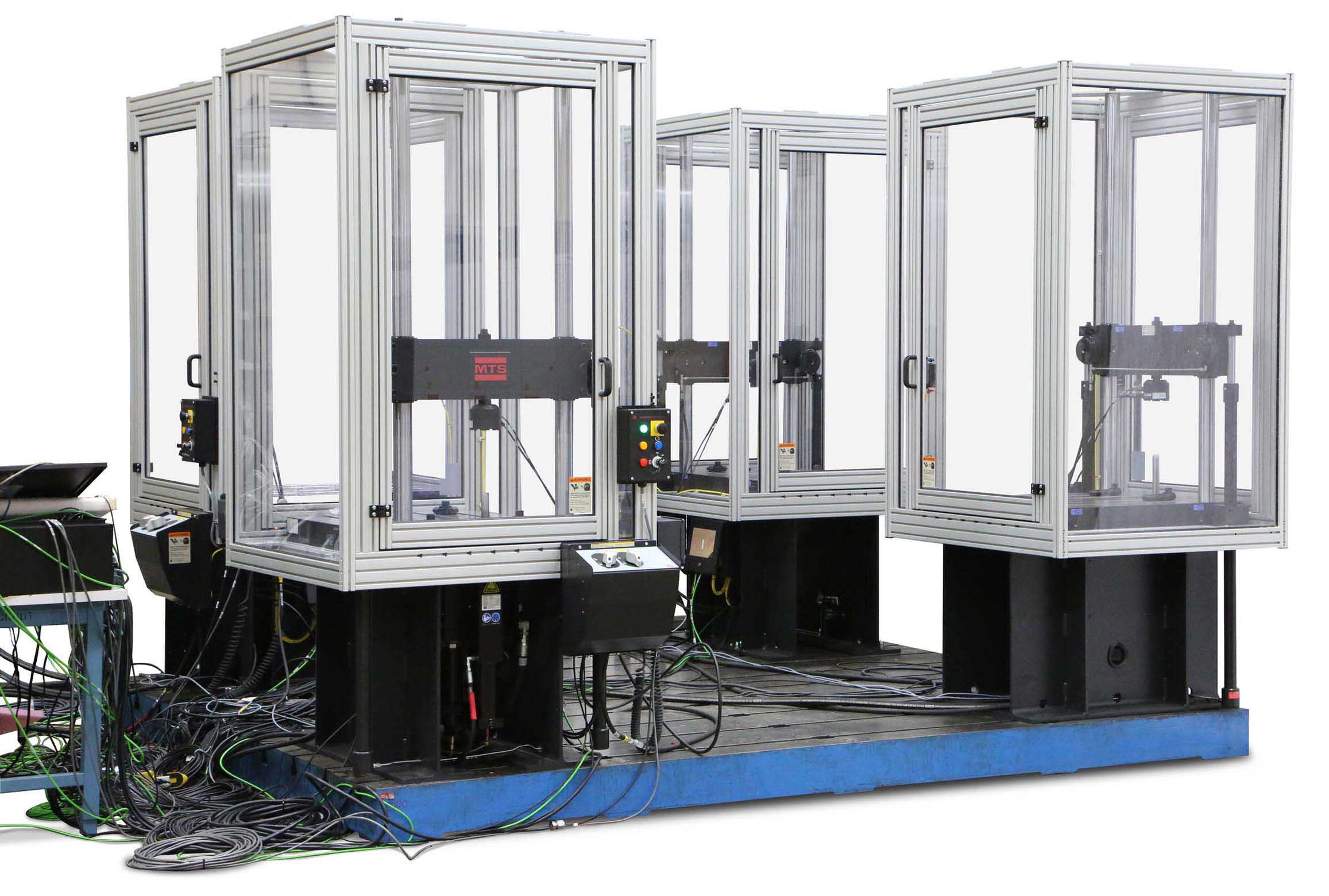

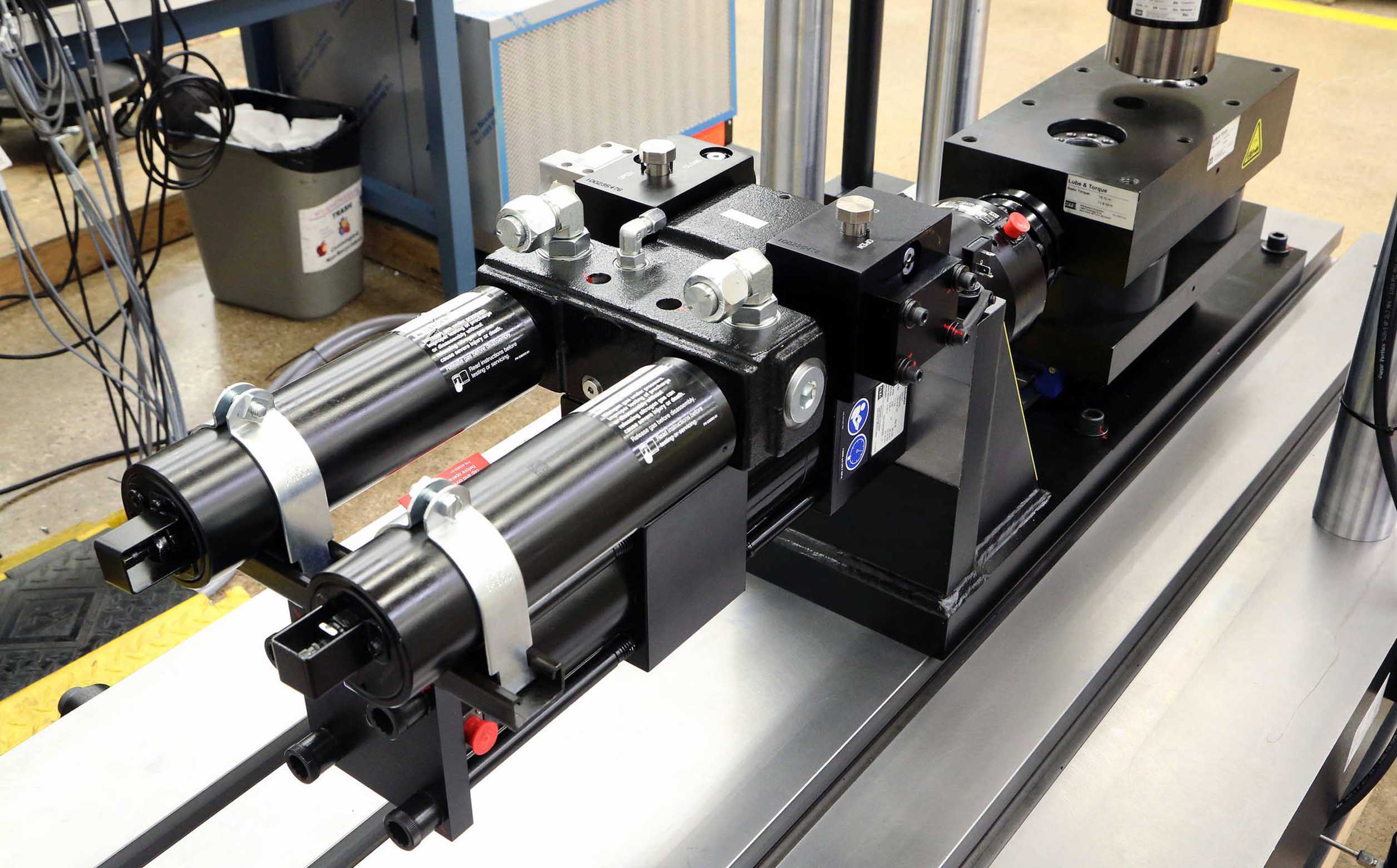

Series 322 Test Systems
With multiple actuator position options and a second load train mounting position, this T-slot table test system can be configured for a wide variety of applications. Ideal for testing components and sub-assemblies.
Key Features & Benefits
- Easy-to-Use — T-slot table set at convenient working height for easy specimen placement
- Precise — Two load train mounting positions place actuator and crosshead where you need them
- Advanced Safety Features — Optional hydraulic locks to quickly unlock and lock the crosshead
- Versatile — Capable of testing small material specimen to large automotive subassemblies
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Specifications
| MODEL 322.21 | MODEL 322.31 | MODEL 322.41 | |
|---|---|---|---|
| load unit fatigue rating | 22 kip | 55 kip | 110 kip |
| a maximum specimen/grip clearance¹ | 50.0 in | 62.0 in | 81.0 in |
| b width between columns | 21.0 in | 25.0 in | 30.0 in |
| c height — with standard columns² | 98 in | 118.5 in | 144.75 in |
| d table height | 33.0 in | 34.0 in | 38.7 in |
| e table width — side-to-side, without lifts | 28.0 in | 34.0 in | 42.0 in |
| f width — side-to-side, with lifts³ | 34.0 in | 40.0 in | 48.0 in |
| depth — front-to-back (not shown)³ | 40.0 in | 40.0 in | 60.0 in |
| weight⁴ | 3000 lb | 4500 lb | 8500 lb |
Specifications
| MODEL 322.21 | MODEL 322.31 | MODEL 322.41 | |
|---|---|---|---|
| load unit fatigue rating | 100 kN | 250 kN | 500 kN |
| a maximum specimen/grip clearance¹ | 1270 mm | 1575 mm | 2057 mm |
| b width between columns | 533 mm | 635 mm | 762 mm |
| c height — with standard columns² | 2489 mm | 3010 mm | 3677 mm |
| d table height | 838 mm | 864 mm | 984 mm |
| e table width — side-to-side, without lifts | 711 mm | 864 mm | 1067 mm |
| f width — side-to-side, with lifts³ | 864 mm | 1016 mm | 1219 mm |
| depth — front-to-back (not shown)³ | 1000 mm | 1000 mm | 1500 mm |
| weight⁴ | 1370 kg | 2050 kg | 3870 kg |
| ¹ with a standard Series 661 Force Transducer and a fully retracted 6 in (150 mm) displacement actuator. | |||
| ² with a table mounted actuator. | |||
| ³ on standard length tables.The Control Module’s position can increase the table’s width and depth. | |||
| ⁴ typical maximum weight with hydraulic locks, hydraulic lifts, and a standard dimension platen. Does not include the weight of grips or other accessories. |
T-slot Dimensions
| MODEL | a | b¹ | c | d | e² | f | g | h |
|---|---|---|---|---|---|---|---|---|
| 332.21 | 28.0 in | 40.0 in | 14.0 in | 20.0 in | 5.0 in | 9.0 in | 4.0 in | 5.0 in |
| 322.31 | 34.0 in | 40.0 in | 17.0 in | 20.0 in | 6.0 in | 10.0 in | 5.0 in | 5.0 in |
| 322.41 | 42.0 in | 60.0 in | 21.0 in | 30.0 in | 12.0 in | 12.0 in | 7.0 in | 5.0 in |
T-slot Dimensions
| MODEL | a | b¹ | c | d | e² | f | g |
|---|---|---|---|---|---|---|---|
| 332.21 | 711 mm | 1000 mm | 355.6 mm | 508.0 mm | 127.0 mm | 228.6 mm | 101.6 mm |
| 322.31 | 864 mm | 1000 mm | 431.8 mm | 508.0 mm | 152.4 mm | 254.0 mm | 127.0 mm |
| 322.41 | 1067 mm | 1500 mm | 533.4 mm | 762.0 mm | 304.8 mm | 304.8 mm | 177.8 mm |
| ¹ Larger tables available. | |||||||
| ² Standard Series 322 Test Systems are delivered with 1 actuator mounting position: either end- or center-mounted. Systems with dual-mounting positions can be ordered on a custom basis. |
Stiffness Data
| deflections ¹ | 322.21 22 kip/100 kN | 322.31 55 kip/250 kN | 322.41 110 kip/500 kN | |
|---|---|---|---|---|
| a-b | base | 0.006 in 0.15 mm | 0.007 in 0.18 mm | 0.008 in 0.20 mm |
| b-c | columns | 0.004 in 0.10 mm | 0.006 in 0.20 mm | 0.008 in 0.20 mm |
| c-d | crosshead | 0.005 in 0.13 mm | 0.010 in 0.20 mm | 0.10 in 0.25 mm |
| a-d | overall frame | 0.015 in 0.38 mm | 0.021 in 0.53 mm | 0.026 in 0.66 mm |
| spring rates1 | 1.5 x 106 lb/in 2.6 x 108 N/m | 2.6 x 106 lb/in 4.6 x 108 N/m | 4.2 x 106 lb/in 7.4 x 108 N/m | |
| ¹ Determined at each Load Unit’s full fatigue rating with its crosshead raised 50 in (1270 mm) above the T-slot table. | ||||
| Deflection rates can vary 20%, depending on the type of actuator and force transducer you use. | ||||
| For the most accurate high frequency test results, use a Load Unit with a fatigue rating that’s larger than its actuator’s force rating. (A 322.31 Load Unit with a 55 kip fatigue rating and a 22 kip actuator will be stiffer than a 322.21 Load Unit with a 22 kip fatigue rating and 22 kip actuator.) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
