MTS Systems

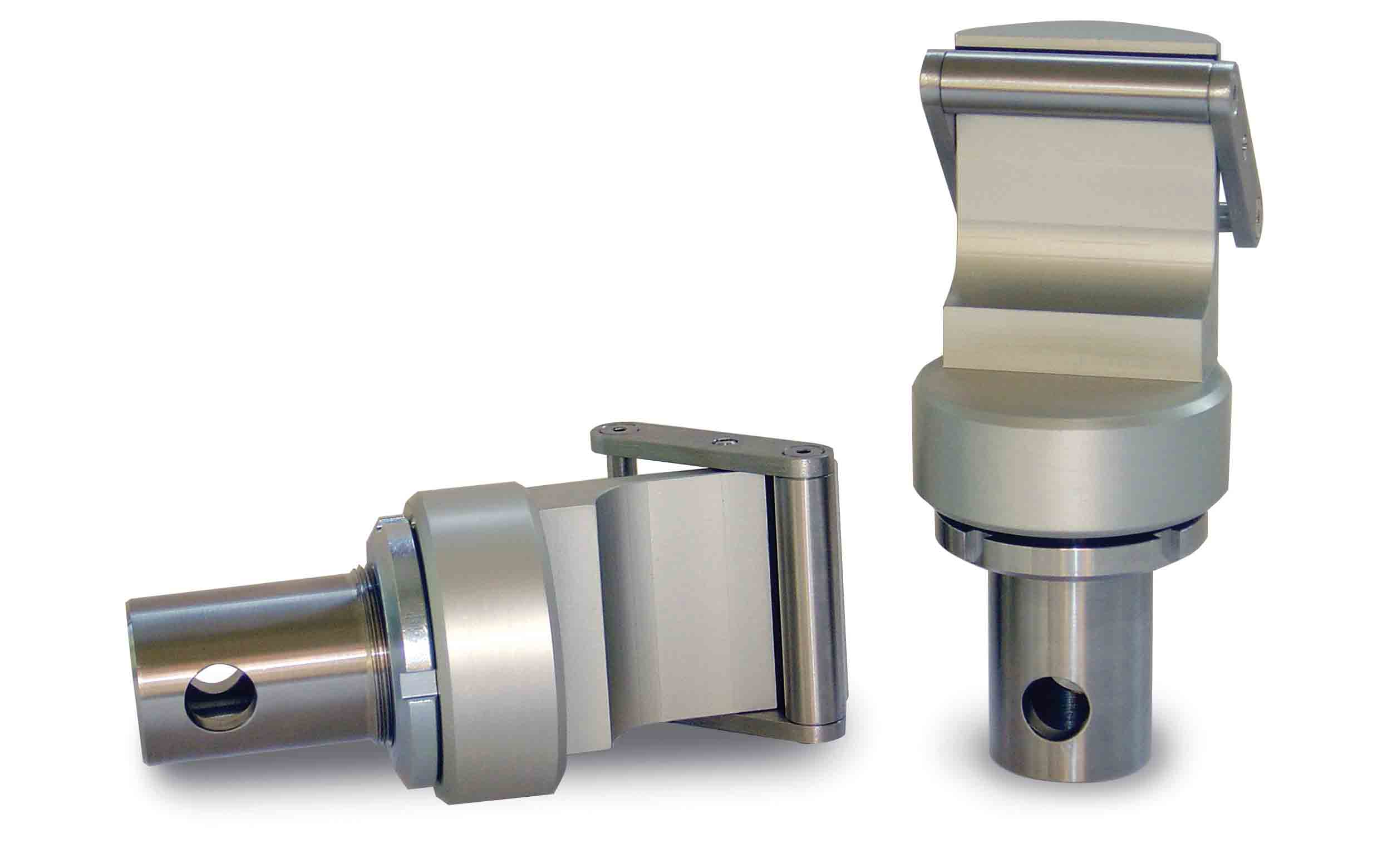

Bionix Roller Grips
Versatile Bionix® Roller Grips are quick-loading and self-tightening roller grips suitable for testing bandages, bio-textiles, diapers, synthetics, and flexible polymers at temperatures ranging from -10°C to 50°C for the 1 kN grips and from -130°C to 250°C for the 2kN and 5 kN grips.
Key Features & Benefits
- Accurate & Repeatable — Anti-rotation features and integrated alignment pins for test accuracy & repeatability.
- Durable — Built of durable stainless steel, they can be safely deployed within saline environmental baths.
- Easy Installation — Universal adapter design and optional threaded frame adapters for easy installation.
- Versatile — Support a full spectrum of biomaterial, medical device component, and medical packaging testing.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| MTS Bionix Roller Grip | ||||||||
|---|---|---|---|---|---|---|---|---|
| MODEL | PART NUMBER | GRIP TYPE | FORCE CAPACITY | UPPER GRIP WEIGHT | TEMPERATURE RANGE | ATTACHMENT TYPE | COMBINED UPPER/ LOWER GRIP HEIGHT | GRIP WIDTH |
| BMR103 | 100-185-262 | Stainless Steel Roller | 1 kN (225 lbf) | 1.3 kg (2.9 lb) | -10°C to 50°C | D | 280 mm (11 in) | 60 mm (2.3 in) |
| BMR203 | 100-184-839 | StainlessSteel Roller | 2 kN (550 lbf) | 1.42 kg (3.1 lb) | -130°C to 250°C | D | 254 mm (10 in) | 88 mm (3.5 in) |
| BMR503 | 100-184-841 | Stainless Steel Roller | 5 kN (1,124 lbf) | 2.26 kg (5.0 lb) | -130°C to 250°C | D | 274 mm (10.8 in) | 120 mm (4.7 in) |
Detailed Technical Specifications
| Integrated Specimen Interface | |||
|---|---|---|---|
| MODEL | SURFACE | SPECIMEN RANGE | MAXIMUM WIDTH |
| BMR103 | Rubber | 0-2 mm (0-0.1 in) | 50 mm (2.0 in) |
| BMR203 | Diamond Tip Steel | 0-4 mm (0-0.2 in) | 50 mm (2.0 in) |
| BMR503 | Diamond Tip Steel | 0-7 mm (0-0.3 in) | 75 mm (2.9 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
