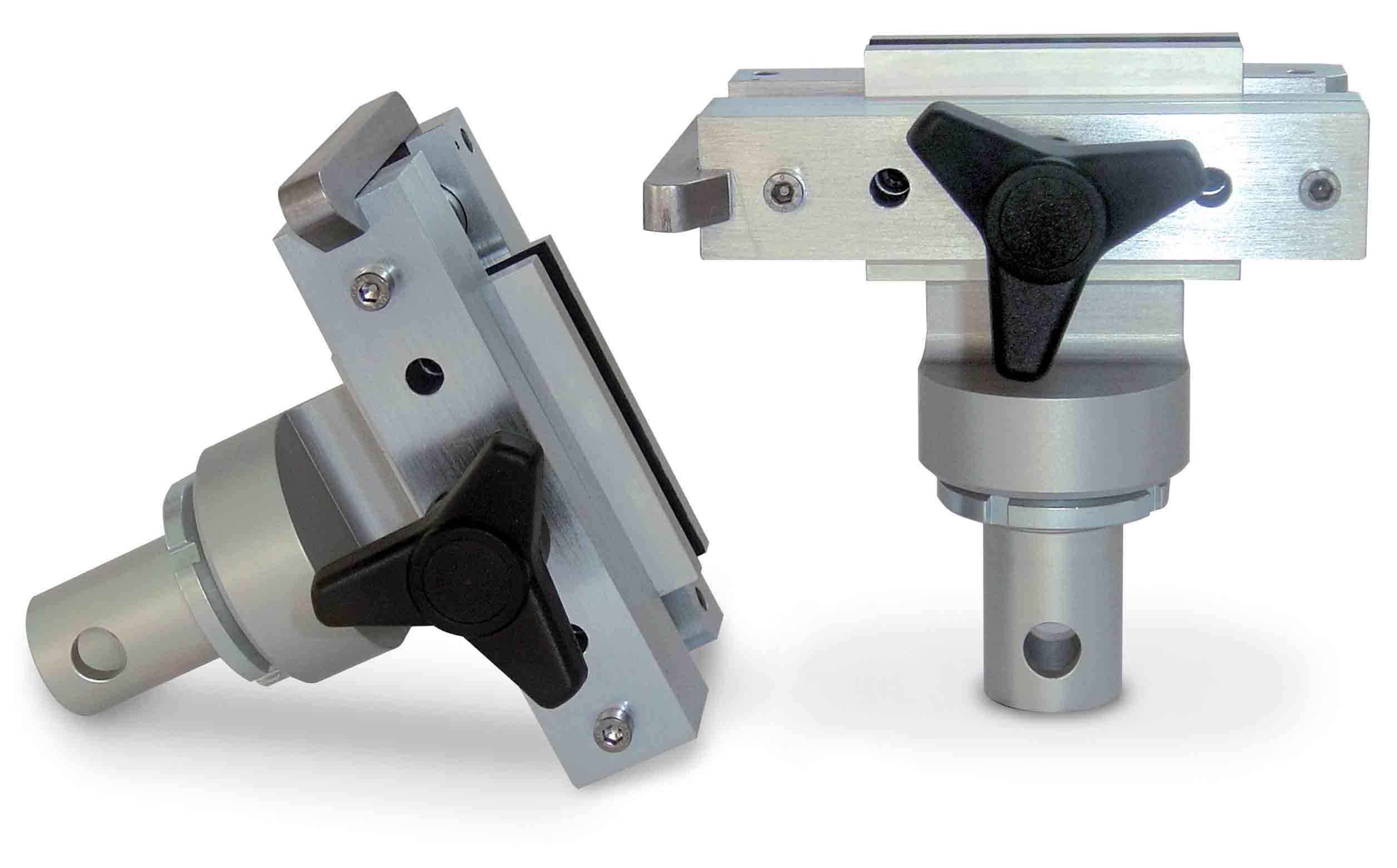

Bionix Vise Grips
Bionix® Vise Grips are miniature, medium, and heavy-duty general purpose tensile grips that use a clamping screw to tighten a vise; each order includes a set of rubber faces. Available in a variety of load capacities and sizes, they are suitable for testing bandages, bio-textiles, diapers, and plastic films at temperatures ranging from -10°C to 50°C.
Key Features & Benefits
- Accurate & Repeatable — Anti-rotation features and integrated alignment pins for test accuracy & repeatability.
- Durable — Built of durable stainless steel, they can be safely deployed within saline environmental baths.
- Easy Installation — Universal adapter design and optional threaded frame adapters for easy installation.
- Versatile — Support a full spectrum of biomaterial, medical device component, and medical packaging testing.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| MTS BIONIX VISE ACTION GRIPS | |||||||
|---|---|---|---|---|---|---|---|
| MODEL | MAXIMUM LOAD | FACE PROFILE | MAXIMUM SPECIMEN THIKNESS | MAXIMUM SPECIMEN WIDTH | WEIGHT (UPPER) | GRIP HEIGHT | PART NUMBER |
| 100 | 0.1 kN (22 lbf) | Rubber | 2 mm (0.08 in) | 10 mm (0.4 in) | 0.56 kg (1.23 lb) | 115 mm (4.5 in) | 100-186-411 |
| 2000 | 2 kN (450 l bf) | Rubber | 3.5 mm (0.14 in) | 65 mm (2.6 in) | 1.0 kg (2.2 lb) | 118 mm (4.7 in) | 100-174-783 |
| 5000 | 5 kN (1,124 lbf) | Rubber | 10 mm (0.4 in) | 80 mm (3.1 in) | 3.1 kg (6.8 lb) | 152 mm (6.0 in) | 100-186-413 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
