Electromechanical (EM) Conversion Adapters

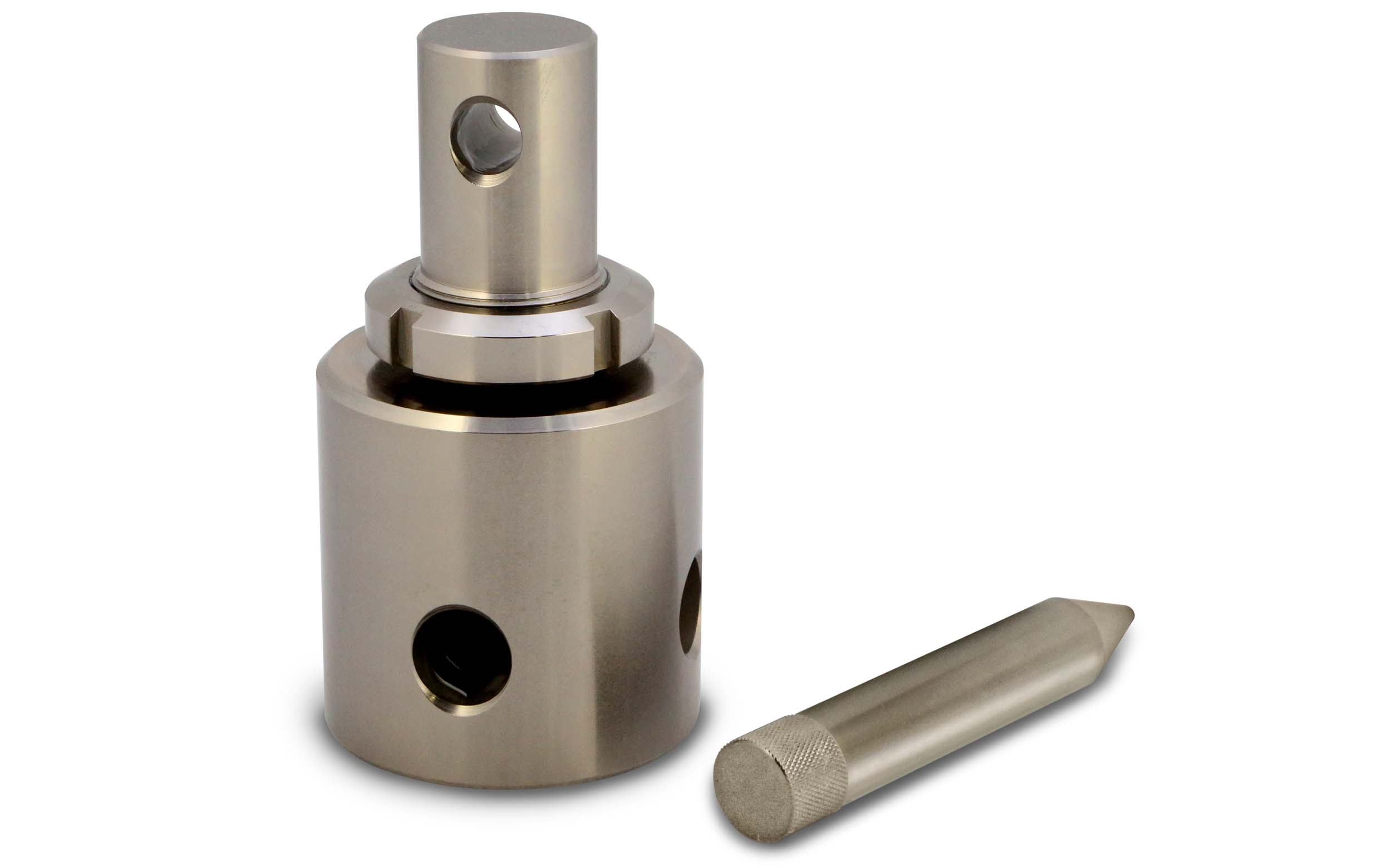

Grips and fixtures with smaller adapters can be used on the frames with larger standard clevis adapters with a set of suitable conversion adapters. The conversion adapters allow you to use the same grips and fixtures on both the MTS Exceed and MTS Criterion electromechanical load frames.
Applications
Test types
Test specimens
Test standards
Brochures & Datasheets
Technical Specifications
| Conversion Adapters | ||||||
|---|---|---|---|---|---|---|
| PART NUMBER | ATTACHMENT TYPE (m-f) | MAXIMUM LOAD CAPACITY | A (male clevis) | B (female clevis) | C (pin to pin height) | LOCK NUT |
| 100-302-950 | 20-D | 30 kN (6740 lbf) | Type 20 | Type D | 68.5 mm (2.7 in) | M24 x 1.25 |
| 100-302-947 | 40-20 | 30 kN (6740 lbf) | Type 40 | Type 20 | 58 mm (2.3 in) | M45 x 2 |
| 100-302-952 | D-20 | 30 kN (6740 lbf ) | Type D | Type 20 | 72.5 mm (2.9 in) | M35 x 1.5 |
| 100-302-948 | E-20 | 30 kN (6740 lbf) | Type E | Type 20 | 80 mm (3.2 in) | M64 x 2 |
| 100-302-951 | 40-D | 100 kN (22480 lbf) | Type 40 | Type D | 91 mm (3.6 in) | M45 x2 |
| 100-302-953 | D-40 | 100 kN (22480 lbf) | Type D | Type 40 | 89.5 mm (3.5 in) | M35 x1.5 |
| 100-302-949 | E-40 | 100 kN (22480 lbf) | Type E | Type40 | 90 mm (3.5 in) | M64 x2 |
| 100-260-836 | E-D | 150 kN (33720 lbf) | Type E | Type D | 97 mm (3.8 in) | M64 x 2 |
| 100-281-224 | F-E | 150 kN (67440 lbf) | Type F | Type E | 160 mm (6.3 in) | M95 x2 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
