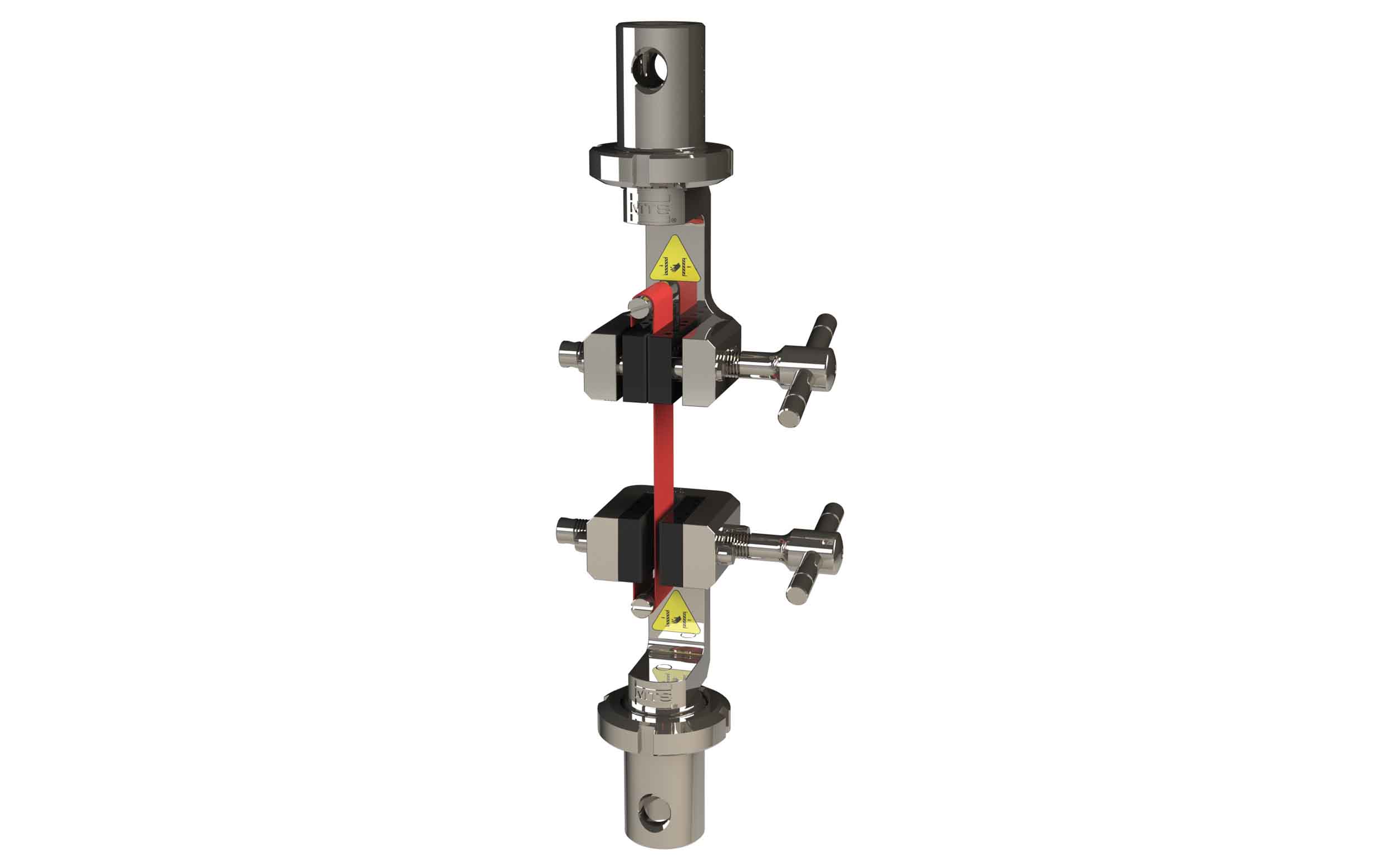

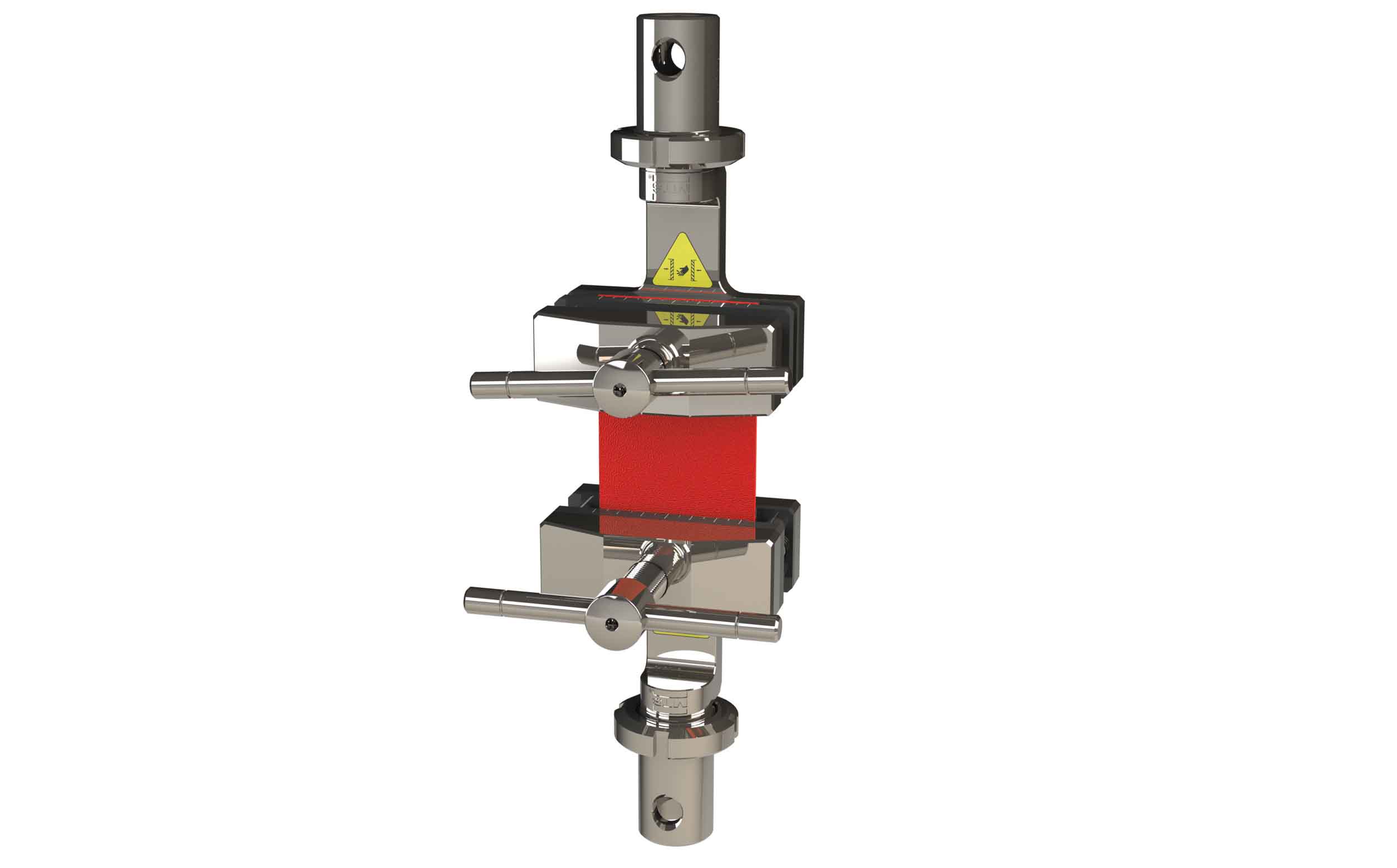

Fundamental Mechanical Vise Grips
MTS Fundamental™ Mechanical Vise Grips are value-priced grips for tensile testing of paper, plastic film, textiles, sheet materials and packaging components.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| Model | FDSA102A | FDSA502B | FDSD503A |
|---|---|---|---|
| Part Number | 100-231-832 | 100-231-833 | 100-231-400 |
| Grip Type | Manual Vise | Manual Vise | Manual Vise |
| Force Capacity | 0.1 kN (22 lbf) | 0.5 kN (112 lbf) | 5 kN (1,124 lbf) |
| Upper Grip Weight | 0.31 kg (0.7 lb) | 1.0 kg (2.2 lb) | 2.01 kg (4.4 lb) |
| Temperature Rating | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) |
| Attachment Type | D | D | D |
| Combined Upper/Lower Grip Height | 216 mm (8.5 in) | 270 mm (10.6 in) | 290 mm (11.4 in) |
| Grip Width | 71.5 mm (2.8 in) | 111 mm (4.4 in) | 120 mm (4.7 in) |
Detailed Technical Specifications
| Model | FDSA102A | FDSA502B | FDSD503A |
|---|---|---|---|
| Profile | Flat | Flat | Corrugated |
| Surface | Rubber | Rubber | Steel |
| Height | 10 mm (0.4 in) | 25 mm ( 1.0 in) | 35 mm (1.4 in) |
| Width | 10 mm (0.4 in) | 35 mm (1.4 in) | 65 mm (2.5 in) |
| Specimen Range | 0-1.5 mm (0-0.04 in) | 0-6 mm (0-0.2 in) | 0-7 mm (0-0.03 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
