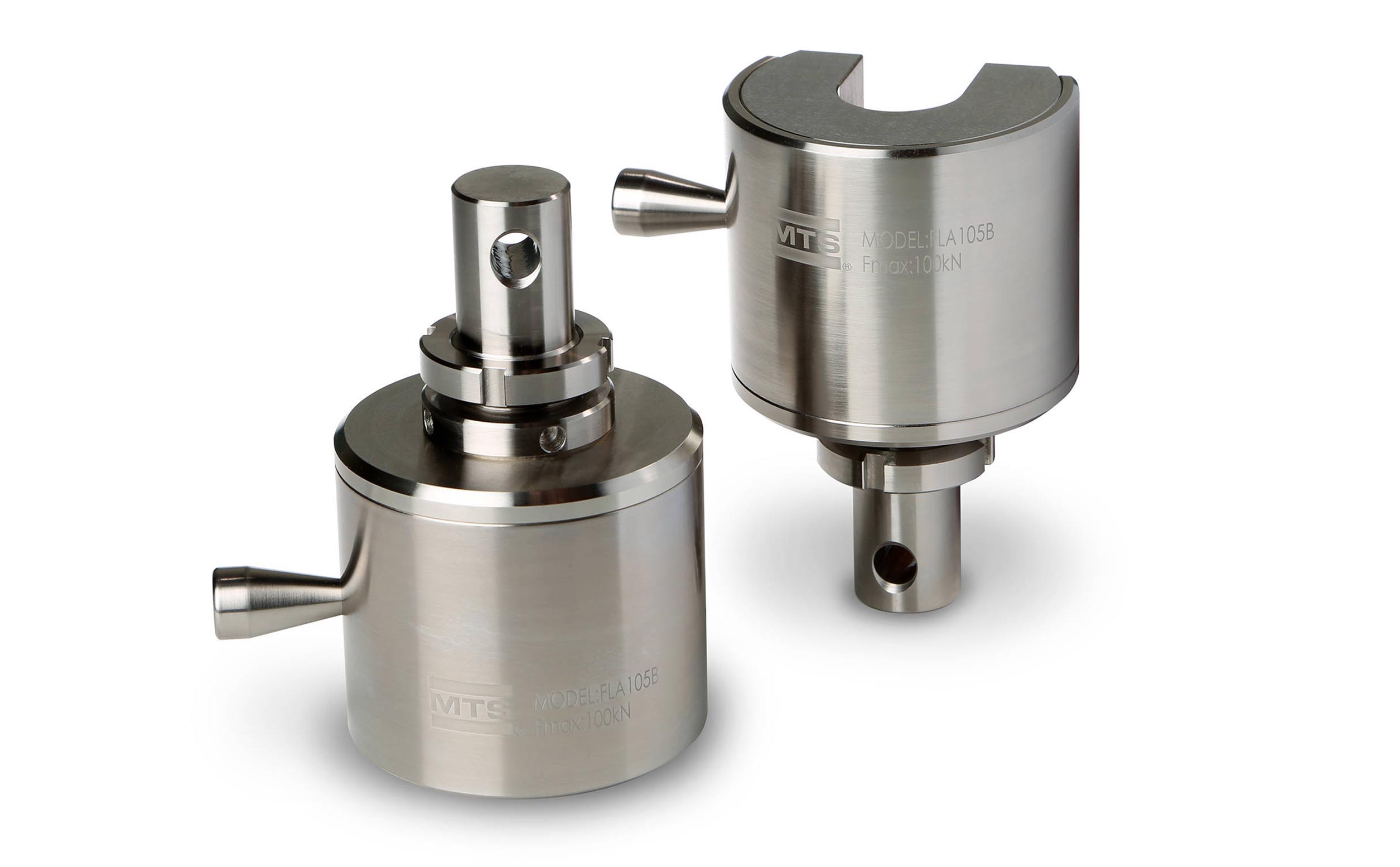

Fundamental Nut & Bolt Grips
MTS Fundamental™ Nut/Bolt Grips are value-priced grips that enable tension, proof load and wedge load tests for bolts, screws, studs, nuts, washers and rivets. They are available in force ratings of 100, 300 and 600 kN.
Applications
Test types
Brochures & Datasheets
Technical Specifications
| MTS Fundamental Nut/Bolt Grips | ||||||||
|---|---|---|---|---|---|---|---|---|
| MODEL | PART NUMBER | GRIP TYPE | FORCE CAPACITY | UPPER GRIP WEIGHT | TEMPERATURE RATING | COMBINED UPPER/LOWER GRIP HEIGHT | ATTACHMENT TYPE | GRIP WIDTH |
| FLA105B | 100-258-716 | Nut & Bolt | 100 kN (22,480 lbf) | 4.1 kg (9.0 lb) | 0°C (32°F) to 50°C (122° F) | 314 mm (12.3 in) | D | 134 mm (5.3 in) |
| FLA305A | 100-637-668 | Nut & Bolt | 300 kN (67,440 lbf) | 20 kg (44.1 lb) | 0°C (32°F) to 50°C (122° F) | 516 mm (20.3 in) | E | 187 mm (7.4 in) |
| FLA605B | 100-532-788 | Nut & Bolt | 6 00 kN (134,885 lbf) | 16.9 kg (37.3 lb) | 0°C (32°F) to 50°C (122° F) | 540 mm (21.2 in) | 38 mm post | 205 mm (8 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
