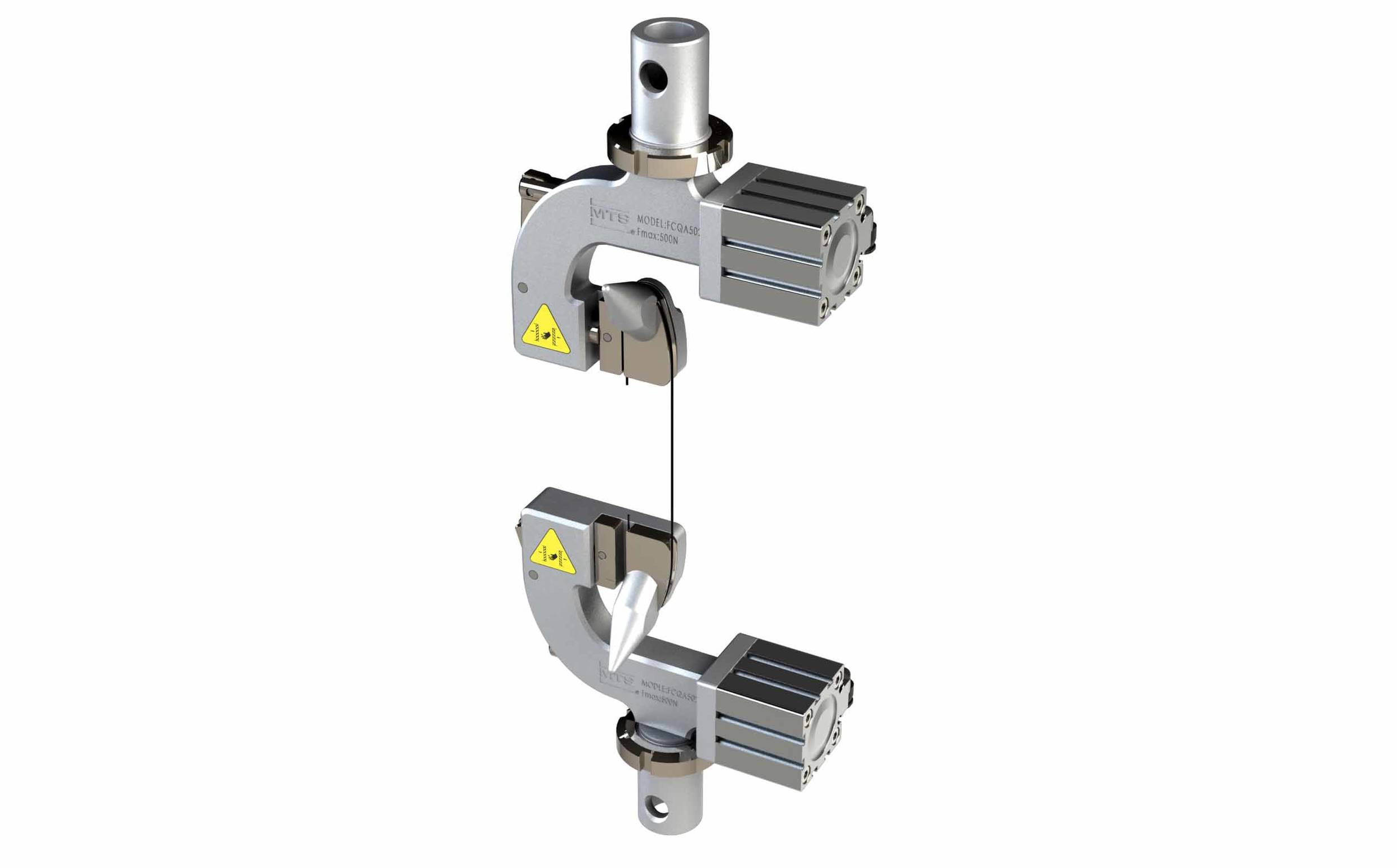

Fundamental Pneumatic Bollard Grips
MTS Fundamental™ Pneumatic Bollard Grips are value-priced, “horn” style grips designed to reduce stress concentration on specimens and avoid grip-induced failures. They are suitable for testing cords, filaments, fibers, fine wire, and yarns at temperatures ranging from -10°C to 80°C (14°F to 176°F).
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| MTS Fundamental Bollard Grips | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | PART NUMBER | GRIP TYPE | FORCE CAPACITY | UPPER GRIP WEIGHT | TEMPERATURE RATING | ATTACHMENT TYPE | COMBINED UPPER/LOWER GRIP HEIGHT | GRIP WIDTH | MAXIMUM INPUT PRESSURE | COMPATIBLE GRIP CONTROLLER TYPE |
| FCQA502A | 100-231-830 | Pneumatic Bollard | 0. 5 kN (112 lbf) | 1.12 kg (2.4 lb) | 0°C(32°F) to 50°C (122°F) | D | 326 mm (12.8 in) | 154 mm (6. 0 in) | 0.55 MPa (80 PSI) | MTS Fundamental Dual Acting Pneumatic Grip Controller/Supply |
| FPB503 | 100-139-065 | 5 kN (1,125 lbf) | 2 kg (4.4 lbs) | -40°C (-40°F to 80°C (176°F) | D | 410 mm (16 in) | 198 mm (7.8 in) | 0.55 MPa (80 PSI | MTS Fundamental Single Acting Pneumatic Grip Controller/Supply |
Detailed Technical Specifications
| Integrated Specimen Interface | ||||
|---|---|---|---|---|
| MODEL | PROFILE | SURFACE | MINIMUM LENGTH | SPECIMEN RANGE |
| FCQA502A | Flat | Smooth Steel | 3 mm (11.8 in) | 0-1.5 mm (0-0.04 in) |
| FPB503 | Falt | Smooth Steel | 255 mm (10 in) | ø 0-5 mm ( ø0-0.2 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
