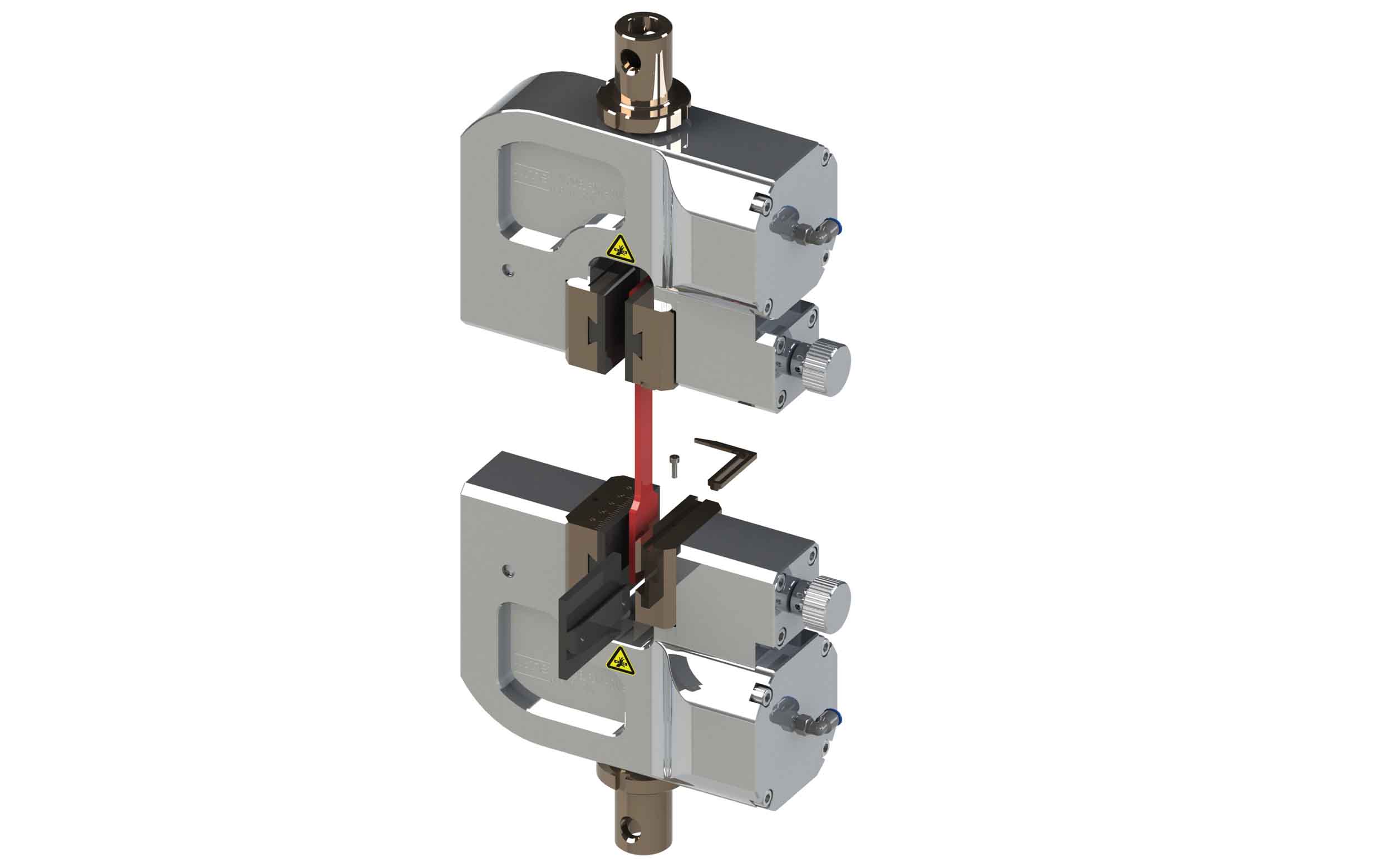

Fundamental Pneumatic Vise Grips
MTS Fundamental™ Pneumatic Vise Grips are value-priced grips for tensile testing of plastic films, sheet materials, paper, and packaging components.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| MTS Fundamental Pneumatic Vise Grips | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | PART NUMBER | GRIP TYPE | FORCE CAPACITY | UPPER GRIP WEIGHT | TEMPERATURE RATING | ATTACHMENT TYPE | COMBINED UPPER/ LOWER GRIP HEIGHT | GRIP WIDTH | MAXIMUM INPUT PRESSURE | COMPATIBLE GRIP CONTROLLER TYPE |
| FDQA103B | 100-231-831 | Pneumatic Vise | 1 kN (225 lbf) | 1.26 kg (2.7 lb) | 0°C (32°F) to 50°C (122°F) | D | 330 mm (13 in) | 130 mm (5.1 in) | 0.55 MPa (80 PSI) | MTS Fundamental Dual Acting Pneumatic Grip Controller/Supply |
| FDQA503B | 100-279-862 | Pneumatic Vise | 5 kN (1,125 lbf) | 55.48 kg (12.1 lb) | 0°C (32°F) to 50°C (122°F) | D | 430 mm (16.9 in) | 231 mm (9.1 in) | 0.55 MPa (80 PSI) | MTS Fundamental Single Acting Pneumatic Grip Controller/Supply |
Detailed Technical Specifications
| PROFILE | SURFACE | HEIGHT | WIDTH | SPECIMEN RANGE |
|---|---|---|---|---|
| Flat | Rubber | 30 mm (1.2 in) | 35 mm (1.4 in) | 0-8 mm (0-0.3 in) |
Detailed Technical Specifications
| MODEL | PART NUMBER | PROFILE | SURFACE | HEIGHT | WIDTH | TEMPERATURE RATING | SPECIMEN RANGE |
|---|---|---|---|---|---|---|---|
| FDQA503B.01 | 100-281-153 | Flat | Rubber | 50 mm (2 in) | 60 mm (2.4 in) | 0°C (32°F) to 50°C (122°F) | 0-14 mm (0-0.55 in) |
| FDQA503B.02 | 100-281-154 | Flat | Sawtooth | 50 mm (2 in) | 60 mm (2.4 in) | 0°C (32°F) to 50°C (122°F) | 0-14 mm (0-0.55 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
