Fundamental Roller Grips

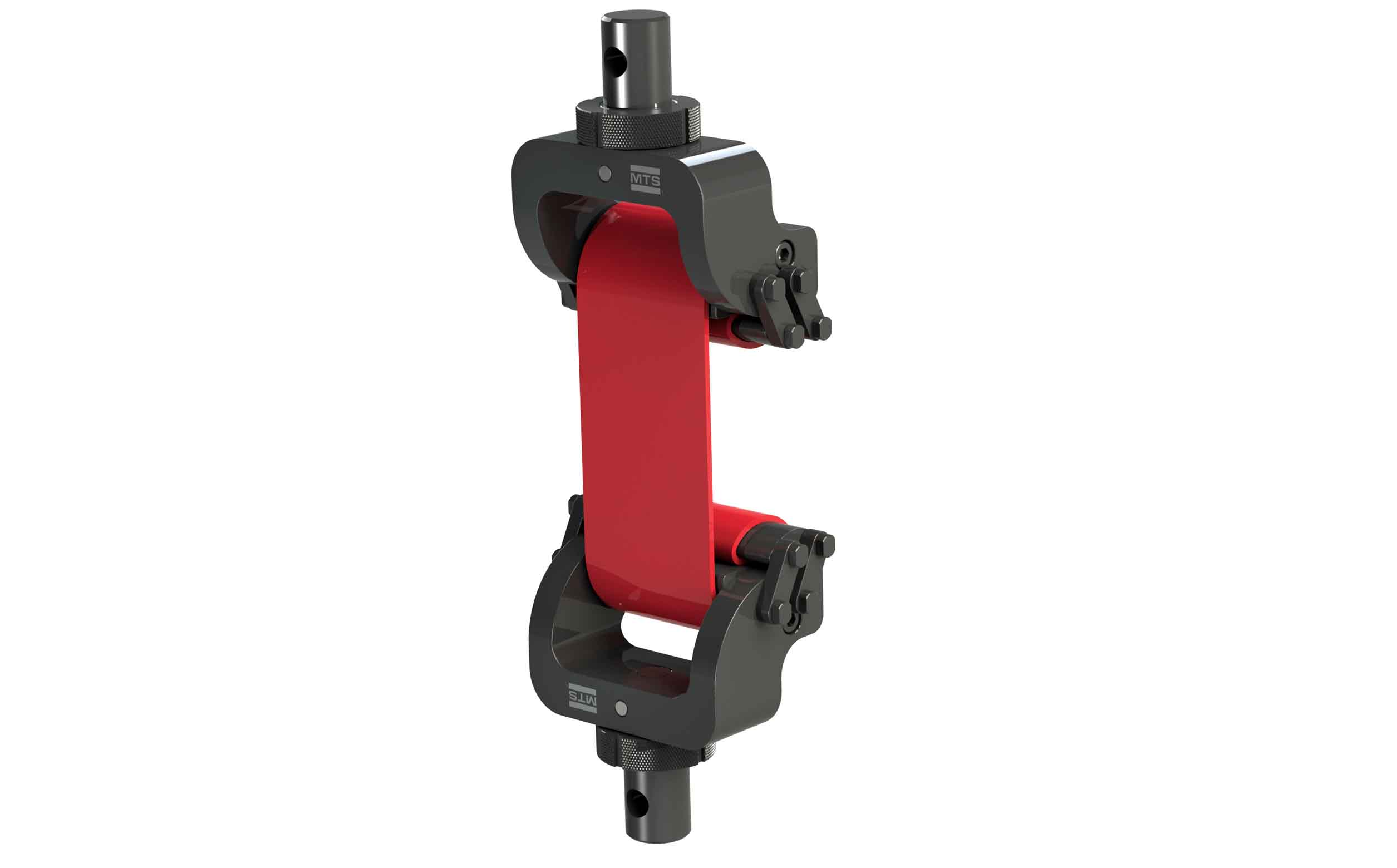

MTS Fundamental™ Roller Grips are value-priced grips designed for quick loading and self-tightening. They are ideal for tensile tests of bandages, textiles, synthetics and flexible polymers.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| MODEL | PART NUMBER | GRIP TYPE | FORCE CAPACITY | UPPER GRIP WEIGHT | TEMPERATURE RATING | ATTACHMENT TYPE | COMBINED UPPER/LOWER GRIP HEIGHT | GRIP WIDTH |
|---|---|---|---|---|---|---|---|---|
| FMR503 | 100-033-790 | Manual Roller | 5 kN (1,125 lbf) | 0.74 kg (1.6 lbs) | -15°C (5°F) to 50°C (122°F) | D | 266 mm (10.5 in) | 89 mm (3.5 in) |
| CB504E | 100-302-702 | Manual Roller | 50 kN (11,250 lbf) | 8.34 kg (18.4 lbs) | 0°C (32°F) to 50°C (122°F) | 40 | 410 mm (16.1 in) | 182 mm (7.2 in) |
| FCA105C | 100-257-526 | Manual Roller | 100 kN 22,000 lbf) | 8.34 kg (18.4 lbs) | -50°C (-58°F) to 150°C (302°F) | D | 534 mm (21 in) | 138 mm (5.4in) |
Detailed Technical Specifications
| MODEL | PROFILE | SURFACE | MINIMUM LENGTH | SPECIMEN RANGE | MAXIMUM WIDTH |
|---|---|---|---|---|---|
| FMR503 | Self-Tightening Full-Round | Diamond Tip Steel | 400 mm (15.7 in) | 0-7.5 mm (0-0.3 in) | 30 mm (1.2 in) |
| CB504E | Self-Tightening Half-Round | Smooth Steel | 650 mm (26.6 in) | 0-4 mm (0-0.2 in) | 100 mm (3.9 in) |
| FCA105C | Self-Tightening Full-Round | Smooth Steel | 650 mm (25.6 in) | 0-5 mm (0-0.2 in) | 85 mm (3.3 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
