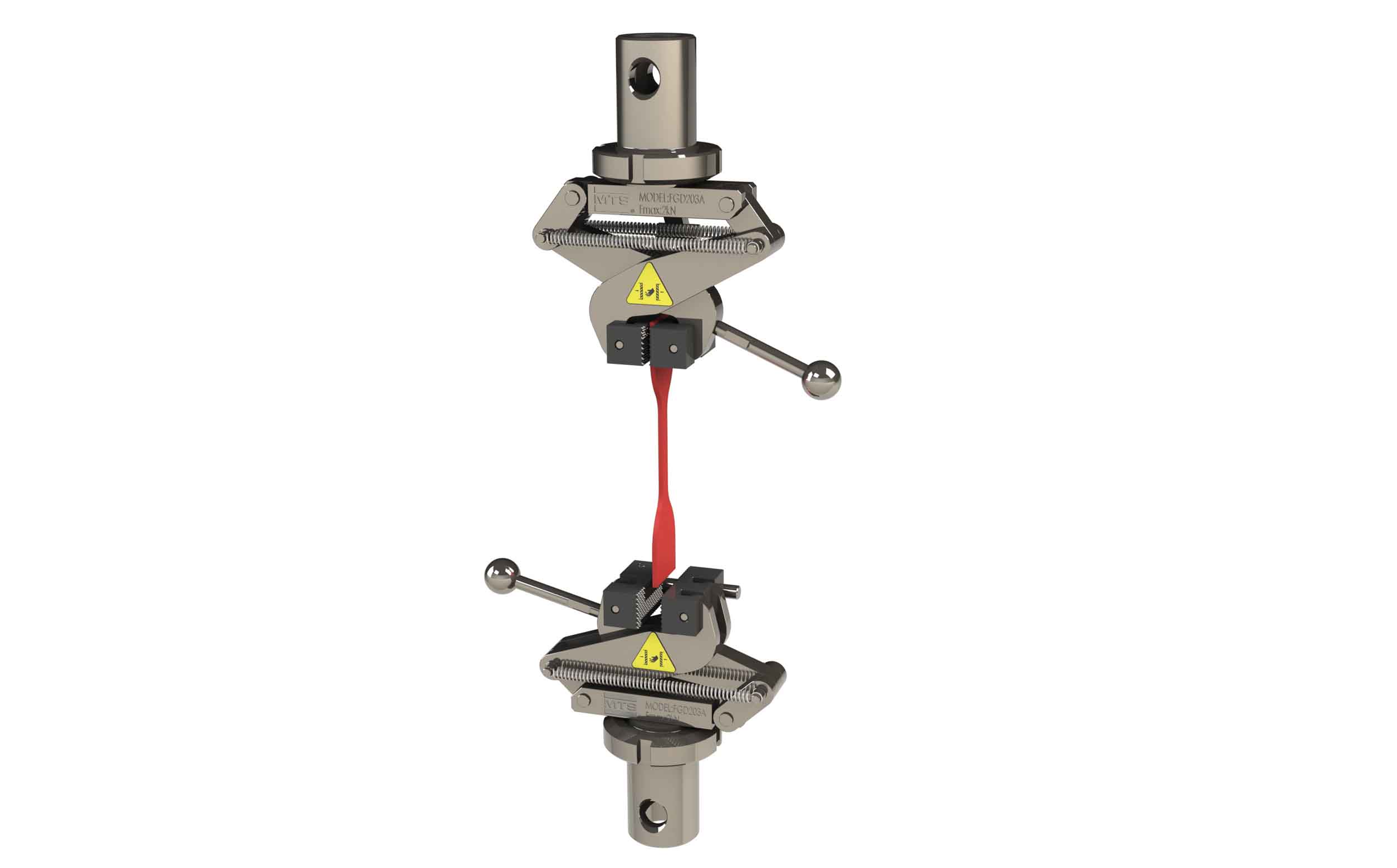

Fundamental Scissors Grips
MTS Fundamental™ Scissors Grips are value-priced tensile testing grips that feature self-tightening, self-aligning clamps. They are ideal for tensile testing of delicate flat, flexible specimens like foil, films, rubber and flexible polymers.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| Model | FGD203A | FGD503A |
|---|---|---|
| Part Number | 100-231-401 | 100-231-402 |
| Grip Type | Manual Scissors | Manual Scissors |
| Force Capacity | 2 kN (450 lbf) | 5 kN (1,124 lbf) |
| Upper Grip Weight | 1.01 kg (2.2 lb) | 1.74 kg (3.8 lb) |
| Temperature Rating | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) |
| Attachment Type | D | D |
| Combined Upper/ Lower Grip Height | 298 mm (11.7 in) | 346 mm (13.6 in) |
| Grip Width | 164 mm (6.5 in) | 194 mm (7.6 in) |
Detailed Technical Specifications
| Model | FGD203A | FGD503A |
|---|---|---|
| Profile | Flat | Flat |
| Surface | Sawtooth Streel | Sawtooth Streel |
| Height | 16 mm (0.6 in) | 25 mm (1.0 in) |
| Width | 30 mm (1.2 in) | 40 mm (1.6 in) |
| Specimen | 0-12 mm (0-0.5 in) | 0-14 mm (0-0.6 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
