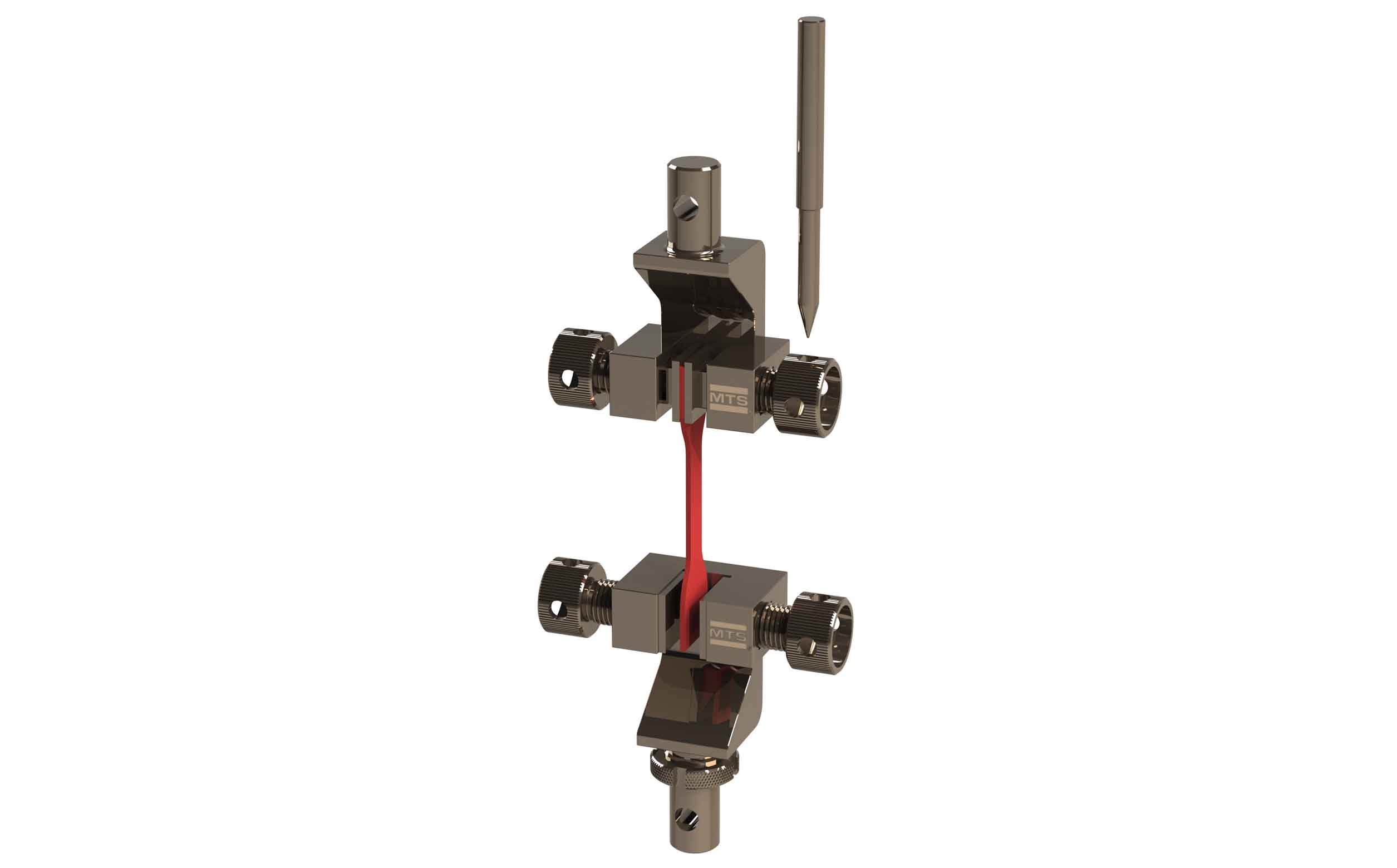

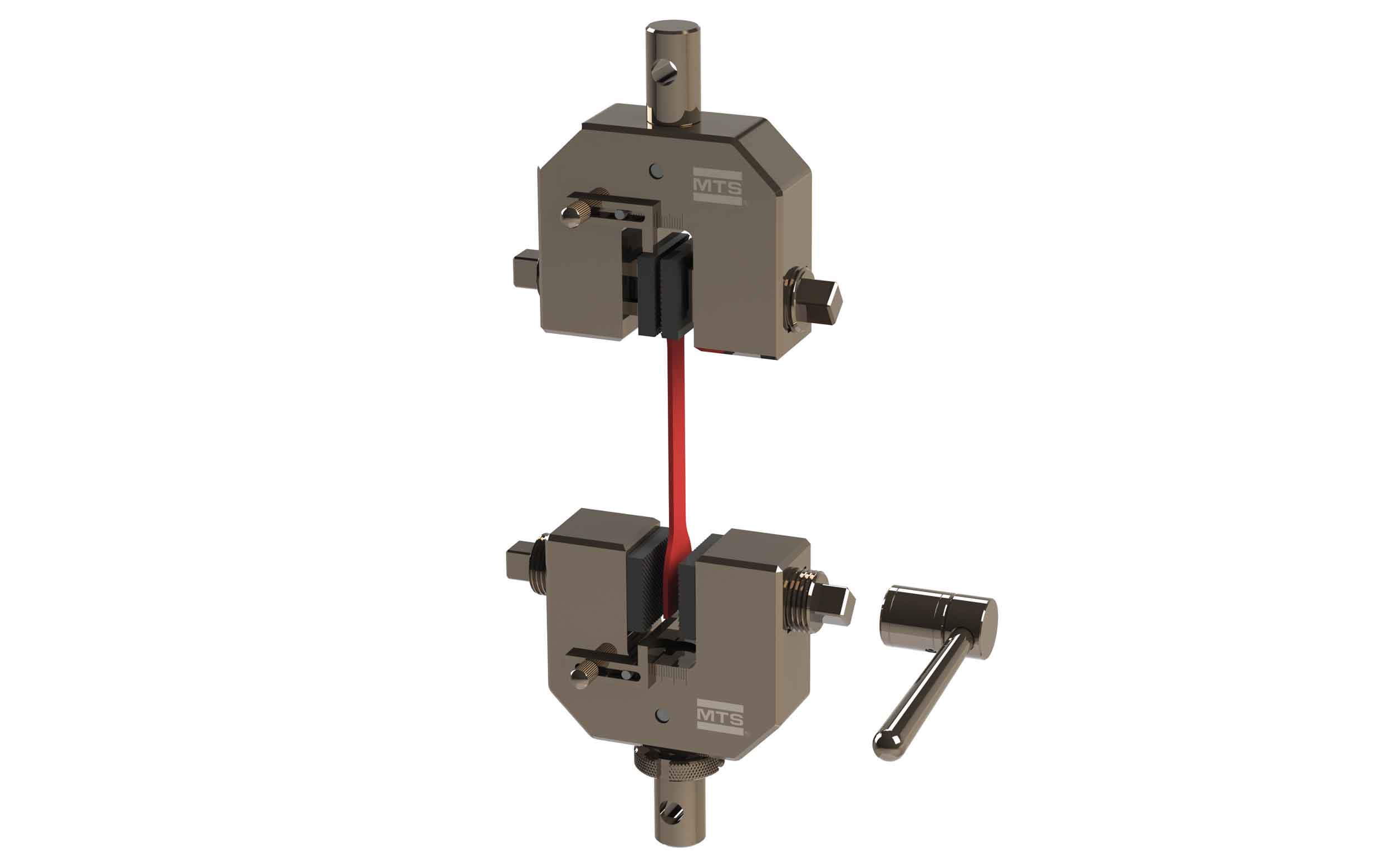

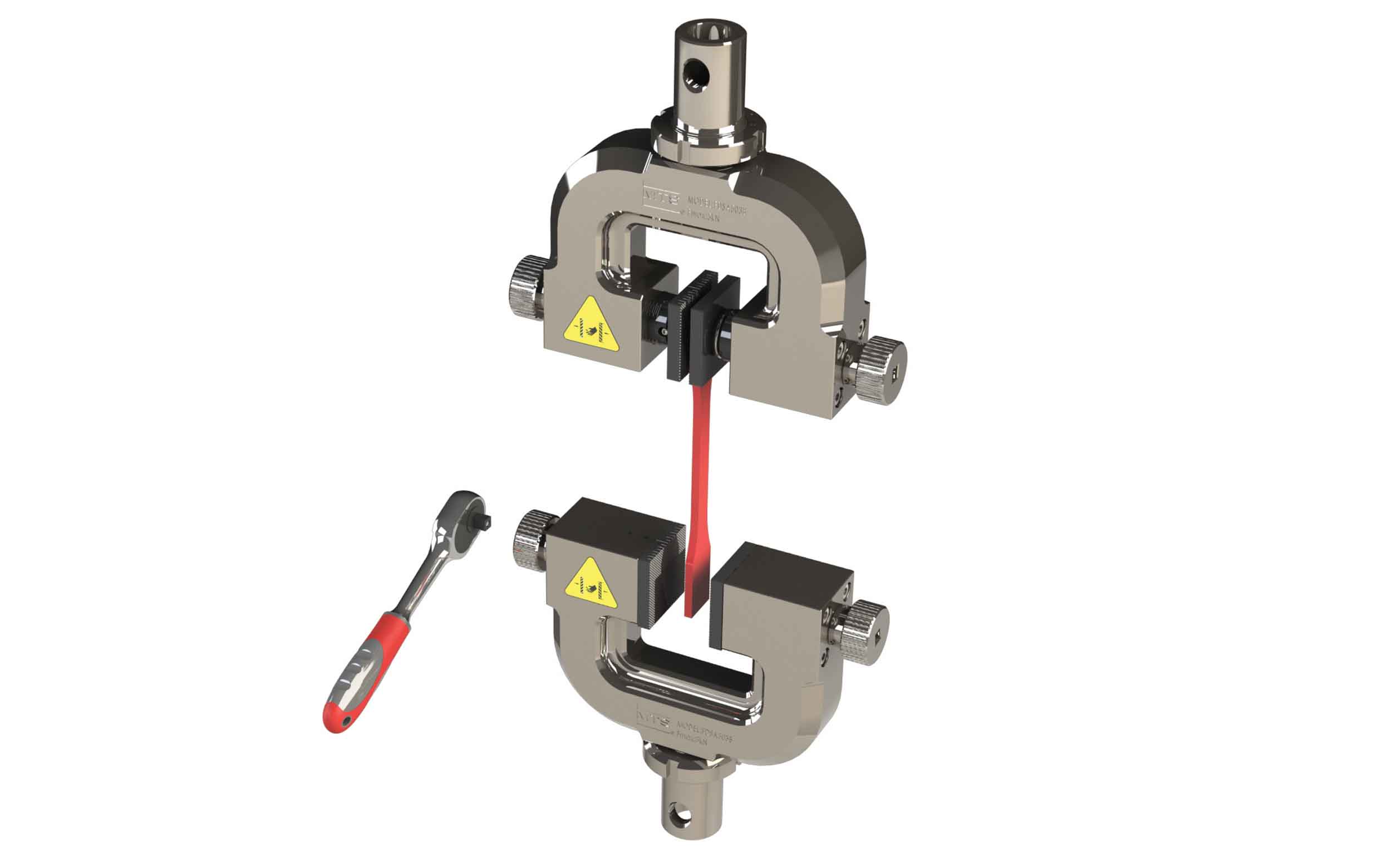

Fundamental Screw Grips
MTS Fundamental™ Screw Grips are value-priced grips that deliver higher clamping forces than vise grips for tensile testing of stronger, larger paper, plastic plate and film, textiles, sheet materials and packaging specimens.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| Model | FDSC503B | DSA103B | DSA104B |
|---|---|---|---|
| Part Number | 100-238-152 | 100-302-669 | 100-302-671 |
| Grip Type | Manual Screw | Manual Screw | Manual Screw |
| Force Capacity | 5 kN (1124 lbf) | 1 kN (225 lbf) | 10 kN (2,250 lbf) |
| Upper Grip Weight | 2.36 kg (5.2 lb) | 0.08 kg (1.8 lb) | 1.90 kg (4.2 lb) |
| Temperature Rating | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) |
| Attachment Type | D | 20 | 20 |
| Combined Upper/Lower Grip Height | 298 mm (11.7 in) | 201 mm (7.9 in) | 234 mm (9.2 in) |
| Grip Width | 172 mm (6.8 in) | 106 mm (4.2 in) | 123 mm (4.8 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
