Series 647 Hydraulic Wedge Grips
The Series 647 Hydraulic Wedge Grips are versatile, easy-to-load grips for a wide range of tensile and fatigue applications.
MTS Systems
Fundamental Wedge Grips

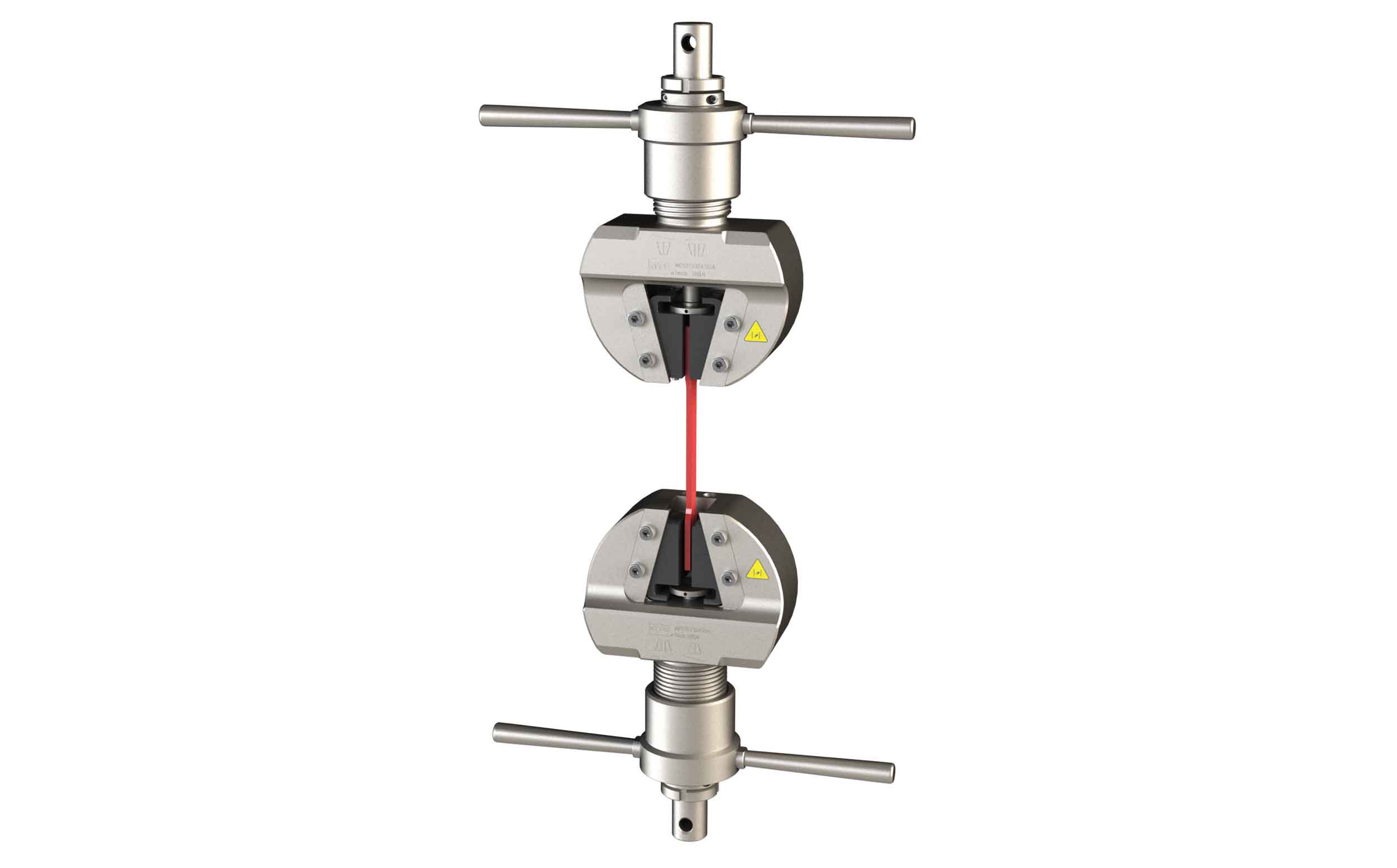

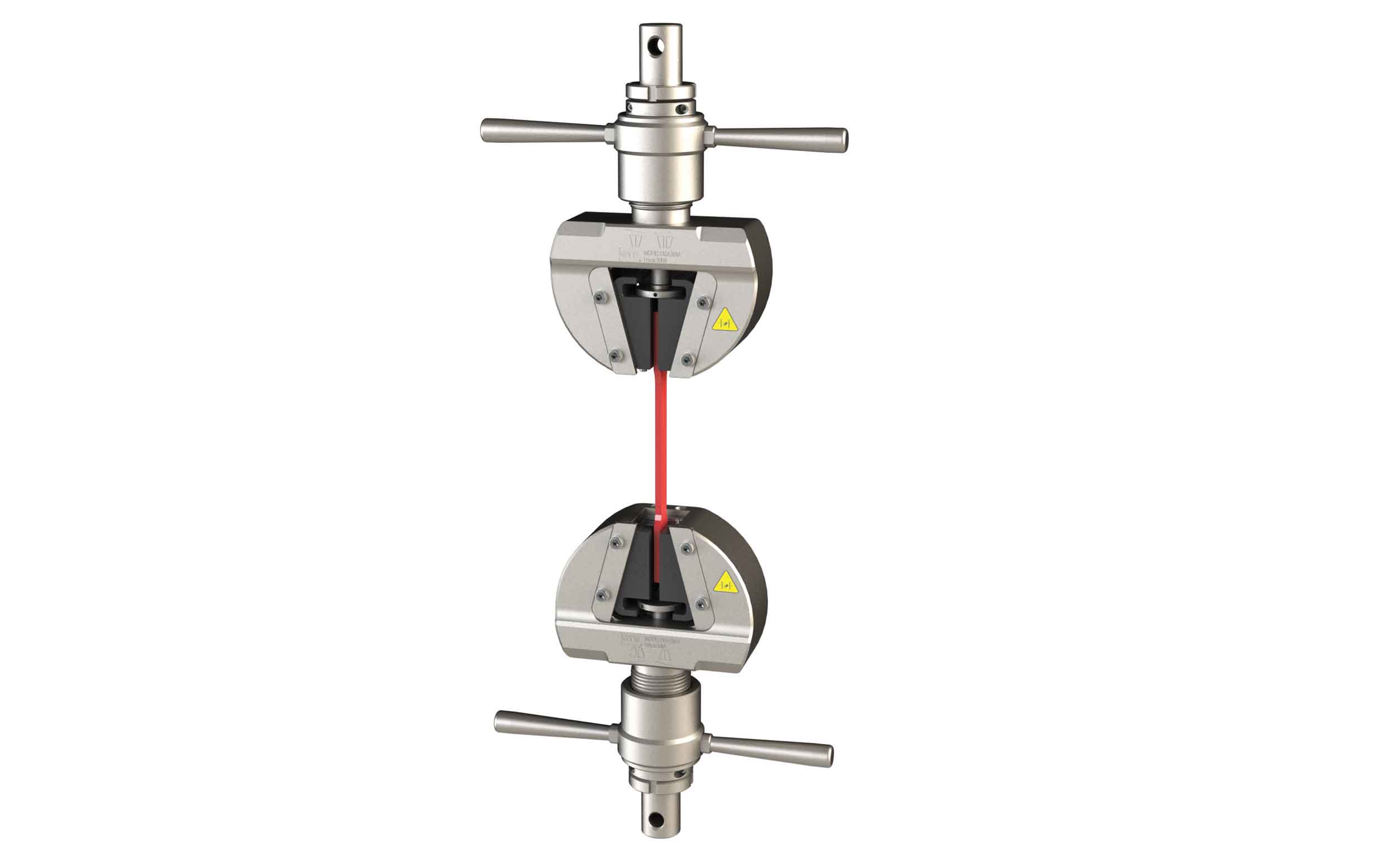

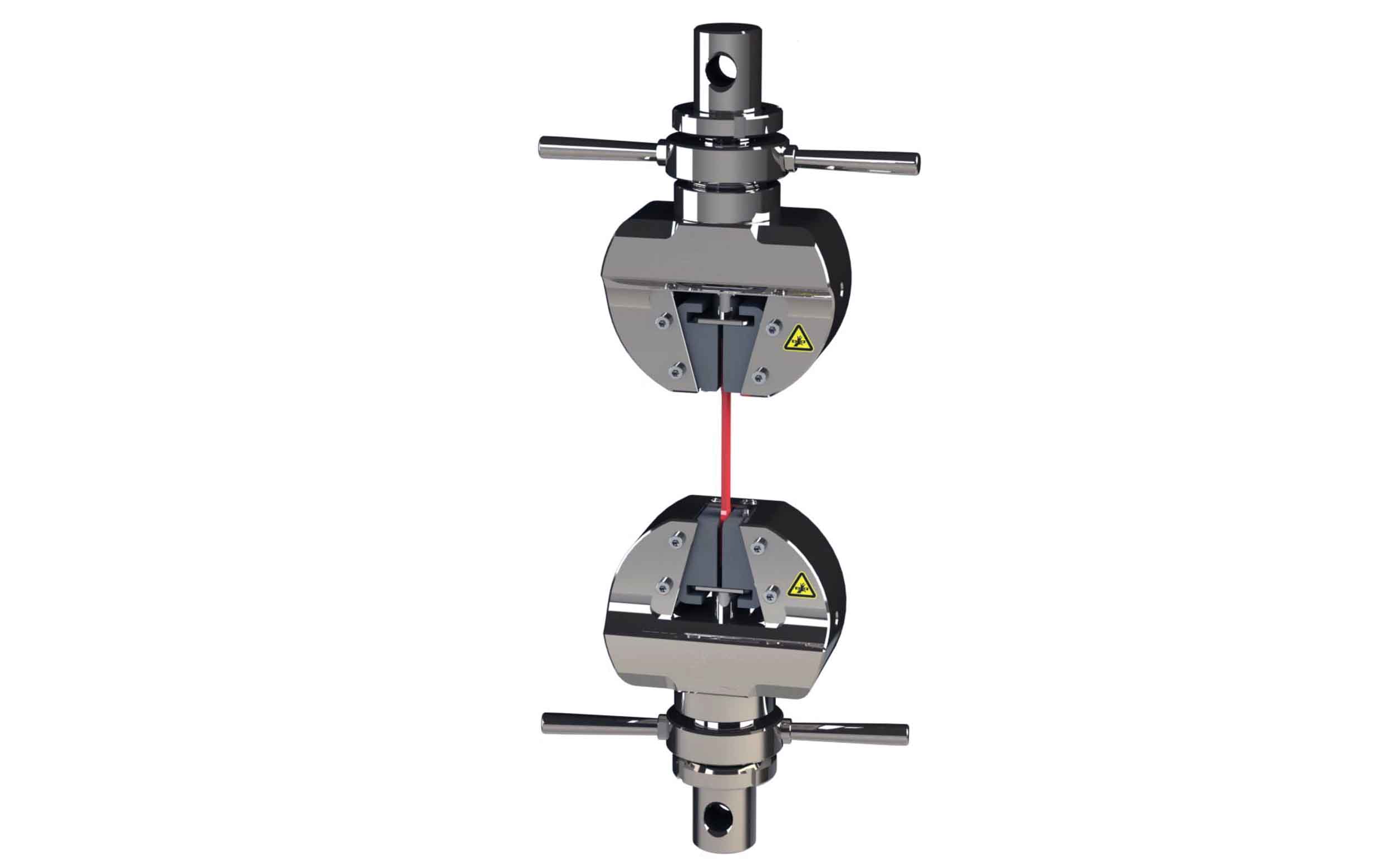

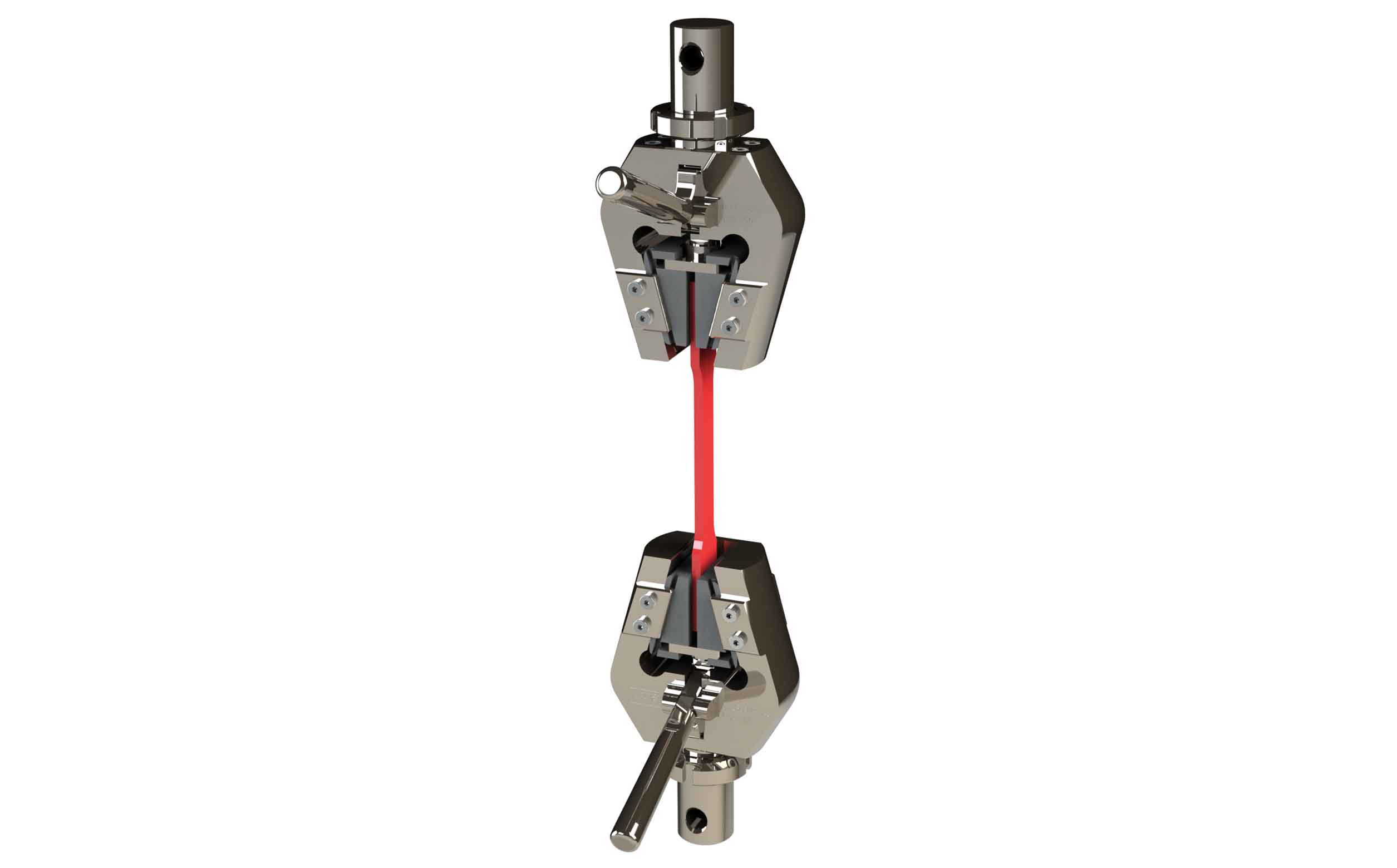

MTS Fundamental™ Wedge Grips are ideal for testing strong plastics, aluminum and steel. Anti-rotation features and integrated alignment pins help ensure test accuracy and repeatability.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| Model | FXSA104B | FXSA304B | FXSA105A | FXSA305A |
|---|---|---|---|---|
| Part Number | 100-257-698 | 100-231-404 | 100-231-405 | 100-257-525 |
| Grip Type | Manual Wedge | Manual Wedge | Manual Wedge | Manual Wedge |
| Force Capacity | 10 kN (2,250 lbf) | 30 kN (6,740 lbf) | 100 kN (22,480 lbf) | 300 kN (67,440 lbf) |
| Upper Grip Weight | 3.10 kg (6.8 lb) | 9.19 kg (20.3 lb) | 14.79 kg (32.6 lb) | 26.0 kg (57.3 lb) |
| Temperature Rating | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) | 0° C (32° F) to 50° C (122° F) |
| Attachment Type | D | D | D | E |
| Combined Upper/Lower Grip Height | 344 mm (13.5 in) | 538 mm (21.2 in) | 626 mm (24.6 in) | 688 mm (27.1 in) |
| Grip Width | 104 mm (4.09 in) | 370 mm (14.567 in) | 370 mm (14.567 in) | 385 mm (15.2 in) |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
More Products
Related Products in Grips
MTS Systems
Wedges For Series 647 Hydraulic Wedge Grips
Wedges for Series 647 Wedge Grips come in a variety of surfaces to meet requirements.
MTS Systems
Series 647 All-Temperature Hydraulic Wedge Grips
Series 647 All-Temperature Grips can be operated within an environmental chamber at temperatures up to 1000°F (540°C).
MTS Systems
Fundamental Hydraulic Wedge Grips
MTS Fundamental™ Hydraulic Wedge Grips are ideal for higher force capacity tensile testing.
