Model 685 Self-Contained Hydraulic Grip Supplies & Intensifiers

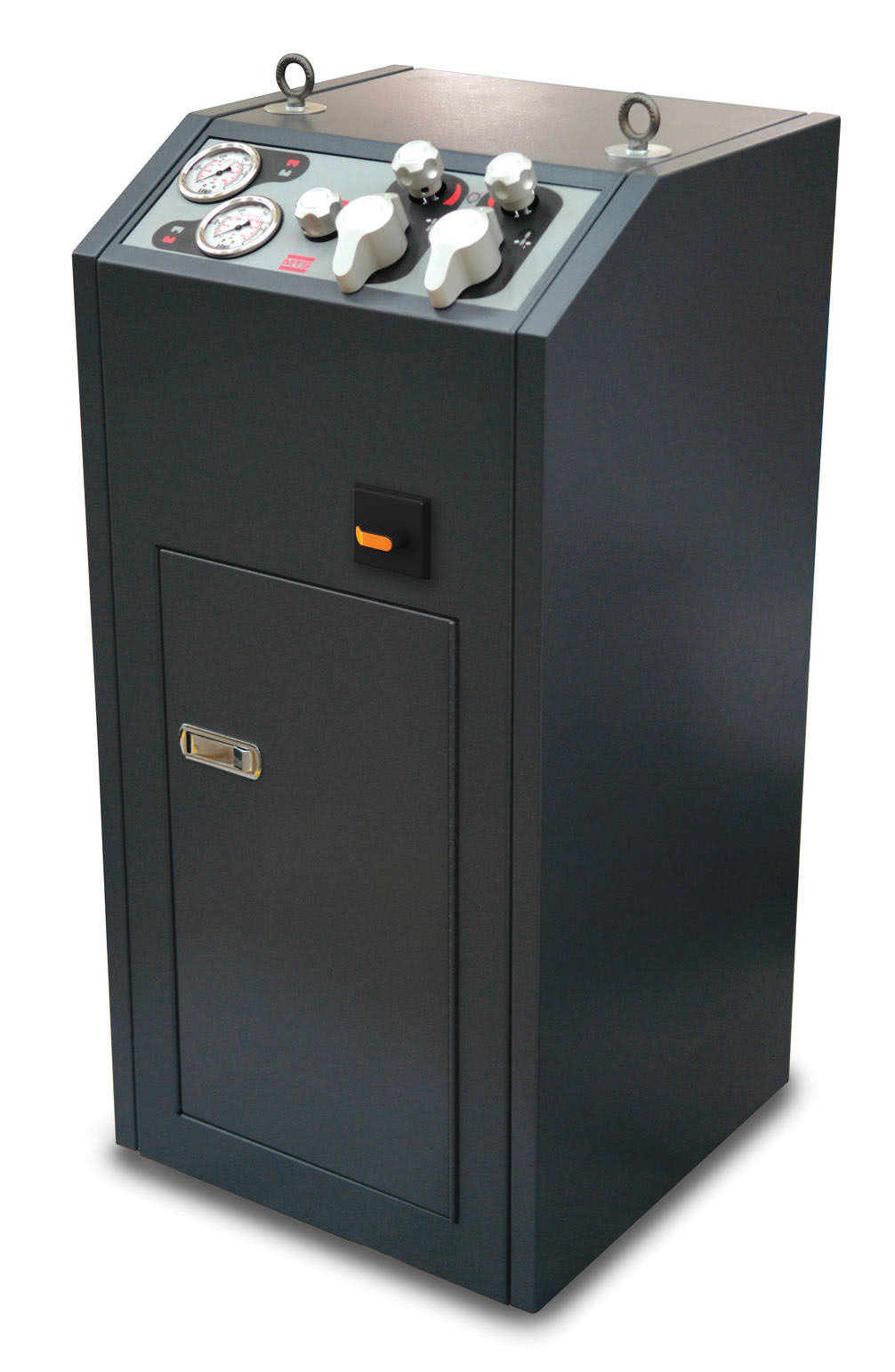

Model 685 Self-contained, Hydraulic Grip Supplies have been engineered for both performance and ease of use. There are two grip supplies and one grip intensifier to choose from.
Brochures & Datasheets
Technical Specifications
| MODEL** | DESCRIPTION | PRESSURE RANGE | SETTING REPEATABILITY | OPERATING TEMPERATURE | WEIGHT | REQUIREMENTS | PART NUMBER |
|---|---|---|---|---|---|---|---|
| 685.10E-05 | Stand-alone | 10-70 MPa | ±0.7 MPa | -40 to 177°C | 76 kg | 115 V | 057-509-601 |
| grip supply | (1,500-10,000 psi) | (±100 psi) | (-40 to 350°F) | (170 lb) | (60 Hz) | ||
| 685.10E-06 | Stand-alone | 10-70 MPa | ±0.7 MPa | -40 to 177°C | 76 kg | 100-115 V | 057-509-602 |
| grip supply | (1,500-10,000 psi) | (±100 psi) | (-40 to 350°F) | (170 lb) | (50 Hz) | ||
| 685.10E-07 | Stand-alone | 10-70 MPa | ±0.7 MPa | -40 to 177°C | 76 kg | 208-230 V | 057-509-603 |
| grip supply | (1,500-10,000 psi) | (±100 psi) | (-40 to 350°F) | (170 lb) | (60 Hz) | ||
| 685.10E-08 | Stand-alone | 10-70 MPa | ±0.7 MPa | -40 to 177°C | 76 kg | 200-240 V | 057-509-604 |
| grip supply | (1,500-10,000 psi) | (±100 psi) | (-40 to 350°F) | (170 lb) | (50 Hz) | ||
| 685.22D-05 | Stand-alone | 0.7-21 MPa | ±0.07 MPa | -40 to 177°C | 76 kg | 115 V | 057-598-001 |
| grip supply | (100-3,000 psi) | (±10 psi) | (-40 to 350°F) | (170 lb) | (60 Hz) | ||
| 685.22D-06 | Stand-alone | 0.7-21 MPa | ±0.07 MPa | -40 to 177°C | 76 kg | 100-115 V | 057-598-002 |
| grip supply | (100-3,000 psi) | (±10 psi) | (-40 to 350°F) | (170 lb) | (50 Hz) | ||
| 685.22D-07 | Stand-alone | 0.7-21 MPa | ±0.07 MPa | -40 to 177°C | 76 kg | 208-230 V | 057-598-003 |
| grip supply | (100-3,000 psi) | (±10 psi) | (-40 to 350°F) | (170 lb) | (60 Hz) | ||
| 685.22D-08 | Stand-alone | 0.7-21 MPa | ±0.07 MPa | -40 to 177°C | 76 kg | 200-240 V | 057-598-004 |
| grip supply | (100-3,000 psi) | (±10 psi) | (-40 to 350°F) | (170 lb) | (50 Hz) | ||
| 685.60C-02* | Hydraulic system | 10-45 MPa | ±0.7 MPa | -18 to 66°C | 39 kg | – | 057-597-901 |
| intensifier | (1,500-6,500 psi) | (±100 psi) | (0 to 150°F) | (87 lb) | |||
| 685.60C-03* | Hydraulic system | 10-70 MPa | ±0.7 MPa | -18 to 66°C | 39 kg | – | 057-597-902 |
| intensifier | (1,500-10,000 psi) | (±100 psi) | (0 to 150°F) | (87 lb) | |||
| *Optional kit available to minimize set-up time of larger grips. | |||||||
| **Pressure Stability: ±100 psi (1% of operating range). Continuous pump operation. |
