MTS Systems
Servohydraulic System Load Cells
Highly accurate servohydraulic system load cells deliver high stiffness, stability and linearity for a full range of both static and dynamic testing applications.
MTS Systems — 661.18SE-01, 661.18SE-02, *Kits include load cell, mounting hardware, CD and protective case

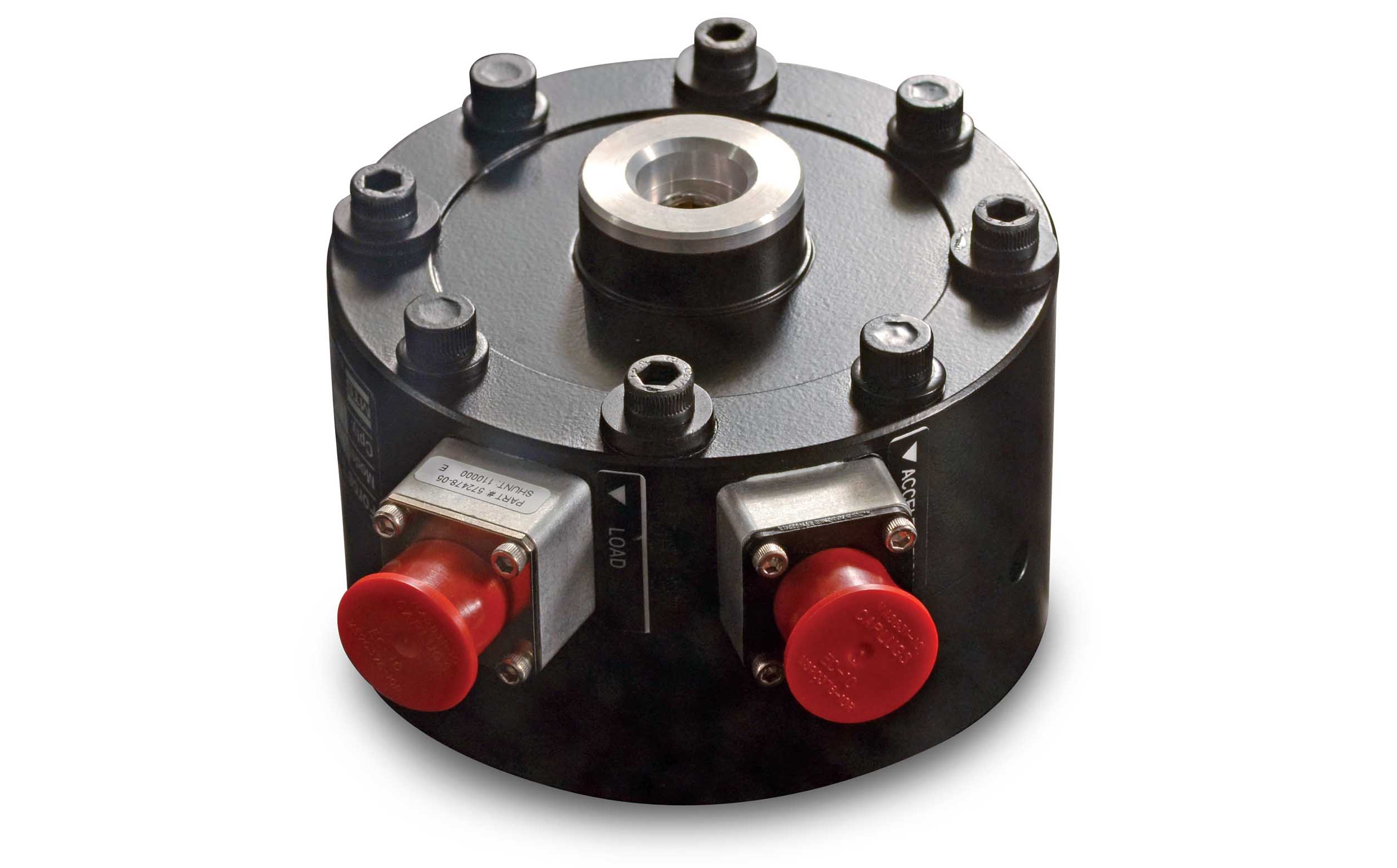

Acumen Load Cells With Built-in Accelerometers
Designed for the MTS Acumen Electrodynamic Test Systems, this axial, dynamic fatigue rated load cell has an integrated acceleration sensor that allows it to be mounted to a moving actuator or to the T-slot table. Its radially oriented beams resist off-axis loads and moments for greater accuracy.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| MODEL | FORCE CAPACITY | THREAD SIZE | KIT PART NUMBER | FACTORY CALIBRADED KIT PART NUMBER* |
|---|---|---|---|---|
| 661.18SE-01 | 1.5 kN | M6 x 1 | 057-560-101 | 057-560-106 |
| 661.18SE-02 | 3 kN | M6 x 1 | 057-560-102 | 057-560-107 |
| *Kits include load cell, mounting hardware, CD and protective case |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
