Servohydraulic System Load Cells

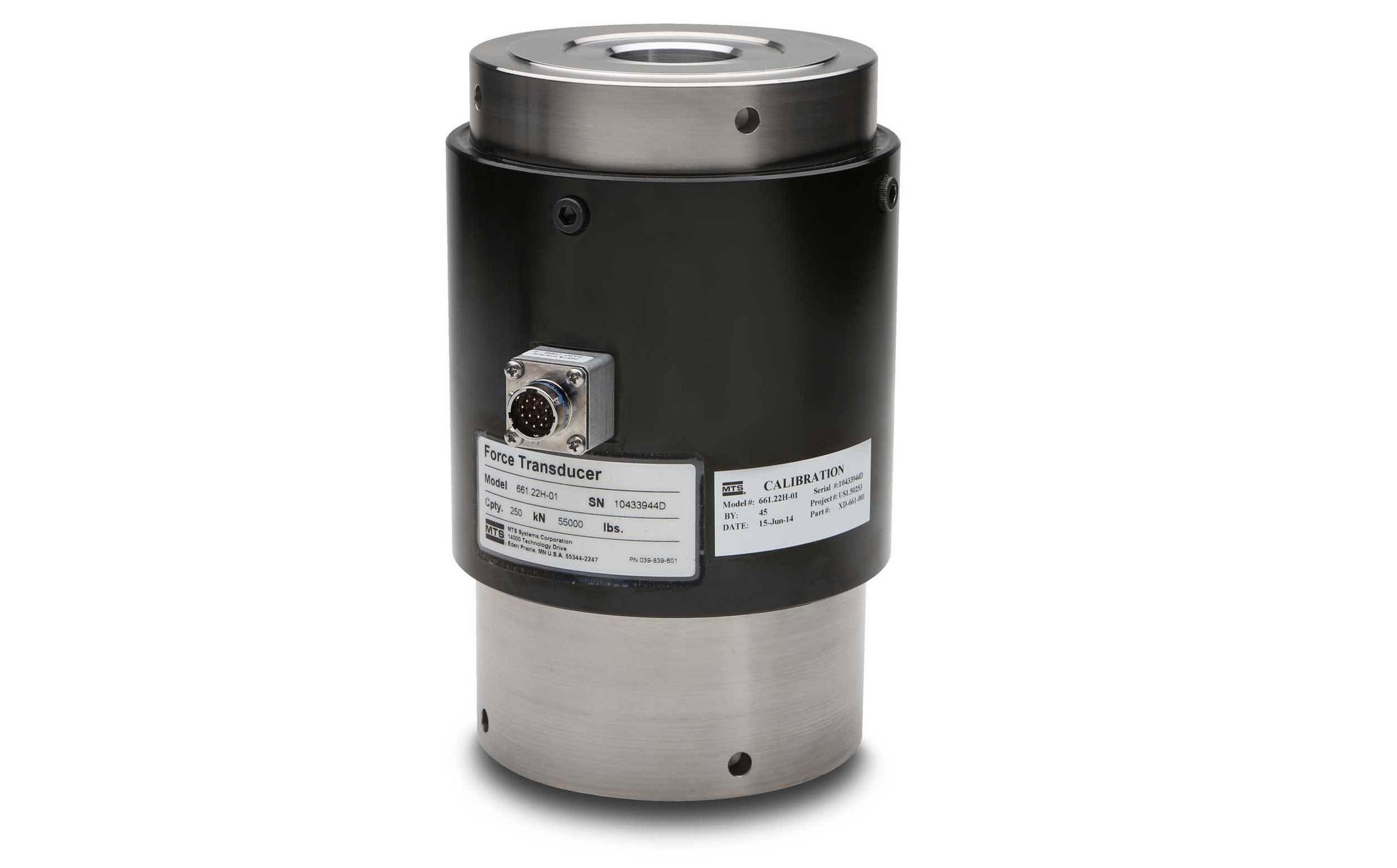

Highly accurate servohydraulic system load cells deliver high stiffness, stability and linearity for a full range of both static and dynamic testing applications. They are constructed from aircraft quality military specification materials, which are heat treated to ensure uniform hardness and minimize distortion.
Test standards
Brochures & Datasheets
Technical Specifications
Detailed Technical Specifications
| MODEL NUMBER | FORCE CAPACITY | THREAD SIZE | PART NUMBER |
|---|---|---|---|
| Metric Units | |||
| 661.09B-20 | 10 N | M6 x 1 | 051-340-602 |
| 661.09B-21 | 100 N | M6 x 1 | 051-340-604 |
| US Customary Units | |||
| 661.09A-20 | 2 lbf | 0.25 in - 28 | 051-340-601 |
| 661.09A-21 | 22 lbf | 0.25 in - 28 | 051-340-603 |
Detailed Technical Specifications
| Metric Units | |||
|---|---|---|---|
| MODEL NUMBER | FORCE CAPACITY | THREAD SIZE | PART NUMBER |
| 661.11B-01 | 250 N | M6 x 1 | 050-781-905 |
| 661.11B-02 | 500 N | M6 x 1 | 050-781-906 |
| 661.18F-01 | 1 kN | M12 x 1.25 | 050-459-902 |
| 661.18F-02 | 2.5 kN | M12 x 1.25 | 050-459-904 |
| 661.19F-01 | 5 kN | M12 x 1.25 | 045-438-102 |
| 661.19F-02 | 10 kN | M12 x 1.25 | 045-438-104 |
| 661.19F-03 | 15 kN | M12 x 1.25 | 045-438-106 |
| 661.19F-04 | 25 kN | M12 x 1.25 | 045-438-108 |
| 661.20F-01 | 25 kN | M27 x 2 | 045-430-004 |
| 661.20F-02 | 50 kN | M27 x 2 | 045-430-005 |
| 661.20F-03 | 100 kN | M27 x 2 | 045-430-006 |
Detailed Technical Specifications
| US Customary Units | |||
|---|---|---|---|
| MODEL NUMBER | FORCE CAPACITY | THREAD SIZE | PART NUMBER |
| 661.11A-01 | 50 lbf | 0.25 in - 28 | 050-781-901 |
| 661.11A-02 | 100 lbf | 0.25 in - 28 | 050-781-902 |
| 661.18E-01 | 220 lbf | 0.50 in - 20 | 050-459-901 |
| 661.18E-02 | 550 lbf | 0.50 in - 20 | 050-459-903 |
| 661.19E-01 | 1.1 kip | 0.50 in - 20 | 045-438-101 |
| 661.19E-02 | 2 kip | 0.50 in - 20 | 045-438-103 |
| 661.19E-03 | 3 kip | 0.50 in - 20 | 045-438-105 |
| 661.19E-04 | 5 kip | 0.50 in - 20 | 045-438-107 |
| 661.20E-01 | 5 kip | 1.00 in - 14 | 045-430-001 |
| 661.20E-02 | 11 kip | 1.00 in - 14 | 045-430-002 |
| 661.20E-03 | 22 kip | 1.00 in - 14 | 045-430-003 |
Detailed Technical Specifications
| MODEL NUMBER | FORCE CAPACITY | THREAD SIZE | PART NUMBER |
|---|---|---|---|
| Metric Units | |||
| 661.22D-01 | 250 kN | M36 x 2 | 042-361-802 |
| 661.23F-01 | 500 kN | M52 x 2 | 044-445-002 |
| 661.31F-01 | 1000 kN | M76 x 2 | 045-190-502 |
| 661.34F-01 | 1500 kN | M90 x 2 | 045-225-902 |
| 661.36D-03 | 2500 kN | M125 x 4 | 046-311-702 |
| US Customary Units | |||
| 661.22C-01 | 55 kip | 1.50 in - 12 | 042-361-801 |
| 661.23E-01 | 110 kip | 2.00 in - 12 | 044-445-001 |
| 661.31E-01 | 220 kip | 3.00 in - 12 | 045-190-501 |
| 661.34E-01 | 330 kip | 3.50 in - 12 | 045-225-901 |
| 661.36C-03 | 550 kip | 4.50 in - 8 | 046-311-701 |
Detailed Technical Specifications
| MODEL NUMBER | FORCE CAPACITY | THREAD SIZE | PART NUMBER |
|---|---|---|---|
| Metric Units | |||
| 661.11H-01 | 250 N | M6 x 1 | 057-117-901 |
| 661.11H-02 | 500 N | M6 x 1 | 057-117-902 |
| 661.11H-03 | 1000 N | M6 x 1 | 057-117-903 |
| 661.18H-01 | 1000 N | M12 x 1.25 | 057-118-001 |
| 661.18H-02 | 2.5 kN | M12 x 1.25 | 057-118-002 |
| 661.19H-01 | 5 kN | M12 x 1.25 | 057-118-101 |
| 661.19H-02 | 10 kN | M12 x 1.25 | 057-118-102 |
| 661.19H-03 | 15 kN | M12 x 1.25 | 057-118-103 |
| 661.19H-04 | 25 kN | M12 x 1.25 | 057-118-104 |
| 661.20H-02 | 50 kN | M27 x 2 | 057-118-201 |
| 661.20H-03 | 100 kN | M27 x 2 | 057-118-202 |
| 661.22H-01 | 250 kN | M36 x 2 | 057-263-701 |
| 661.23H-01 | 500 kN | M52 x 2 | 057-263-801 |
Detailed Technical Specifications
| MODEL NUMBER | AXIAL FORCE | TORSIONAL FORCE | THREAD SIZE | PART NUMBER |
|---|---|---|---|---|
| Metric Units | ||||
| 662.20D-01 | 2.5 kN | 25 N.m | M6 x 1 | 049-611-002 |
| 662.20D-03 | 10 kN | 100 N.m | M8 x 1.25 | 049-381-502 |
| 662.20D-04 | 15 kN | 150 N.m | M8 x 1.25 | 050-457-702 |
| 662.20D-05 | 25 kN | 250 N.m | M10 x 1.5 | 050-027-102 |
| US Customary Units | ||||

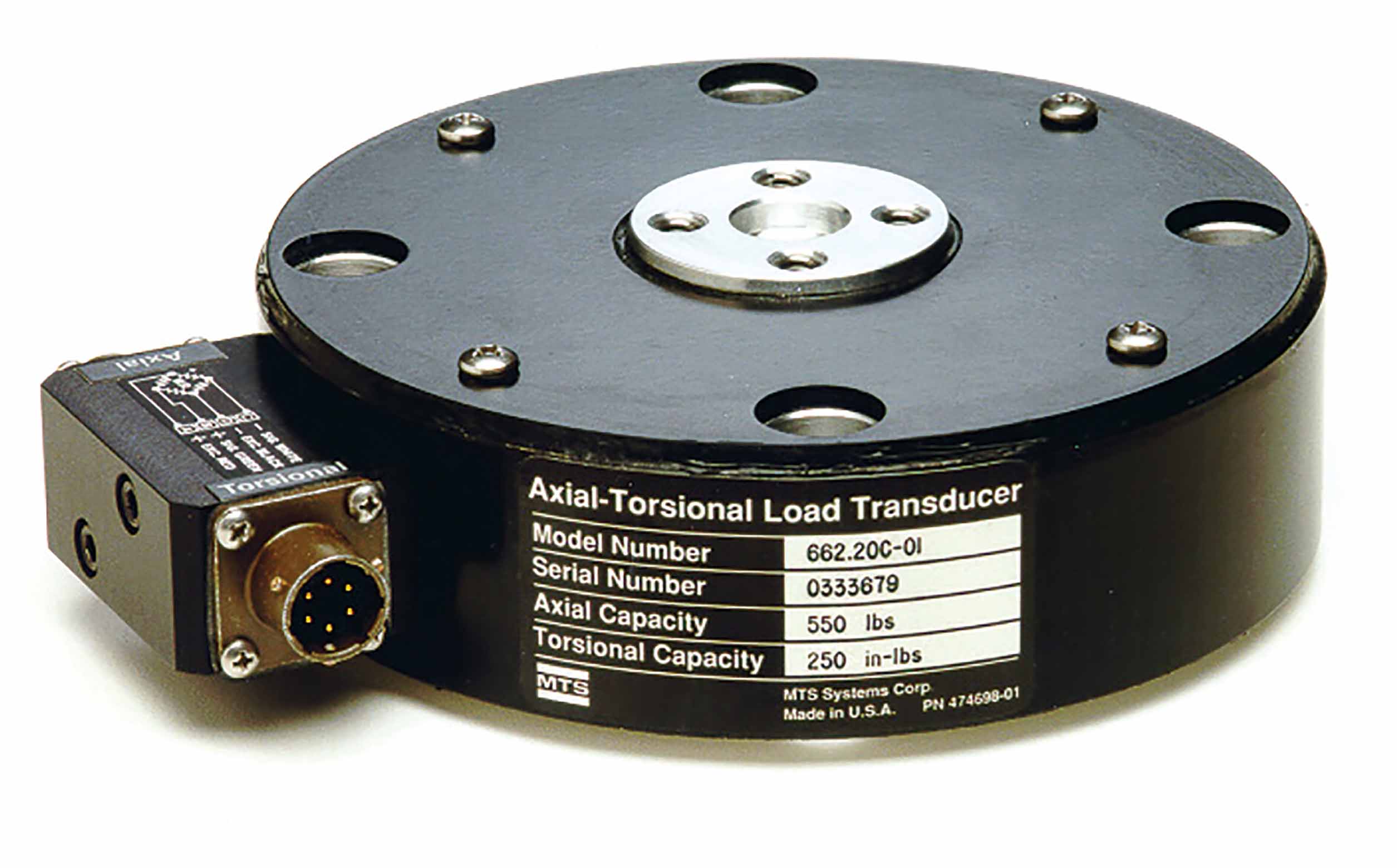

| 662.20C-01 | 550 lbf | 250 in.lbf | 1/4 in - 20 | 049-611-001 |

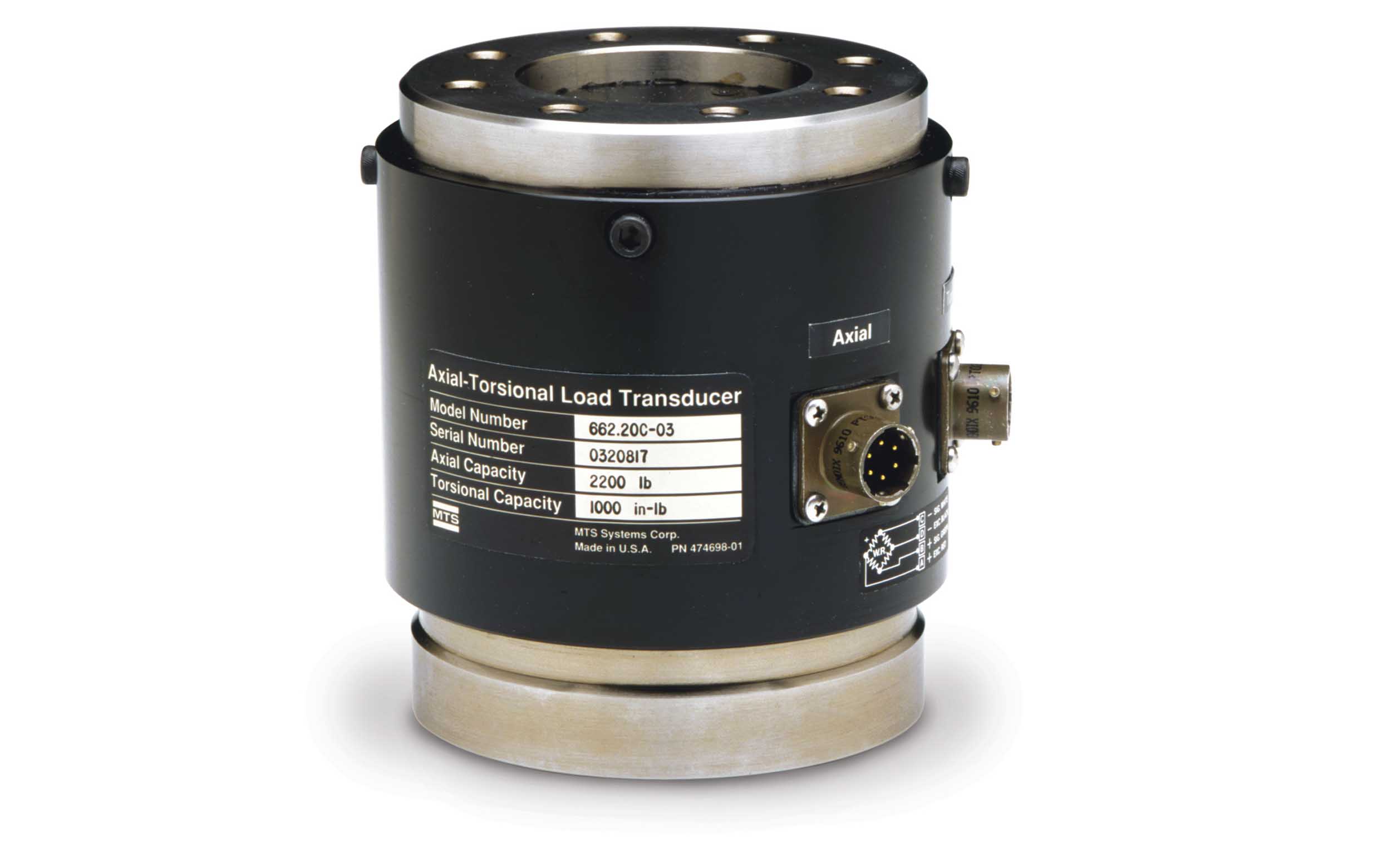

| 662.20C-03 | 2200 lbf | 1000 in.lbf | 5/16 in - 18 | 049-381-501 |
| 662.20C-04 | 3300 lbf | 1500 in.lbf | 5/16 in - 18 | 050-457-701 |
| 662.20C-05 | 5500 lbf | 2500 in.lbf | 3/8 in - 16 | 050-027-101 |
Detailed Technical Specifications
| MODEL NUMBER | AXIAL FORCE | TORSIONAL FORCE | THREAD SIZE | PART NUMBER |
|---|---|---|---|---|
| Metric Units | ||||
| 662.20H-01 | 2.5 kN | 25 N.m | M6 x 1 | 057-202-601 |
| 662.20H-03 | 10 kN | 100 N.m | M8 x 1.25 | 057-202-701 |
| 662.20H-04 | 15 kN | 150 N.m | M8 x 1.25 | 057-202-702 |
| 662.20H-05 | 25 kN | 250 N.m | M10 x 1.5 | 057-202-801 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
