MTS Systems — LPB.102, LPB.252, LPB.502

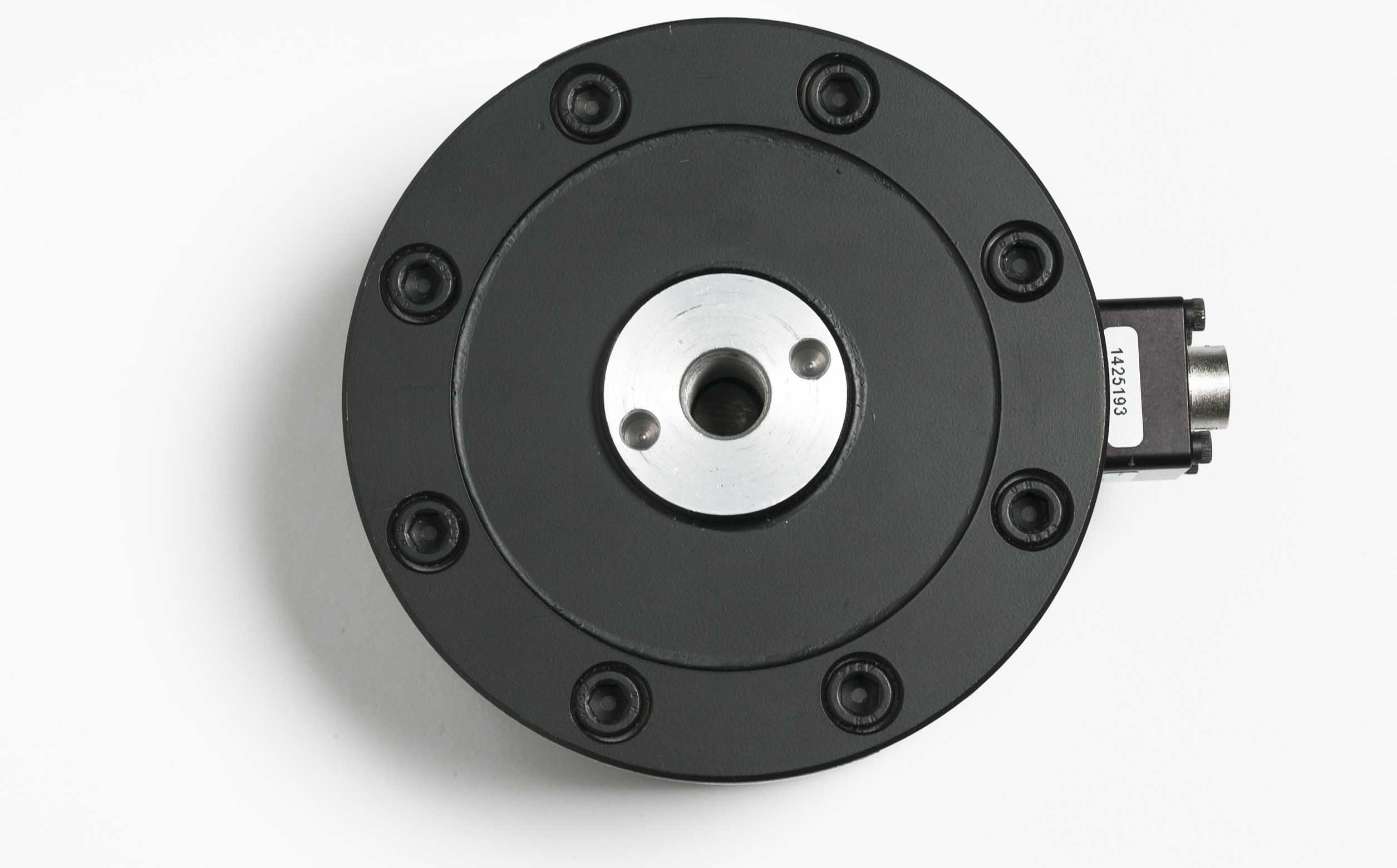

Low Profile Bending Beam Load Cells For Criterion 40 Electromechanical Systems
These low-profile bending beam load cells are designed for Criterion Series 40 Electromechanical Systems. They measure moderate axial loads using a compact design with four embedded strain gages, and are ideal for tension and compression testing of soft metals, plastics and reinforced plastics.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| Model | Part Number | Type | Force Rating | Accuracy | Overload Protection | Mounting Thread |
|---|---|---|---|---|---|---|
| LPB.102 | 057-481-401 | Low profile bending | 100 N | class 0.5 from 1 to 100% | 150% of capacity | M6 x 1 |
| LPB.252 | 057-481-402 | Low profile bending | 250 N | class 0.5 from 1 to 100% | 150% of capacity | M6 x 1 |
| LPB.502 | 057-481-403 | Low profile bending | 500 N | class 0.5 from 1 to 100% | 150% of capacity | M6 x 1 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
