MTS Systems

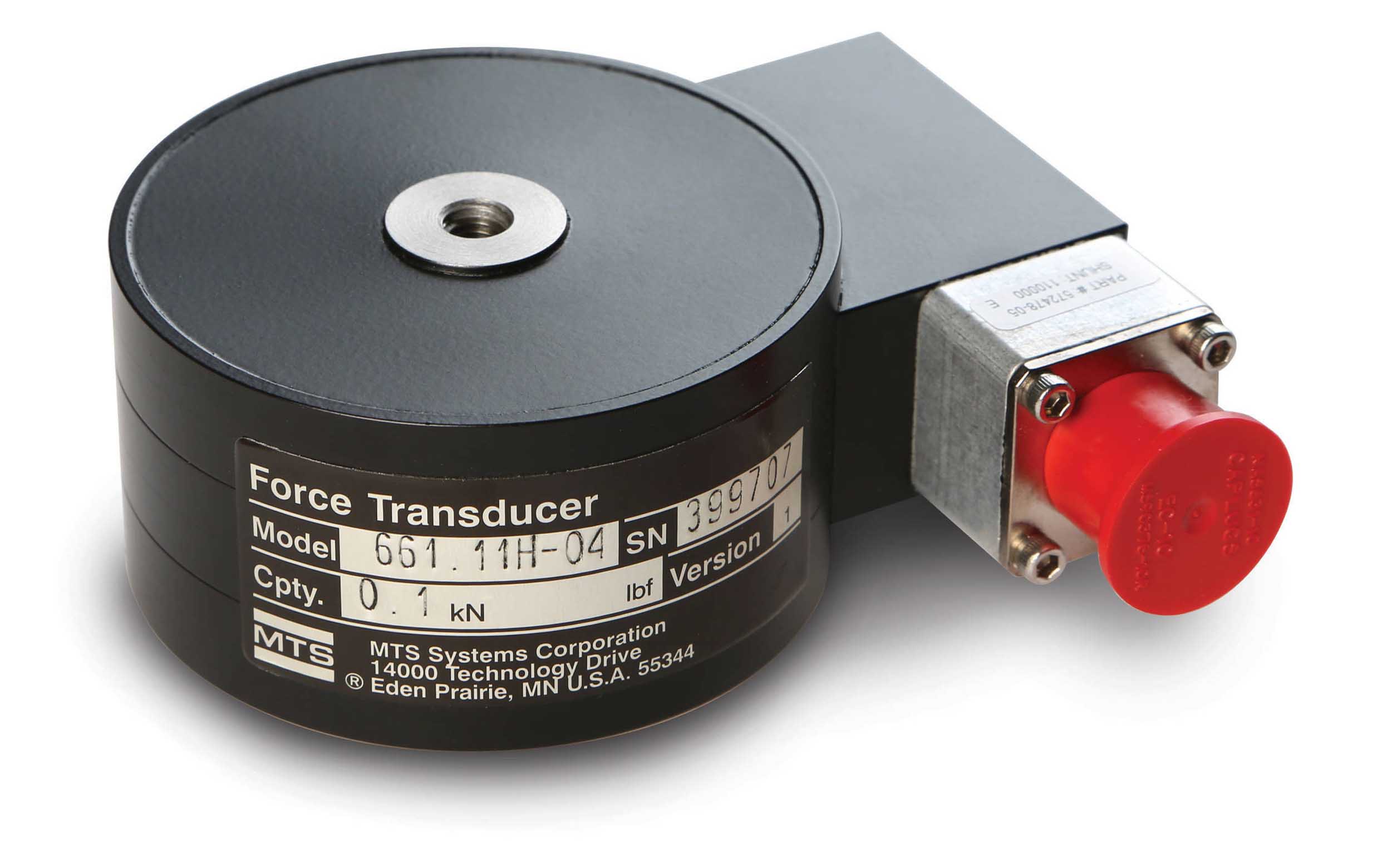

Acumen Tandem Load Cell Kits with TEDS
Designed for Acumen Electrodynamic Test Systems, these axial, dynamic fatigue rated load cells can be mounted either to the actuator or to the T-slot table. Their low deflection and high stiffness provide better dynamic performance, and proprietary bridge wiring increases their accuracy by minimizing susceptibility to stray magnetic fields.
Applications
Test types
Test specimens
Brochures & Datasheets
Technical Specifications
| FACTORY CALIBRATED KIT | ||||
|---|---|---|---|---|
| MODEL | FORCE CAPACITY | THREAD SIZE | KIT PART NUMBER* | PART NUMBER* |
| 661.11H | 10 N | M6 x 1 | 057-560-111 | 057-560-112 |
| 661.11H | 25 N | M6 x 1 | 057-560-113 | 057-560-114 |
| 661.11H | 50 N | M6 x 1 | 057-560-115 | 057-560-116 |
| 661.11H-04 | 125 N | M6 x 1 | 057-560-105 | 057-560-110 |
| 661.11H-01 | 250 N | M6 x 1 | 057-560-104 | 057-560-109 |
| 661.11H-02 | 500 N | M6 x 1 | 057-560-103 | 057-560-108 |
| *Kits include load cell, mounting hardware and spanner wrench |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
