MTS Systems

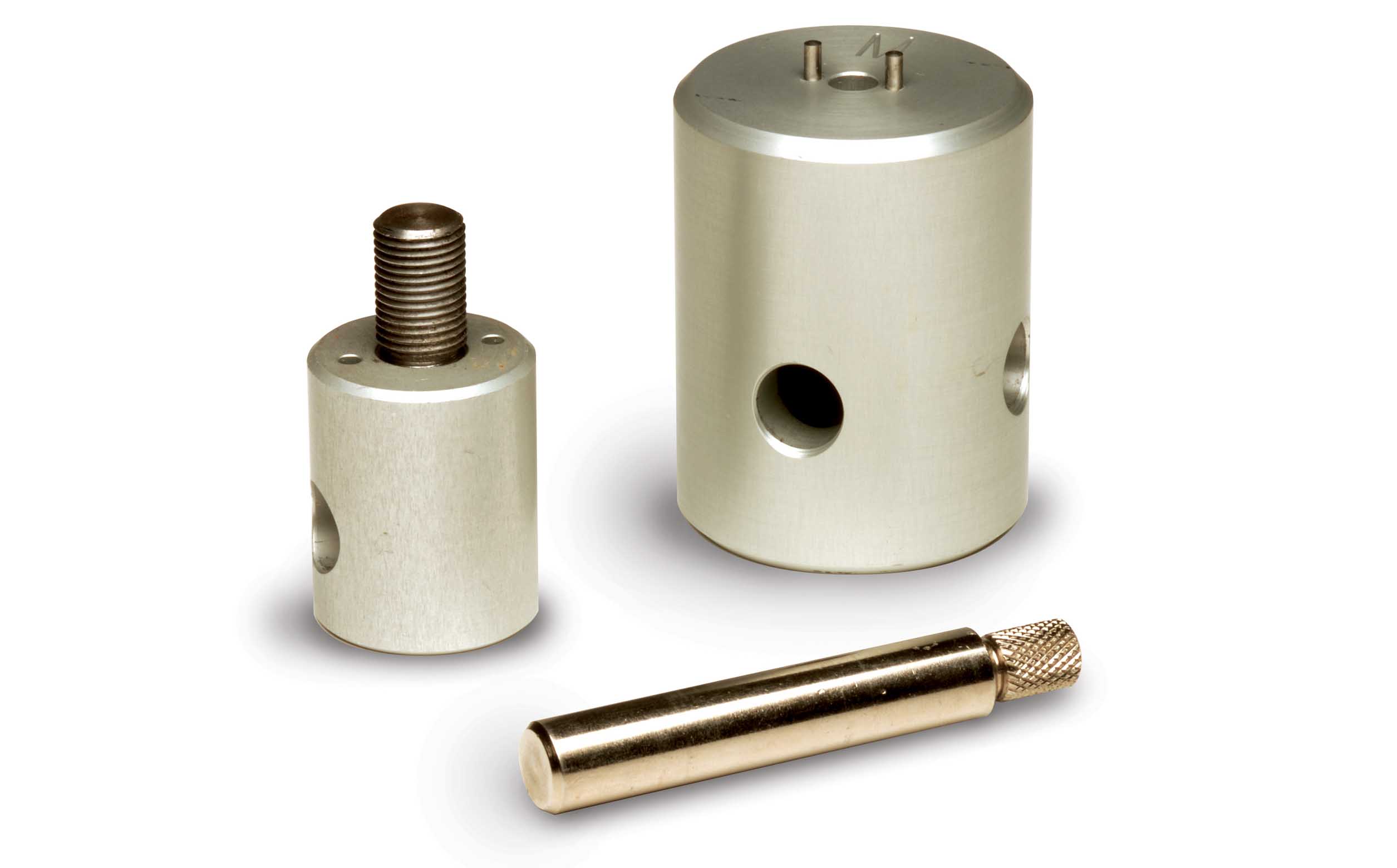

Clevis Pin Load Cell Conversion Adapters
These clevis pin load cell conversion adapters provide an easy and quick way to change out grips and fixtures on a load cell without decreasing the force of the test.
Brochures & Datasheets
Technical Specifications
| THREAD SIZE | CONNECTION TYPE | PIN DIAMETER | CLEVIS DIAMETER | PART NUMBER |
|---|---|---|---|---|
| M27 x 2 | Df | 0.5 in | 1.25 in | 100-140-862 |
| 1 in - 14 | Df | 0.5 in | 1.25 in | 100-088-645 |
| 0.25 in - 28 | Df | 0.5 in | 1.25 in | 100-092-552 |
| M24 x 1.5 | Df | 0.5 in | 1.25 in | 100-092905 |
| 0.5 in - 20 | Df | 0.5 in | 1.25 in | 100-088-650 |
| M12 x 1.25 | Bf | 0.187 in | 0.5 in | 100-093-049 |
| 0.25 in - 28 | Bf | 0187 in | 0.5 in | 100-092-914 |
| 0.25 in - 28 | Cf | 0.25 in | 0.625 in | 100-092-547 |
Specifications are taken from the official MTS product page and may change; please confirm with our team before ordering.
